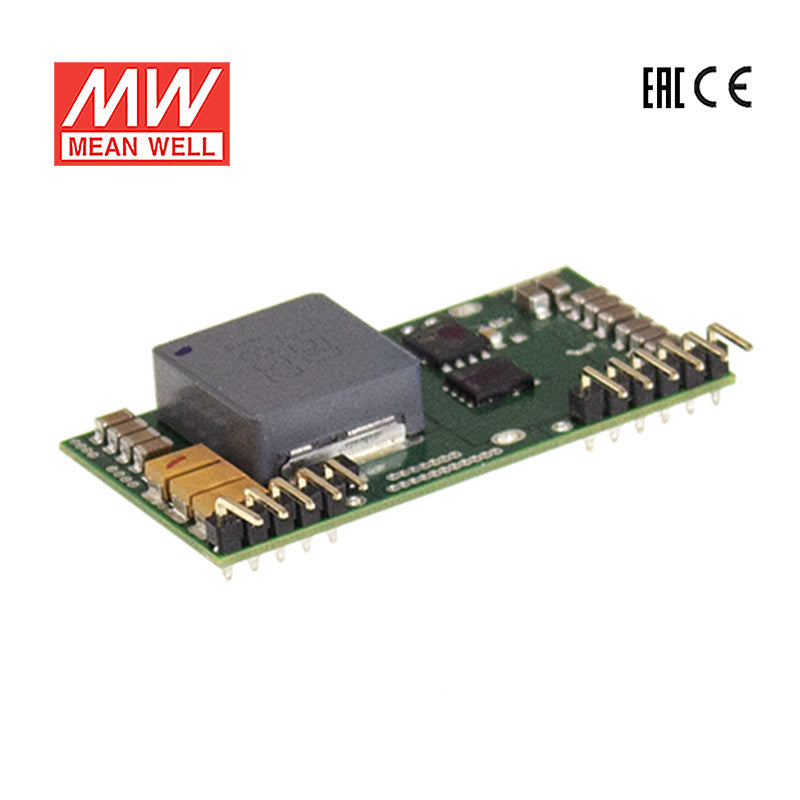

Mean Well NID65-24 DC-DC Converter - 64.8W - 30~53V in 24V out 2.7A

SKU NID65-24

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

NID65-24 is the 24V output model of this series: rated power 64.8W.

Features

Economical open frame design
Wide input range
High efficiency up to 97%
Remote ON / OFF control
Compact size 2.0"×1.024"× 0.433"(SIP package)
Protections: Short circuit / Overload / Over voltage
-30~+85℃ wide working temperature
Cooling by free air convection
Comply to BS EN/EN55032 ClassA without additional components
Trimming output (optional)
3 years warranty

Specifications

NID65-24Specifications from the official datasheet (2024-10-30 edition)

OUTPUT

DC VOLTAGE: 24V
CURRENT RANGE: 0 ~ 2.7A
RATED POWER: 64.8W
RIPPLE & NOISE (max.)^Note.2: 200mVp-p
LINE REGULATION^Note.3: ±0.5%
LOAD REGULATION^Note.4: ±0.5%
VOLTAGE TOLERANCE: ±2.0%
SWITCHING FREQUENCY (Typ.): 200KHz
EXTERNAL CAPACITANCE LOAD (max.): 47uf/50V low ESR

INPUT

VOLTAGE RANGE: 30 ~ 53VDC
NORMAL VOLTAGE: 48VDC
EFFICIENCY (Typ.) 24Vin: ------
EFFICIENCY (Typ.) 48Vin: 96%
DC CURRENT Full load: 1500mA/48VDC
DC CURRENT No load: 50mA

PROTECTION

PROTECTION: Fuse recommended (5A)
OVERLOAD (Typ.): 120 ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 28~ 33V Protection type : Shut off o/p voltage, clamp by TVS diode
SHORT CIRCUIT: All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed

FUNCTION

REMOTE CONTROL: Power on : 1.2VDC < R.C ~ com < 12VDC or open circuit ; power off : R.C ~ com < 0.4VDC or short circuit (PIN5,6 & PIN11)

ENVIRONMENT

SAFETY STANDARDS: EAC TP TC 004 approved
WORKING TEMP.: -30 ~ +85℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 85% RH non-condensing
STORAGE TEMP.: -30 ~ +105℃
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 55℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARD: BS EN/EN62368-1(LVD)
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class A without external components,Class B with external components
Radiated BS EN/EN55032 Class A without external components,Class B with external components
EMC IMMUNITY: BS EN/EN55035

Parameter Standard Test Level

Radiated BS EN/EN61000-4-3 Level 2, 3V/m; criteria A
EFT / Burst BS EN/EN61000-4-4 Level 2, 1KV; criteria A
Surge BS EN/EN61000-4-5 Level 2, 1KV/Line-Line,criteria A
Conducted BS EN/EN61000-4-6 Level 2, 3V; criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class A without external components,Class B with external components
Radiated	BS EN/EN55032	Class A without external components,Class B with external components

Parameter	Standard	Test Level
Radiated	BS EN/EN61000-4-3	Level 2, 3V/m; criteria A
EFT / Burst	BS EN/EN61000-4-4	Level 2, 1KV; criteria A
Surge	BS EN/EN61000-4-5	Level 2, 1KV/Line-Line,criteria A
Conducted	BS EN/EN61000-4-6	Level 2, 3V; criteria A

OTHERS

MTBF: 16602.6K hrs min. Telcordia SR-332 (Bellcore) ; 890.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 50.8*26*11mm or 2.0"*1.024"*0.433" inch (L*W*H)
WEIGHT: 19g;280psc/6.32Kg/0.94CUFT

Test conditions and notes4

1.All parameters are specified at normal input, rated load, 25℃ 70% RH Ambient.
2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
3.Line regulation is measured from low line to high line at rated load.
4.Load regulation is measured from 10% to 100% rated load.

Technical drawings

NID65-24 Derating Curve — Derating Curve

NID65-24 Mechanical Specification — Mechanical Specification

NID65-24 Pin Configuration — Pin Configuration

NID65-24 EMC Suggestion Circuit — EMC Suggestion Circuit

Downloads

Certificates3

Mean Well NID-35-65-100-EMC Certificate PDF Download

Mean Well NID-35-65-100-CE-dec Certificate PDF Download

Mean Well NID-35-65-100-UK-dec Certificate PDF Download

Test reports1

Mean Well NID65-24 Test Report PDF Download

Catalogues2

Mean Well DC-DC Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the NID65-24 for 24V PLC or automation control loads?

Yes, if the equipment needs a constant-voltage 24V output and its demand stays within 2.7A or 64.8W. This model is intended for regulated 24V loads with a 30-53VDC input range.

Is the NID65-24 suitable for 24V industrial communication or monitoring equipment?

It can be used with 24V constant-voltage devices that do not exceed 2.7A total output current. The maximum output power is 64.8W, so the full connected load has to remain within that rating.

Can this converter run 24V embedded automation subsystems from a higher DC input range?

It is designed for systems where the source falls between 30-53VDC and the load requires a stable 24V output. The output ceiling is 2.7A and 64.8W.

Is the NID65-24 appropriate for outdoor equipment cabinets?

The operating temperature range is -30°C to +85°C, which supports use in demanding temperature conditions. However, no IP rating is listed, so the specs do not confirm suitability for direct outdoor exposure.

How does the NID65-24 differ from the other models in the series?

The NID65-24 is the 24V version, rated for 2.7A and 64.8W, with a 30-53VDC input range. The sibling models are NID65-12 at 12V, 4.9A, 58.8W; NID65-15 at 15V, 4.3A, 64.5W; and NID65-5 at 5V, 6.5A, 32.5W.
