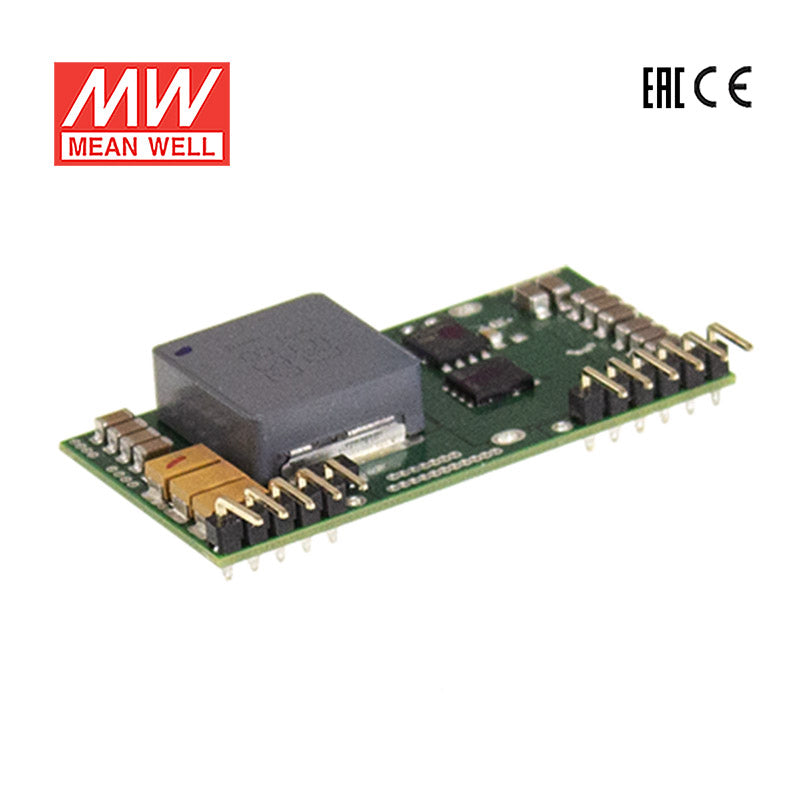

Mean Well NID65-12 DC-DC Converter - 58.8W - 20~53V in 12V out
Please Login for Pricing
Description
Description
Trimming output (optional)
3 years warranty
Key Features
- ✓Economical open frame design
- ✓Wide input range
- ✓High efficiency up to 97%
- ✓Remote ON/OFF control
- ✓Compact size 2.0"x1.024"x0.433"(SIP package)
- ✓Protection: Short circuit/Overload/Over voltage
- ✓-30~+85℃ wide working temperature
- ✓Cooling by free air convection
- ✓Comply to BS EN/EN55032 Class A without additional components
- ✓Trimming output (optional)
- ✓3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesNID Series
-
Power Rating58.8 Watt
-
Output Voltage12 Volt
-
Rated Current4.9 Ampere
-
Input Voltage20V~53V
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~85°C
-
Warranty3 Year
-
Length5.08 cm
-
Width2.6 cm
-
Height1.1 cm
-
Weight0.02 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can I use the NID65-12 for a 12V industrial control device?
Yes, if the equipment requires a constant-voltage 12V output and draws no more than 4.9A or 58.8W. This model accepts 20-53VAC input and is intended for regulated 12V loads.
Is the NID65-12 suitable for 12V embedded or edge-computing hardware in a wider-input system?
It can be used where the source is within 20-53VAC and the load needs a stable 12V constant-voltage output. The available output is capped at 4.9A and 58.8W, so the total draw of the embedded hardware must stay within that limit.
Can this converter power 12V automation accessories or low-power actuators?
It is appropriate for 12V automation loads that need constant voltage and stay within 4.9A output current. The total output capacity is 58.8W, so it fits lighter-duty 12V accessories rather than higher-power 12V loads.
Is the NID65-12 appropriate for harsh temperature environments?
Its operating temperature range is -30°C to +85°C, which supports use across a wide temperature span. No IP rating is listed in the provided specs, so suitability for exposed outdoor or washdown environments is not established here.
How does the NID65-12 compare with the other NID65 models?
The NID65-12 provides 12V at 4.9A for 58.8W with a 20-53VAC input range. In the same series, the NID65-15 is 15V, 4.3A, 64.5W; the NID65-24 is 24V, 2.7A, 64.8W; and the NID65-5 is 5V, 6.5A, 32.5W.
Other NID65 Models
3 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Mean Well NID65-5 DC-DC Converter - 32.5W - 10.5~53V in 5V out | 32.5W | 5V | 6.5A | Indoor | View |
| Mean Well NID65-24 DC-DC Converter - 64.8W - 30~53V in 24V out | 64.8W | 24V | 2.7A | Indoor | View |
| Mean Well NID65-15 DC-DC Converter - 64.5W - 20~53V in 15V out | 64.5W | 15V | 4.3A | Indoor | View |
