Mean Well

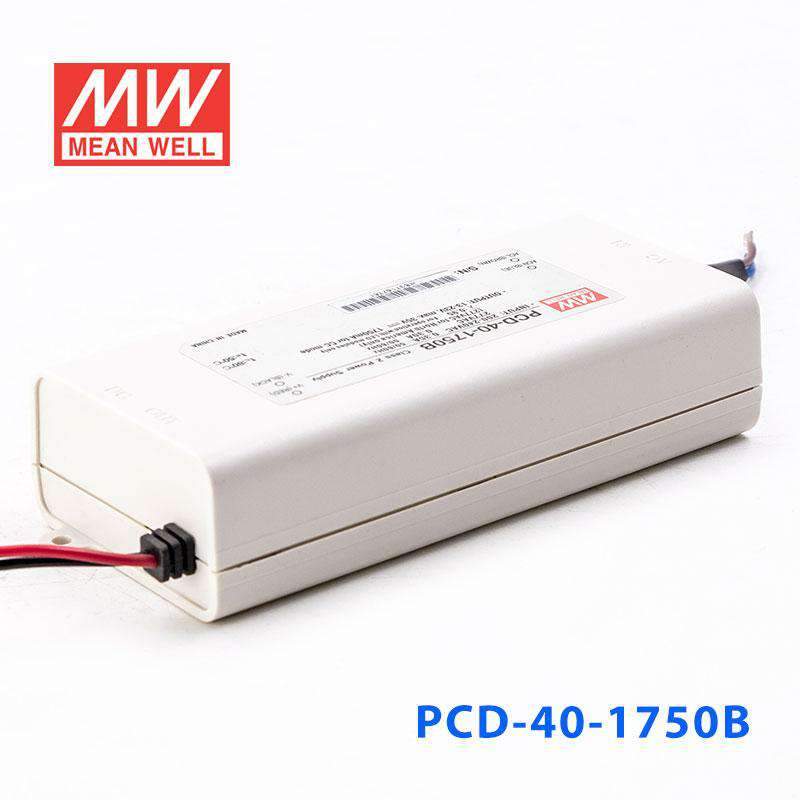

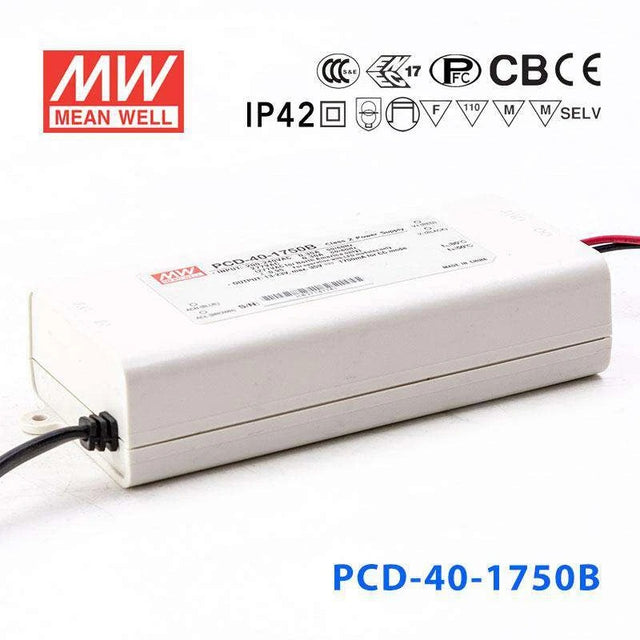

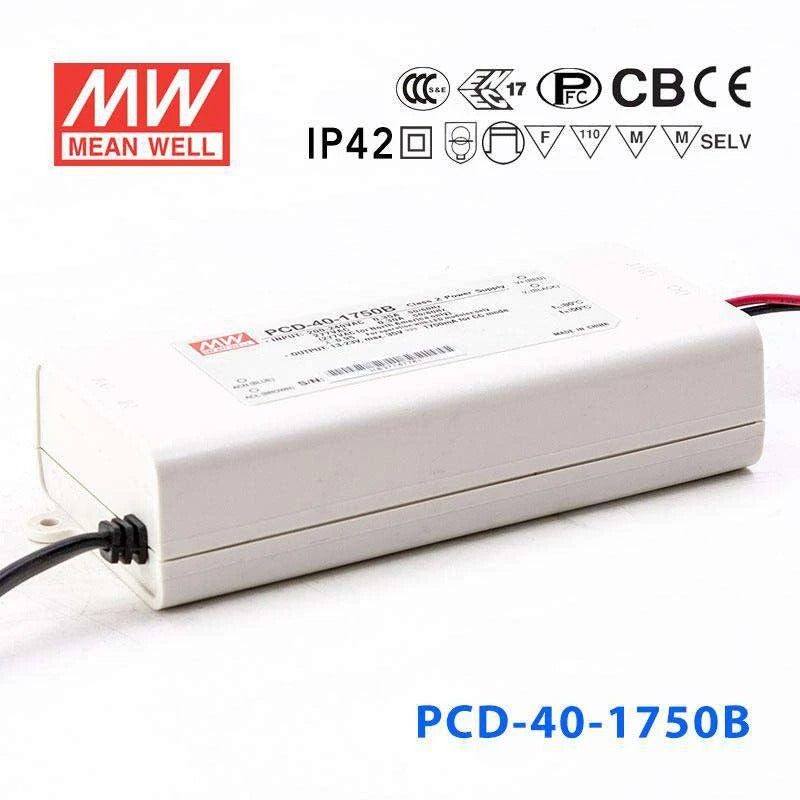

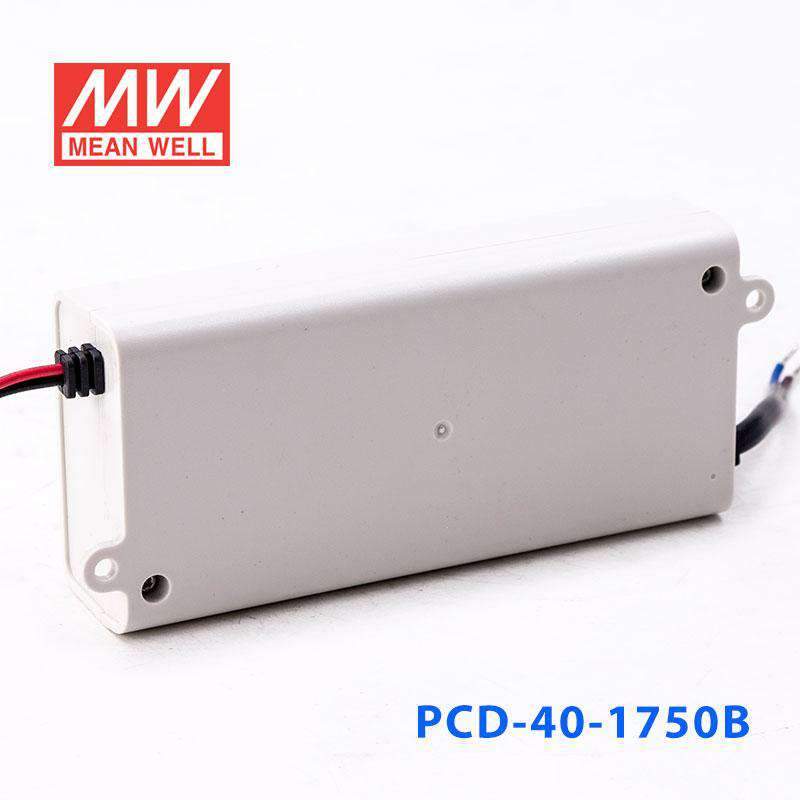

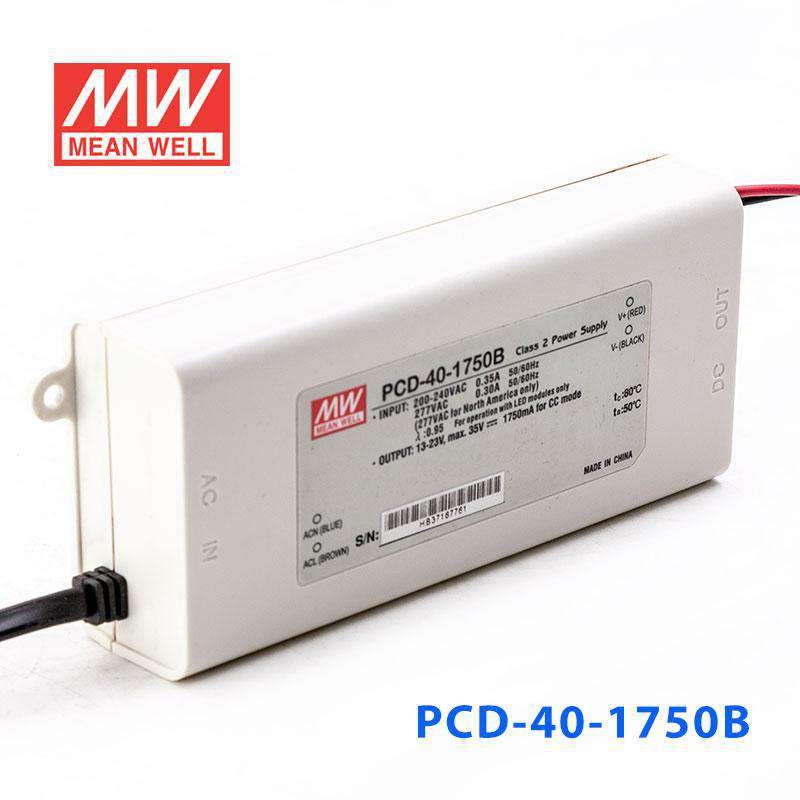

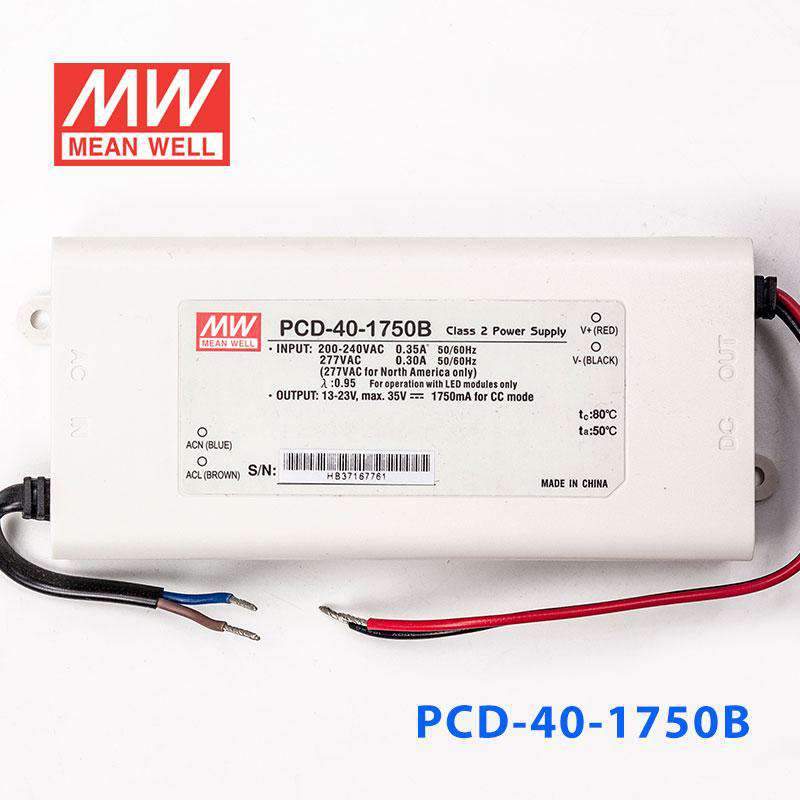

Mean Well PCD-40-1750B Power Supply 40W 1750mA

TRIAC dimmableplastic casing IP42Class II design without FGconstant current
SKU PCD-40-1750B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
Available to order
|

Overview

PCD-40-1750B is the model of this series: rated current 1750mA, rated power 40.25W, typical efficiency 85%.

Features

  • AC phase-cut dimming
  • Work with leading edge and trailing edge TRIAC dimmers
  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PCD-40-1750BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
1750mA
OPERATING VOLTAGE RANGE
13 ~ 23V
CURRENT ACCURACY
±5.0%
RATED POWER
40.25W
RIPPLE & NOISE (max.)Note.1
2.4Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
35V
SETUP TIME
500ms / 230VAC at full load

INPUT

VOLTAGE RANGE
180~295VAC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60%(PCD-40-350B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
85%
AC CURRENT (Typ.)
0.35A/230VAC 0.3A/277VAC
INRUSH CURRENT(Typ.)
COLD START 11A (twidth=50μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
47 units (circuit breaker of type B) / 47 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery

ENVIRONMENT

WORKING TEMP.
-30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004,IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B,EAC TP TC 020

OTHERS

MTBF
4038.1K hrs min. Telcordia SR-332 (Bellcore) 362.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
128*60*31.5mm (L*W*H)
PACKING
0.23Kg;30pcs/7.9Kg/0.58CUFT

Certifications & ratings

IP42
IP42
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PCD-40-1750B Mechanical Specification
Mechanical Specification
PCD-40-1750B Block Diagram
Block Diagram
PCD-40-1750B Power Factor Characteristic
Power Factor Characteristic
PCD-40-1750B P C D - 4 0 series
P C D - 4 0 series

Downloads

FAQ

Can I use the PCD-40-1750B for a high-current LED downlight?

Yes, when the downlight is built for 1750mA constant current and its LED load falls within the 13-23V constant current range. This model is intended for constant current LED operation, not constant voltage fixtures. Its rated output power is 40.25W.

Is the PCD-40-1750B suitable for low-voltage signage LED assemblies that need more current?

It can be suitable where the signage LED assembly is a constant current load requiring 1750mA and operating from 13V to 23V. That makes it a higher-current option within the 40W class for lower-voltage LED assemblies. It should not be used in place of a constant voltage power supply.

Can this driver power a compact small LED array with a short forward-voltage stack?

Yes, that is the type of load this model fits when the array needs 1750mA constant current and has a total forward voltage within 13-23V. The lower voltage range makes it better matched to shorter constant current LED strings than higher-voltage siblings. The array also needs to remain within the 40.25W rating.

How do I size LED compatibility for the PCD-40-1750B?

Use the 1750mA constant current rating and verify that the total LED forward voltage is within the 13-23V constant current range. The number of LEDs depends on each LED's forward voltage, so compatibility cannot be reduced to one fixed LED quantity. If the LEDs are specified for constant voltage, this is the wrong driver type.

Can the PCD-40-1750B handle colder or warmer indoor environments?

The specified operating temperature range is -30°C to +50°C, which covers a broad indoor temperature span. Its casing is IP42, so the environment still needs to match that level of ingress protection. At higher ambient temperatures the load must be reduced according to the derating curve.

What is the difference between the PCD-40-1750B and the other 40W PCD drivers?

In the 40W group, PCD-40-1750B is 1750mA with a 13-23V range and 40.25W, PCD-40-1400B is 1400mA with a 17-29V range and 40.6W, PCD-40-1050B is 1050mA with a 22-38V range and 39.9W, PCD-40-700B is 700mA with a 34-57V range and 39.9W, PCD-40-500B is 500mA with a 45-80V range and 40W, and PCD-40-350B is 350mA with a 70-108V range and 37.8W. All of them share the same 180-295VAC input range. This model is the highest-current option among the listed 40W siblings.
