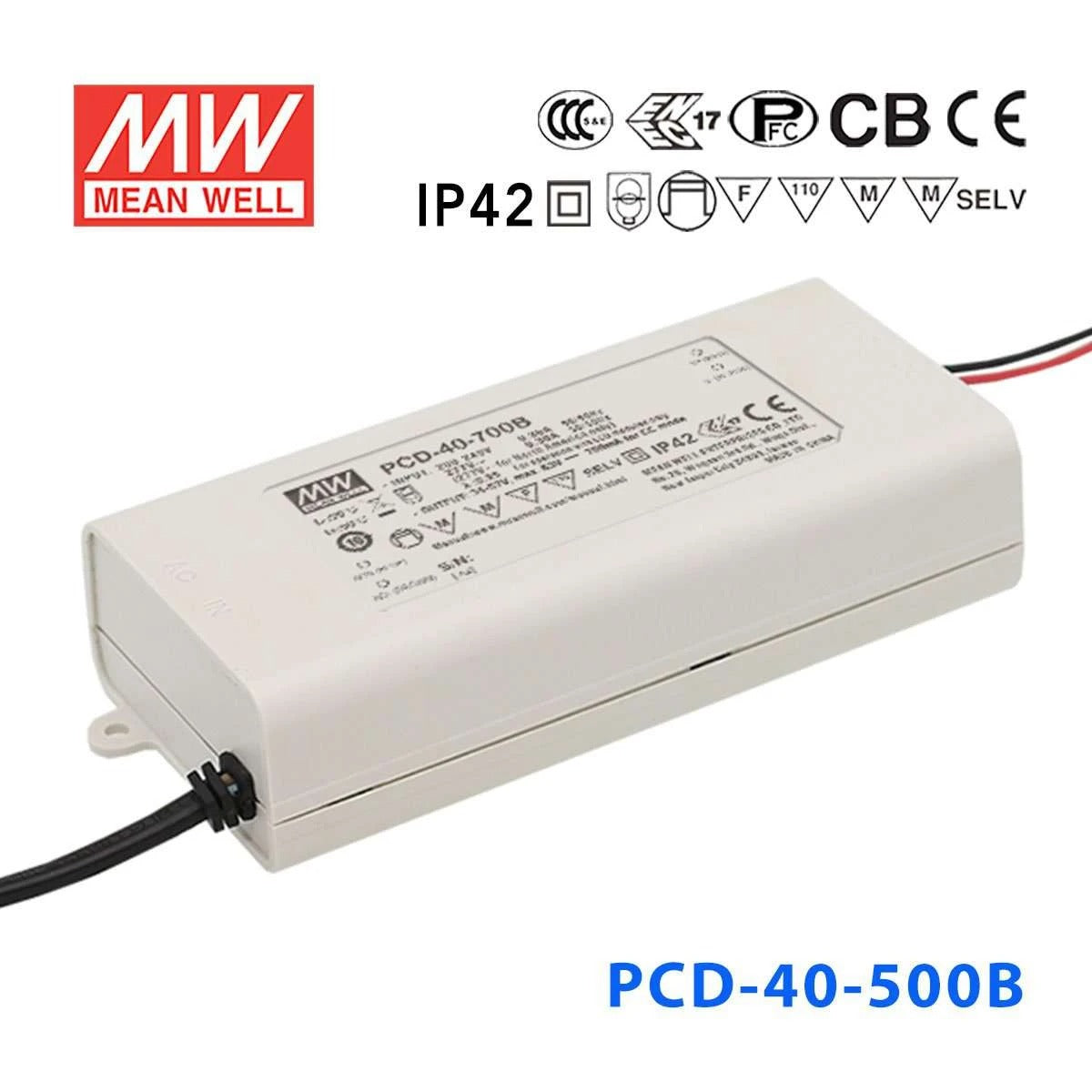

Mean Well PCD-40-500B Power Supply 40W 500mA

TRIAC dimmableplastic casing IP42Class II design without FGconstant current
SKU PCD-40-500B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

PCD-40-500B is the model of this series: rated current 500mA, rated power 40W, typical efficiency 87%.

Features

  • AC phase-cut dimming
  • Work with leading edge and trailing edge TRIAC dimmers
  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PCD-40-500BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
500mA
OPERATING VOLTAGE RANGE
45 ~ 80V
CURRENT ACCURACY
±5.0%
RATED POWER
40W
RIPPLE & NOISE (max.)Note.1
5.0Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
100V
SETUP TIME
500ms / 230VAC at full load

INPUT

VOLTAGE RANGE
180~295VAC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60%(PCD-40-350B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
87%
AC CURRENT (Typ.)
0.35A/230VAC 0.3A/277VAC
INRUSH CURRENT(Typ.)
COLD START 11A (twidth=50μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
47 units (circuit breaker of type B) / 47 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery

ENVIRONMENT

WORKING TEMP.
-30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004,IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B,EAC TP TC 020

OTHERS

MTBF
4038.1K hrs min. Telcordia SR-332 (Bellcore) 362.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
128*60*31.5mm (L*W*H)
PACKING
0.23Kg;30pcs/7.9Kg/0.58CUFT

Certifications & ratings

IP42
IP42
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PCD-40-500B Mechanical Specification
Mechanical Specification
PCD-40-500B Block Diagram
Block Diagram
PCD-40-500B Power Factor Characteristic
Power Factor Characteristic
PCD-40-500B P C D - 4 0 series
P C D - 4 0 series

Downloads

FAQ

Can I use the PCD-40-500B for a constant current LED downlight with a higher forward-voltage load?

Yes, if the downlight requires 500mA constant current and its total LED forward voltage is within the 45-80V constant current range. That makes it better aligned with higher-voltage constant current loads than the lower-voltage 40W models. It is not intended for constant voltage fixtures.

Is the PCD-40-500B suitable for signage LED modules that need 500mA constant current?

It can be suitable for signage LED module assemblies when the complete load is rated for 500mA constant current and falls within 45V to 80V. This matters because many signage products use constant voltage supplies instead, and this driver is not that type. Its rated output power is 40W.

Can this model power a small LED array with more total forward voltage than a 29V driver allows?

Yes, the PCD-40-500B is designed for 500mA constant current loads across 45-80V, so it supports a higher forward-voltage window than 17-29V or 13-23V models. That makes it relevant for small arrays built as longer constant current strings. The array still needs to remain within the 40W output rating.

How do I determine whether the PCD-40-500B matches my LED load?

Confirm that the LEDs require 500mA constant current and that their total forward voltage stays within the 45-80V constant current range. The number of LEDs depends on each LED's forward voltage, so the correct check is voltage total rather than a specific LED count. If the load expects constant voltage output, this driver should not be used.

What kind of environment is the PCD-40-500B designed for?

This driver has an IP42-rated casing, so it is intended for environments where that protection level is sufficient. It is not described as a sealed high-IP outdoor driver. The specified operating temperature range is -30°C to +50°C.

How does the PCD-40-500B fit into the wider PCD family?

Among the listed siblings, PCD-40-500B is 500mA with a 45-80V range and 40W, while PCD-40-350B is 350mA with 70-108V and 37.8W, PCD-40-700B is 700mA with 34-57V and 39.9W, PCD-40-1050B is 1050mA with 22-38V and 39.9W, PCD-40-1400B is 1400mA with 17-29V and 40.6W, and PCD-40-1750B is 1750mA with 13-23V and 40.25W. All of them share the same 180-295VAC input range. This places the PCD-40-500B between the 350mA and 700mA 40W models in current, with a mid-to-high voltage range.
