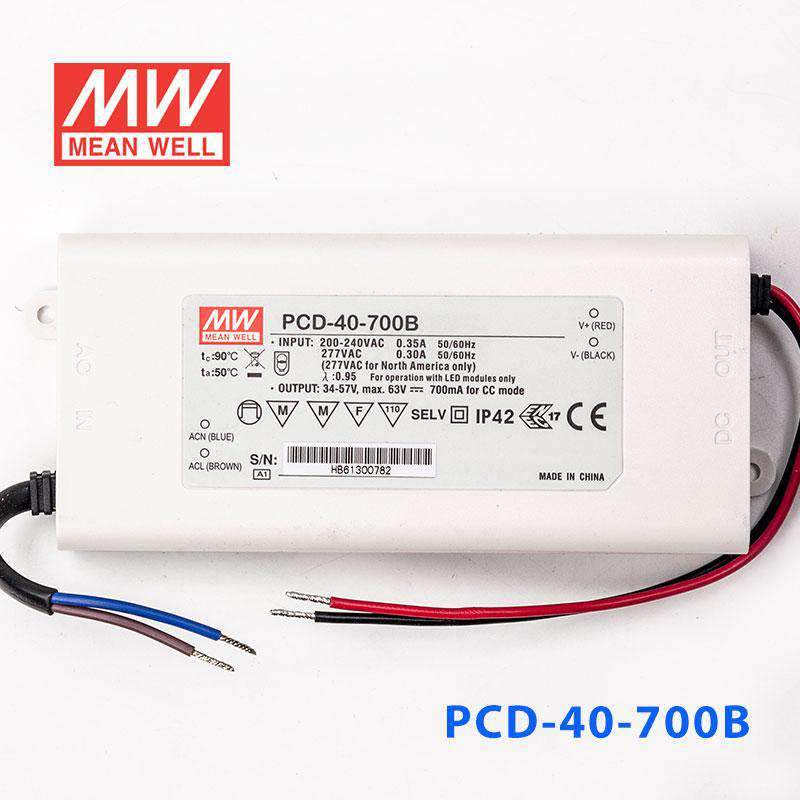

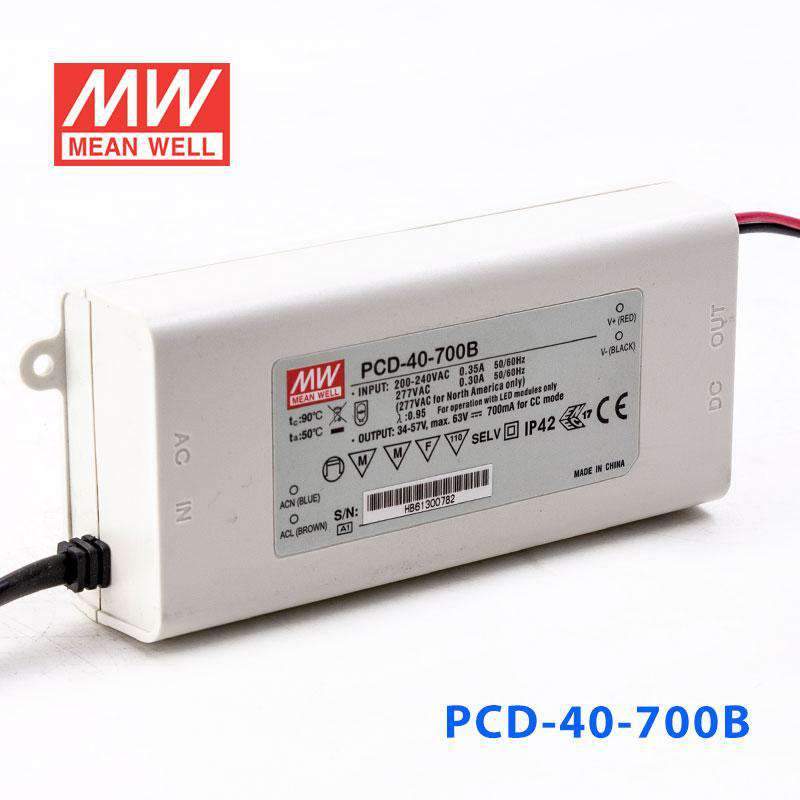

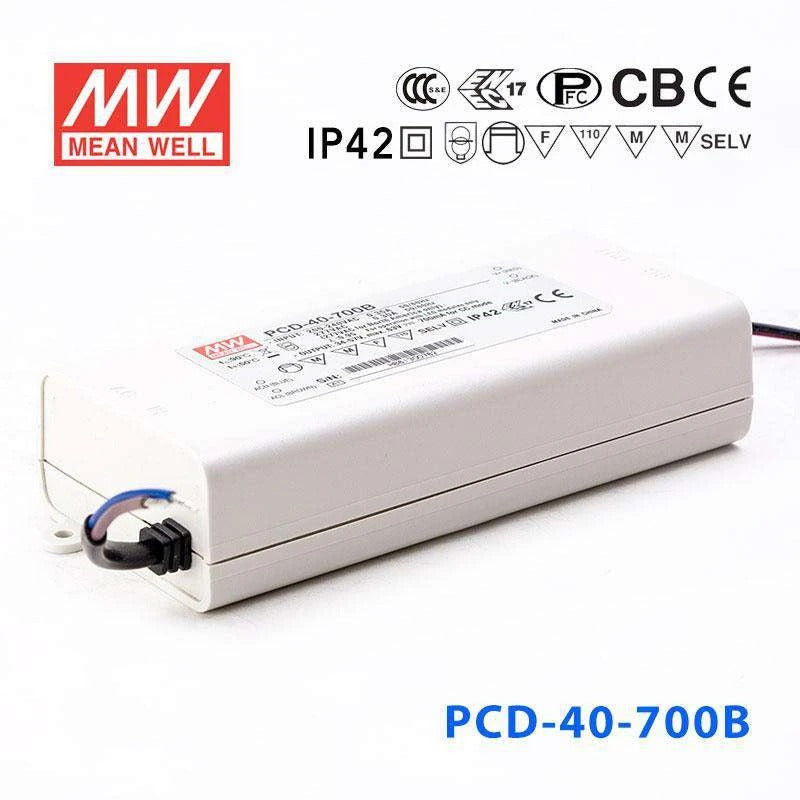

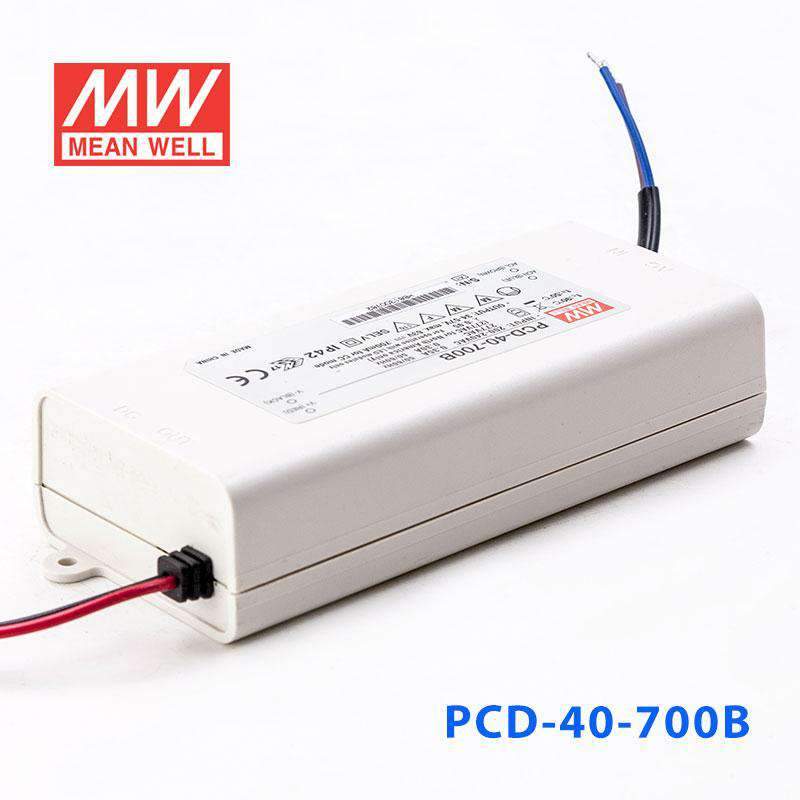

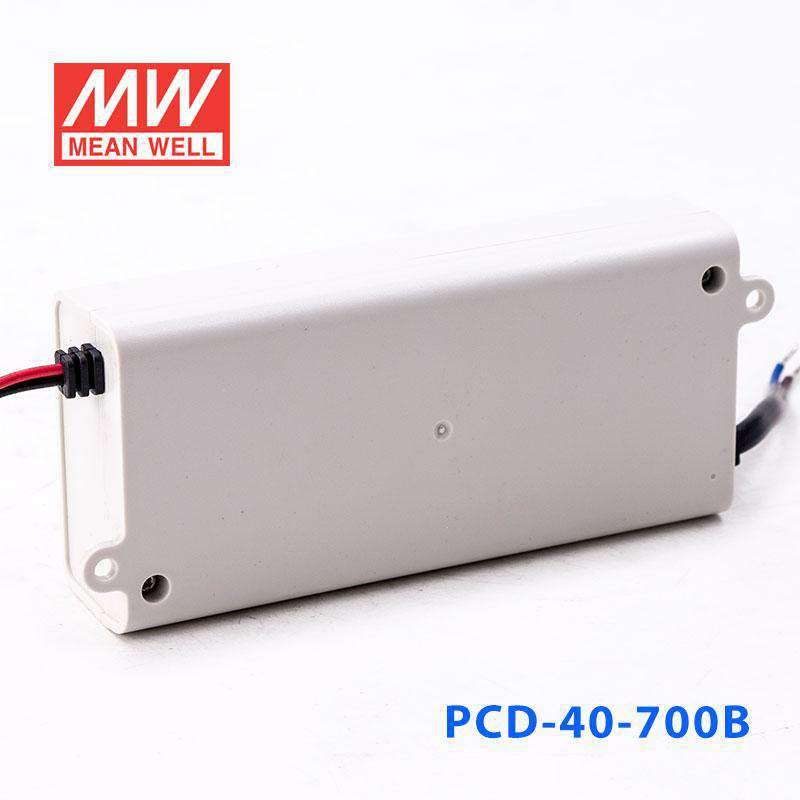

Mean Well PCD-40-700B Power Supply 40W 700mA

TRIAC dimmableplastic casing IP42Class II design without FGconstant current
SKU PCD-40-700B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
In stock
|

Overview

PCD-40-700B is the model of this series: rated current 700mA, rated power 39.9W, typical efficiency 86%.

Features

  • AC phase-cut dimming
  • Work with leading edge and trailing edge TRIAC dimmers
  • Built-in active PFC function
  • Constant current design
  • Protections: Short circuit / Over temperature
  • Cooling by free air convection
  • Fully isolated plastic case
  • IP42 design
  • Class Ⅱ power unit, no FG
  • Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
  • 100% full load burn-in test
  • Low cost
  • High reliability
  • 3 years warranty

Specifications

PCD-40-700BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT
700mA
OPERATING VOLTAGE RANGE
34 ~ 57V
CURRENT ACCURACY
±5.0%
RATED POWER
39.9W
RIPPLE & NOISE (max.)Note.1
3.1Vp-p
NO LOAD OUTPUT VOLTAGE (max.)
63V
SETUP TIME
500ms / 230VAC at full load

INPUT

VOLTAGE RANGE
180~295VAC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION
THD< 20% when output loading≧60%(PCD-40-350B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.)
86%
AC CURRENT (Typ.)
0.35A/230VAC 0.3A/277VAC
INRUSH CURRENT(Typ.)
COLD START 11A (twidth=50μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER
47 units (circuit breaker of type B) / 47 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE
Shut down o/p voltage, auto-recovery

ENVIRONMENT

WORKING TEMP.
-30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004,IP42 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B,EAC TP TC 020

OTHERS

MTBF
4038.1K hrs min. Telcordia SR-332 (Bellcore) 362.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION
128*60*31.5mm (L*W*H)
PACKING
0.23Kg;30pcs/7.9Kg/0.58CUFT

Certifications & ratings

IP42
IP42
Test conditions and notes5
  1. 1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  2. 2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
  3. 3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
  4. 4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  5. 5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PCD-40-700B Mechanical Specification
Mechanical Specification
PCD-40-700B Block Diagram
Block Diagram
PCD-40-700B Power Factor Characteristic
Power Factor Characteristic
PCD-40-700B P C D - 4 0 series
P C D - 4 0 series

Downloads

FAQ

Can I use the PCD-40-700B for 700mA LED downlights?

Yes, this driver is designed for constant current LED loads at 700mA. It is a match for LED downlights that need a constant current source and operate within the 34-57V constant current output range, up to 39.9W. It is not for constant voltage fixtures.

Is the PCD-40-700B suitable for LED signage modules?

It can be used for signage modules only if the module assembly is specified for constant current operation at 700mA. The connected load also needs to stay within the 34-57V constant current range and within the 39.9W output rating. Constant voltage signage products are not compatible with this type of driver.

Can this driver run a small LED array for architectural or display lighting?

Yes, it can power a small LED array when the array is built for constant current operation at 700mA. The total forward voltage of the array must fall within 34-57V, and the total load must remain within the 39.9W rating. The exact number of LEDs depends on the forward voltage of each LED.

How do I know if my LED load is compatible with the PCD-40-700B?

Check that the LED load requires a constant current driver rated at 700mA, not a constant voltage power supply. The total LED forward voltage must be within the 34-57V constant current range. The number of LEDs that can be driven depends on the forward voltage of each LED.

Is the PCD-40-700B okay for damp or exposed outdoor locations?

This model has an IP42-rated case, so it is better suited to protected indoor environments rather than exposed outdoor or washdown areas. Its operating temperature range is -30°C to +50°C, but the enclosure rating is still limited to IP42. Environmental protection should match the installation location.
