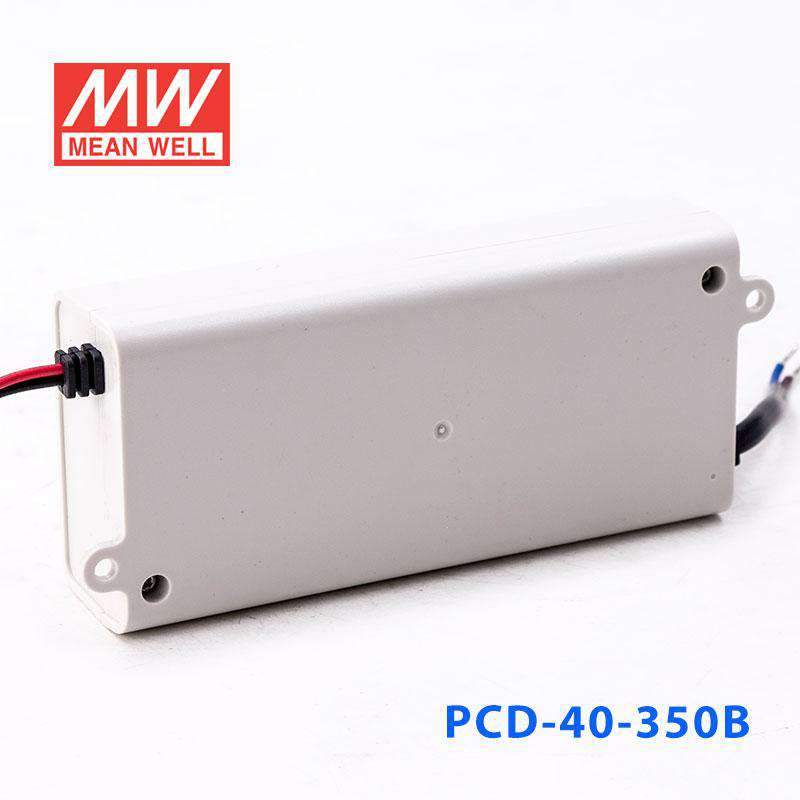

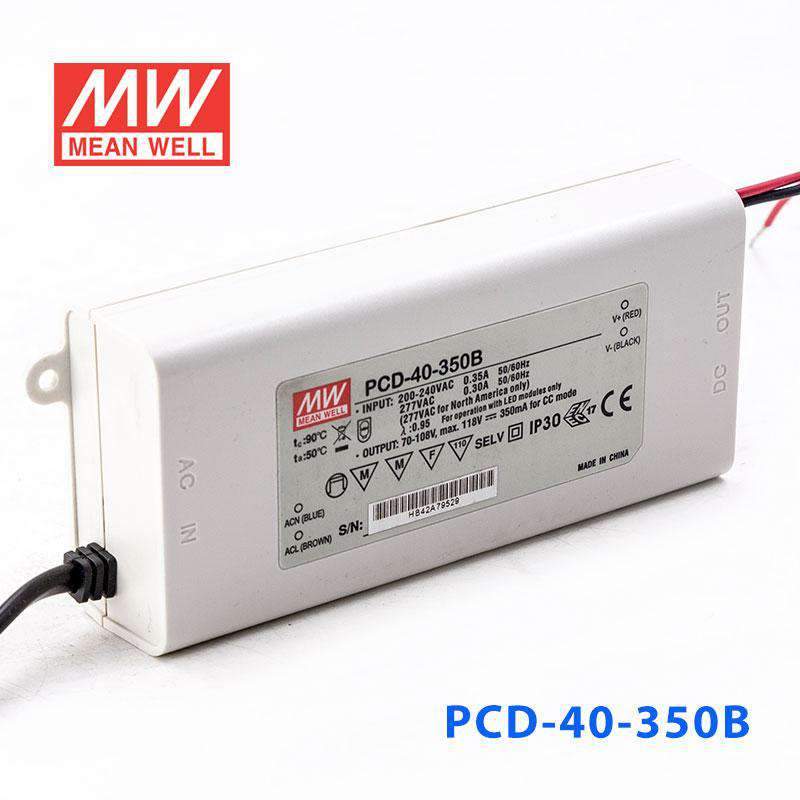

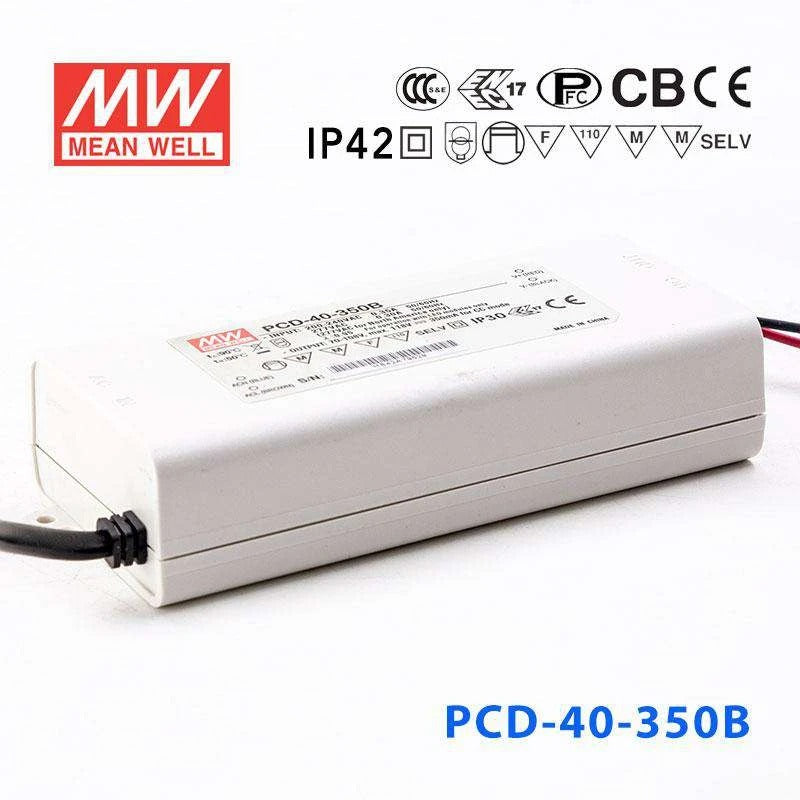

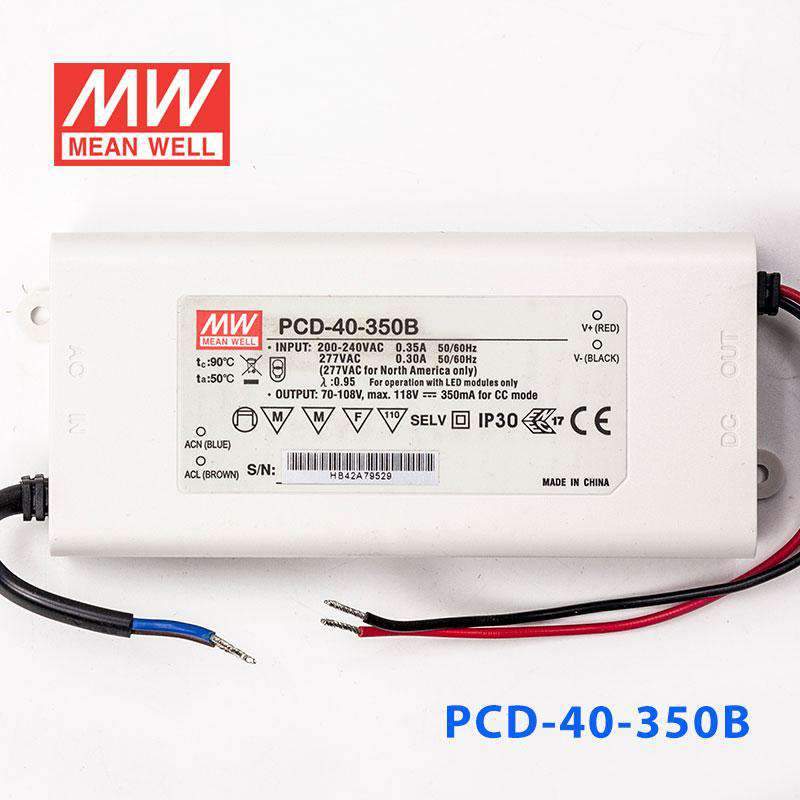

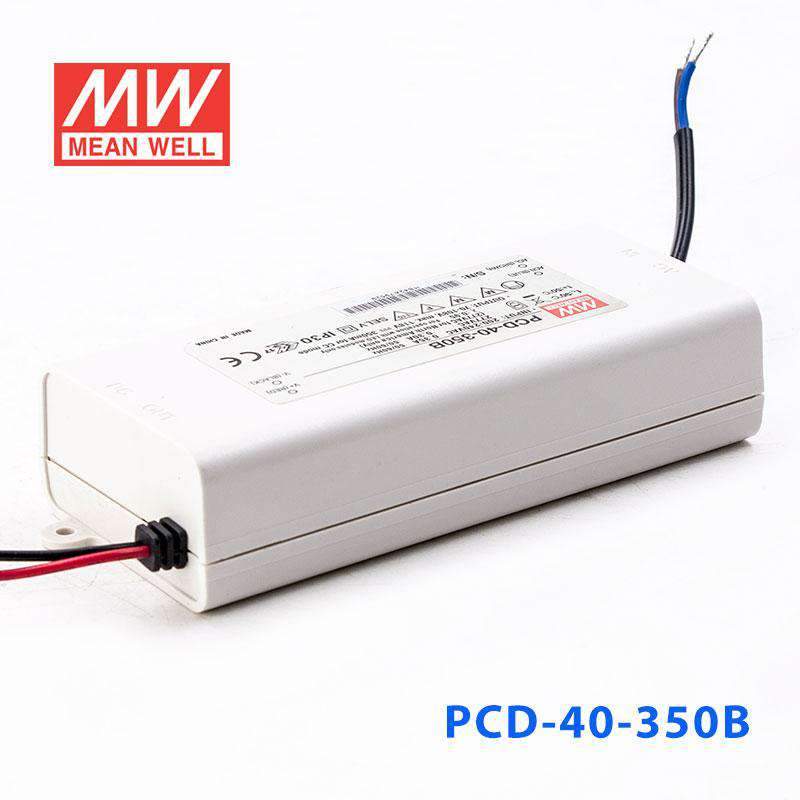

Mean Well PCD-40-350B Power Supply 40W 350mA

TRIAC dimmableplastic casing IP42Class II design without FGconstant current

SKU PCD-40-350B

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

PCD-40-350B is the model of this series: rated current 350mA, rated power 37.8W, typical efficiency 87%.

Features

AC phase-cut dimming
Work with leading edge and trailing edge TRIAC dimmers
Built-in active PFC function
Constant current design
Protections: Short circuit / Over temperature
Cooling by free air convection
Fully isolated plastic case
IP42 design
Class Ⅱ power unit, no FG
Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
100% full load burn-in test
Low cost
High reliability
3 years warranty

Specifications

PCD-40-350BSpecifications from the official datasheet (2024-09-25 edition)

OUTPUT

RATED CURRENT: 350mA
OPERATING VOLTAGE RANGE: 70 ~ 108V
CURRENT ACCURACY: ±5.0%
RATED POWER: 37.8W
RIPPLE & NOISE (max.)^Note.1: 9.5Vp-p
NO LOAD OUTPUT VOLTAGE (max.): 118V
SETUP TIME: 500ms / 230VAC at full load

INPUT

VOLTAGE RANGE: 180~295VAC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.9/230VAC, PF>0.9/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION: THD< 20% when output loading≧60%(PCD-40-350B loading≧65%)at 230VAC input and output loading≧75% at 277VAC input
EFFICIENCY (Typ.): 87%
AC CURRENT (Typ.): 0.35A/230VAC 0.3A/277VAC
INRUSH CURRENT(Typ.): COLD START 11A (twidth=50μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 47 units (circuit breaker of type B) / 47 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.5mA / 240VAC

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.
OVER TEMPERATURE: Shut down o/p voltage, auto-recovery

ENVIRONMENT

WORKING TEMP.: -30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384, EAC TP TC 004,IP42 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C ; BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(Surge 2KV), criteria B,EAC TP TC 020

OTHERS

MTBF: 4038.1K hrs min. Telcordia SR-332 (Bellcore) 362.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 128*60*31.5mm (L*W*H)
PACKING: 0.23Kg;30pcs/7.9Kg/0.58CUFT

Certifications & ratings

IP42: IP42

Test conditions and notes5

1. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
2. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
3. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
5. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PCD-40-350B Mechanical Specification — Mechanical Specification

PCD-40-350B Block Diagram — Block Diagram

PCD-40-350B Power Factor Characteristic — Power Factor Characteristic

PCD-40-350B P C D - 4 0 series — P C D - 4 0 series

Downloads

Certificates3

ENEC Certificate (PCD-40)(EN) PDF Download

CB Certificate (PCD-40)(EN) PDF Download

EMC Certificate (PCD-40)(EN) PDF Download

Test reports1

Test Report(PCD-40-350B)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the PCD-40-350B for an LED downlight with a long constant current LED string?

Yes, if the downlight requires 350mA constant current and the total LED forward voltage is within the 70-108V constant current range. This higher voltage range makes it more relevant for longer constant current strings than the lower-voltage 40W siblings. It is not a constant voltage driver.

Is the PCD-40-350B suitable for signage modules arranged as a higher-voltage constant current chain?

It can be suitable if the signage module assembly is designed for 350mA constant current and operates within 70V to 108V. That makes it a fit for higher-voltage constant current module groups rather than constant voltage sign systems. Its rated output power is 37.8W.

Can this driver run a small LED array that needs low current but higher forward voltage?

Yes, this model is intended for 350mA constant current LED arrays with a total forward voltage in the 70-108V range. That combination suits arrays that need a lower drive current and a higher voltage window. The total load also needs to stay within 37.8W.

How do I verify LED compatibility for the PCD-40-350B?

Match the LED load to 350mA constant current and confirm that the combined forward voltage is within the 70-108V constant current range. The number of LEDs depends on each LED's forward voltage, so there is no fixed LED count to use across all loads. A constant voltage LED product is not compatible with this driver type.

Is the PCD-40-350B appropriate for exposed outdoor conditions?

The driver uses an IP42-rated casing, so it is better suited to indoor or otherwise protected environments. IP42 does not indicate a sealed outdoor housing. The specified operating temperature range is -30°C to +50°C.

How does the PCD-40-350B compare with other 350mA PCD models?

This datasheet covers the PCD-40 series, in which the PCD-40-350B is the only 350mA model, rated 70-108V and 37.8W. In the same 40W family, the other options are 500mA at 45-80V, 700mA at 34-57V, 1050mA at 22-38V, 1400mA at 17-29V, and 1750mA at 13-23V. This model has the lowest current and the highest voltage range in the PCD-40 series.
