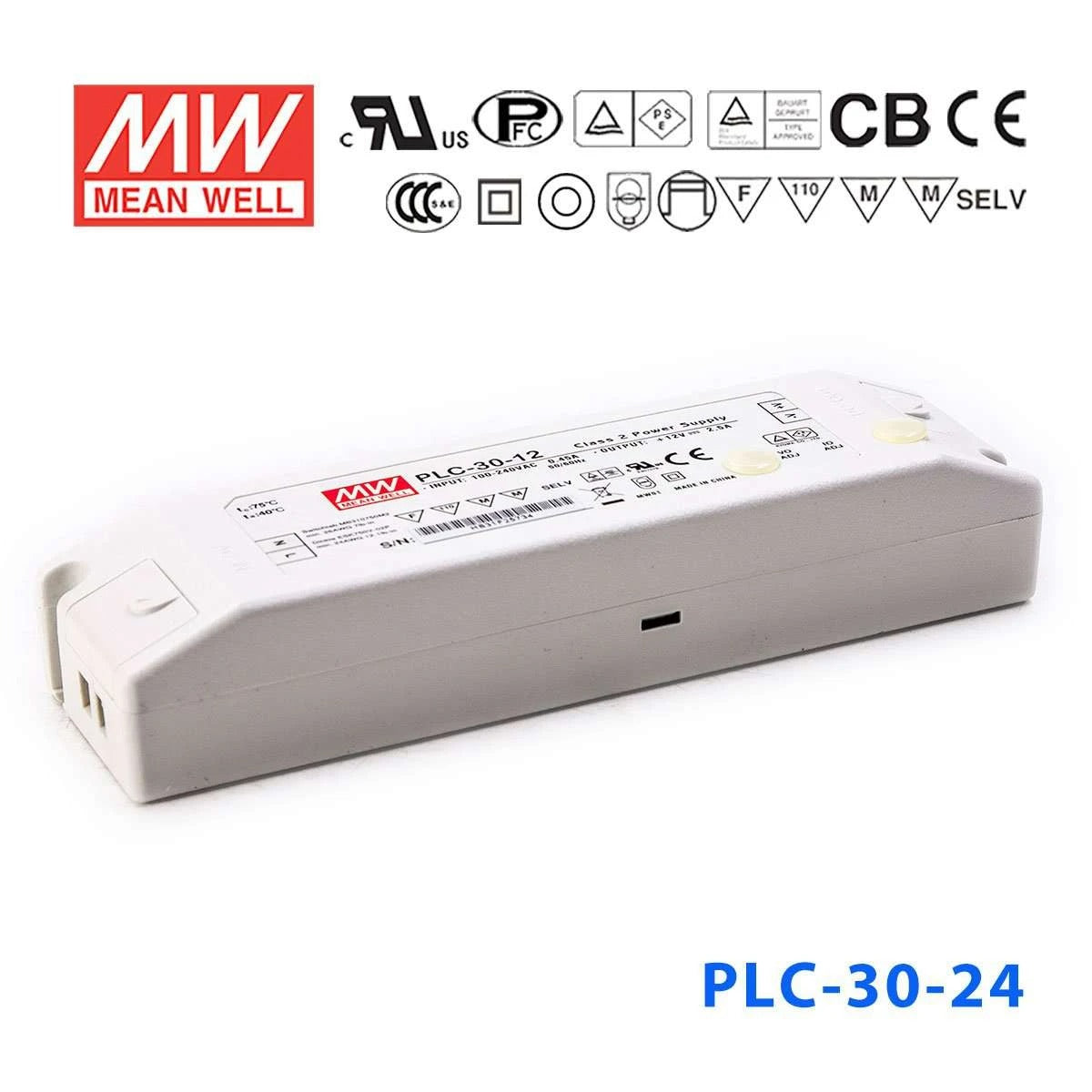

Mean Well PLC-30-24 Power Supply 30W 24V - PFC 1.25A

screw terminalfully isolated plastic casesuitable for signage applications

SKU PLC-30-24

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by LCM-25

Notify me when it's back in stock

The PLC-30 is a 30W Mean Well power converter (input range: 90~264VAC, operating temperature: -30~+50℃).

Key Features

✓ Input voltage range: 90~264VAC
✓ DC output voltage adjustable ±10%
✓ 3.75KVAC reinforced I/O isolation
✓ Wide operating temperature: -30~+50℃
✓ Protections: Short circuit / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: UL1310, TUV EN61347-1, EN61347-2-13, GB19510.14,GB19510.1 , CAN/CSA C22.2 No. 223-M91(except for 48V), J61347-1, J61347-2-13 ,EAC TP TC 004
✓ 3 years warranty

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well PLC-30-9 Power Supply 30W 9V - PFC 3.3A	29.7W	9V	3.3A	Indoor	View
Mean Well PLC-30-48 Power Supply 30W 48V - PFC 630mA	30.24W	48V	0.63A	Indoor	View
Mean Well PLC-30-36 Power Supply 30W 36V - PFC 840mA	30.24W	36V	0.84A	Indoor	View
Mean Well PLC-30-27 Power Supply 30W 27V - PFC 1.12A	30.24W	27V	1.12A	Indoor	View
Mean Well PLC-30-20 Power Supply 30W 20V - PFC 1.5A	30W	20V	1.5A	Indoor	View
Mean Well PLC-30-15 Power Supply 30W 15V - PFC 2A	30W	15V	2A	Indoor	View
Mean Well PLC-30-12 Power Supply 30W 12V - PFC 2.5A	30W	12V	2.5A	Indoor	View
