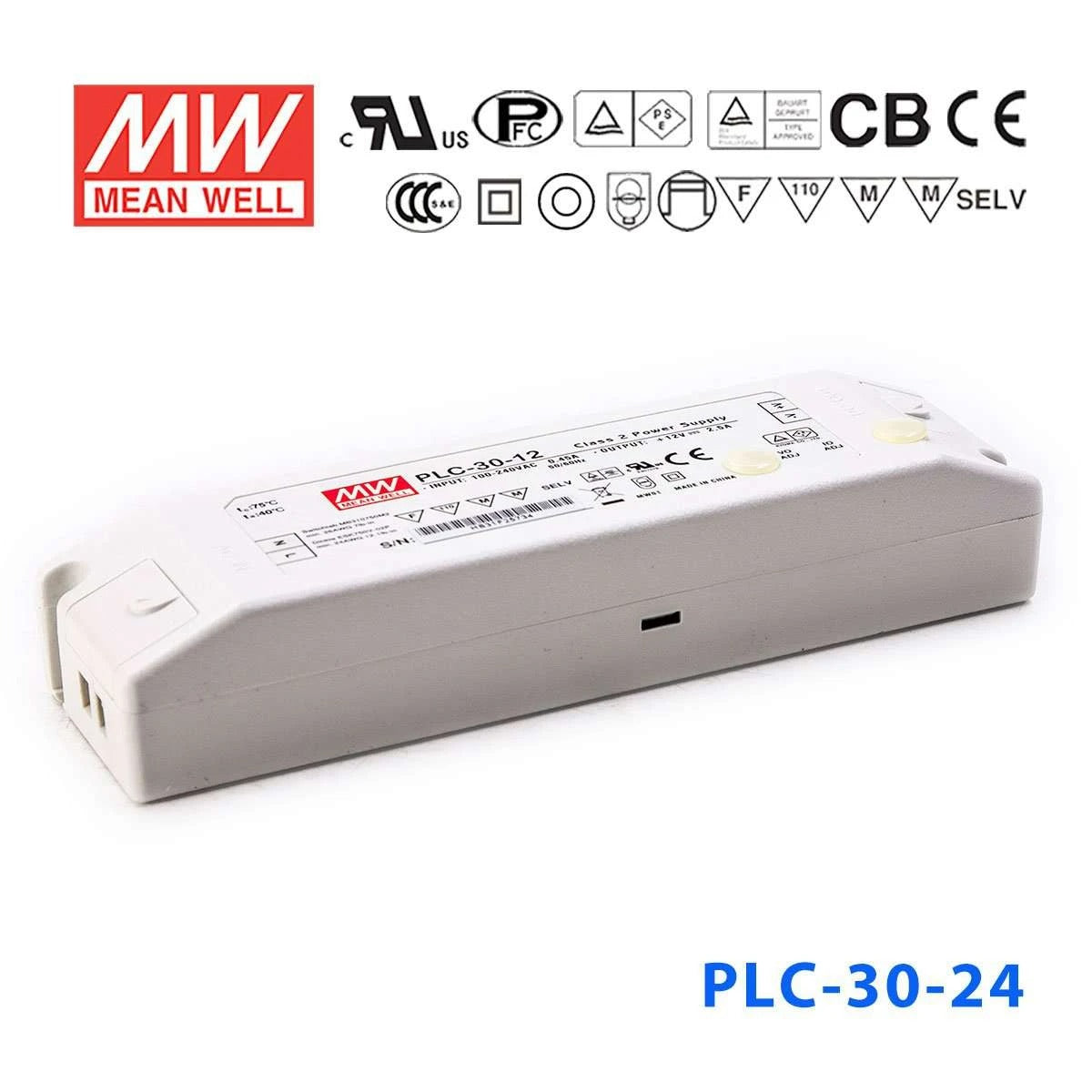

Mean Well PLC-30-24 Power Supply 30W 24V - PFC
Please Login for Pricing
Description
Description
Features
| Universal AC input / Full range |
| Fully isolated plastic case with screw terminal style of I/O |
| Built-in constant current limiting circuit (C.V.+C.C. mode) |
| Adjustable output voltage and current level |
| Built-in active PFC function, PF>0.9 for 75% of load or higher |
| High efficiency up to 89% |
| Class 2 power unit / Pass LPS |
| Isolation class II, no F.G. for PLC-30 |
| Cooling by free air convection |
| Protections: Short circuit / Over current / Over voltage / Over temperature |
| 100% full load burn-in test |
| Suitable for LED lighting and moving sign applications |
| 2 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 35A at 230VAC |
| DC adjustment range | 90%~110% rated output voltage |
| Current adjustment range | 75%~103% |
| Over current protection | 100%~110% constant current limiting, auto-recovery |
| Over voltage protection | 110%~155% rated output voltage |
| Setup time | 2000ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -30~+50OC (refer to output derating curve) |
| Safety standards | UL1310, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13 approved; TUV EN60950-1 approved for PLC-100 only |
| EMC standards | EN55015, EN55022 class B (PLC-45/60/100), EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 |
| Connection (Input / Output) | 2+2P screw terminal block |
| Dimension (LxWxH)(mm) | 160x 46x 30 |
| Packing | 0.2kg ; 70pcs / 15kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesPLC Series
-
Power Rating30 Watt
-
Output Voltage24 Volt
-
Rated Current1.25 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CCC,CE,CSA,EAC,PSE,TUV
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-30°C~50°C
-
Warranty2 Year
-
Length16 cm
-
Width4.6 cm
-
Height3 cm
-
Weight0.2 kg
