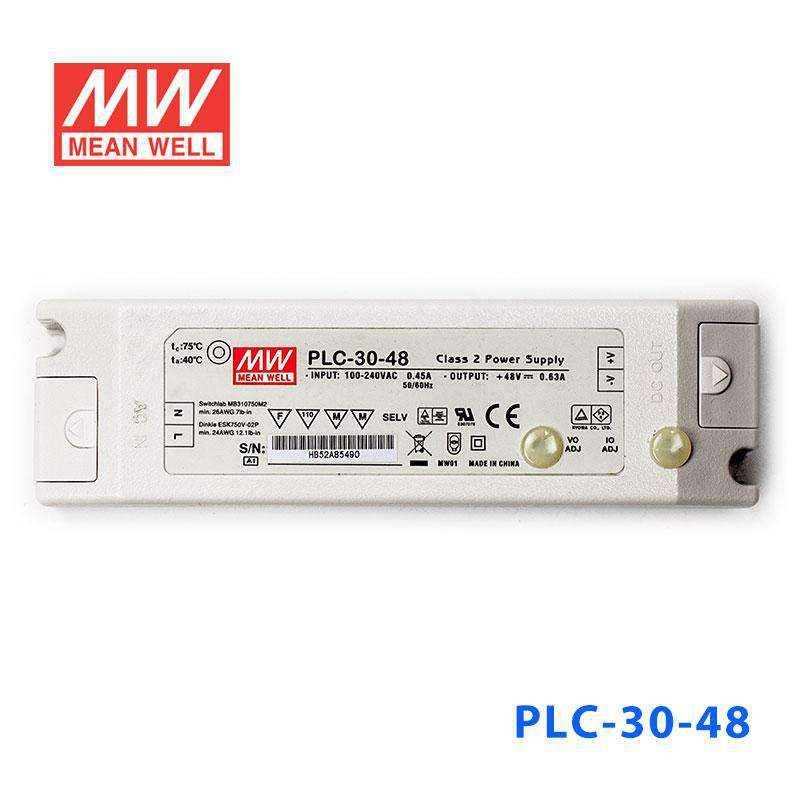

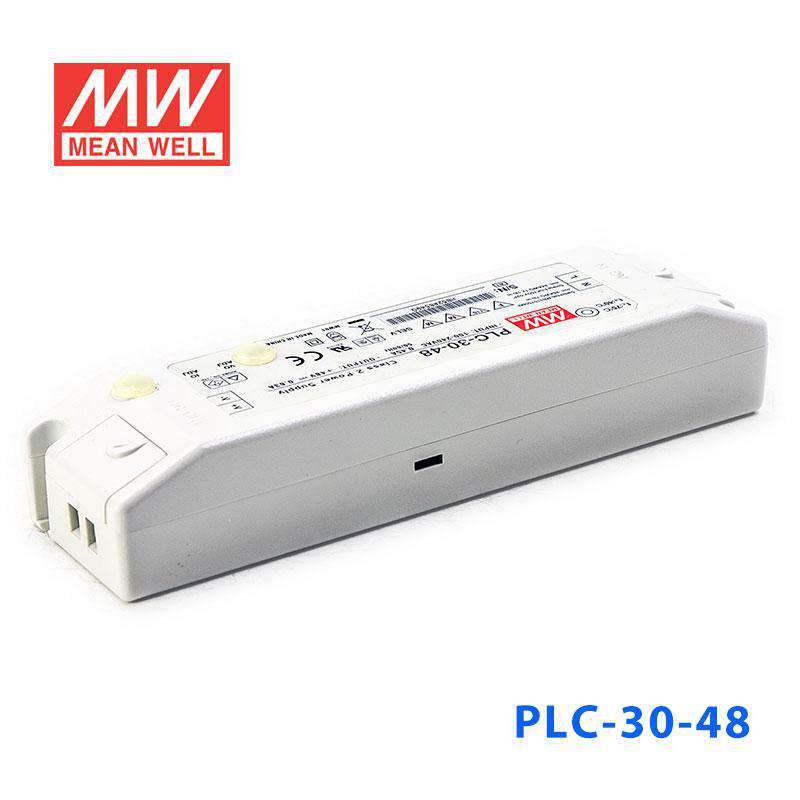

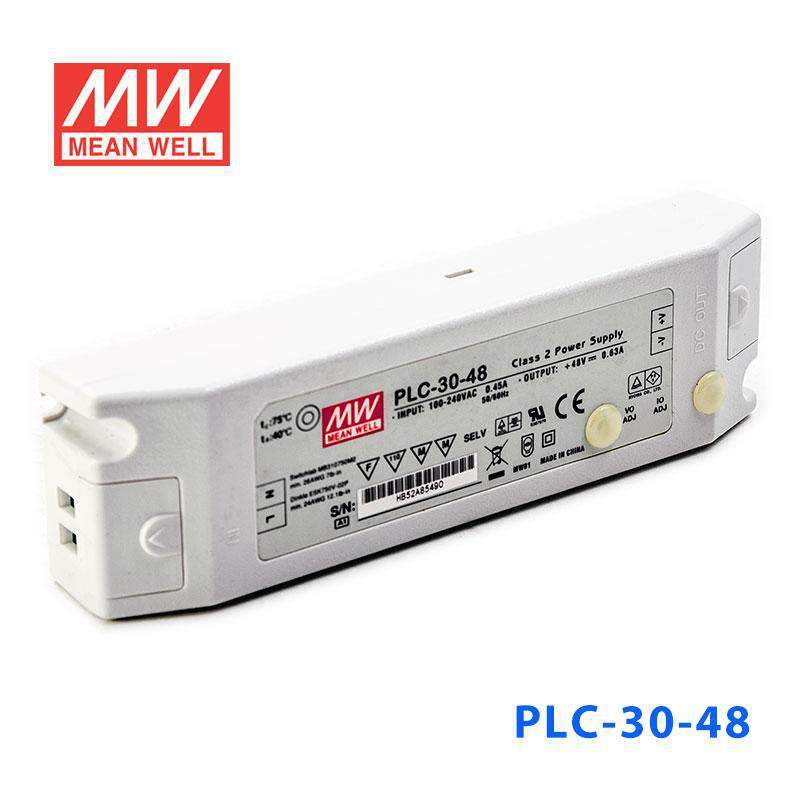

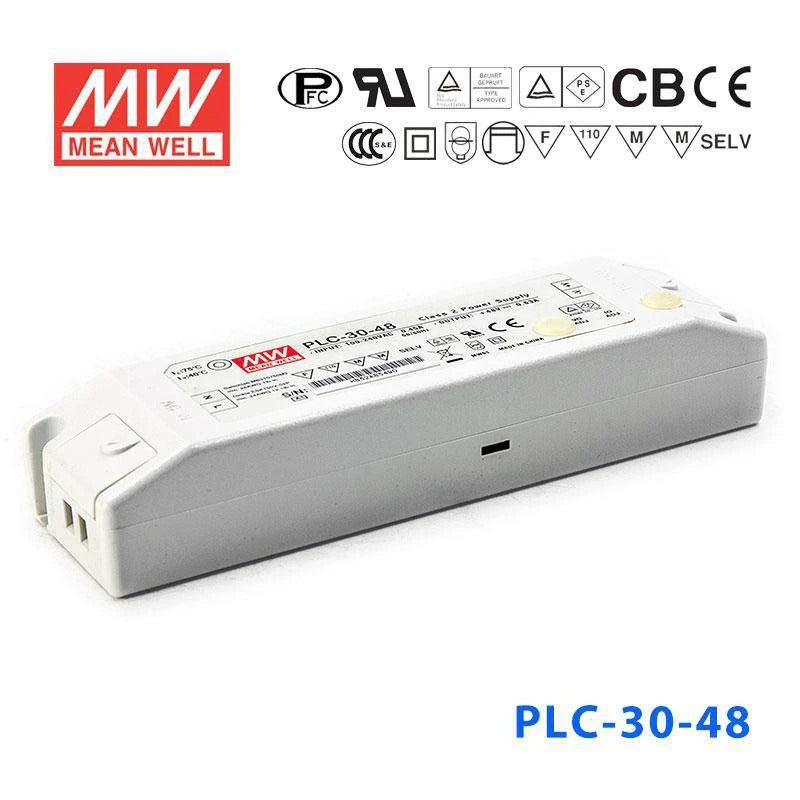

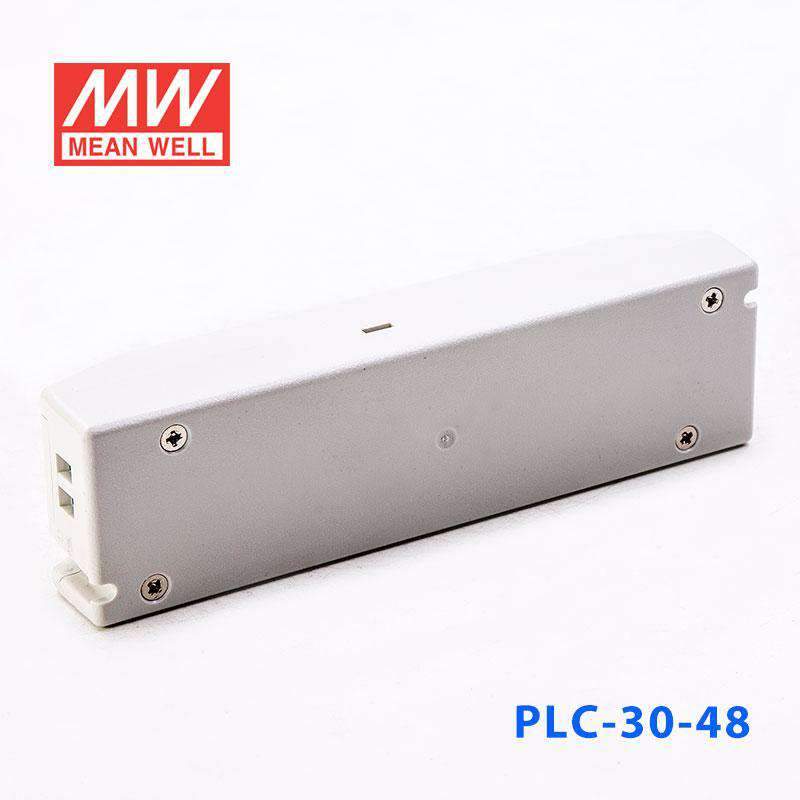

Mean Well PLC-30-48 Power Supply 30W 48V - PFC 630mA

screw terminalfully isolated plastic casesuitable for signage applications

SKU PLC-30-48

Log in to see price Trade pricing & online ordering for account holders

End of Life, Succeeded by LCM-25

Available to order

Overview

PLC-30-48 is the 48V output model of this series: rated current 0.63A, rated power 30.24W, typical efficiency 85.5%.

Features

Universal AC input / Full range
Adjustable output voltage and current level
Protections: Short circuit / Over current / Over voltage / Over temperature
Cooling by free air convection
Built-in constant current limiting circuit
Fully isolated plastic case with terminal block style of I/O
Built-in active PFC function, comply with BS EN/EN61000-3-2 class C (Pin≧25W)
Class Ⅱ power unit, no FG
Class 2 power unit
100% full load burn-in test
High reliability

Specifications

PLC-30-48Specifications from the official datasheet (2026-02-09 edition)

OUTPUT

DC VOLTAGE: 48V
CONSTANT CURRENT REGION^Note.6: 33.6 ~ 48V
RATED CURRENT: 0.63A
CURRENT RANGE: 0 ~ 0.63A
RATED POWER: 30.24W
RIPPLE & NOISE (max.)^Note.2: 3.7Vp-p
VOLTAGE ADJ. RANGE^Note.5: 45.6 ~ 52.8V
CURRENT ADJ. RANGE^Note.5: 0.473 ~ 0.649A
VOLTAGE TOLERANCE^Note.3: ±10%
LINE REGULATION: ±3.0%
LOAD REGULATION: ±5.0%
SETUP TIME: 500ms / 230VAC 3000ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/115VAC, PF>0.9/230VAC at full load (Please refer to "Power Factor Characteristic" curve)
TOTAL HARMONIC DISTORTION: THD< 20% when output loading≧70% at 115VAC/230VAC input
EFFICIENCY (Typ.): 85.5%
AC CURRENT (Typ.): 0.4A/115VAC 0.2A/230VAC
INRUSH CURRENT (Typ.): COLD START 35A(twidth=25μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 64 units (circuit breaker of type B) / 64 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.5mA / 240VAC

PROTECTION

OVER CURRENT: 100 ~ 110% Protection type : Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed.
OVER VOLTAGE: 53 ~ 63V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.06%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL1310, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, CAN/CSA C22.2 No. 223-M91(except for 48V), EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (Pin≧25W), Class D (>70% load) ; BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61547, light industry level, EAC TP TC 020

OTHERS

MTBF: 4293.1K hrs min. Telcordia SR-332 (Bellcore) 625.5Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 160*46*30mm (L*W*H)
PACKING: 0.2Kg; 70pcs/15Kg/0.96CUFT

Certifications & ratings

Marked features: FC

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristics for more details.
5. Output voltage can be adjusted through the SVR1 on the PCB; limit of output constant current level can be adjusted through the SVR2 on the PCB.
6. Please refer to "DRIVING METHODS OF LED MODULE".
7. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. Direct connecting to LEDs is suggested, but is not suitable for using additional drivers.
9. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. PLC-30-9 is used for any light source that exempt from the ErP-Directive (EU) 2019/2020 requirement, for example this model could be use for signalling products (including, but not limited to road-, railway-, marineorair traffic-signalling , traffic control or airfield lamps).
12. This product is not suitable for LED lighting applications in China.(It is recommended to use the LPF/NPF/XLG/XLC/XLN series in China)

Technical drawings

PLC-30-48 Mechanical Specification — Mechanical Specification

PLC-30-48 Derating Curve — Derating Curve

PLC-30-48 Power Factor Characteristic — Power Factor Characteristic

PLC-30-48 EFFICIENCY vs LOAD (48V Model) — EFFICIENCY vs LOAD (48V Model)

Typical applications

Suitable for LED lighting and moving sign applications (Note.2)
Compliance to worldwide safety regulations for lighting
2 years warranty

Downloads

Datasheet1

PLC-30-48 datasheetPLC-30-SPEC.PDF · 2026-02-09 edition PDF Download

Certificates6

PSE Certificate(PLC-30)(EN) PDF Download

EMC Certificate(PLC-30)(EN) PDF Download

CB Certificate(PLC-30)(EN) PDF Download

UL Certificate(PLC)(EN) PDF Download

TUV Certificate(PLC-30)(EN) PDF Download

CCC Certificate(PLC-30)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What output does the Mean Well PLC-30-48 provide?

The PLC-30-48 is a 30.24W power supply with a 48V DC output and a rated current of 0.63A. This model also includes constant current limiting in C.V.+C.C. mode, which can help in applications that need controlled output behavior.

Is the PLC-30-48 suitable for LED driver applications?

Yes. This model is positioned for LED driver use and combines constant voltage output with built-in constant current limiting. That makes it relevant for 48V LED power applications where buyers want a dedicated LED-focused power supply rather than a generic supply.

Does the PLC-30-48 support dimming control?

No. The spec sheet does not list a dimming function for the PLC-30-48. Its output voltage is set with SVR1 and its constant-current limit with SVR2 on the PCB, so choose a dimmable driver if your project needs dimming.

What makes the PLC-30-48 different from basic non-PFC power supplies?

The PLC-30-48 includes PFC, with a typical power factor of PF>0.95 at 115VAC and PF>0.9 at 230VAC at full load. It is also specified at 85.5% typical efficiency, which helps distinguish it from simpler low-power supplies that do not include power factor correction.

What operating environment is this model rated for?

The PLC-30-48 is rated for ambient temperatures from -30°C to 50°C (refer to the derating curve) at 20-95% RH non-condensing, so buyers should match it to applications that stay within that temperature range.

What protection and warranty coverage does the PLC-30-48 include?

This model includes short circuit, over current, over voltage, and over temperature protection. The datasheet does not state a warranty term; it specifies an MTBF of 625.5K hrs min. (MIL-HDBK-217F, 25°C), useful for comparing lifecycle risk across 48V power supplies.
