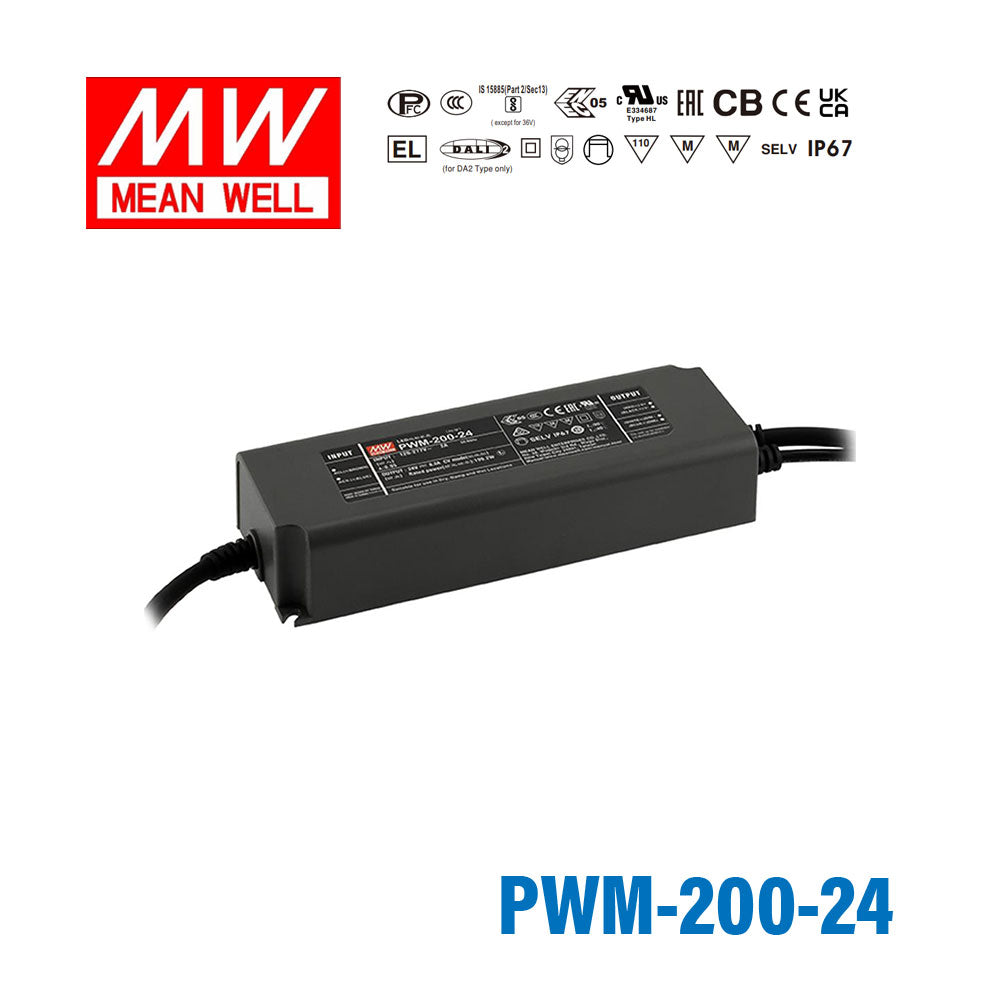

Mean Well PWM-200-24 Power Supply 200W 24V 8.3A

PWM style outputfully isolated plastic caseIP67Class II design without FGbuilt-in 3 in 1 dimming

SKU PWM-200-24

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

PWM-200-24 is the 24V output model of this series: rated current 8.3A, rated power 199.2W, typical efficiency 93%.

PWM-200 series is a 200W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. PWM-200 operates from 100～305VAC and offers models with different rated voltage ranging between 12V and 48V. Thanks to the high efficiency up to 94% with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for dry, damp or wet locations. PWM-200 is equipped with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips applications.

Features

Constant voltage PWM style output with frequency up to 4kHz design compliant IEEE1789-2015(Blank type)
Plastic housing with classⅡand PFC design
Emergency lighting application is available according to IEC61347-2-13
Standby power consumption <0.5W
Fully encapsulated with IP67 level
Function options: 3 in 1 dimming (dim-to-off and Isolated Design)/DALI-2
Minimum dimming level 0.2% for DA2 type
Typical lifetime >50000 hrs and 5 years warranty

Specifications

PWM-200-24Specifications from the official datasheet (2026-02-04 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT: 8.3A
RATED POWER: 199.2W
DIMMING RANGE: 0 ~ 100%
PWM FREQUENCY (Typ.)^Note.2: 4kHz for Blank type; 2.5kHz for DA2 type
SETUP, RISE TIME^Note.10: 500ms, 80ms/230VAC or 115VAC
HOLD UP TIME (Typ.): 10ms/230VAC or 115VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.97/115VAC, PF>0.96/230VAC, PF>0.94/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD<20%(@load≧60%/115VAC, 230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 2.2A / 115VAC 1.1A / 230VAC 0.9A / 277VAC
INRUSH CURRENT (Typ.): COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION: standby power consumption<0.5W when dimming off

PROTECTION

OVERLOAD: 108 ~ 135% rated output power Hiccup mode or Constant current limiting,recovers automatically after fault condition is removed
SHORT CIRCUIT: Shut down o/p voltage, re-power on to recover (except for DA2-type) Hiccup mode,recovers automatically after fault condition is removed (only for DA2-type)
OVER VOLTAGE: 27 ~ 34V Shut down o/p voltage, re-power on to recover after fault condition is removed
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover after fault condition is removed

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.5: UL8750( type ”HL” ), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13,BS EN/EN62384 independent, IP67, EAC TP TC 004,GB/T19510.1,GB/T19510.213, BIS IS15885(Part2/Sec13)(except for 36V) approved; Design refer to BS EN/EN60335-1, According to BS EN/EN61347-2-13 appendix J suitable for emergency installations
DALI STANDARDS: Comply with IEC62386-101, 102, 207, 251 for DA2 Type only, Device type 6(DT6)
WITHSTAND VOLTAGE: I/P-O/P: 3.75KVAC; I/P-DA: 1.5KVAC; O/P-DA:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
EMC EMISSION^Note.6: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3,GB/T 17743, GB17625.1;EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity, Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 2235.6K hrs min. Telcordia SR-332 (Bellcore) ;178.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 195*68*39.5mm (L*W*H)
PACKING: 1.03Kg; 12pcs/ 13.4Kg/ 0.71CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
5. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃or less.
6. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. It is not recommended to connect to capacitive loads
10. Based on IEC 62386-101/102 DALI power on timing and interruption regulations, the set up time needs to test with a DALI controller which can support for DALI power on function, otherwise the set up time will be higher than 0.5 second for DA2 type.
11. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

PWM-200-24 DIMMING OPERATION — DIMMING OPERATION

PWM-200-24 ◎Applying additive resistance — ◎Applying additive resistance

PWM-200-24 ※DALI interface — ※DALI interface

PWM-200-24 OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

PWM-200-24 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

PWM-200-24 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

PWM-200-24 Block Diagram — Block Diagram

PWM-200-24 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED strip lighting
Indoor LED lighting
LED decorative lighting
LED architecture lighting
Cove lighting
Industrial lighting
Type “HL” for use in class I, division 2 hazardous (classified) location.

Downloads

Certificates5

Mean Well PWM-200 Series CB Certificate PDF Download

Mean Well PWM-200 CE Certificate EN PDF Download

Mean Well PWM-200 ENEC Certificate EN PDF Download

Mean Well PWM-200 UK Certificate EN PDF Download

Mean Well PWM-200 CCC Certificate EN PDF Download

Test reports1

Mean Well PWM-200-24 Test Report PDF Download

FAQ

Can the PWM-200-24 power a large 24V LED strip installation outdoors?

Yes. The IP67 waterproof rating and -40°C to +85°C operating range make the PWM-200-24 suitable for outdoor LED strip installations, including facade and landscape applications. The Class II isolated plastic case also provides additional safety in wet environments.

How many meters of 24V LED strip can the PWM-200-24 support?

The PWM-200-24 delivers up to 200W at 24V and 8.3A. Divide 200W by your strip's rated watts per meter — a 14.4 W/m strip allows about 13.9 m. Check your strip's rated power per meter and apply a safety margin when planning the run length.

Is the PWM-200-24 suitable for dimmable 24V LED signage in a commercial setting?

Yes. With built-in 3-in-1 dimming (PWM signal, 0–10V, resistance), the PWM-200-24 supports common dimmer controllers used in commercial signage. Its 200W capacity is sufficient for larger illuminated sign cabinets or multiple panels sharing a single supply.

Can the PWM-200-24 be used for 24V LED strip in a large hospitality lighting installation?

Yes. The 200W output at 24V can cover substantial linear LED strip runs for lobby coves, restaurant accent lighting, or bar back-lighting. The 3-in-1 dimming interface allows integration with standard dimming infrastructure used in hospitality venues.

Is the PWM-200-24 appropriate for outdoor 24V architectural facade lighting?

Yes. The IP67 rating and wide operating temperature range make the PWM-200-24 reliable for facade-mounted or enclosure-installed outdoor lighting. At 8.3A it can supply multiple fixture zones up to 200W total while supporting smooth PWM dimming.

How does the PWM-200-24 compare to the DALI2 and KNX variants in the 200W 24V range?

All three 200W 24V options share the same output specs (200W, 24V, 8.3A) and IP67 rating. PWM-200-24 uses built-in 3-in-1 dimming; PWM-200-24DA2 uses DALI2 for addressable network control; PWM-200-24KN uses KNX for integration with KNX building automation systems.
