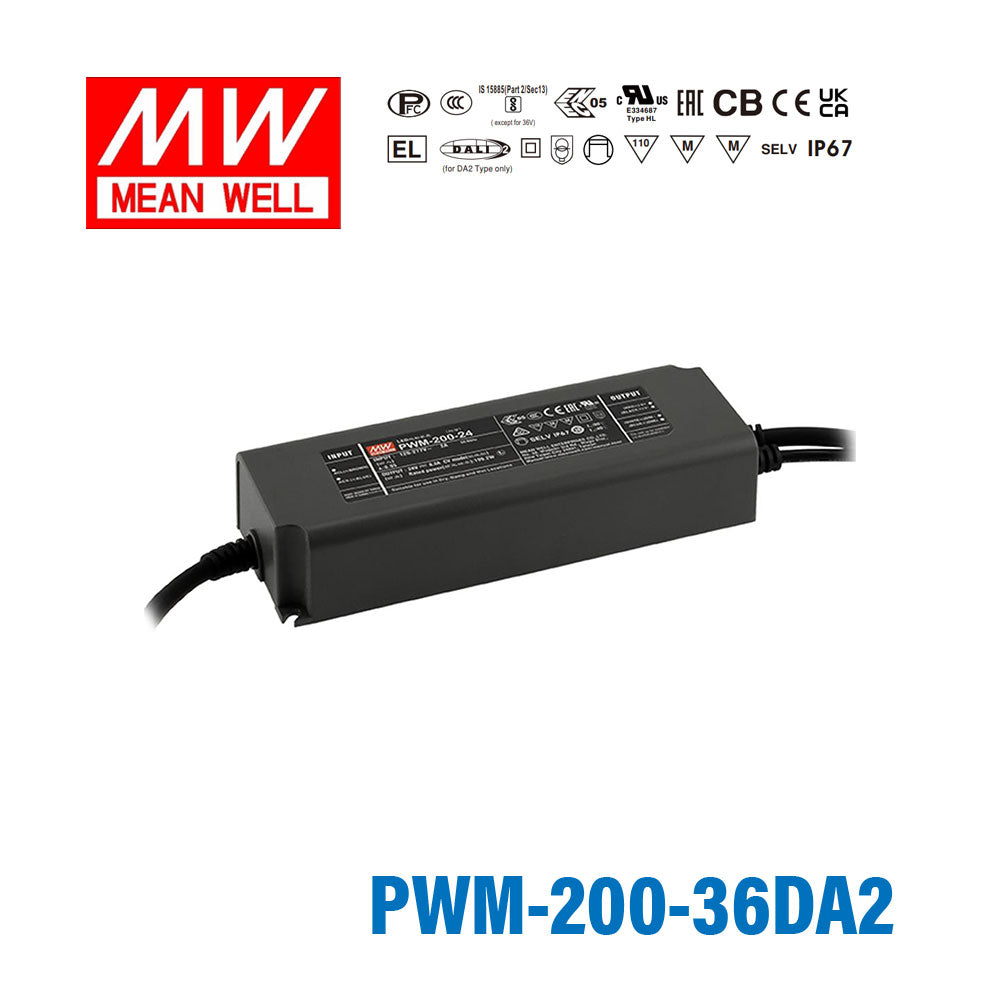

Mean Well PWM-200-36DA2 Power Supply 200W 36V DALI2 5.55A

PWM style outputfully isolated plastic caseIP67Class II design without FGDALI2

SKU PWM-200-36DA2

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

PWM-200-36DA2 is the 36V output model of this series: rated current 5.55A, rated power 199.8W, typical efficiency 94%.

PWM-200 series is a 200W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. PWM-200 operates from 100～305VAC and offers models with different rated voltage ranging between 12V and 48V. Thanks to the high efficiency up to 94% with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for dry, damp or wet locations. PWM-200 is equipped with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips applications.

Features

Constant voltage PWM style output with frequency up to 4kHz design compliant IEEE1789-2015(Blank type)
Plastic housing with classⅡand PFC design
Emergency lighting application is available according to IEC61347-2-13
Standby power consumption <0.5W
Fully encapsulated with IP67 level
Function options: 3 in 1 dimming (dim-to-off and Isolated Design)/DALI-2
Minimum dimming level 0.2% for DA2 type
Typical lifetime >50000 hrs and 5 years warranty

Specifications

PWM-200-36DA2Specifications from the official datasheet (2026-02-04 edition)

OUTPUT

DC VOLTAGE: 36V
RATED CURRENT: 5.55A
RATED POWER: 199.8W
DIMMING RANGE: 0 ~ 100%
PWM FREQUENCY (Typ.)^Note.2: 4kHz for Blank type; 2.5kHz for DA2 type
SETUP, RISE TIME^Note.10: 500ms, 80ms/230VAC or 115VAC
HOLD UP TIME (Typ.): 10ms/230VAC or 115VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.97/115VAC, PF>0.96/230VAC, PF>0.94/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD<20%(@load≧60%/115VAC, 230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 2.2A / 115VAC 1.1A / 230VAC 0.9A / 277VAC
INRUSH CURRENT (Typ.): COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION: standby power consumption<0.5W when dimming off

PROTECTION

OVERLOAD: 108 ~ 135% rated output power Hiccup mode or Constant current limiting,recovers automatically after fault condition is removed
SHORT CIRCUIT: Shut down o/p voltage, re-power on to recover (except for DA2-type) Hiccup mode,recovers automatically after fault condition is removed (only for DA2-type)
OVER VOLTAGE: 41 ~ 49V Shut down o/p voltage, re-power on to recover after fault condition is removed
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover after fault condition is removed

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.5: UL8750( type ”HL” ), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13,BS EN/EN62384 independent, IP67, EAC TP TC 004,GB/T19510.1,GB/T19510.213, BIS IS15885(Part2/Sec13)(except for 36V) approved; Design refer to BS EN/EN60335-1, According to BS EN/EN61347-2-13 appendix J suitable for emergency installations
DALI STANDARDS: Comply with IEC62386-101, 102, 207, 251 for DA2 Type only, Device type 6(DT6)
WITHSTAND VOLTAGE: I/P-O/P: 3.75KVAC; I/P-DA: 1.5KVAC; O/P-DA:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
EMC EMISSION^Note.6: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3,GB/T 17743, GB17625.1;EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity, Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 2235.6K hrs min. Telcordia SR-332 (Bellcore) ;178.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 195*68*39.5mm (L*W*H)
PACKING: 1.03Kg; 12pcs/ 13.4Kg/ 0.71CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
5. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃or less.
6. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. It is not recommended to connect to capacitive loads
10. Based on IEC 62386-101/102 DALI power on timing and interruption regulations, the set up time needs to test with a DALI controller which can support for DALI power on function, otherwise the set up time will be higher than 0.5 second for DA2 type.
11. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

PWM-200-36DA2 DIMMING OPERATION — DIMMING OPERATION

PWM-200-36DA2 ◎Applying additive resistance — ◎Applying additive resistance

PWM-200-36DA2 ※DALI interface — ※DALI interface

PWM-200-36DA2 OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

PWM-200-36DA2 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

PWM-200-36DA2 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

PWM-200-36DA2 Block Diagram — Block Diagram

PWM-200-36DA2 Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED strip lighting
Indoor LED lighting
LED decorative lighting
LED architecture lighting
Cove lighting
Industrial lighting
Type “HL” for use in class I, division 2 hazardous (classified) location.

Downloads

Certificates5

Mean Well PWM-200 Series CB Certificate PDF Download

Mean Well PWM-200 CE Certificate EN PDF Download

Mean Well PWM-200 ENEC Certificate EN PDF Download

Mean Well PWM-200 UK Certificate EN PDF Download

Mean Well PWM-200 CCC Certificate EN PDF Download

Test reports1

Mean Well PWM-200-36 Test Report PDF Download

FAQ

Can the PWM-200-36DA2 be integrated into a DALI2 lighting control system for commercial interiors?

Yes. The PWM-200-36DA2 has native DALI2 support, so it can be addressed and dimmed directly from a DALI2 controller without an external gateway. It outputs 199.8W at 36V (5.55A), which is suitable for 36V LED strip in offices, corridors, or retail ceilings controlled by a building management system.

Is the PWM-200-36DA2 rated for outdoor or wet location use?

Yes. The IP67 rating means the unit is fully dust-tight and protected against temporary water immersion, making it usable in outdoor enclosures, covered walkways, or other wet-location fixtures. It operates across -40°C to +85°C, so it is also appropriate for installations in cold climates.

How long a run of 36V LED strip can one PWM-200-36DA2 drive?

The driver provides up to 199.8W at 36V. Divide 199.8W by your strip's rated watts per meter to get the maximum run—for example, a 15 W/m strip yields 199.8 ÷ 15 ≈ 13.3 m. Verify the watts-per-meter rating of your specific strip and plan the load at no more than 80% of rated capacity for reliable continuous operation.

Can I use the PWM-200-36DA2 for stage or architectural accent lighting with DALI2 scene control?

Yes. DALI2 allows individual addressing and scene recall, which is commonly used in stage backdrops and architectural accent lighting rigs. The 36V output supports longer LED strip runs with reduced voltage drop compared to 12V or 24V, making it practical for large installations requiring smooth, programmable dimming.

Is the PWM-200-36DA2 a good choice for hospitality cove lighting with centralized dimming?

Yes. The DALI2 interface supports individual zone addressing and preset scenes, which suits hospitality environments where different lighting moods are required. At 199.8W and 36V, the driver can support substantial cove lighting runs while the IP67 enclosure provides flexibility in mechanical placement.

How does the PWM-200-36DA2 differ from the PWM-200-36 and PWM-200-36KN?

The PWM-200-36 uses built-in 3-in-1 dimming (0-10V, PWM, resistance) without a bus protocol. The PWM-200-36DA2 adds DALI2 digital dimming. The PWM-200-36KN integrates KNX protocol instead, eliminating the need for a KNX-DALI gateway. All three are 199.8W, 36V, 5.55A with IP67.
