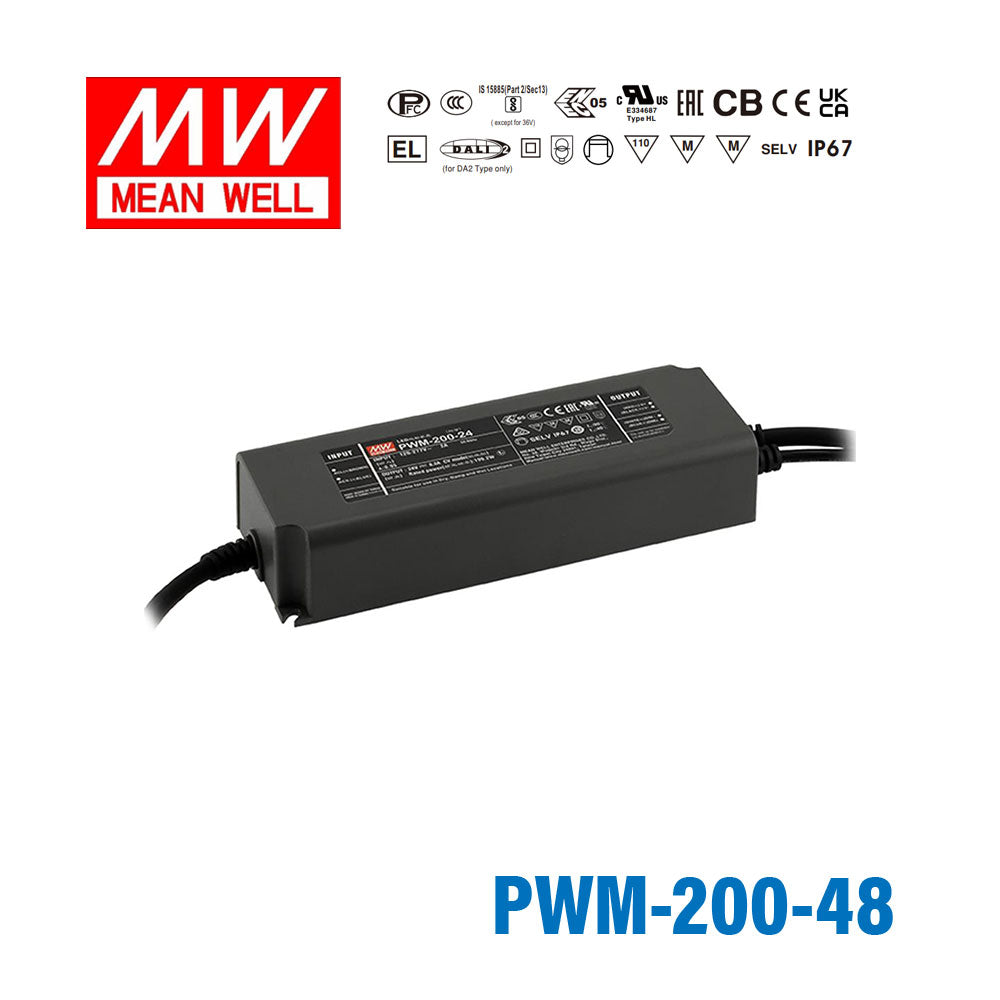

Mean Well PWM-200-48 Power Supply 200W 48V

Yes. The PWM-200-48 provides 200W at 48V (4.17A) with a built-in 3-in-1 dimming function, supporting 0-10V, PWM signal, and resistance dimming. It is suitable for 48V LED strip systems in offices, retail spaces, or any interior where analog dimming control is used.

Yes. The IP67 rating provides full dust protection and resistance to temporary water immersion, so it can be mounted outdoors in protected enclosures or in damp locations such as covered car parks or exterior soffits. The operating temperature range is -40°C to +85°C.

The driver outputs 200W at 48V. Divide 200 by your strip's rated watts per meter to calculate maximum run length—for instance, a 20 W/m strip supports up to 10 m (200 ÷ 20 = 10). Always verify your strip's rated power per meter and limit the continuous load to around 80% of the driver's rated wattage.

Yes. At 48V, the current draw for a given wattage is half that of an equivalent 24V system (4.17A vs 8.3A at 200W), which significantly reduces resistive voltage drop along the strip run. This makes 48V drivers like the PWM-200-48 well suited to longer continuous runs in architectural or landscape lighting.

Yes. The IP67 enclosure and 3-in-1 dimming make this driver appropriate for outdoor LED sign cabinets or channel-letter backlight using 48V LED modules. The wide operating temperature range ensures reliable performance in enclosures that can experience significant heat buildup in direct sun.

The PWM-200-48 uses built-in 3-in-1 dimming (0-10V, PWM, resistance) and has no bus protocol. The PWM-200-48DA2 adds DALI2 digital dimming for bus-controlled systems. The PWM-200-48KN integrates KNX directly, removing the need for a KNX-DALI gateway. All three are 200W, 48V, 4.17A with IP67.
