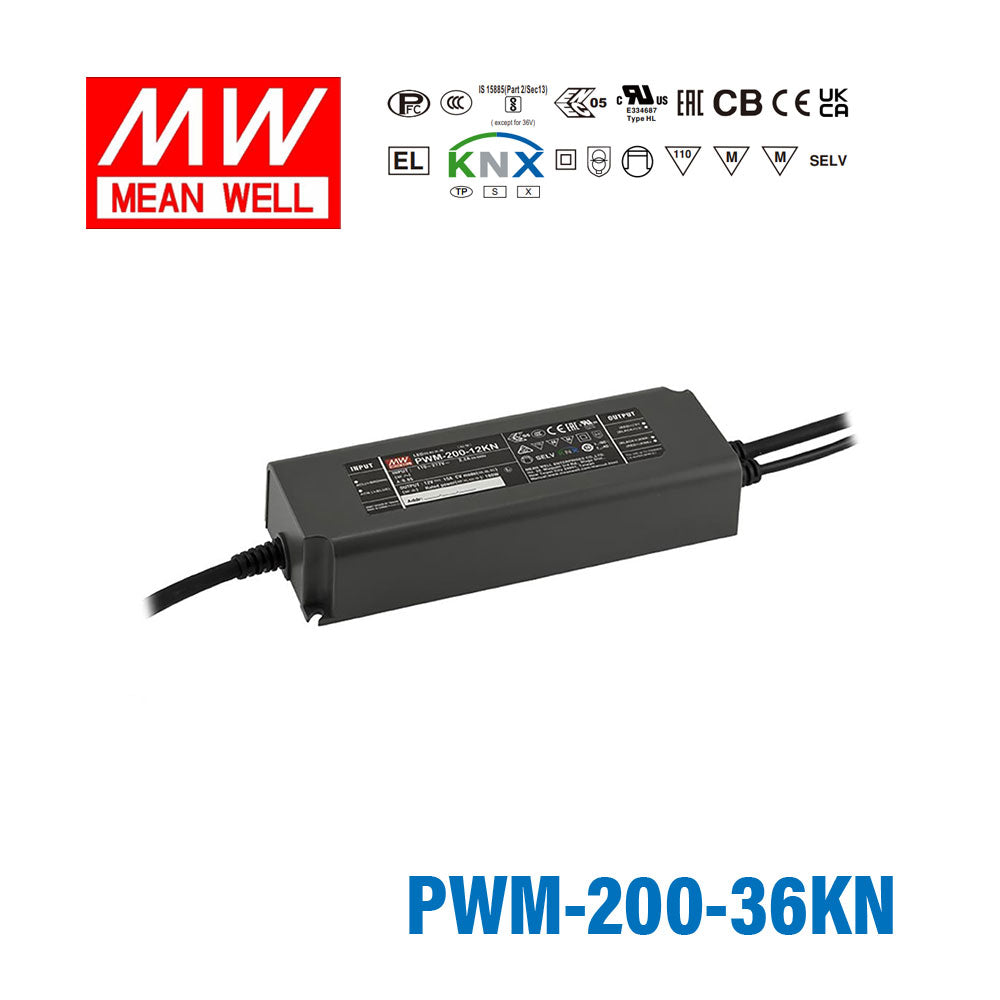

Mean Well PWM-200-36KN Power Supply 200W 36V KNX 5.55A

constant voltage PWM style outputbuilt-in active PFC functionstandby power consuption<0.5Wno need KNX-DALI gateway

SKU PWM-200-36KN

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

PWM-200-36KN is the 36V output model of this series: rated current 5.55A, rated power 199.8W, typical efficiency 94%.

PWM-200KN series is a 200W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the colour temperature and the brightness homogeneity when driving all kinds of LED strips and constant voltage LED bulbs. The built-in KNX interface is to avoid using the complicated KNX-DALI gateway and equipped with KNX Data Secure. KNX Data Secure offers protection against manipulation in building automation and can be configured in the ETS project. PWM-200KN operates from 100~305VAC and offers models with output voltage between 12V & 48V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The minimal dimming level low to 0.01% is suitable for low light level applications e.g. cinema. The output frequency is changeable up to 4KHz compliant IEEE1789-2015 no risk requirement and EU Ecodesign stroboscopic visibility measure(SVM) requirement providing a great solution for health concern due to light flickering.

Features

Constant Voltage PWM style output with user changeable frequency up to 4KHz design compliant IEEE1789-2015 and EU Ecodesign SVM requirement
Min. dimming level 0.01%
Plastic housing with class II design
Standby power consumption<0.5W
Support KNX Data Secure
No need KNX-DALI gateway
Typical lifetime>50000 hours
5 years warranty

Specifications

PWM-200-36KNSpecifications from the official datasheet (2026-02-04 edition)

OUTPUT

DC VOLTAGE: 36V
RATED CURRENT: 5.55A
RATED POWER: 199.8W
DIMMING RANGE: 0 ~ 100%
PWM FREQUENCY (Typ.): 200~4000Hz user changable via ETS
SETUP, RISE TIME^Note.2: 500ms, 80ms/230VAC, 1200ms, 80ms/115VAC
HOLD UP TIME (Typ.): 10ms/230VAC or 115VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.97/115VAC, PF>0.96/230VAC, PF>0.94/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD<20%(@load≧60%/115VAC, 230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 94%
AC CURRENT (Typ.): 2.2A / 115VAC 1.1A / 230VAC 0.9A / 277VAC
INRUSH CURRENT (Typ.): COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
STANDBY POWER CONSUMPTION: standby power consumption<0.5W when dimming off

PROTECTION

OVERLOAD: 108 ~ 135% rated output power Hiccup mode or Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Shut down o/p voltage, re-power on to recover
OVER VOLTAGE: 41 ~ 49V Shut down o/p voltage, re-power on to recover after fault condition is removed
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover after fault condition is removed

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.5: UL8750( type ”HL” ), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13,BS EN/EN62384 independent, EAC TP TC 004,GB/T19510.1,GB/T19510.213, BIS IS15885(Part2/Sec13)(except for 36V) approved; Design refer to BS EN/EN60335-1, According to BS EN/EN61347-2-13 appendix J suitable for emergency installations
KNX STANDARDS: Certified protocol
WITHSTAND VOLTAGE: I/P-O/P: 3.75KVAC
ISOLATION RESISTANCE: I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
EMC EMISSION^Note.6: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1;EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity, Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 1658.9 K hrs min. Telcordia SR-332 (Bellcore) ; 170 .0K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 195*68*39.5mm (L*W*H)
PACKING: 1.03Kg; 12pcs/13.4Kg/0.71CUFT

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
5. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃or less.
6. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. It is not recommended to connect to capacitive loads
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.

Technical drawings

PWM-200-36KN DIMMING OPERATION — DIMMING OPERATION

PWM-200-36KN OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

PWM-200-36KN STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

PWM-200-36KN TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

PWM-200-36KN Block Diagram — Block Diagram

PWM-200-36KN Mechanical Specification — Mechanical Specification

PWM-200-36KN Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED strip lighting
Indoor LED lighting
LED decorative lighting
LED architecture lighting
Type "HL" for use in class I, division 2 hazardous (classified) location.
Cove lighting
Industrial lighting

Downloads

Certificates5

Mean Well PWM-200 Series CB Certificate PDF Download

Mean Well PWM-200 CE Certificate EN PDF Download

Mean Well PWM-200 ENEC Certificate EN PDF Download

Mean Well PWM-200 UK Certificate EN PDF Download

Mean Well PWM-200 CCC Certificate EN PDF Download

Test reports1

Mean Well PWM-200-36 Test Report PDF Download

FAQ

Can the PWM-200-36KN control 36V LED strips directly through a KNX smart home or building system?

Yes. The PWM-200-36KN has an integrated KNX interface and does not require a separate KNX-DALI gateway, simplifying the system architecture. It provides 200W at 36V (5.55A) with constant voltage PWM output, making it suitable for 36V LED strip installations in KNX-controlled residential or commercial projects.

Is the PWM-200-36KN suitable for outdoor LED lighting in a KNX-managed landscape system?

No. The PWM-200-36KN has a plastic housing with Class II design and is not rated for outdoor use (no IP rating specified for outdoor exposure). It is designed for indoor LED lighting, decorative lighting, and architectural applications. The -40°C to +85°C case temperature range applies to internal component limits, not outdoor environmental exposure.

How much 36V LED strip can a single PWM-200-36KN power?

The unit delivers 200W at 36V. Divide 200 by your strip's watt-per-meter rating to estimate maximum length—a 12 W/m strip allows approximately 16.6 m (200 ÷ 12 ≈ 16.6). As with any LED driver, it is best practice to size the load at no more than 80% of the rated wattage for continuous applications.

Can the PWM-200-36KN be used for LED strip lighting in a hotel corridor with KNX occupancy control?

Yes. The built-in KNX interface allows the driver to respond directly to occupancy or presence sensors on the KNX bus for automatic dimming or switch-off in corridors. The 200W, 36V output is well sized for runs of 36V LED strip used in recessed ceiling or cove lighting.

What is the standby power consumption of the PWM-200-36KN?

Standby power consumption is below 0.5W, which supports energy-efficiency requirements in green building projects where low no-load losses are specified. This is particularly relevant in occupancy-controlled or time-scheduled lighting systems that frequently switch the driver to standby.

Can this driver power 36V LED tape for retail display lighting with scheduled brightness control?

Yes. The 200W output supports substantial runs of 36V LED tape in display shelving or cabinet lighting. The KNX interface enables time-based scheduling and scene switching directly from a building management or retail automation system without additional protocol adapters.
