Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

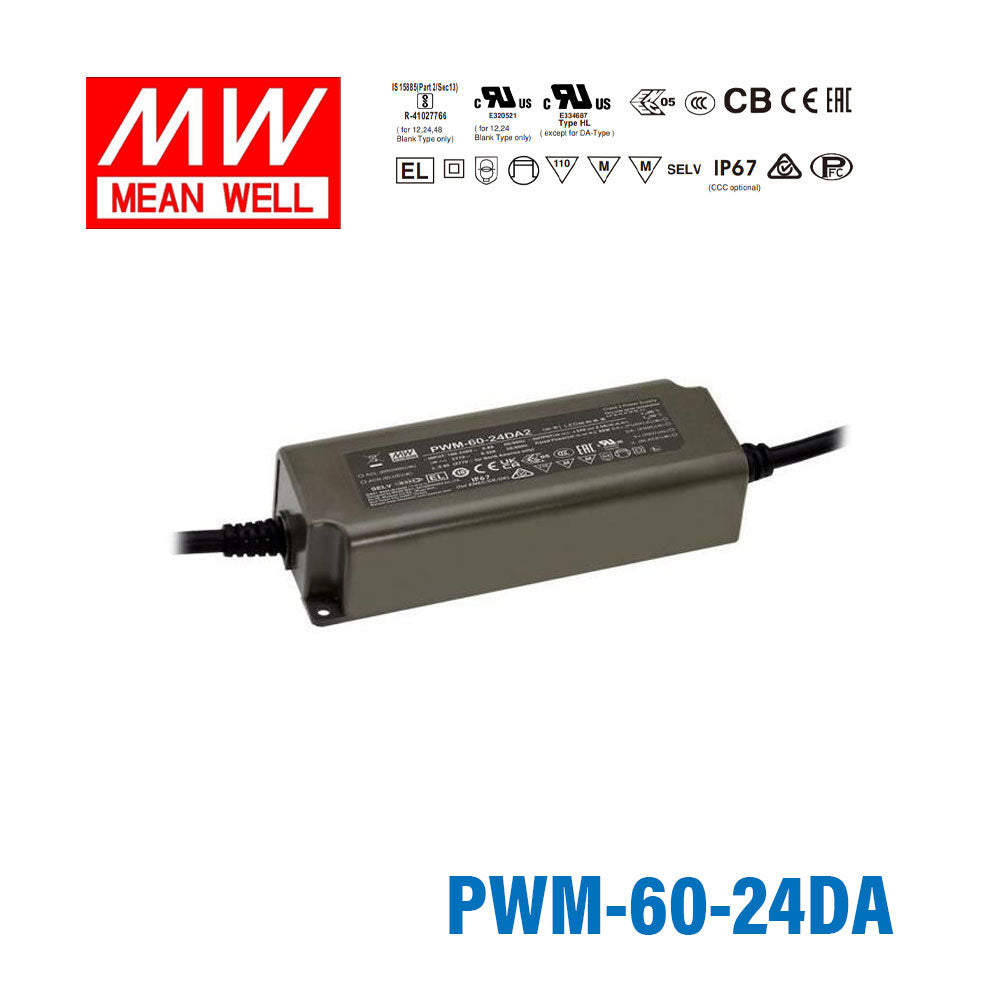

Mean Well PWM-60-24DA Power Supply 60W 24V - DALI 2.5A

PWM style outputfully isolated plastic caseIP67Class II design without FGDALI

SKU PWM-60-24DA

Log in to see price Trade pricing & online ordering for account holders

Select model — 7 in this family

PWM-60-24DA

PWM-40-24 Fixed output In stock

PWM-60-24 Dimmable Low stock

PWM-60-24DA DALI Backorder

PWM-60-24DA2 DALI2 In stock

PWM-90-24 Dimmable In stock

PWM-90-24DA DALI Backorder

PWM-90-24DA2 DALI2 In stock

Product variants

Notify me when it's back in stock

The PWM-60 is a 60W Mean Well AC-DC constant voltage LED driver (input: 90~305VAC, output: 24V, operating temperature: -40~+85°C).

Key Features

✓ Input voltage: 90~305VAC
✓ Output voltage: 24V
✓ Rated output current: 2.5A
✓ DALI dimming support
✓ Class II design — no earth connection required
✓ Ingress protection: IP67
✓ Operating temperature: -40~+85°C
✓ Safety certifications: CB, CCC, CE, EAC, ENEC, UL
✓ 5 year warranty

Frequently Asked Questions

Can I use the PWM-60-24DA in a DALI smart lighting system?

Yes. The PWM-60-24DA includes a DALI (Digital Addressable Lighting Interface) input, allowing it to be addressed and dimmed individually over a DALI bus. This makes it suitable for intelligent building lighting systems and zone-controlled commercial LED installations at 24V.

Is the PWM-60-24DA suitable for outdoor LED display panels?

Yes. With an IP67 waterproof rating, the PWM-60-24DA can be installed in outdoor environments exposed to rain and moisture. Its -40°C to +85°C operating range and DALI dimming support make it a strong choice for remotely controlled outdoor LED signage.

Can the PWM-60-24DA power a dimmable 24V LED strip in a retail display?

Yes. Retail display lighting at 24V with DALI-based dimming control is a well-suited application. The driver outputs up to 60W at 2.5A, which is enough to run moderate-length 24V LED strips. DALI allows the strip brightness to be adjusted from a central controller without additional dimmer hardware at the fixture.

How much 24V LED strip can the PWM-60-24DA support?

The PWM-60-24DA has a maximum output of 60W. Divide that by your strip's power draw per meter to calculate maximum length — a 10 W/m strip could run up to 6 meters, while a 20 W/m strip is limited to about 3 meters. Apply an 80% derating rule for continuous use, reducing usable capacity to 48W.

Does the PWM-60-24DA need an earth ground in the enclosure?

No. Like all PWM series drivers, the PWM-60-24DA features a Class II design without a functional ground (FG), so no earth connection is needed. This is particularly useful when mounting inside plastic weatherproof enclosures.

What is the difference between the PWM-60-24DA and PWM-60-24DA2?

Both are 60W, 24V, 2.5A IP67 drivers in the same physical housing. The PWM-60-24DA uses the original DALI protocol, while the PWM-60-24DA2 supports the newer DALI2 standard, which offers improved interoperability and device query capabilities. Choose DA2 if your DALI controller or luminaires require DALI2 compliance.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well PWM-60-24DA2 Power Supply 60W 24V DALI2 2.5A	60W	24V	2.5A	IP67	View
Mean Well PWM-60-12DA2 Power Supply 60W 12V DALI2 5A	60W	12V	5A	IP67	View
Mean Well PWM-60-48 Power Supply 60W 48V - Dimmable 1.25A	60W	48V	1.25A	IP67	View
Mean Well PWM-60-24 Power Supply 60W 24V - Dimmable 2.5A	60W	24V	2.5A	IP67	View
Mean Well PWM-60-36DA Power Supply 60W 36V - DALI 1.67A	60W	36V	1.67A	IP67	View
Mean Well PWM-60-36 Power Supply 60W 36V - Dimmable 1.67A	60W	36V	1.67A	IP67	View
Mean Well PWM-60-24KN AC-DC Single output LED driver Constant Voltage (CV) 2.5A	60W	24V	2.5A	IP67	View
Mean Well PWM-60-24BLE AC-DC Single output LED driver Constant Voltage (CV)	60W	24V	2.5A	—	View
Mean Well PWM-60-12KN AC-DC Single output LED driver Constant Voltage (CV) 2.5A	60W	12V	2.5A	IP67	View
Mean Well PWM-60-12DA Power Supply 60W 12V - DALI 5A	60W	12V	5A	IP67	View
Mean Well PWM-60-12 Power Supply 60W 12V - Dimmable 5A	60W	12V	5A	IP67	View
