Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

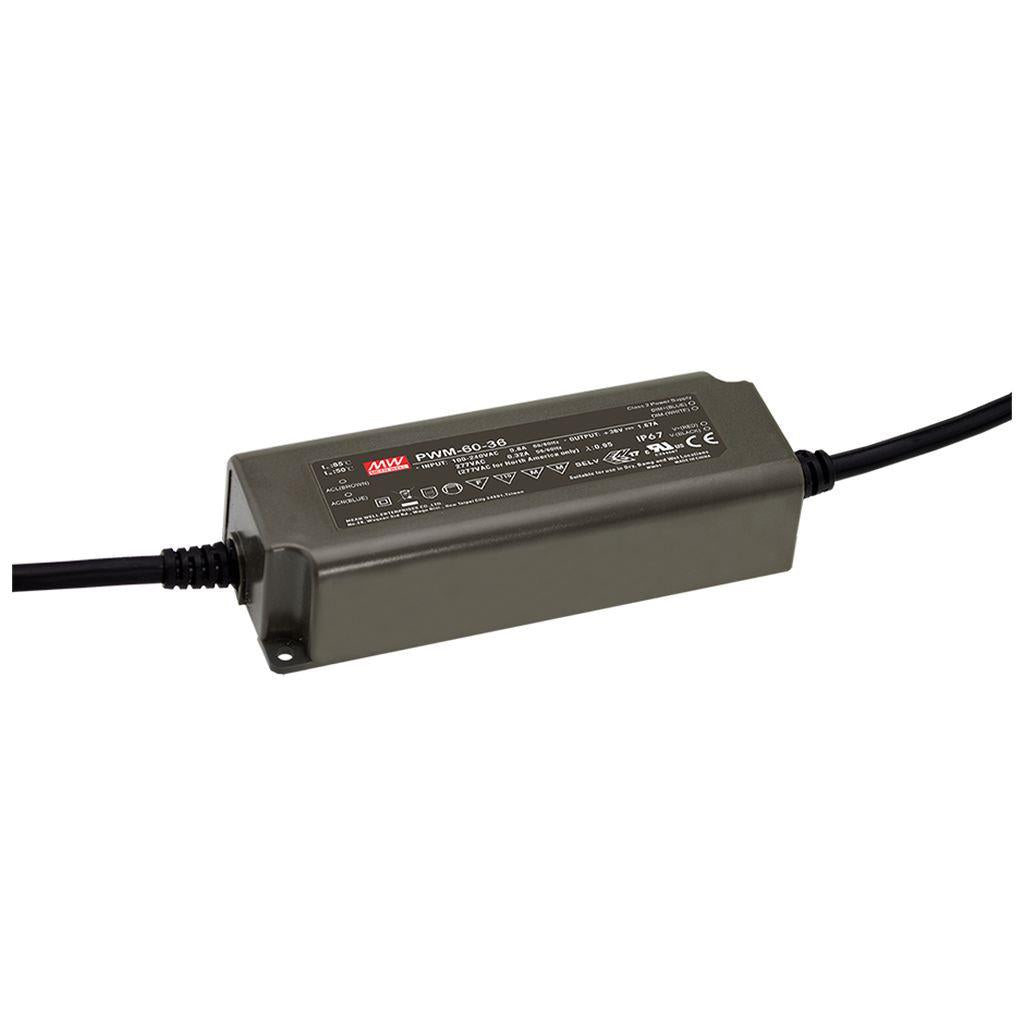

Mean Well PWM-60-24BLE AC-DC Single output LED driver Constant Volt...
Please Login for Pricing
Description
Description
Features
| Universal AC input (up to 305VAC) / Full range |
| Constant voltage PWM style output |
| Built-in active PFC function |
| High efficiency up to 91% |
| No load power consumption <0.5W |
| Protections: Short circuit / Overload / Over voltage / Over temperature |
| Cooling by free air convection |
| Fully isolated plastic case |
| Fully encapsulated with IP67 level |
| Class 2 power unit (except for PWM-90-12 & PWM-120) |
| Isolation class II, no F.G. |
| Built-in 2 in 1 dimming function (0~10VDC or PWM signal) |
| Suitable for dry, damp, and wet location |
| Suitable for LED strip lighting |
| 5 years warranty |
General Specification
| AC input voltage range | 90~305VAC ; 127~431VDC |
| AC inrush current (max.) | Cold start, 50A at 230VAC |
| Overload protection | 108%~120% hiccup mode, auto-recovery |
| Over voltage protection | 113%~142% rated output voltage |
| Over temp. protection | Shut down output voltage, re-power on to recover |
| Setup, rise, hold up time | 500ms, 80ms, 16ms at full load and 230VAC |
| Setup, rise, hold up time | 1000ms, 80ms, 16ms at full load and 230VAC |
| Withstand voltage | I/P-O/P: 3.75kVAC |
| Working temperature | -40~+70ºC (refer to output derating curve) |
| Safety standards | UL8750, ENEC EN61347-1, EN61347-2-13, EN62384 approved (PWM-40/60/120 pending); Design refer to EN60335-1 |
| EMC standards | EN55015, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547 (PWM-40/60/120 pending) |
| Connection Input | UL rated, SJTW 18AWGx3C (30cm) |
| Connection Output | UL2464 18AWG x2C (30cm)+ 22AWG x2C (30cm) |
| Dimension (LxWxH) (mm) | 150x 53x 35 |
Specifications
Specifications
-
BrandMean Well
-
SeriesPWM Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty5 Year
-
Length15 cm
-
Width5.3 cm
-
Height3.5 cm
-
Weight0.45 kg
