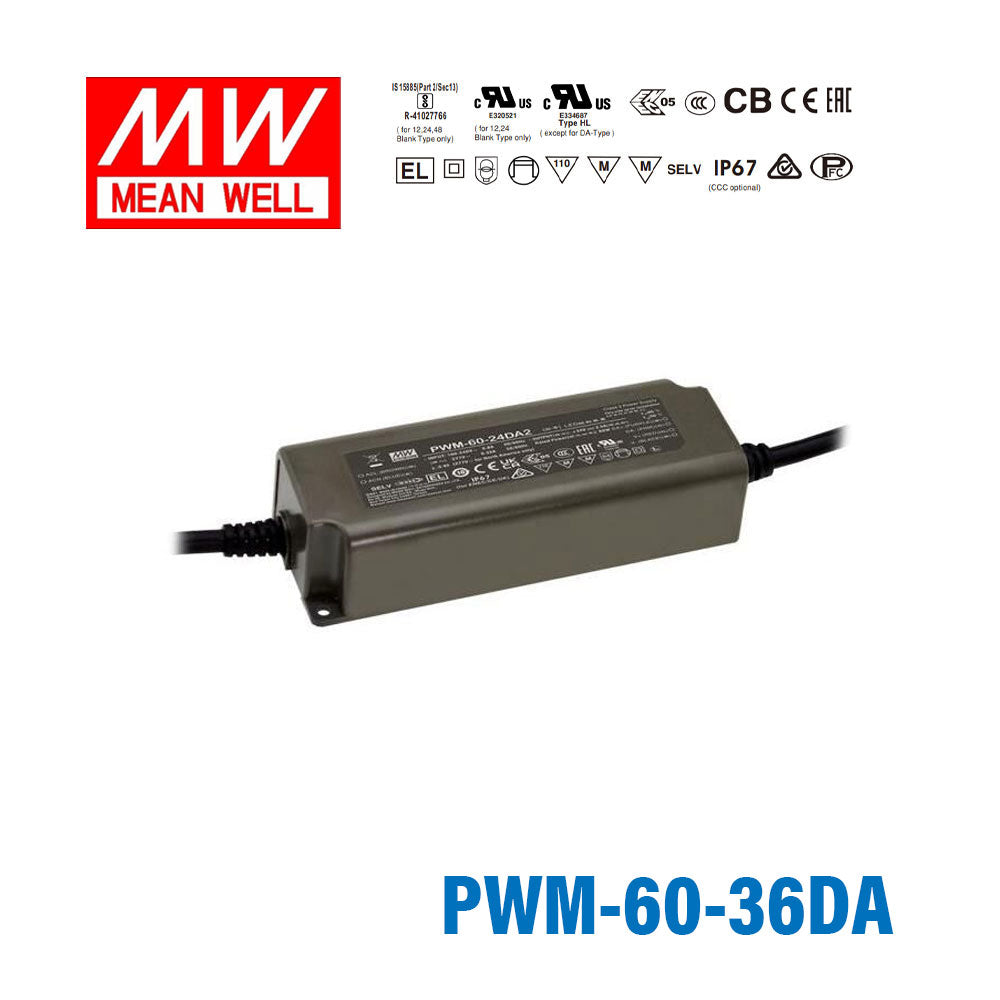

Mean Well PWM-60-36DA Power Supply 60W 36V - DALI 1.67A

PWM style outputfully isolated plastic caseIP67Class II design without FGDALI

SKU PWM-60-36DA

Log in to see price Trade pricing & online ordering for account holders

Select model — 5 in this family

PWM-60-36DA

PWM-40-36 Fixed output Backorder

PWM-60-36 Dimmable Backorder

PWM-60-36DA DALI Backorder

PWM-90-36 Dimmable Backorder

PWM-90-36DA DALI Backorder

Product variants

Available to order

Overview

PWM-60-36DA is the 36V output model of this series: rated current 1.67A, rated power 60.12W, typical efficiency 90%.

PWM-60 series is a 60W LED AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the brightness homogeneity when driving all kinds of LED strips. PWM-60 operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 48V. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The entire series is rated with IP67 ingress protection level and is suitable to work for dry, damp or wet locations. PWM-60 is equipped with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips applications.

Features

Constant Voltage PWM style output with frequency 1.47kHz
Plastic housing with class II design
Built-in active PFC function
Class 2 power unit
No load power consumption <0.5W
Fully encapsulated with IP67 level
Function: 3 in 1 dimming(dim-to-off); DALI
Typical lifettime>50000 hours
5 years warranty

Specifications

PWM-60-36DASpecifications from the official datasheet (2019-01-10 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 36V
RATED CURRENT: 1.67A
RATED POWER: 60.12W
DIMMING RANGE: 0 ~ 100%
PWM FREQUENCY (Typ.): 1.47kHz
SETUP, RISE TIME^Note.2: 500ms, 80ms/ 115AC or 230VAC
HOLD UP TIME (Typ.): 16ms/115VAC or 230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.97/115VAC, PF>0.95/230VAC, PF>0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VAC, 230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 0.8A / 115VAC 0.4A / 230VAC 0.32A / 277VAC
INRUSH CURRENT (Typ.): COLD START 50A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 9 units (circuit breaker of type B) / 16 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.25mA / 277VAC
NO LOAD POWER CONSUMPTION: <0.5W

PROTECTION

OVERLOAD: 108 ~ 125% rated output power Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT: Shut down o/p voltage, re-power on to recover
OVER VOLTAGE: 41 ~ 46V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^Note.5: UL8750( type ”HL” )( except for DA-Type), UL879( for 12V,24V Blank Type only), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent,EN62384, IP67,BIS IS15885(for 12,24,48 Blank Type only), EAC TP TC 004, GB19510.1, GB19510.14 approved; Design refer to EN60335-1
DALI STANDARDS: Comply with IEC62386-101, 102, 207 for DA-Type only,Device type 6(DT6)
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.6: Compliance to EN55015, EN61000-3-2 Class C (@load≧60%) ; EN61000-3-3,GB17743 and GB17625.1,EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020

OTHERS

MTBF: 996K hrs min. Telcordia SR-332 (Bellcore) ; 271.03K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 150*53*35mm (L*W*H)
PACKING: 0.49Kg;30pcs/15.7Kg/1.0CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
4. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
5. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
6. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

PWM-60-36DA DIMMING OPERATION — DIMMING OPERATION

PWM-60-36DA ◎ Applying additive resistance — ◎ Applying additive resistance

PWM-60-36DA OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

PWM-60-36DA STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

PWM-60-36DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

PWM-60-36DA Block Diagram — Block Diagram

PWM-60-36DA Mechanical Specification — Mechanical Specification

PWM-60-36DA Recommend Mounting Direction — Recommend Mounting Direction

PWM-60-36DA ◎Connection for Blank-type — ◎Connection for Blank-type

Typical applications

LED strip lighting
Indoor LED lighting
LED decorative lighting
LED architecture lighting
Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

PWM-60-36DA datasheetpwm_60_spec.pdf · 2019-01-10 edition PDF Download

Certificates5

UL Certificate (PWM-60)(EN) PDF Download

CB Certificate (PWM-60)(EN) PDF Download

EMC Certificate (PWM-60)(EN) PDF Download

ENEC Certificate (PWM-60)(EN) PDF Download

ErP Certificate (PWM-60)(EN) PDF Download

Test reports1

Test Report(PWM-60-36)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can the PWM-60-36DA integrate into a DALI building management system for 36V lighting?

Yes. The PWM-60-36DA accepts DALI control signals, allowing individual addressing and dimming over a DALI bus at 36V output. This is useful in commercial buildings with centralised lighting control where 36V LED strips or luminaires are specified.

Is the PWM-60-36DA rated for outdoor or wet-area lighting projects?

Yes. The IP67 rating protects the driver against dust ingress and temporary water immersion, making it suitable for outdoor signage, facade lighting, or covered walkway installations. The -40°C to +85°C operating range covers most outdoor deployment conditions.

How much 36V LED strip can the PWM-60-36DA support?

Maximum output is 60W at 36V and 1.67A. A strip consuming 8 W/m allows up to 7.5 meters; a 15 W/m strip is limited to 4 meters. Always verify your strip's rated power per meter and derate to 80% load (48W) for continuous duty.

Can I use the PWM-60-36DA for DALI-controlled museum exhibit lighting at 36V?

Yes. DALI addressability combined with 36V constant voltage output suits precision-controlled display or exhibit lighting where scene programming and individual zone dimming are required. The Class II isolated plastic case simplifies mounting without an earth connection.

Does the PWM-60-36DA require a DALI power supply in addition to the mains input?

No. The PWM-60-36DA accepts standard mains input (90–305VAC) and the DALI signal comes from the DALI bus controller. The driver does not require a separate DALI power supply; only the DALI two-wire bus connection is needed alongside the AC mains.

Can the PWM-60-36DA be used for DALI-dimmed outdoor landscape lighting?

Yes. IP67 waterproofing and a wide operating temperature of -40°C to +85°C make this driver suitable for outdoor landscape applications with DALI-based scene control. Use it with a 36V outdoor-rated LED strip or fixture for a weatherproof, intelligently controlled installation.
