Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

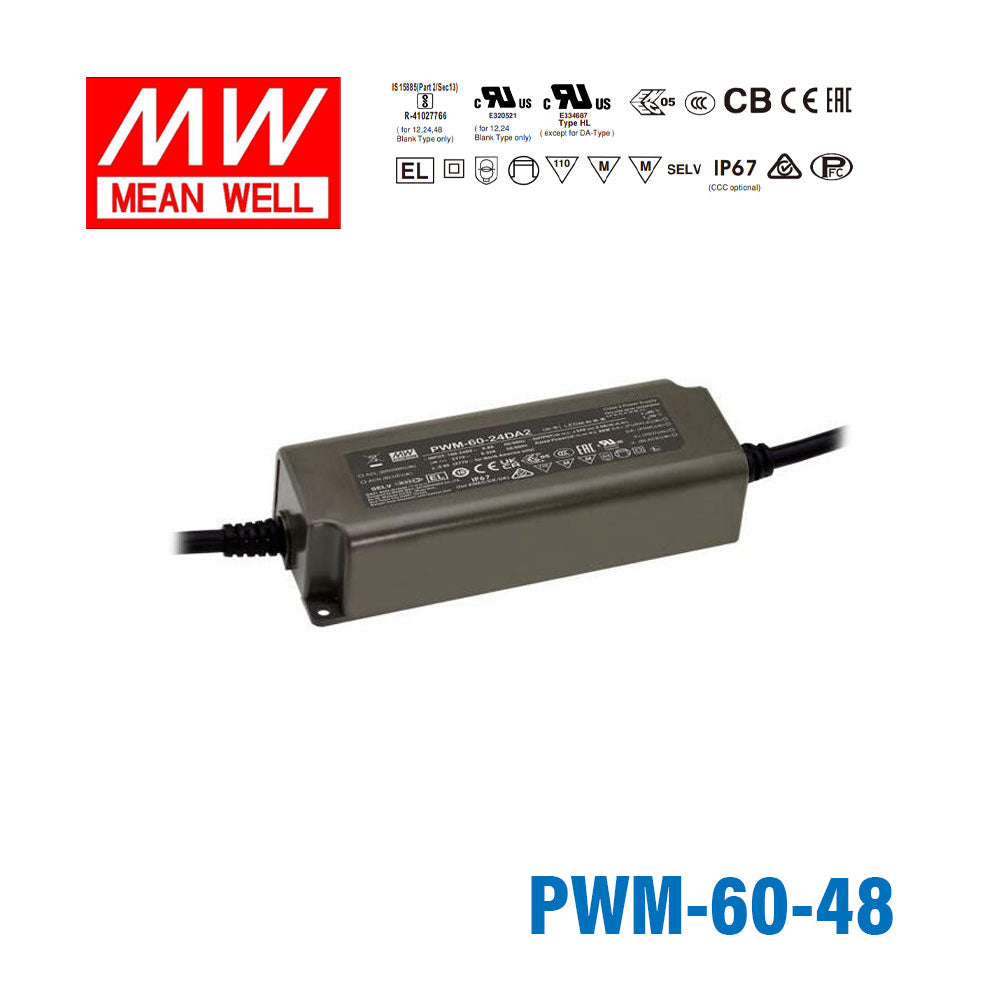

Mean Well PWM-60-48 Power Supply 60W 48V - Dimmable 1.25A

PWM style outputfully isolated plastic caseIP67Class II design without FGbuilt-in 3 in 1 dimming

SKU:

PWM-60-48

Log in to see price Trade pricing & online ordering for account holders

Select model — 5 in this family

PWM-60-48

PWM-40-48 Fixed output Backorder

PWM-60-48 Dimmable Low stock

PWM-90-48 Dimmable Backorder

PWM-90-48DA DALI Backorder

PWM-90-48DA2 DALI2 Low stock

Product variants

Notify me when it's back in stock

The PWM-60 is a 60W Mean Well DIN rail power converter with a 150mm profile (input range: 90~305VAC, operating temperature: -40~+80℃).

Key Features

✓ 150mm width — DIN rail TS-35 compatible
✓ Input voltage range: 90~305VAC
✓ 3.75KVAC reinforced I/O isolation
✓ Cooling by free air convection
✓ Wide operating temperature: -40~+80℃
✓ Protections: Short circuit / Overload / Over voltage / Over temperature
✓ Active PFC — meets international energy efficiency regulations
✓ Safety approvals: Note.5 UL8750( type ”HL” )( except for DA-Type), UL879( for 12V,24V Blank Type only), CSA C22.2 No. 250.13-12; ENEC EN61347-1, EN61347-2-13 independent,EN62384, IP67,BIS IS15885(for 12,24,48 Blank Type only), EAC TP TC 004, GB19510.1, GB19510.14
✓ 3 years warranty

Frequently Asked Questions

What types of LED lighting applications use a 48V dimmable driver like the PWM-60-48?

48V LED strips and luminaires are increasingly used in longer runs and in Power over Ethernet (PoE) compatible systems where lower current reduces resistive losses. The PWM-60-48 is suited to 48V architectural strip systems, long-run cove lighting, and specialty 48V luminaires that benefit from reduced voltage drop over distance.

Can the PWM-60-48 be installed in a damp or outdoor location?

Yes. The IP67 rating certifies protection against dust and temporary water immersion, so the driver can be placed in outdoor enclosures, wet-area sign boxes, or exposed architectural installations. Its operating temperature spans -40°C to +85°C, covering a wide range of outdoor climates.

How long a 48V LED strip can the PWM-60-48 power?

The PWM-60-48 provides a maximum of 60W at 48V and 1.25A. For a 10 W/m strip, the theoretical maximum is 6 meters; at 20 W/m it is 3 meters. Always check your strip's specific power rating per meter, and derate to 80% load (48W) for continuous operation to protect driver longevity.

Is the PWM-60-48 compatible with a PWM dimming signal from a building automation controller?

Yes. The built-in 3-in-1 dimming accepts 0–10V, PWM signal, and resistance inputs. A standard PWM dimming output from a building controller or smart relay will control the LED output smoothly without additional hardware.

Can I use the PWM-60-48 for dimmable 48V retail display lighting?

Yes. The combination of 60W output, IP67 enclosure, and 3-in-1 dimming makes the PWM-60-48 suitable for commercial retail display applications using 48V LED strips. The Class II design without FG simplifies mounting in plastic display cabinetry.

How does the PWM-60-48 compare to the other 60W PWM series voltage options?

The 60W PWM family in this voltage tier includes the PWM-60-24 (24V, 2.5A), PWM-60-36 (36V, 1.67A), and PWM-60-48 (48V, 1.25A), all sharing the same 150 × 53 × 35 mm housing and IP67 rating. Higher voltage means lower current for the same wattage, which can reduce resistive losses over longer cable runs.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Mean Well PWM-60-24DA2 Power Supply 60W 24V DALI2 2.5A	60W	24V	2.5A	IP67	View
Mean Well PWM-60-12DA2 Power Supply 60W 12V DALI2 5A	60W	12V	5A	IP67	View
Mean Well PWM-60-24DA Power Supply 60W 24V - DALI 2.5A	60W	24V	2.5A	IP67	View
Mean Well PWM-60-24 Power Supply 60W 24V - Dimmable 2.5A	60W	24V	2.5A	IP67	View
Mean Well PWM-60-36DA Power Supply 60W 36V - DALI 1.67A	60W	36V	1.67A	IP67	View
Mean Well PWM-60-36 Power Supply 60W 36V - Dimmable 1.67A	60W	36V	1.67A	IP67	View
Mean Well PWM-60-24KN AC-DC Single output LED driver Constant Voltage (CV) 2.5A	60W	24V	2.5A	IP67	View
Mean Well PWM-60-24BLE AC-DC Single output LED driver Constant Voltage (CV)	60W	24V	2.5A	—	View
Mean Well PWM-60-12KN AC-DC Single output LED driver Constant Voltage (CV) 2.5A	60W	12V	2.5A	IP67	View
Mean Well PWM-60-12DA Power Supply 60W 12V - DALI 5A	60W	12V	5A	IP67	View
Mean Well PWM-60-12 Power Supply 60W 12V - Dimmable 5A	60W	12V	5A	IP67	View
