Mean Well RS-150-5 Power Supply 150W 5V 26A

4.8 (14 reviews)
miniature sizeeconomicalwithstand 5G vibration and 70Β°C operation
SKU RS-150-5
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model β€” 7 in this family

RS-150-5
Available to order
|

Overview

RS-150-5 is the 5V output model of this series: rated current 26A, rated power 130W, typical efficiency 78%.

Features

  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105℃ long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70℃
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty

Specifications

RS-150-5Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
26A
CURRENT RANGE
0 ~ 26A
RATED POWER
130W
RIPPLE & NOISE (max.)Note.2
80mVp-p
VOLTAGE ADJ. RANGE
4.75 ~ 5.5V
VOLTAGE TOLERANCENote.3
Β±2.0%
LINE REGULATIONNote.4
Β±0.5%
LOAD REGULATIONNote.5
Β±1.0%
SETUP, RISE TIME
800ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
28ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGE
88 ~ 132VAC / 176 ~ 264VAC selected by switch 248 ~ 373VDC(Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
78%
AC CURRENT (Typ.)
3A/115VAC 2A/230VAC
INRUSH CURRENT (Typ.)
COLD START 40A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOADNote.8
110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.75 ~ 6.75V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
Β±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2(Note.9),-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF
3044.1K hrs min. Telcordia SR-332 (Bellcore) ; 437.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
199*98*38mm (L*W*H)
PACKING
0.7Kg; 20pcs/14Kg/0.85CUFT
Test conditions and notes10
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1ΞΌF & 47ΞΌF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Line regulation is measured from low line to high line at rated load.
  5. 5. Load regulation is measured from 0% to 100% rated load.
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to β€œEMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
  8. 8. Extra consideration should be taken when selecting output wiring for 3.3V and 5V models. This is to prevent the protection modes for overload and short circuit from becoming constant power.
  9. 9. Testing harmonic current at 80% load.
  10. 10.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

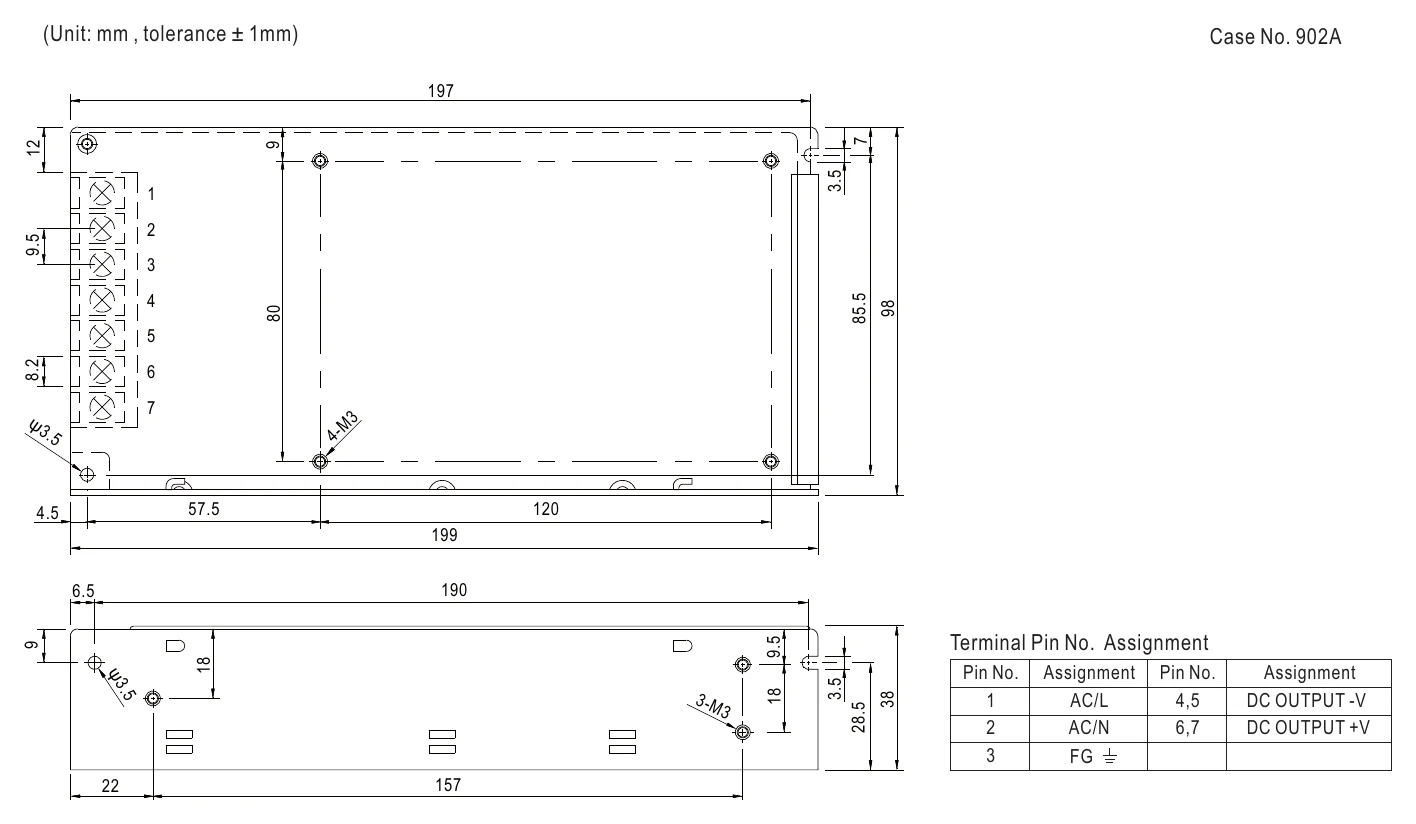

RS-150-5 Mechanical Specification
Mechanical Specification

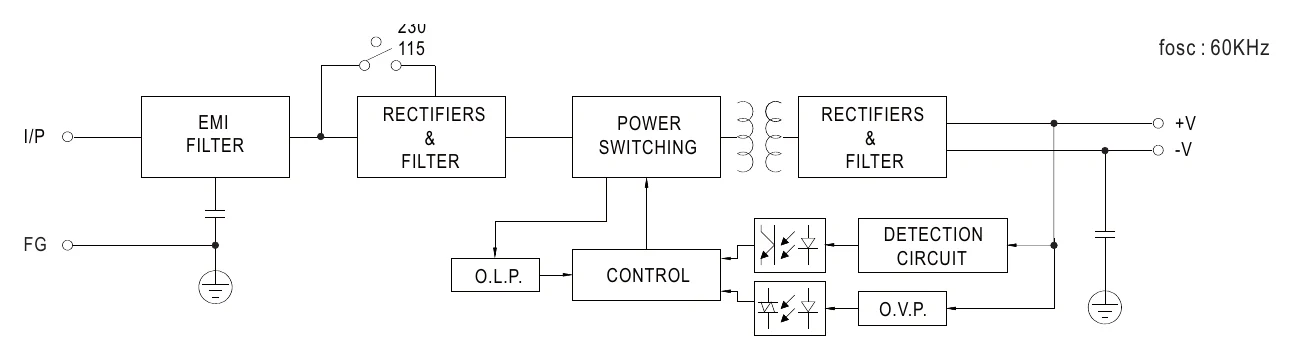

RS-150-5 Block Diagram
Block Diagram

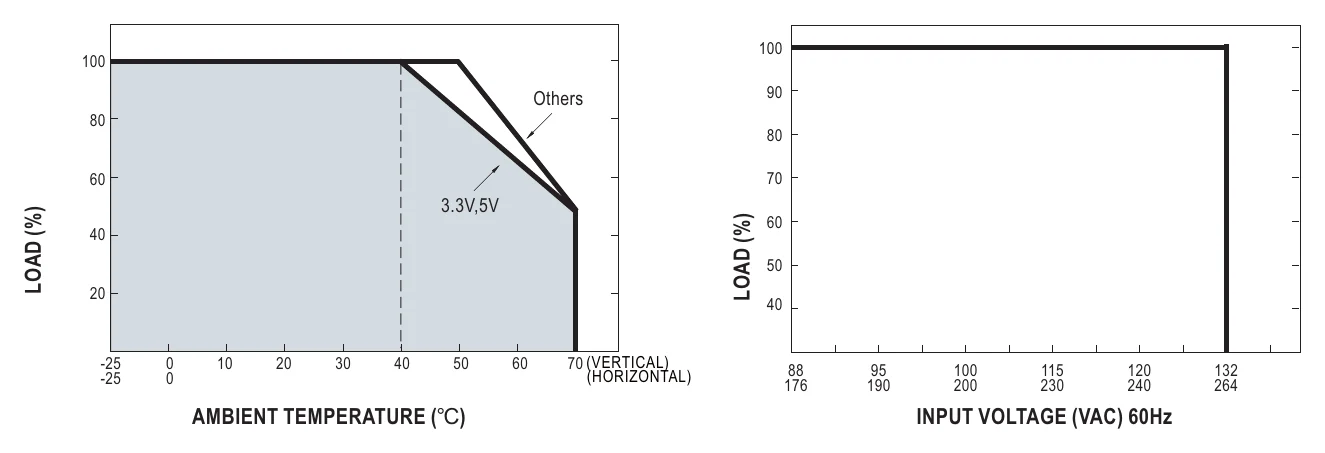

RS-150-5 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the RS-150-5 for 5V industrial electronics with high current draw?

Yes, if the equipment needs a constant 5V supply and the total demand stays within 26A and 130W. That makes it suitable for low-voltage industrial loads that need much higher current than smaller 5V supplies.

Is the RS-150-5 a good fit for powering multiple 5V embedded controllers from one source?

It can support a shared 5V rail for multiple embedded devices as long as the combined load does not exceed 26A or 130W. Its constant-voltage output is intended for equipment designed around a regulated 5V input.

Can this model support 5V automation hardware in a control cabinet?

It is appropriate for 5V automation hardware that requires a constant-voltage bus and stays within 26A. The wide 88-264VAC input also helps when the same design is used across different AC supply ranges.

How do I size the RS-150-5 for a 5V load?

Match it to equipment that requires constant-voltage 5V, then total the current and power demand. This unit is rated for 26A and 130W, so the connected load needs to remain at or below both figures.

Can the RS-150-5 be used where ambient temperatures swing widely?

The operating temperature range is -25Β°C to +70Β°C, and the feature list includes 70Β°C operation with 5G vibration resistance. No IP rating is listed in the provided specs, so indoor versus outdoor exposure is not defined here.

How does the RS-150-5 compare with the other RS-150 models?

The listed RS-150 versions are 12V at 12.5A and 150W, 15V at 10A and 150W, 24V at 6.5A and 156W, 3.3V at 30A and 99W, 48V at 3.3A and 158.4W, and 5V at 26A and 130W. The 5V model is the high-current option between the 3.3V version at 30A and the 12V version at 12.5A.
