Mean Well

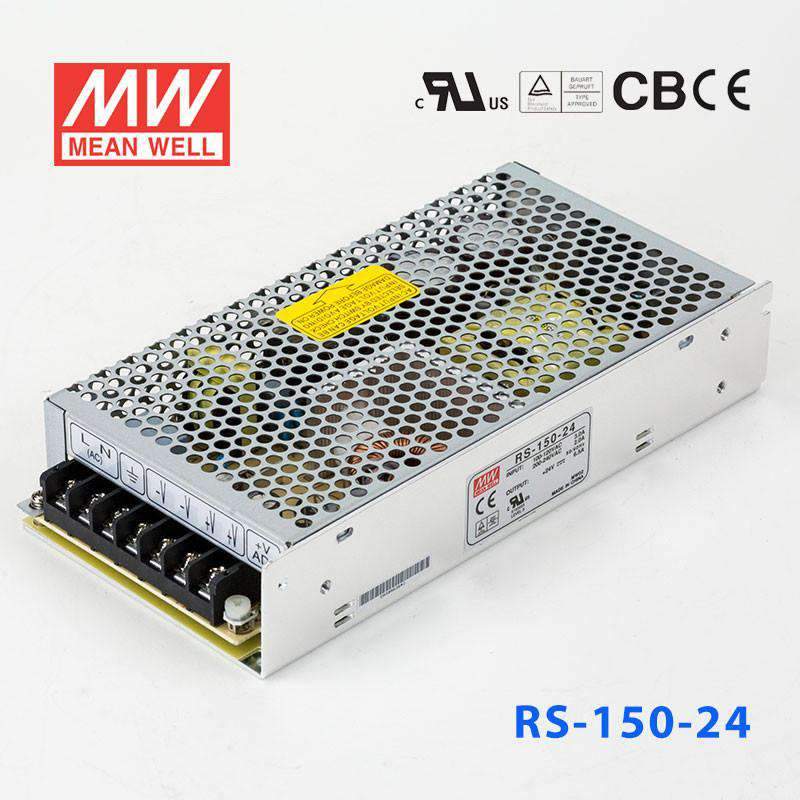

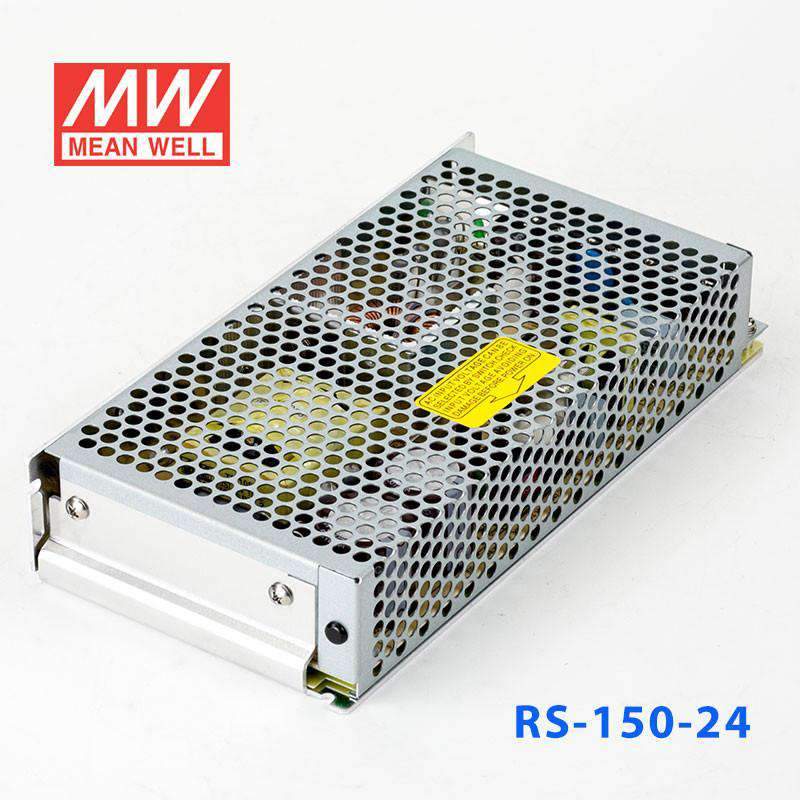

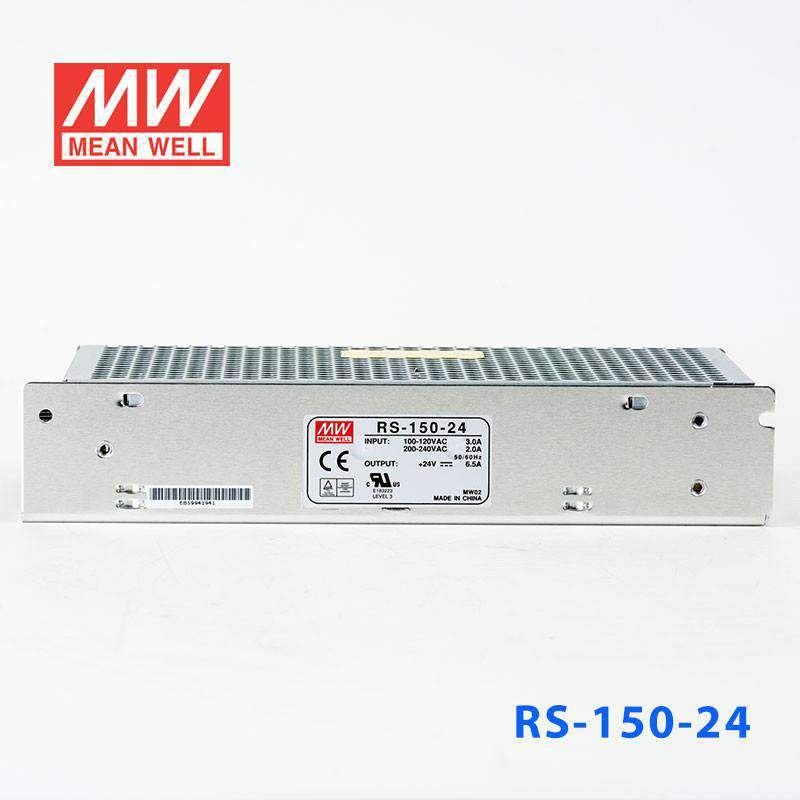

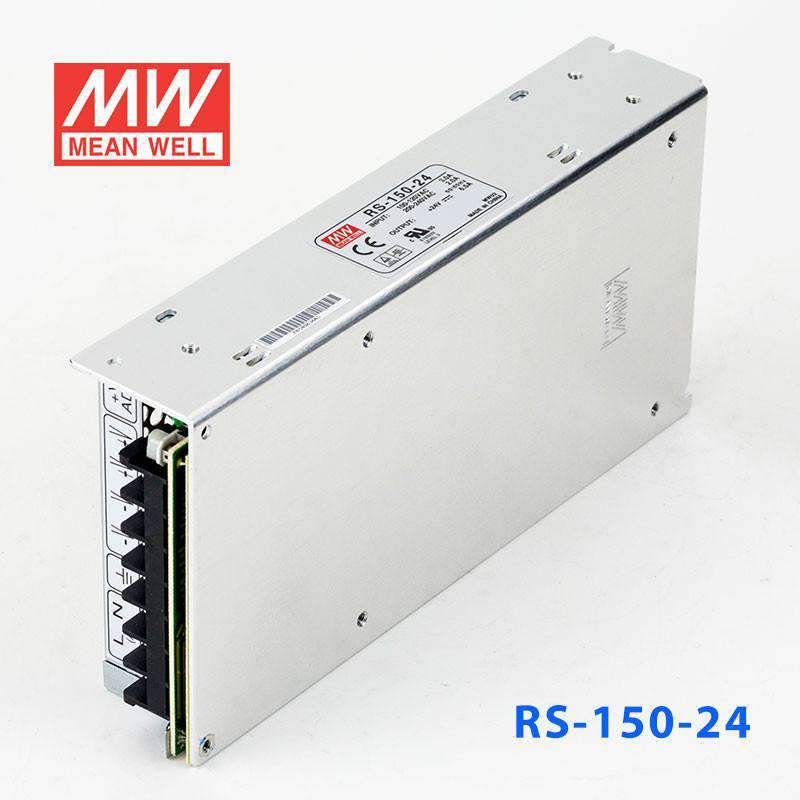

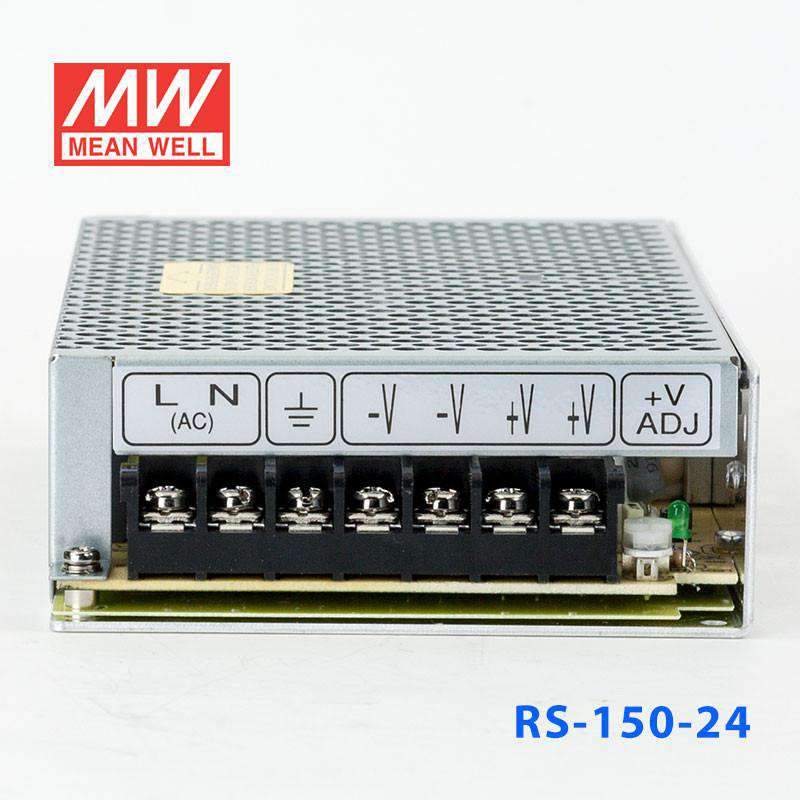

Mean Well RS-150-24 Power Supply 150W 24V 6.5A

4.8 (14 reviews)
miniature sizeeconomicalwithstand 5G vibration and 70Β°C operation
SKU RS-150-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model β€” 7 in this family

RS-150-24
Available to order
|

Overview

RS-150-24 is the 24V output model of this series: rated current 6.5A, rated power 156W, typical efficiency 86%.

Features

  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105℃ long life electrolytic capacitors
  • Withstand 300VAC surge input for 5 second
  • High operating temperature up to 70℃
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 3 years warranty

Specifications

RS-150-24Specifications from the official datasheet (2024-11-22 edition)

OUTPUT

DC VOLTAGE
24V
RATED CURRENT
6.5A
CURRENT RANGE
0 ~ 6.5A
RATED POWER
156W
RIPPLE & NOISE (max.)Note.2
120mVp-p
VOLTAGE ADJ. RANGE
22.8 ~ 26.4V
VOLTAGE TOLERANCENote.3
Β±1.0%
LINE REGULATIONNote.4
Β±0.5%
LOAD REGULATIONNote.5
Β±0.5%
SETUP, RISE TIME
800ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.)
28ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGE
88 ~ 132VAC / 176 ~ 264VAC selected by switch 248 ~ 373VDC(Withstand 300VAC surge for 5sec. Without damage)
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY(Typ.)
86%
AC CURRENT (Typ.)
3A/115VAC 2A/230VAC
INRUSH CURRENT (Typ.)
COLD START 40A/230VAC
LEAKAGE CURRENT
<2mA / 240VAC

PROTECTION

OVERLOADNote.8
110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
27.6 ~ 32.4V Protection type : Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.
-25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
Β±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2(Note.9),-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020

OTHERS

MTBF
3044.1K hrs min. Telcordia SR-332 (Bellcore) ; 437.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
199*98*38mm (L*W*H)
PACKING
0.7Kg; 20pcs/14Kg/0.85CUFT
Test conditions and notes10
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1ΞΌF & 47ΞΌF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. Line regulation is measured from low line to high line at rated load.
  5. 5. Load regulation is measured from 0% to 100% rated load.
  6. 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to β€œEMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
  7. 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
  8. 8. Extra consideration should be taken when selecting output wiring for 3.3V and 5V models. This is to prevent the protection modes for overload and short circuit from becoming constant power.
  9. 9. Testing harmonic current at 80% load.
  10. 10.The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

RS-150-24 Mechanical Specification
Mechanical Specification
RS-150-24 Block Diagram
Block Diagram
RS-150-24 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the RS-150-24 for a 24V industrial control cabinet?

It is intended for constant-voltage 24V loads and can deliver up to 6.5A with 156W available. That makes it suitable for 24V industrial control equipment whose total load stays within those limits.

Is the RS-150-24 a fit for 24V automation devices with moderate current demand?

This model provides a constant 24V output at up to 6.5A. It fits 24V automation loads that need more capacity than a 4.5A supply but do not exceed 156W.

Can I use this 24V power supply for embedded systems that need a stable DC bus?

Yes, if the embedded system is designed for a constant 24V input and draws no more than 6.5A. The wide 88-264VAC input also suits installations that may be powered from different AC mains ranges.

Is the RS-150-24 suitable for indoor or outdoor equipment?

The operating temperature range is -25Β°C to +70Β°C, so the temperature envelope is broad. The provided specs do not list an IP rating, so indoor or outdoor exposure cannot be confirmed from the specs alone.

How does the RS-150-24 compare with the other RS-150 models?

Within the RS-150 group, the listed models are RS-150-12 at 150W, 12V, 12.5A; RS-150-15 at 150W, 15V, 10A; RS-150-24 at 156W, 24V, 6.5A; RS-150-3.3 at 99W, 3.3V, 30A; RS-150-48 at 158.4W, 48V, 3.3A; and RS-150-5 at 130W, 5V, 26A. The main difference is the output voltage and corresponding current rating for each model.
