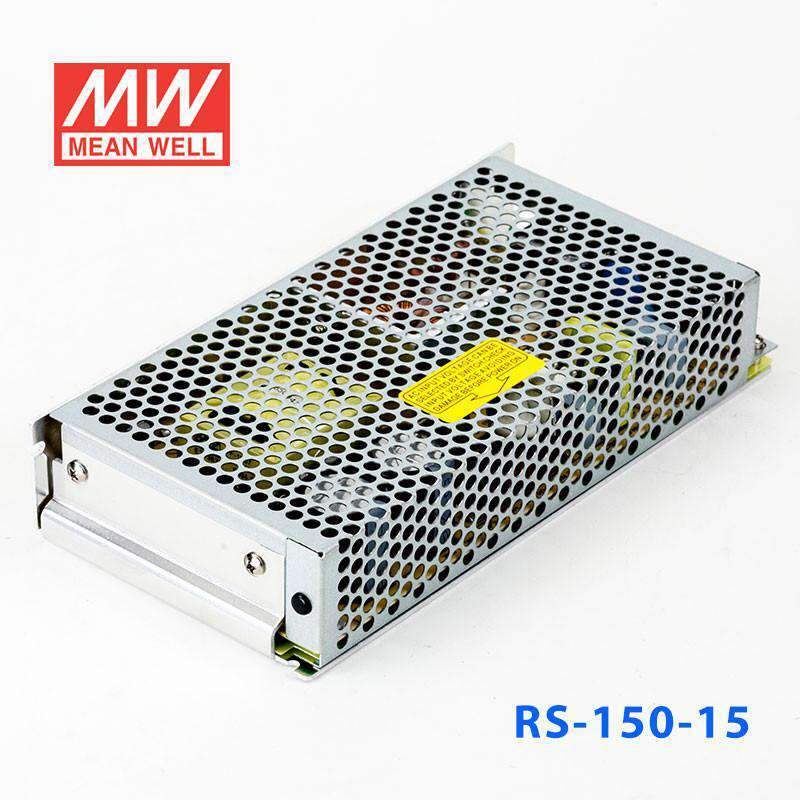

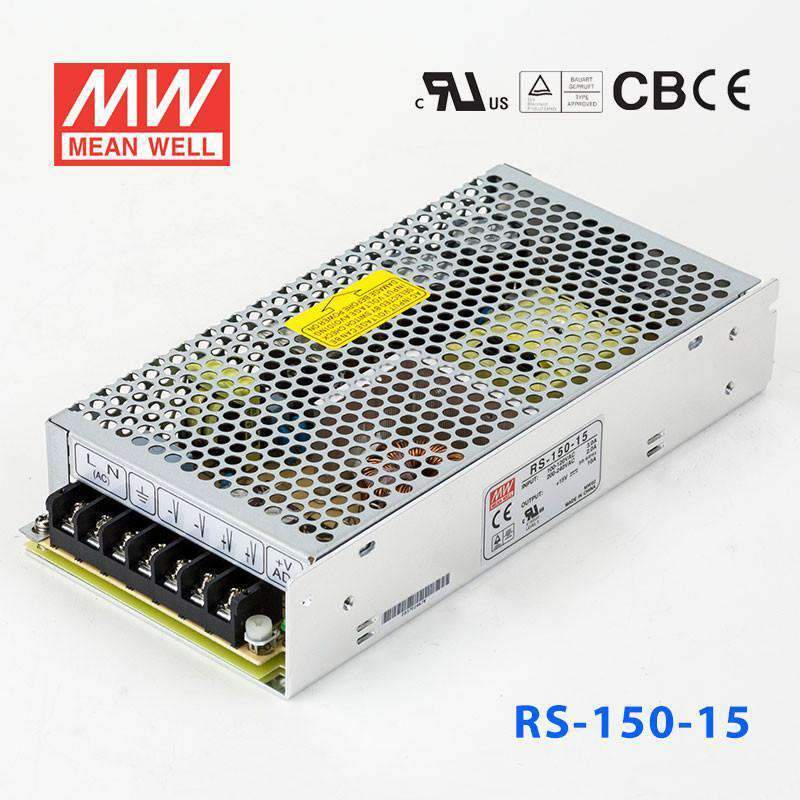

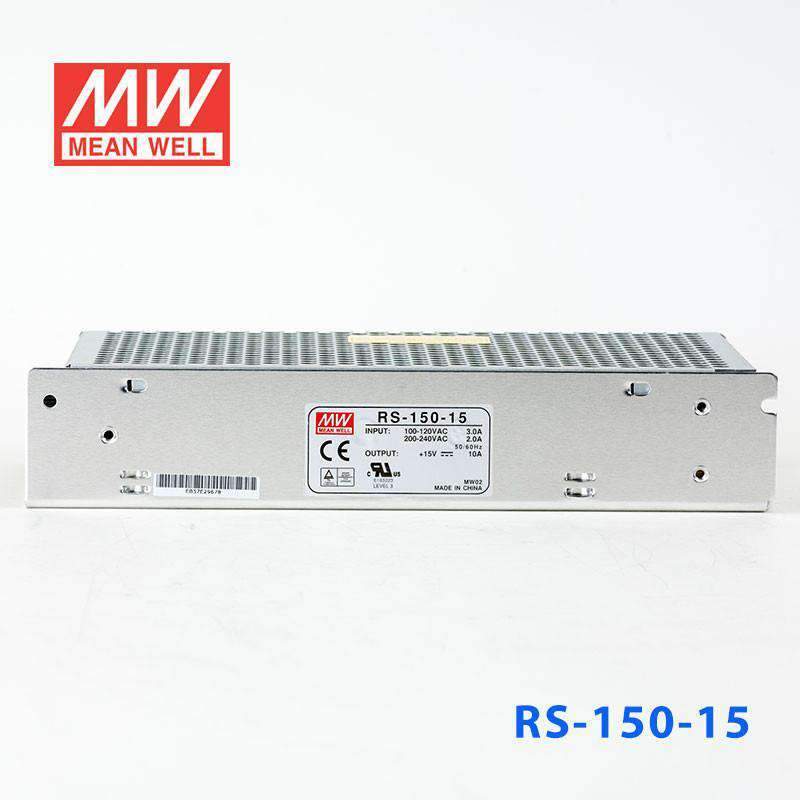

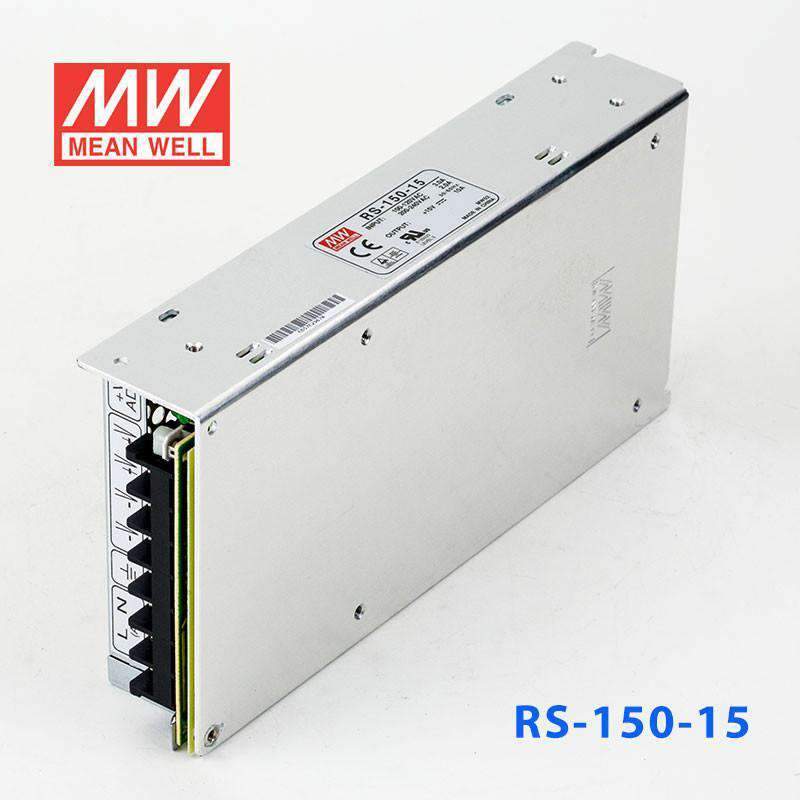

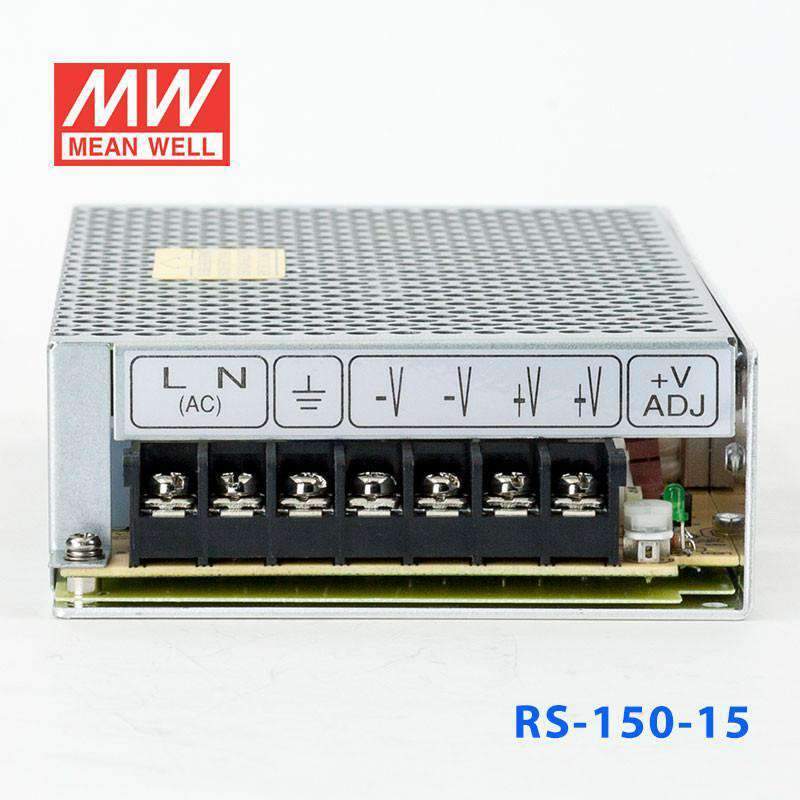

Mean Well RS-150-15 Power Supply 150W 15V 10A
4.8 (14 reviews)
Mean Well RS-150-15 Power Supply 150W 15V 10A
Log in to see priceOverview
RS-150-15 is the 15V output model of this series: rated current 10A, rated power 150W, typical efficiency 84%.
Features
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- LED indicator for power on
- 100% full load burn-in test
- All using 105β long life electrolytic capacitors
- Withstand 300VAC surge input for 5 second
- High operating temperature up to 70β
- Withstand 5G vibration test
- High efficiency, long life and high reliability
- 3 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 15V
- RATED CURRENT
- 10A
- CURRENT RANGE
- 0 ~ 10A
- RATED POWER
- 150W
- RIPPLE & NOISE (max.)Note.2
- 120mVp-p
- VOLTAGE ADJ. RANGE
- 14.25 ~ 16.5V
- VOLTAGE TOLERANCENote.3
- Β±1.0%
- LINE REGULATIONNote.4
- Β±0.5%
- LOAD REGULATIONNote.5
- Β±0.5%
- SETUP, RISE TIME
- 800ms, 20ms/230VAC 1200ms, 30ms/115VAC at full load
- HOLD UP TIME (Typ.)
- 28ms/230VAC 20ms/115VAC at full load
INPUT
- VOLTAGE RANGE
- 88 ~ 132VAC / 176 ~ 264VAC selected by switch 248 ~ 373VDC(Withstand 300VAC surge for 5sec. Without damage)
- FREQUENCY RANGE
- 47 ~ 63Hz
- EFFICIENCY(Typ.)
- 84%
- AC CURRENT (Typ.)
- 3A/115VAC 2A/230VAC
- INRUSH CURRENT (Typ.)
- COLD START 40A/230VAC
- LEAKAGE CURRENT
- <2mA / 240VAC
PROTECTION
- OVERLOADNote.8
- 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 17.25 ~ 20.25V Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -25 ~ +70β (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20 ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +85β, 10 ~ 95% RH
- TEMP. COEFFICIENT
- Β±0.03%/β (0 ~ 50β)
- VIBRATION
- 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25β/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2(Note.9),-3, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, EAC TP TC 020
OTHERS
- MTBF
- 3044.1K hrs min. Telcordia SR-332 (Bellcore) ; 437.3K hrs min. MIL-HDBK-217F (25β)
- DIMENSION
- 199*98*38mm (L*W*H)
- PACKING
- 0.7Kg; 20pcs/14Kg/0.85CUFT
Test conditions and notes10
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25β of ambient temperature.
- 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1ΞΌF & 47ΞΌF parallel capacitor.
- 3. Tolerance : includes set up tolerance, line regulation and load regulation.
- 4. Line regulation is measured from low line to high line at rated load.
- 5. Load regulation is measured from 0% to 100% rated load.
- 6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to βEMI testing of component power supplies.β (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )
- 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
- 8. Extra consideration should be taken when selecting output wiring for 3.3V and 5V models. This is to prevent the protection modes for overload and short circuit from becoming constant power.
- 9. Testing harmonic current at 80% load.
- 10.The ambient temperature derating of 3.5β/1000m with fanless models and of 5β/1000m with fan models for operating altitude higher than 2000m(6500ft).
Technical drawings
Downloads
FAQ
Can I use the RS-150-15 for a 15V industrial control or instrumentation system?
Yes, it delivers constant-voltage 15V output at up to 10A. That makes it suitable for larger 15V control, instrumentation, or automation systems that need more capacity than the smaller 15W, 25.5W, 35W, 51W, 75W, or 105W 15V models.
Is the RS-150-15 appropriate for 15V motors, relays, or actuator circuits in automation equipment?
It can serve 15V automation loads when the total draw remains within 10A and 150W. Because it is a constant-voltage supply, it is best matched to equipment designed for a regulated 15V DC source.
Can this model power several 15V devices from one supply in a machine cabinet?
Yes, the 150W output gives more room for multiple 15V devices on a shared DC bus than the lower-power 15V RS units. Total combined demand still needs to stay at or below 10A.
Is the RS-150-15 suitable for industrial environments with vibration and heat?
The feature list includes 5G vibration resistance and operation up to +70Β°C. Combined with its -25Β°C to +70Β°C operating range, it is intended for demanding indoor equipment environments where a 15V, 150W supply is required.
Can the RS-150-15 be used outdoors or in unprotected areas?
Its temperature rating is -25Β°C to +70Β°C, so it supports wide operating temperatures inside equipment. The provided specs do not include an IP rating, so it should be used in protected indoor enclosures rather than exposed outdoor conditions.
How does the RS-150-15 compare with other 15V RS series models?
The listed 15V models are RS-15-15 at 15W and 1A, RS-25-15 at 25.5W and 1.7A, RS-35-15 at 35W and 2.4A, RS-50-15 at 51W and 3.4A, RS-75-15 at 75W and 5A, RS-100-15 at 105W and 7A, and RS-150-15 at 150W and 10A. RS-150-15 is the highest-output 15V version among those siblings.
