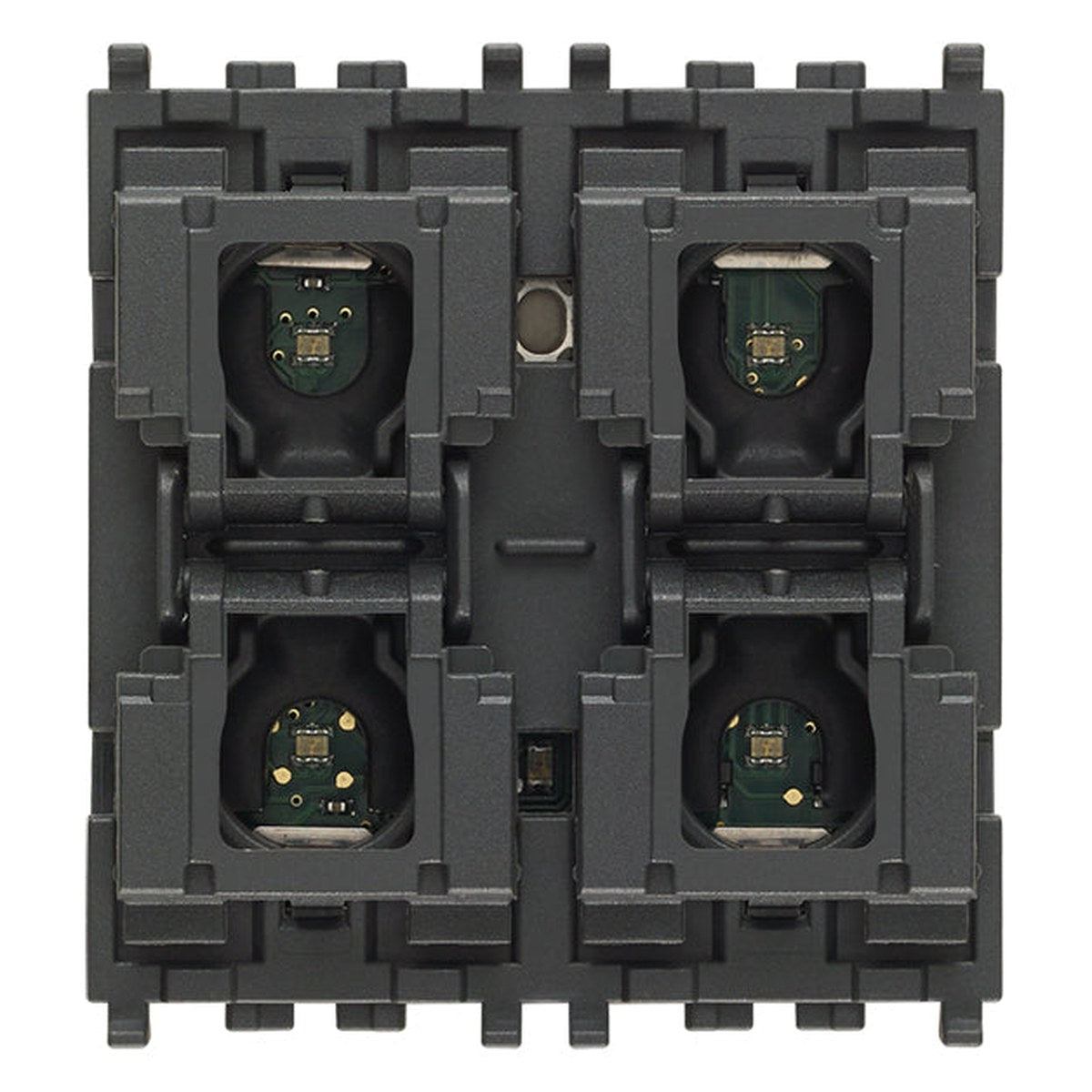

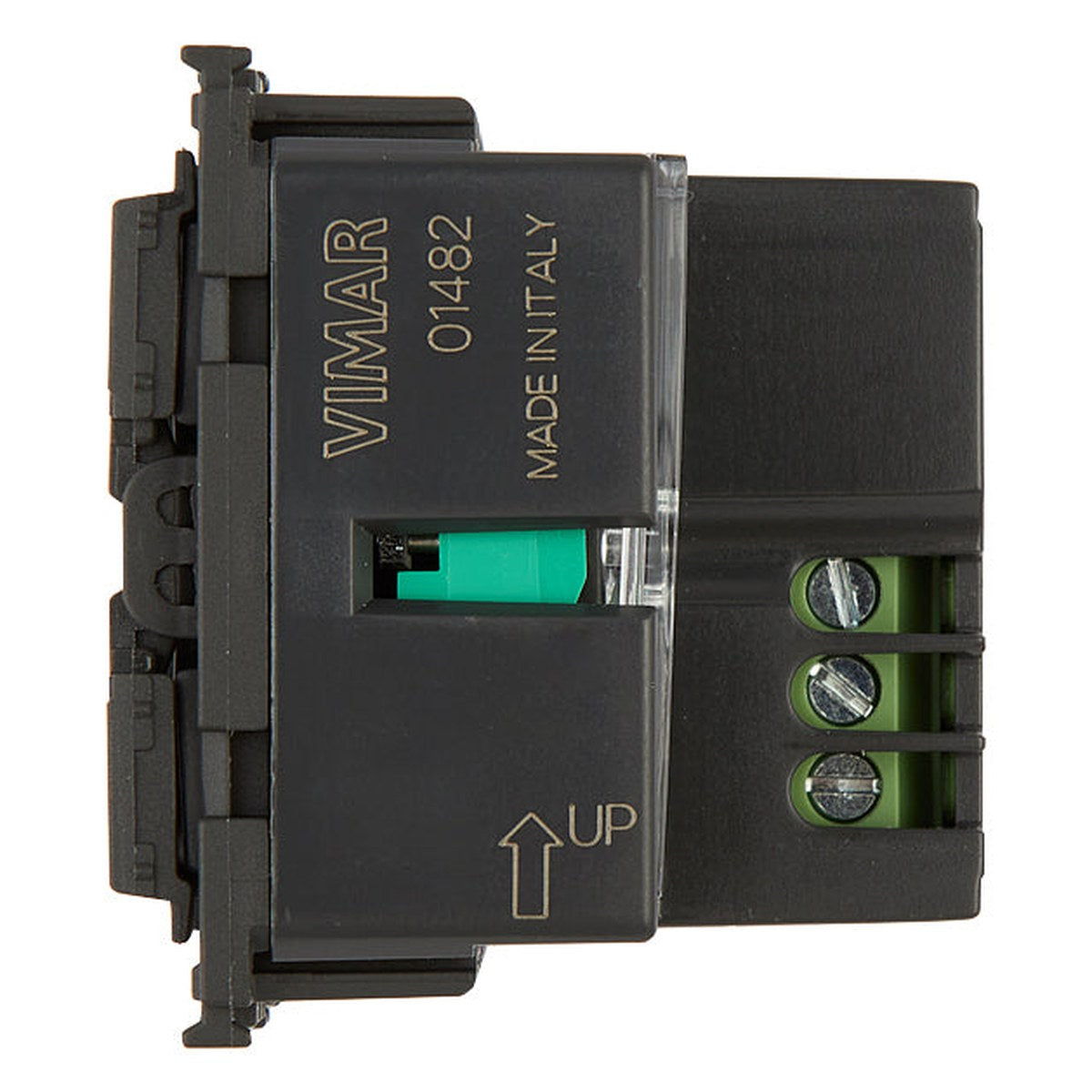

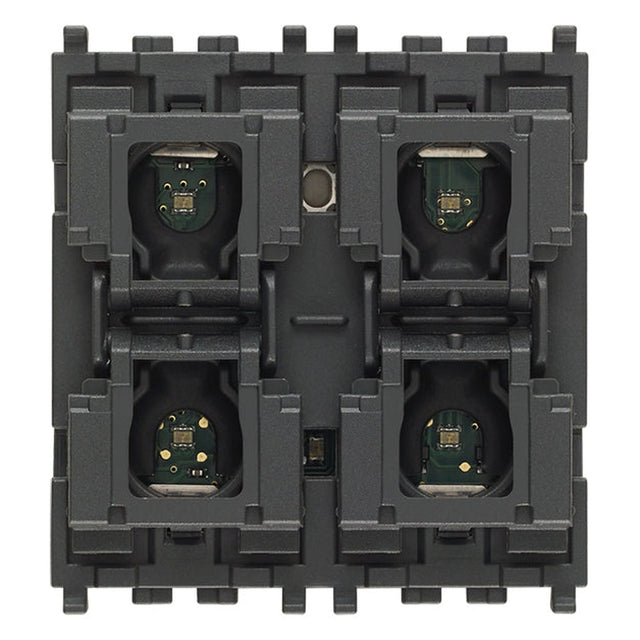

Vimar VM-01482 4-button control + shutter - laths 2M
Log in to see priceOverview
VM-01482 is Vimar 01482, 4-button control+shutter-laths 2M.

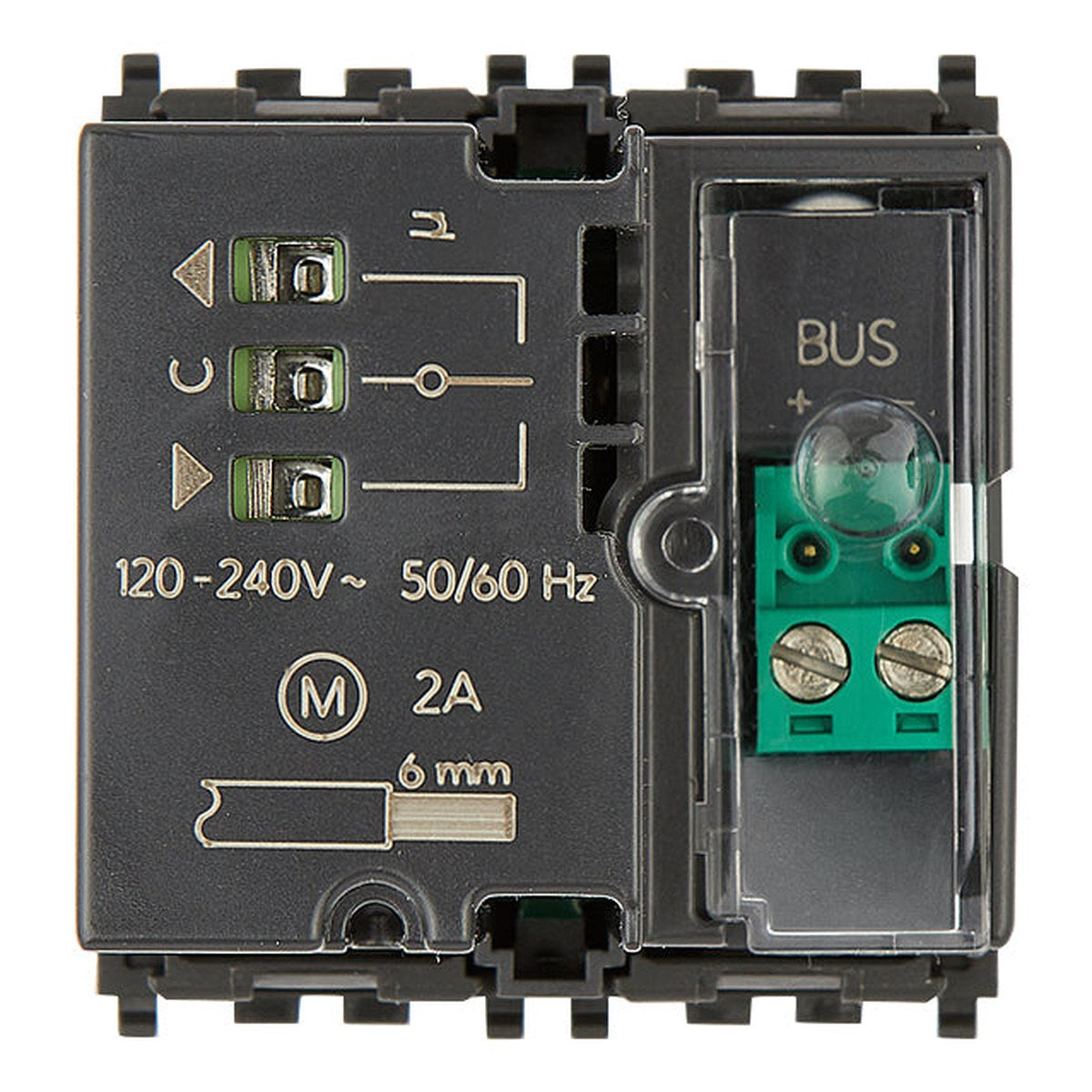

4-button home automation device and actuator for 1 rolling shutter and laths otientation with change-over relay output for cosΟ 0,6 2 A 120-240 V~ 50/60 Hz motor, RGB LED location in darkness with brightness control, to be completed with interchangeable 1- or 2-module Eikon, ArkΓ© or Plana half-buttons - 2 modules
Specifications
Technical data
- Product type
- Multi operating device for bus system
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Radio frequency bidirectional
- No
- With display
- No
- Status-LED
- Yes
- IR sensor
- No
- Manual set point setting
- No
- Presence button
- No
- With integrated DCF77 receiver
- No
- With anti-theft/dismantling protection
- No
- Central functional unit for senders/actuators
- Yes
- Material
- Plastic
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Surface finishing
- Matt
- RAL-number (similar)
- 7024
- Transparent
- No
- With bus connection
- Yes
Packaging
- EAN
- 8007352593442
- Packed size (cm)
- 6 Γ 5.4 Γ 5.2
- Packed weight
- 61.8 g
- Pieces per box
- 60
Certifications
- Certifications
- CE marking (EU), UK PSTI compliance, IMQ (Italy), WEEE Directive
Technical drawings
Downloads
FAQ
What is the Vimar VM-01482 designed to control?
The Vimar VM-01482 is a 4-button home automation device with an actuator for 1 rolling shutter and lath orientation control. It is intended for smart home and building applications where shutter movement and slat adjustment are needed from a single 2-module device.
What makes the VM-01482 different from a standard shutter control?
This model combines 4-button control with shutter actuation and lath orientation management in one device. It also includes an RGB LED locator light with adjustable brightness, which helps with visibility in dark environments.
Which Vimar series is the VM-01482 compatible with?
The VM-01482 is designed to be completed with interchangeable 1- or 2-module half-buttons from the Vimar Eikon, ArkΓ©, or Plana ranges. That gives specifiers flexibility when matching the device to different Vimar design families.
What are the main electrical and device specifications for the VM-01482?
This model uses a change-over relay output rated for a motor at cosΟ 0.6, 2 A, and 120-240 V~ at 50/60 Hz. The device itself is sized for 2 modules and is identified as Vimar SKU VM-01482.
Is the Vimar VM-01482 suitable for demanding temperature conditions?
The specified operating temperature range is from -25 Β°C to 70 Β°C. That makes it suitable for environments where components may be exposed to a broad range of ambient temperatures within those limits.
What warranty and physical characteristics are listed for the VM-01482?
The listed warranty period for this model is 3 years. Its stated weight is 0.0677 kg, which supports use in compact modular device layouts.
