Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

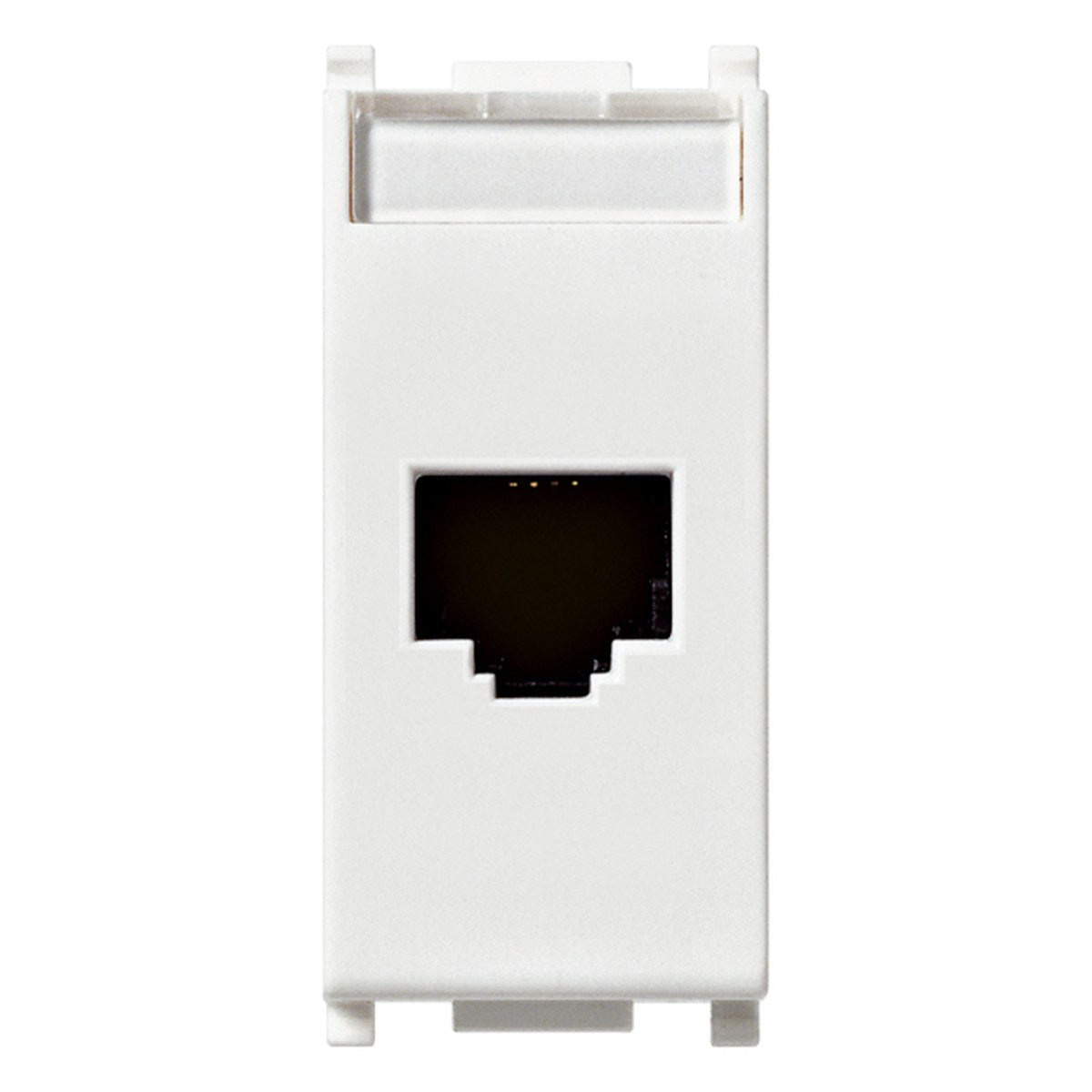

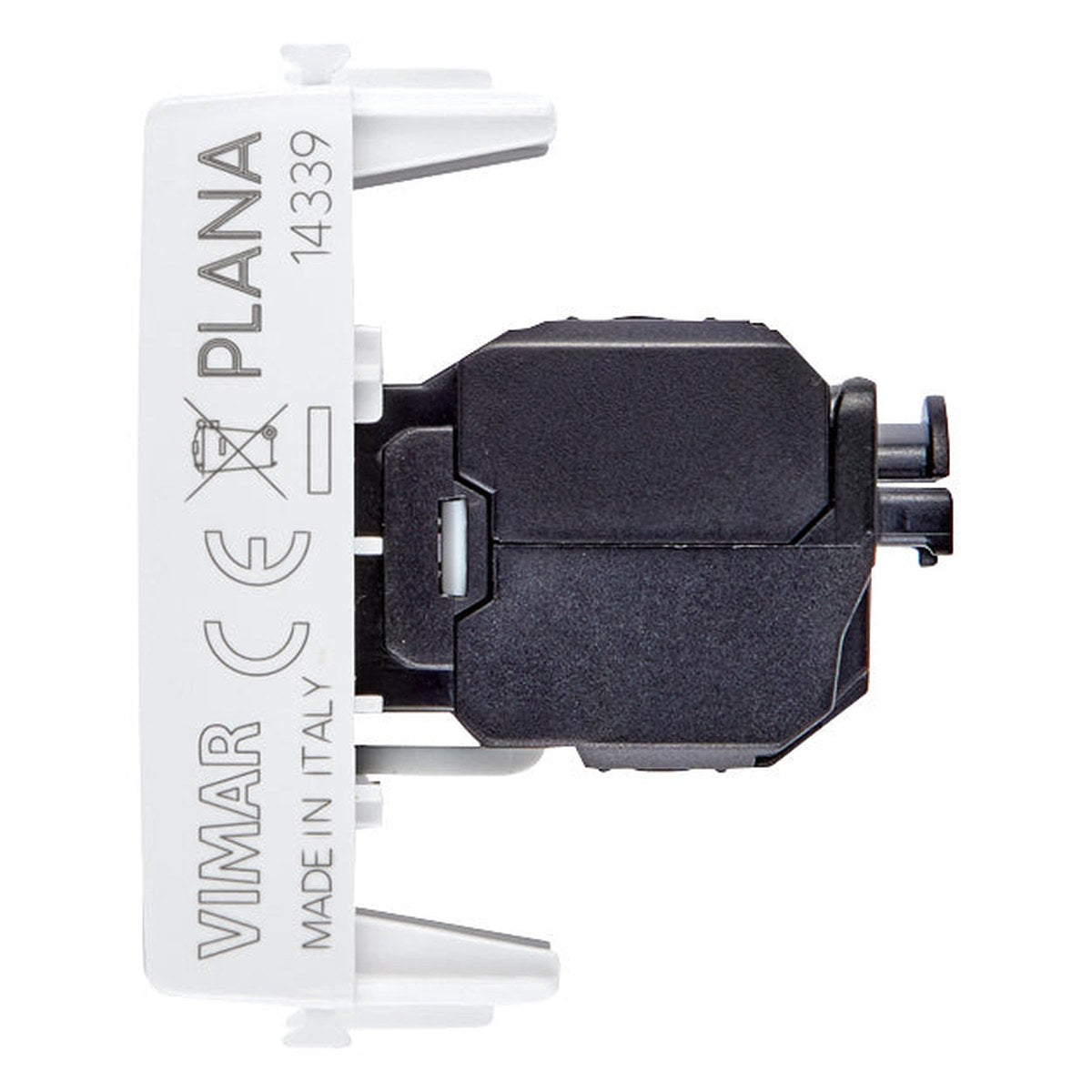

Vimar VM-14339.11 RJ45 Cat5e Netsafe UTP outlet white

T568A/B universal wiring8 position

SKU VM-14339.11

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

VM-14339.11 is Vimar PLANA 14339.11, RJ45 Cat5e Netsafe UTP outlet white.

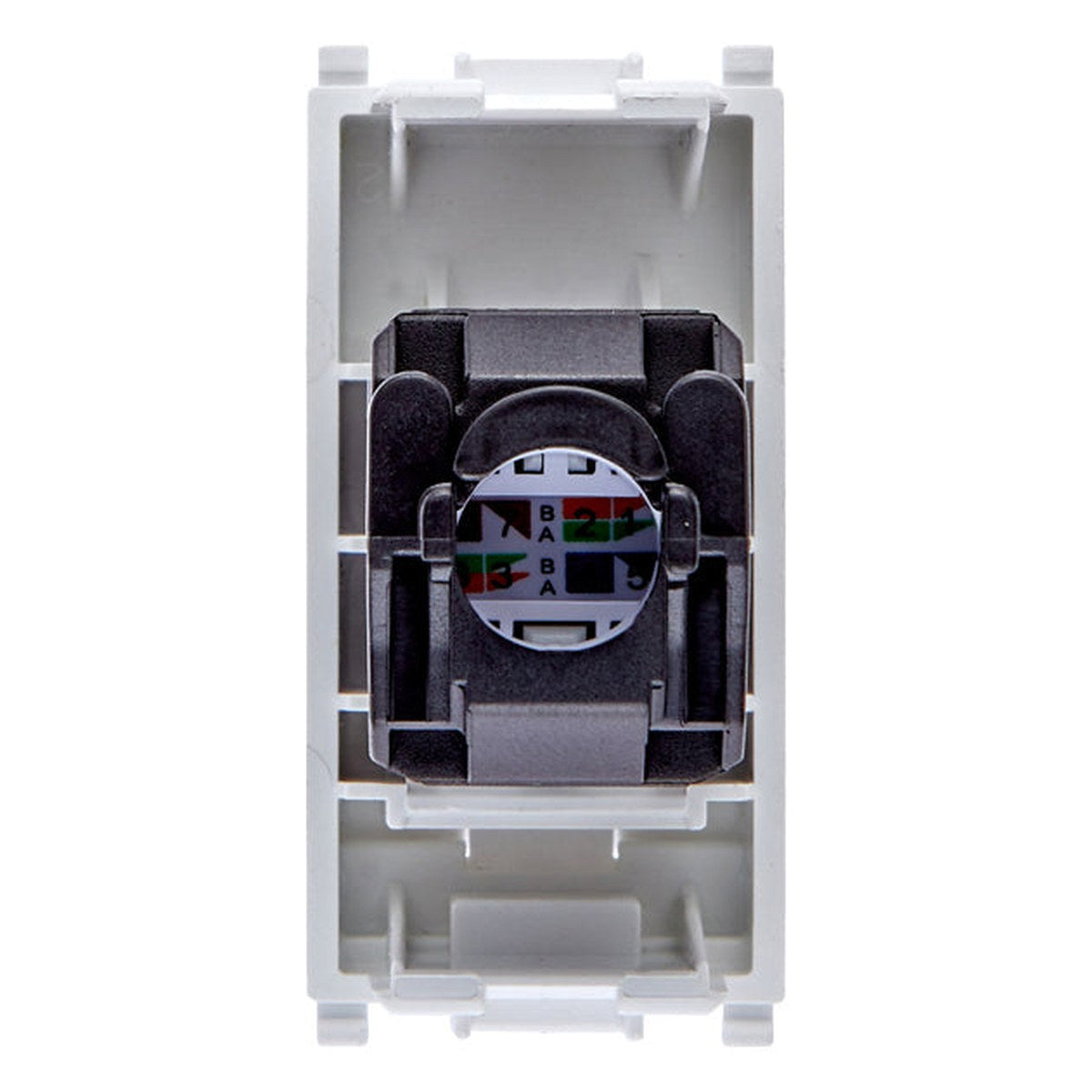

RJ45 outlet with Netsafe connector, Cat. 5e, unshielded, T568A/B universal wiring, 8 position, 110 type insulation-piercing terminals without tool use, white

Specifications

VM-14339.11Specifications from the official datasheet

Technical data

Product type: Modular connector
Model: Bus (jack)
Type of connector: RJ45 8(8)
Screened: No
Category: 5E
Connection type: Crimp
Special tool necessary: No
Suitable for round cable: Yes
Suitable for flat cable: No
Suitable for litz wire conductor: No
Suitable for solid conductors: No
Colour: White

Packaging

EAN: 8007352463097
Packed size (cm): 5.1 × 4.3 × 5.3
Packed weight: 20.8 g
Pieces per box: 10

Certifications

Certifications: CE marking (EU), FORCE Certificate, WEEE Directive

Technical drawings

Downloads

Datasheet1

VM-14339.11 datasheetVimar_14339.11.pdf PDF Download

Installation manual1

VM_14339.11.pdf PDF Download

Certificates2

Vimar Electrotechnical Expert Certificate PDF Download

Vimar WEEE Directive Certificate PDF Download
