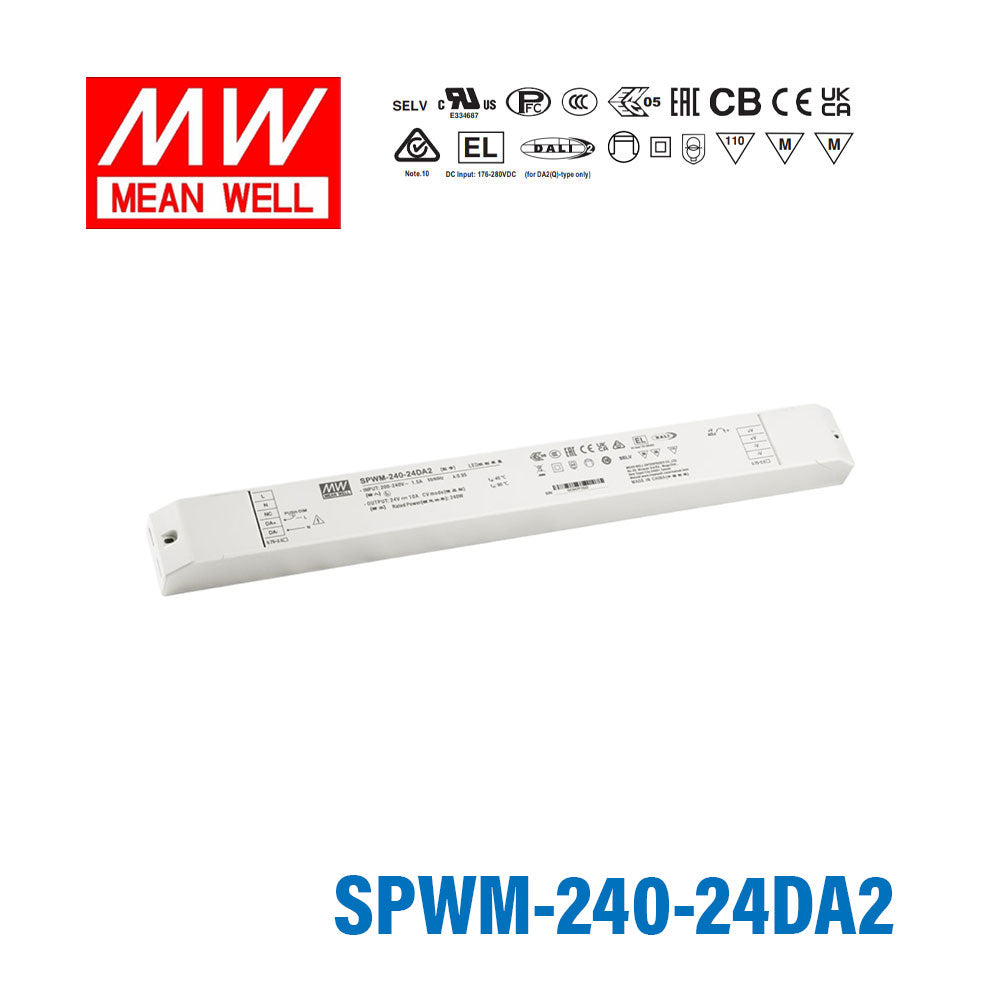

MEAN WELL SPWM-240-24DA2 240W 24V CV LED Driver 10A

DALI2 DT6PUSH dimmingfliker freeminimum dimming level 0.1%voltage adjustable 23-26V

SKU SPWM-240-24DA2

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

SPWM-240-24DA2 is the 24V output model of this series: typical efficiency 93%.

SPWM-240 series is a 240W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. SPWM-240 operates from 180~305VAC and offers models with different rated voltage ranging include 24V and 48V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -20~+90℃ case temperature under free air convection. SPWM-240 is equipped with various function options, such as dimming methodologies with DALI-2 , so as to provide the optimal design flexibility for LED lighting system.

Features

DALI-2 DT6(Dimming) or DT8 (Tunable white/RGBW) control available
Constant voltage PWM style output with 1 to 4 channels
Standby power consumption <0.5W
Flicker free, complying with CE ErP directive
Plastic housing with class ll and PFC design
Function options: 3 in 1dimming/DALI-2+PUSH Dimming
Minimum dimming level 0.1%(DALI-2)
Cooled by free air convection
5 years warranty

Specifications

SPWM-240-24DA2Specifications from the official datasheet (2025-12-22 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT(Max.): 10A
RATED POWER(Max.): 240W
VOLTAGE ADJ. RANGE: 23~26V
PWM FREQUENCY (Typ.): 3.2kHz
SETUP, RISE TIME^Note.3: 500ms, 80ms/230VAC
HOLD UP TIME (Typ.): 10ms/230VAC

INPUT

VOLTAGE RANGE^Note.2: 180 ~ 305VAC 255 ~ 410VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC, PF>0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD<10%@load≧50%, 230VAC; @load≧75%/277VAC (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 1.3A / 230VAC 1.1A / 277VAC
INRUSH CURRENT (Typ.): COLD START 60A(twidth=600μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.25mA / 277VAC
STANDBY POWER CONSUMPTION: standby power consumption<0.5W (Dimming off)

PROTECTION

OVERLOAD: 105~150%, hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT: Blank type: Shut down O/P voltage, re-power on to recover after fault condition is removed DA2/DA2Q type:Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 27 ~ 36V Shut down O/P voltage, re-power on to recover after fault condition is removed
OVER TEMPERATURE: Shut down O/P voltage, re-power on to recover after fault condition is removed

ENVIRONMENT

WORKING TEMP.: Tcase=-20~+90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 5 ~ 100Hz, 2G 12min./1cycle, period for 72min. each along X,Y,Z axes

SAFETY & EMC

SAFETY STANDARDS: ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC input 176-280VDC), BS EN/EN62384; GB/T19510.1,GB/T19510.213; EAC TP TC 004; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13
DALI STANDARDS: Comply with IEC62386-101, 102, 207(DT6),209(DT8),DALI Part 251
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.4: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T17743
Radiated BS EN/EN55015(CISPR15) ,GB/T17743
Harmonic Current BS EN/EN61000-3-2, GB 17625.1 Class C @load≥50%
Voltage Flicker BS EN/EN61000-3-3 -----; BS EN/EN61547
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT/Burst BS EN/EN61000-4-4 Level 2
Surge BS EN/EN61000-4-5 Level 4, 2KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 2
Voltage Dips and Interruptions BS EN/EN61000-4-11:2020 30% dip 10 periods 100% interrruption 0.5 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15) ,GB/T17743
Radiated	BS EN/EN55015(CISPR15) ,GB/T17743
Harmonic Current	BS EN/EN61000-3-2, GB 17625.1	Class C @load≥50%
Voltage Flicker	BS EN/EN61000-3-3	-----; BS EN/EN61547

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT/Burst	BS EN/EN61000-4-4	Level 2
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 2
Voltage Dips and Interruptions	BS EN/EN61000-4-11:2020	30% dip 10 periods 100% interrruption 0.5 periods

OTHERS

FLICKER^Note.9: PstLM ≤ 1, SVM ≤ 0.4
MTBF: 1801.3K hrs min. Telcordia SR-332 (Bellcore) ; 155.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 380*38*28.5mm (L*W*H)
PACKING: 0.54Kg; 24 pcs/ 13.26 Kg (13.64Kg for DA2 type: ) / 0.61 CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to "STATIC CHARACTERISTIC" sections for details.
3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
4. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
5. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
6. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. It is not recommended to connect to capacitive loads
9. Flicker is measured at full load with the light source provided by MEAN WELL.
10. RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations.
11. Based on IEC 62386-101/102 DALI power on timing and interruption regulations, the set up time needs to test with a DALI controller which can support for DALI power on function, otherwise the set up time will be higher than 0.5 second for DA2 type

Technical drawings

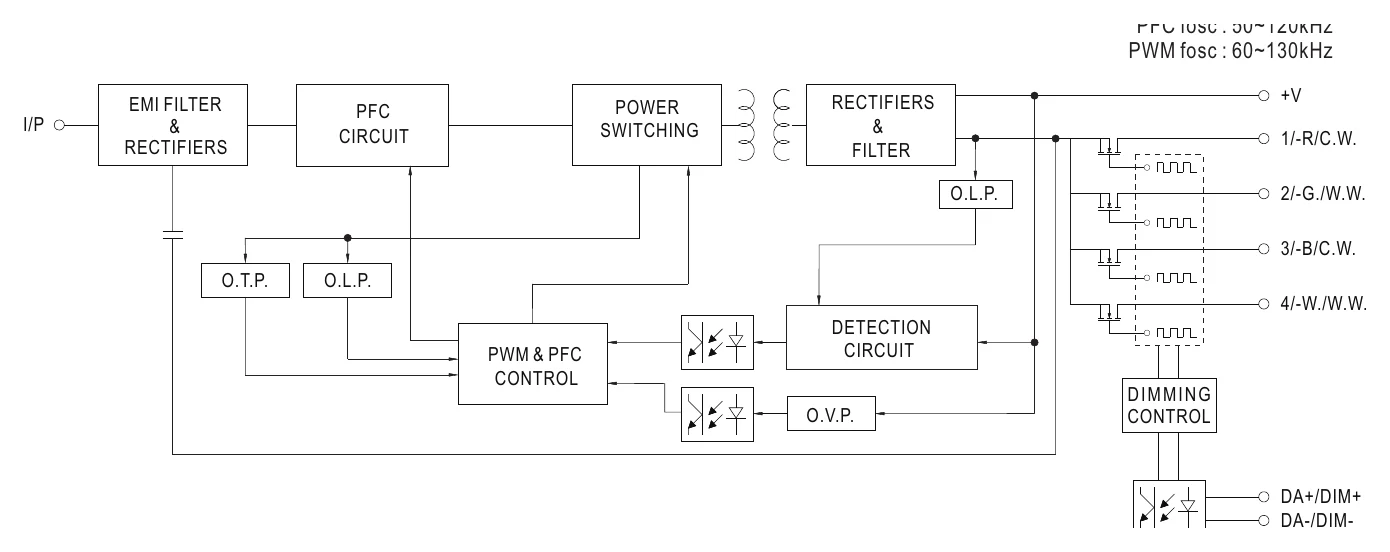

SPWM-240-24DA2 Block Diagram — Block Diagram

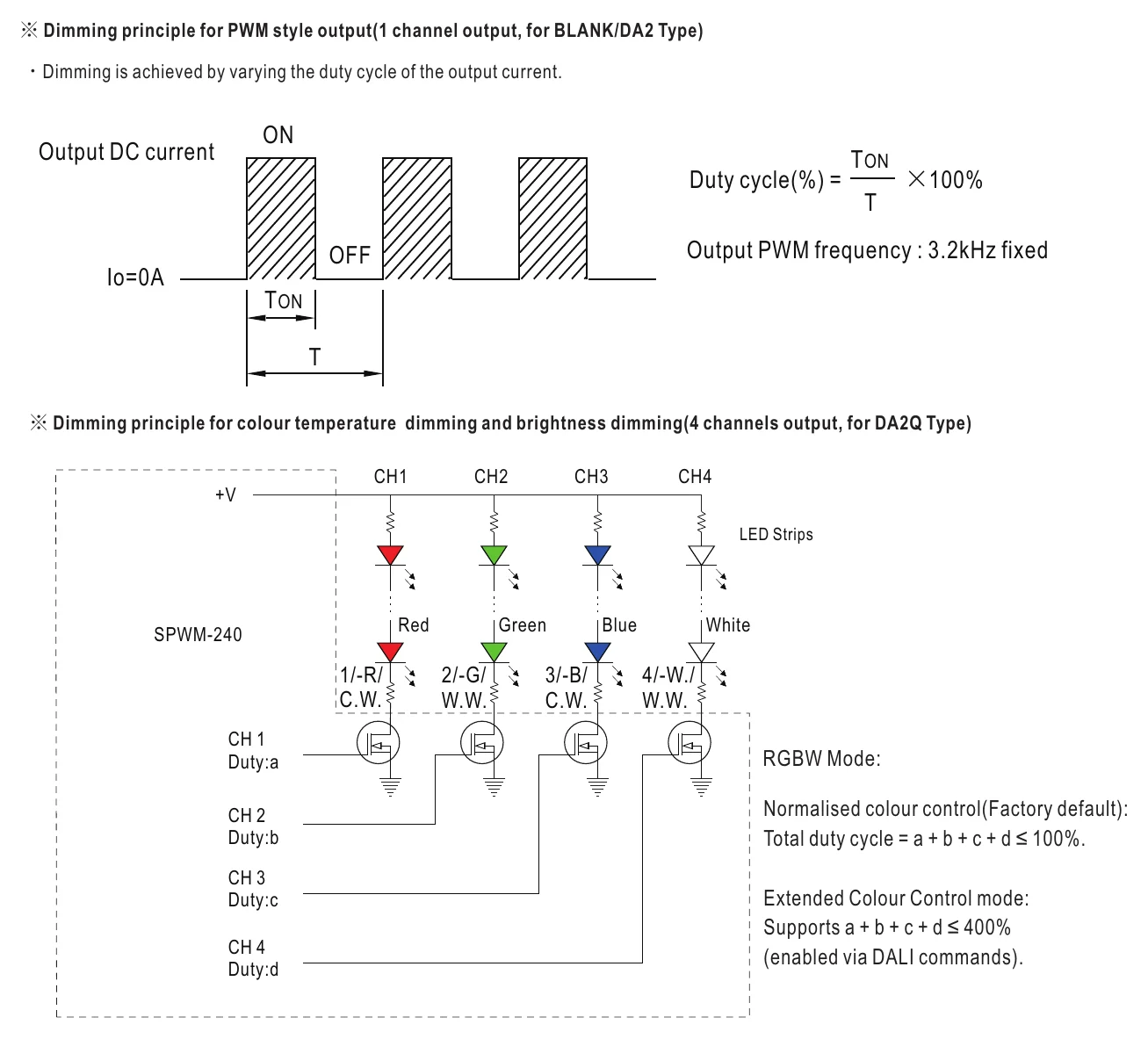

SPWM-240-24DA2 DIMMING OPERATION — DIMMING OPERATION

SPWM-240-24DA2 S P W M - 2 4 0 series — S P W M - 2 4 0 series

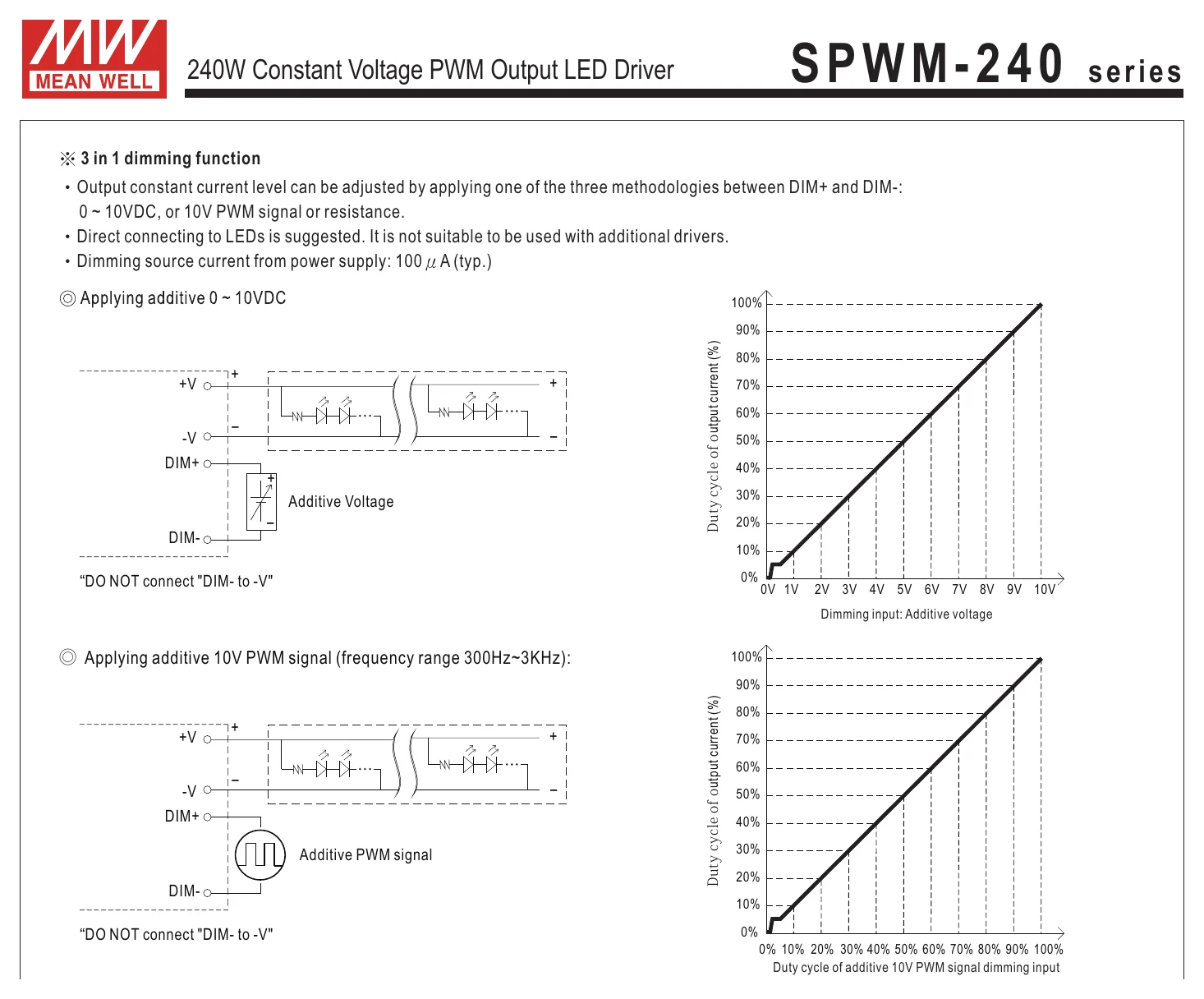

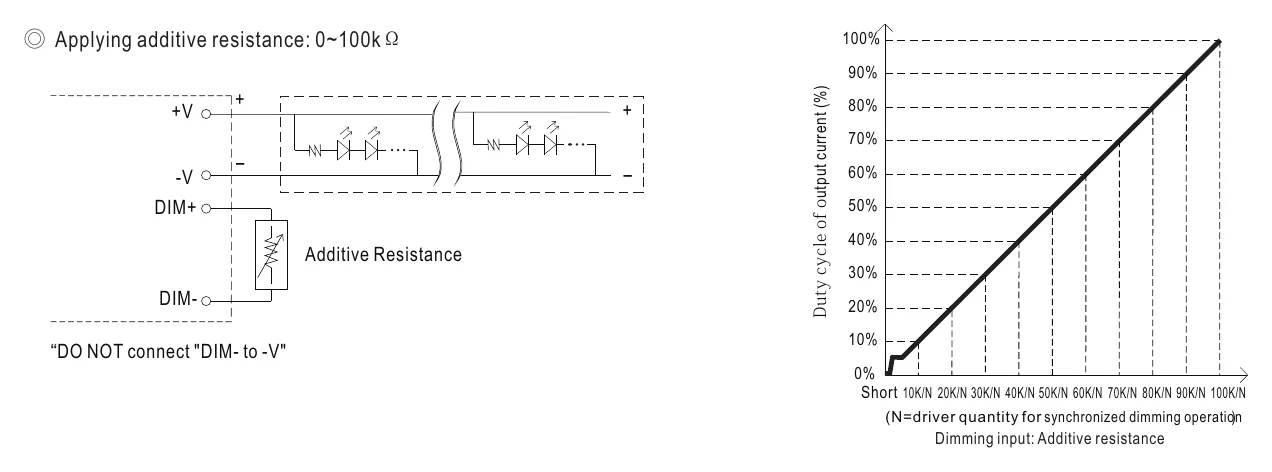

SPWM-240-24DA2 ◎ Applying additive resistance: 0~100kΩ — ◎ Applying additive resistance: 0~100kΩ

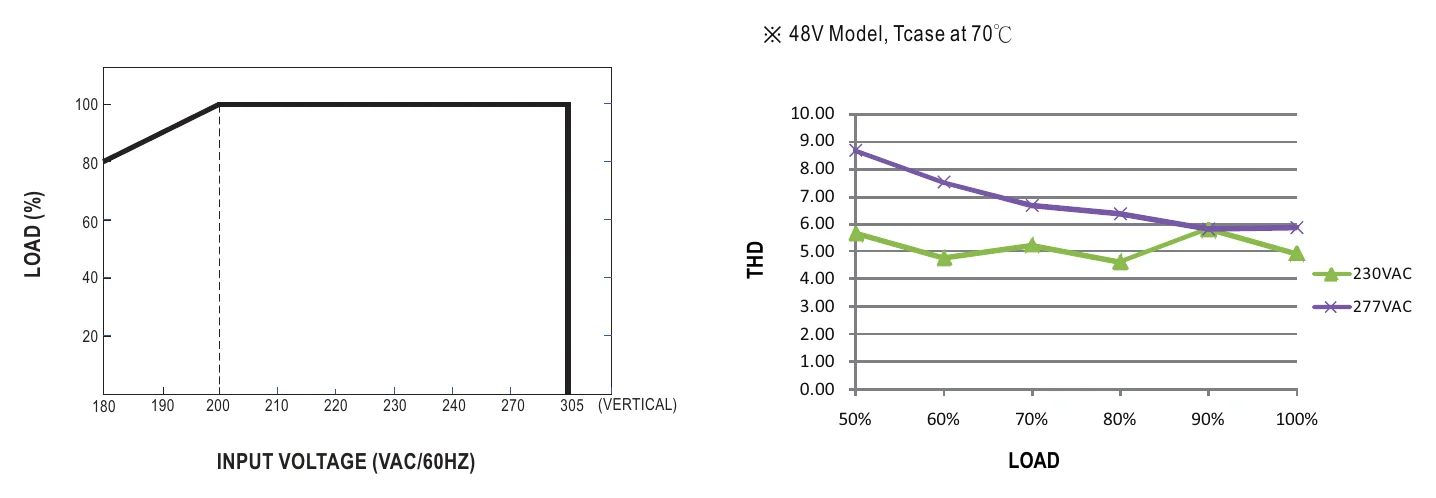

SPWM-240-24DA2 STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

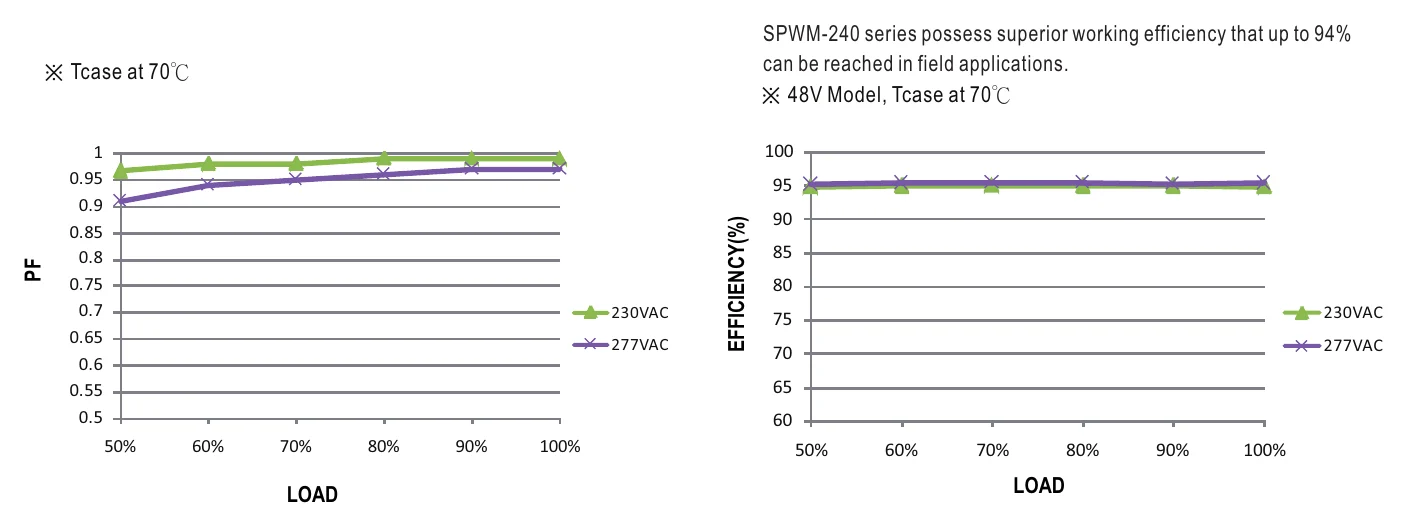

SPWM-240-24DA2 POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

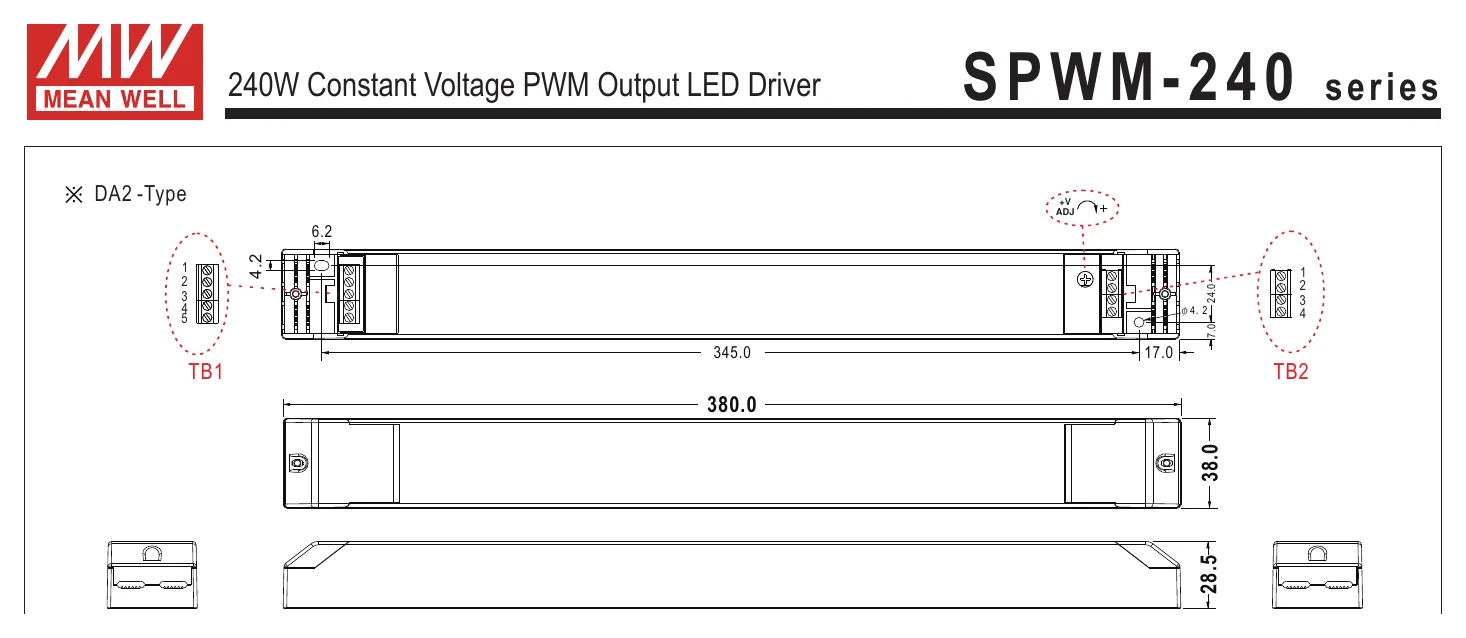

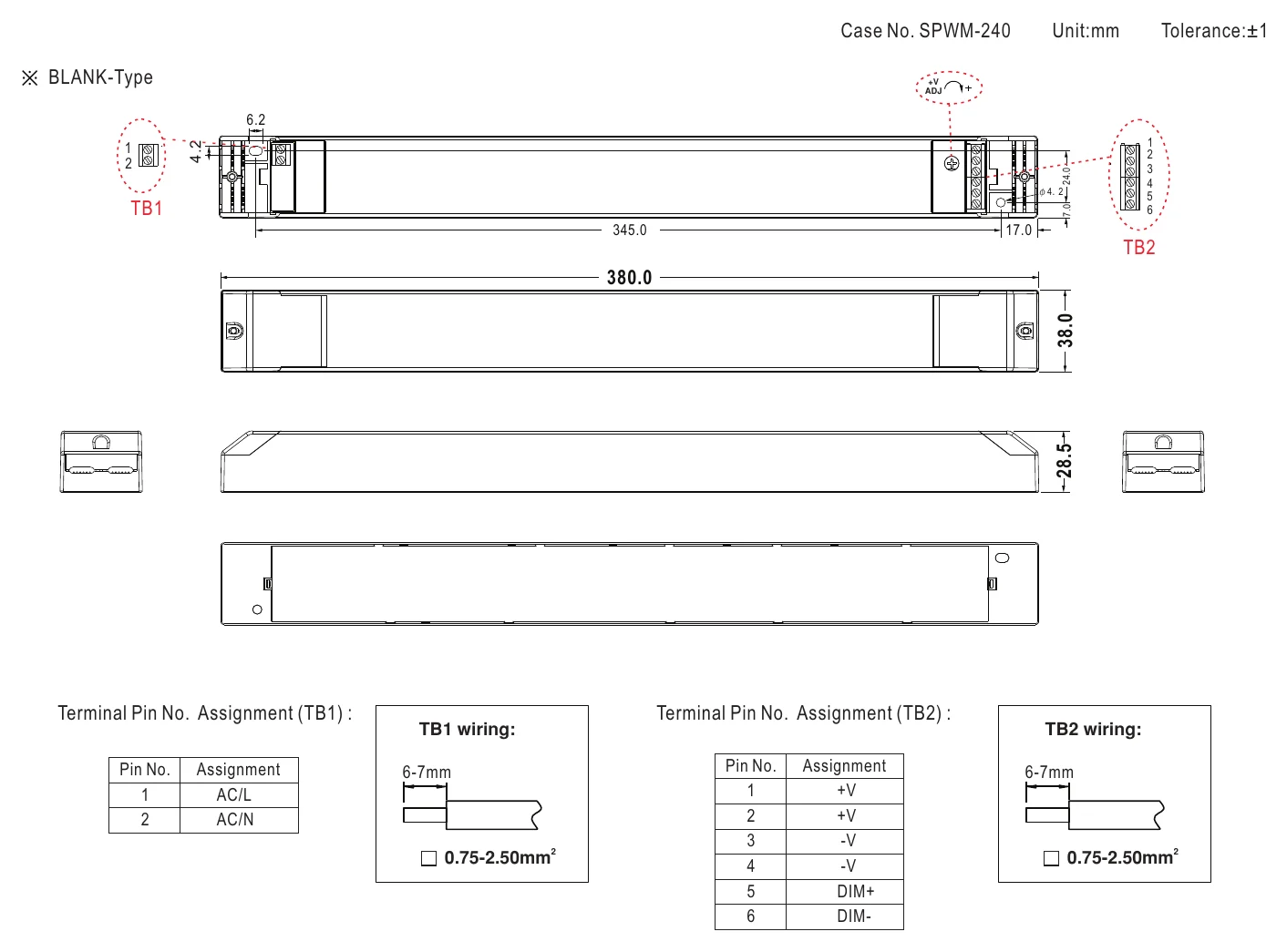

SPWM-240-24DA2 Mechanical Specification — Mechanical Specification

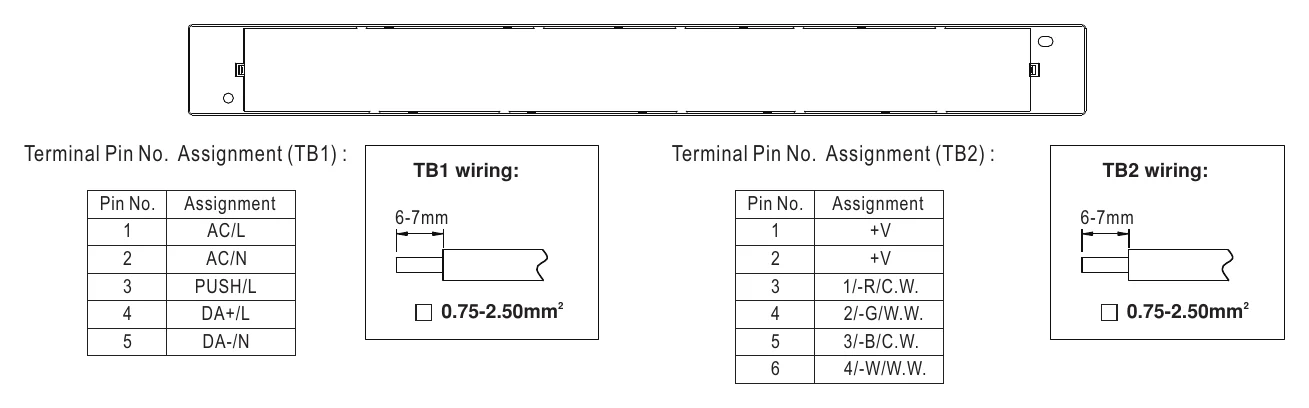

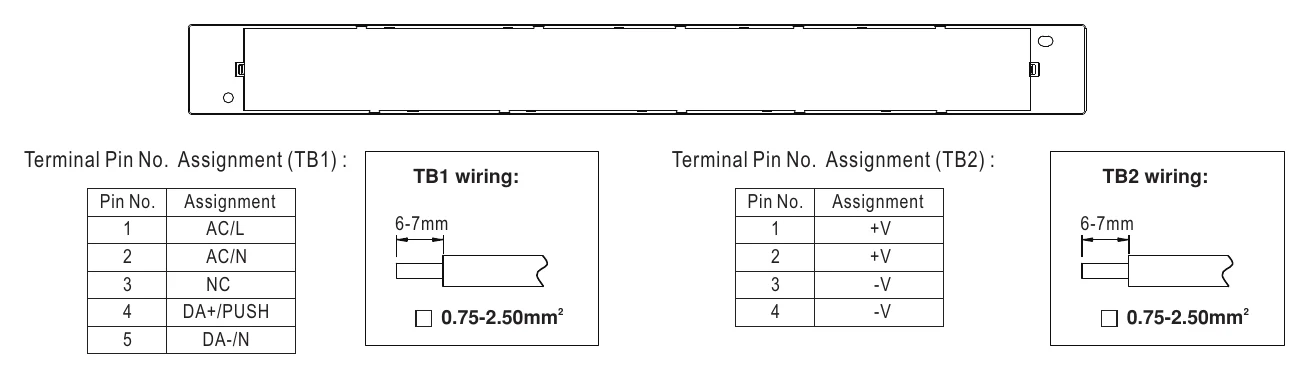

SPWM-240-24DA2 Terminal Pin No. Assignment (TB1) — Terminal Pin No. Assignment (TB1)

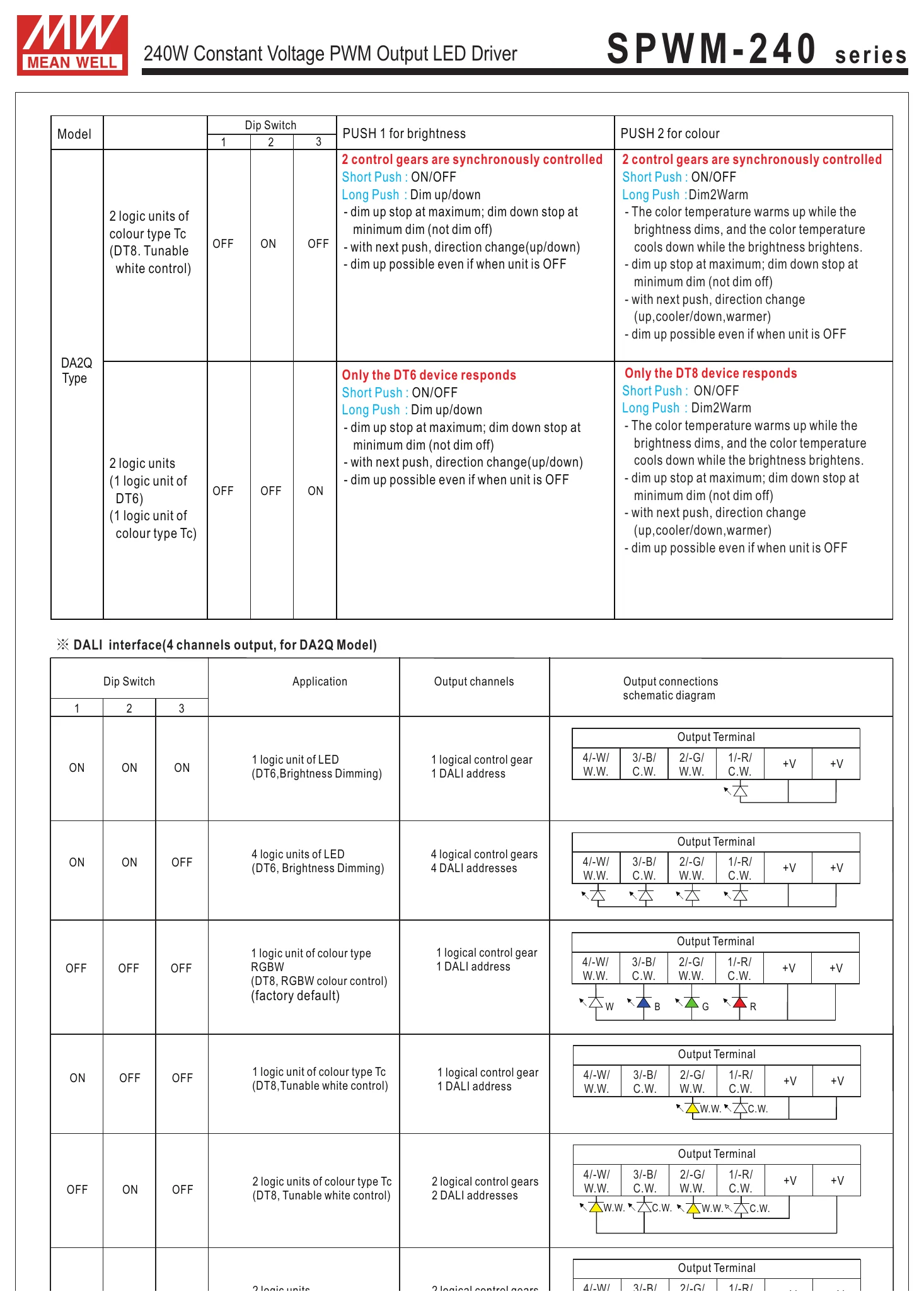

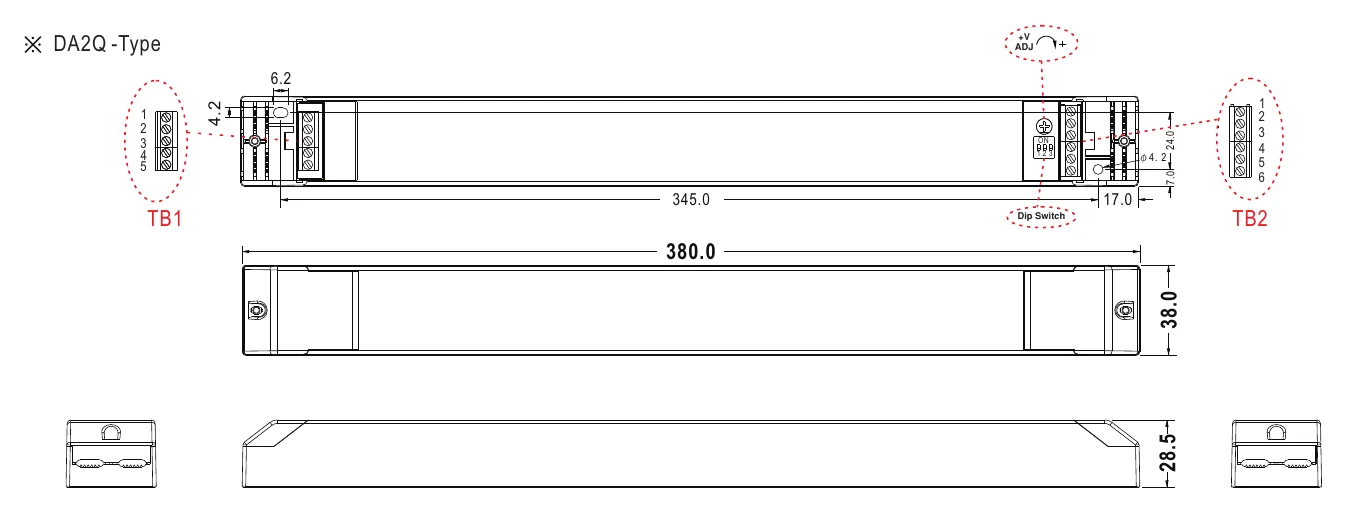

SPWM-240-24DA2 ※ DA2Q -Type — ※ DA2Q -Type

Typical applications

LED strip lighting(CW/WW/Tunable/RGBW)
LED decorative lighting
LED architecture lighting
Household lighting control system
DALI Building automation

Downloads

Datasheet1

SPWM-240-24DA2 datasheetSPWM_240_spec.pdf · 2025-12-22 edition PDF Download

FAQ

What type of LED driver is the MEAN WELL SPWM-240-24DA2?

The SPWM-240-24DA2 is a 240W constant voltage PWM LED driver with a 24V output. It is designed for professional lighting systems that need digital dimming control. This model is part of MEAN WELL's SPWM-240DA2 series.

Does the SPWM-240-24DA2 support DALI dimming?

Yes. This model supports DALI-2 DT6 digital dimming, which makes it suitable for lighting projects that require precise brightness control. It also supports PUSH dimming for simple local dimming control.

What output does the SPWM-240-24DA2 provide?

This LED driver provides a 24V constant voltage output and is rated for 10A current. Its total power rating is 240W. These ratings make it suitable for 24V constant voltage lighting applications within that power range.

Can this LED driver be used in emergency lighting or central battery systems?

Yes. In addition to standard AC input operation, the SPWM-240-24DA2 supports DC input. That makes it a practical option for systems that need compatibility with emergency lighting or central battery applications.

What makes the SPWM-240-24DA2 different from a basic non-dimming 24V power supply?

This model is built specifically for LED lighting applications that need dimming control rather than simple fixed-output power only. It adds DALI-2 DT6 and PUSH dimming support, along with flicker-free performance and a fanless design. That makes it better suited to professional dimmable lighting systems than a basic 24V power supply.

What warranty is offered on the SPWM-240-24DA2?

The SPWM-240-24DA2 includes a 5-year warranty. For B2B buyers, that can be useful when evaluating long-term reliability and lifecycle value for commercial lighting projects. It aligns with the professional positioning of this MEAN WELL driver.
