Over 15 years experience of providing support of MEAN WELL Power Supplies

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

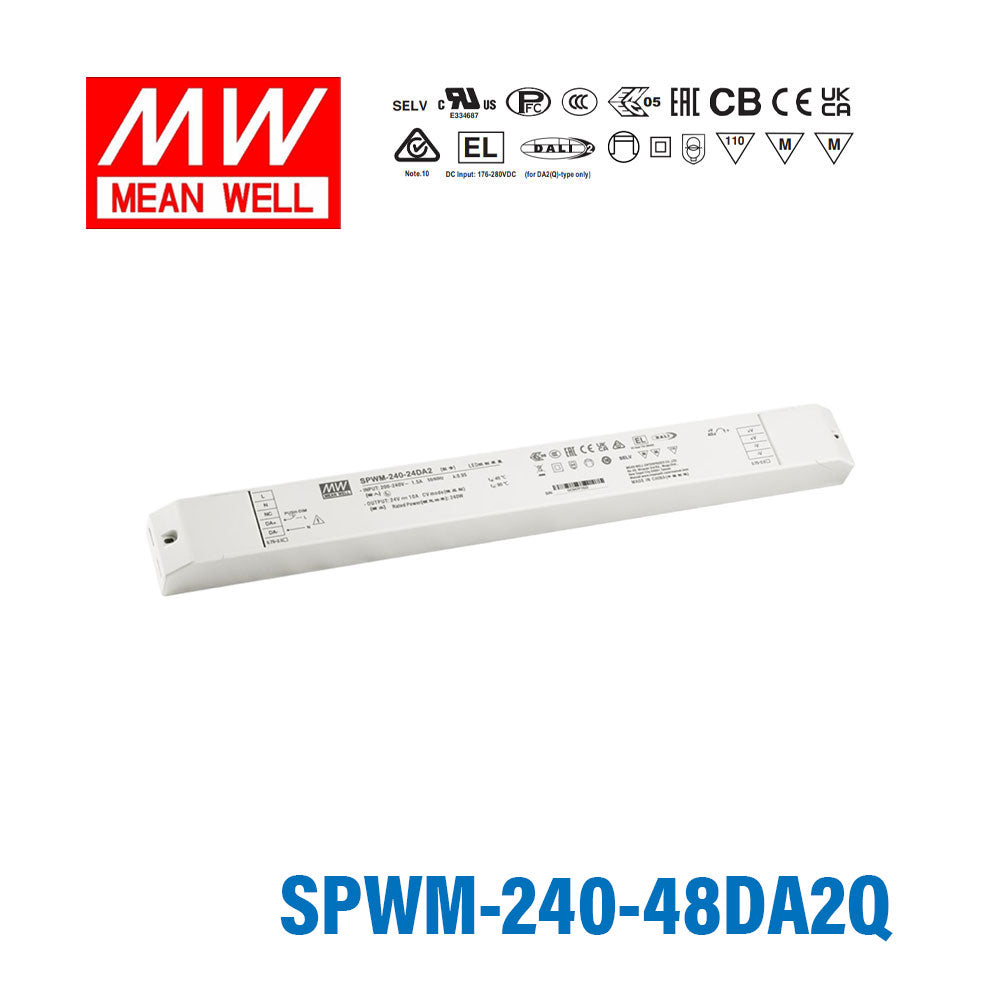

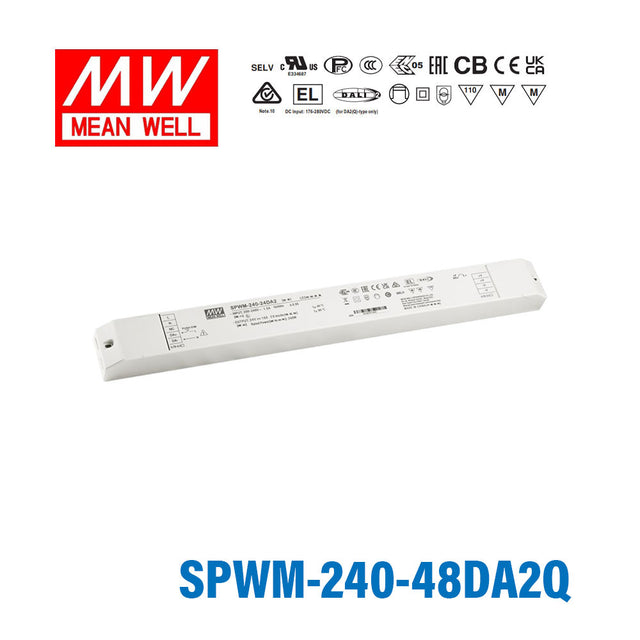

MEAN WELL SPWM-240-48DA2Q 240W 48V CV LED Driver 5A

DALI2 DT8, PUSH dimming,fliker free, minimum dimming level 0.1%, 4 channel,voltage adjustable 47-50V
SKU:
SPWM-240-48DA2Q
Please for Pricing
|

Description

The MEAN WELL SPWM-240DA2Q series is a 240W constant voltage PWM LED driver designed for advancedDALI-2 DT8 multi-channel lighting control, supporting RGBW and tunable white LED strip applications. Featuring four independently controlled output channels, the DA2Q variant enables precise colour mixing, colour temperature adjustment, and brightness control via DALI-2 or PUSH dimming interfaces. With high efficiency up to 94%, flicker-free output, and a fanless convection-cooled design, the SPWM-240DA2Q series is well suited for architectural, decorative, and intelligent lighting systems requiring dynamic lighting scenes.

Key Features

Specifications
  • Brand
    Mean Well
  • Series
    SPWM Series
  • Power Rating
    240 Watt
  • Output Voltage
    48 Volt
  • Rated Current
    5 Ampere
  • Input Voltage
    180V~305V
  • Standards Met
    CB,CE,EAC,RCM,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~90°C
  • Warranty
    5 Year
  • Length
    38 cm
  • Width
    3.8 cm
  • Height
    2.85 cm
  • Weight
    0.54 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the MEAN WELL SPWM-240-48DA2Q designed for?

This model is intended for constant-voltage LED strip systems that need advanced lighting control rather than simple fixed-output operation. It is specifically suited to RGBW and tunable white applications where separate channels are used for colour mixing, colour temperature adjustment, and dimming.

What makes the SPWM-240-48DA2Q different from a standard 48V LED driver?

The SPWM-240-48DA2Q is built for DALI-2 DT8 multi-channel control, which makes it more specialized than a basic single-output 48V constant-voltage driver. It is designed for lighting projects that need coordinated control of multiple LED channels for dynamic colour or tunable white performance.

Is the SPWM-240-48DA2Q compatible with DALI lighting control systems?

Yes. This model supports DALI-2 as well as PUSH dimming, making it suitable for projects that require integration with modern lighting control strategies. Its DA2Q variant is intended for multi-channel LED control in applications that use DALI-2 DT8 functionality.

What are the main electrical specifications of the SPWM-240-48DA2Q?

This LED driver is rated for 240W output at 48V constant voltage, with a rated current of 5A. It is part of MEAN WELL's SPWM-240DA2Q series and is designed for high-efficiency operation, with stated efficiency up to 94%.

Can the SPWM-240-48DA2Q be used in demanding temperature conditions?

It is specified for operation across a wide temperature range, from -20°C up to 90°C. Combined with its fanless convection-cooled design, that makes it a practical choice for commercial and architectural lighting environments where silent operation and thermal reliability matter.

Is the SPWM-240-48DA2Q a good fit for long-term commercial lighting projects?

Yes. This model combines high efficiency, flicker-free output, and a 5-year warranty, which are all relevant for professional projects where reliability and maintenance planning matter. Its multi-channel DALI-2 DT8 capability also makes it suitable for more advanced lighting schemes that may need to scale over time.
