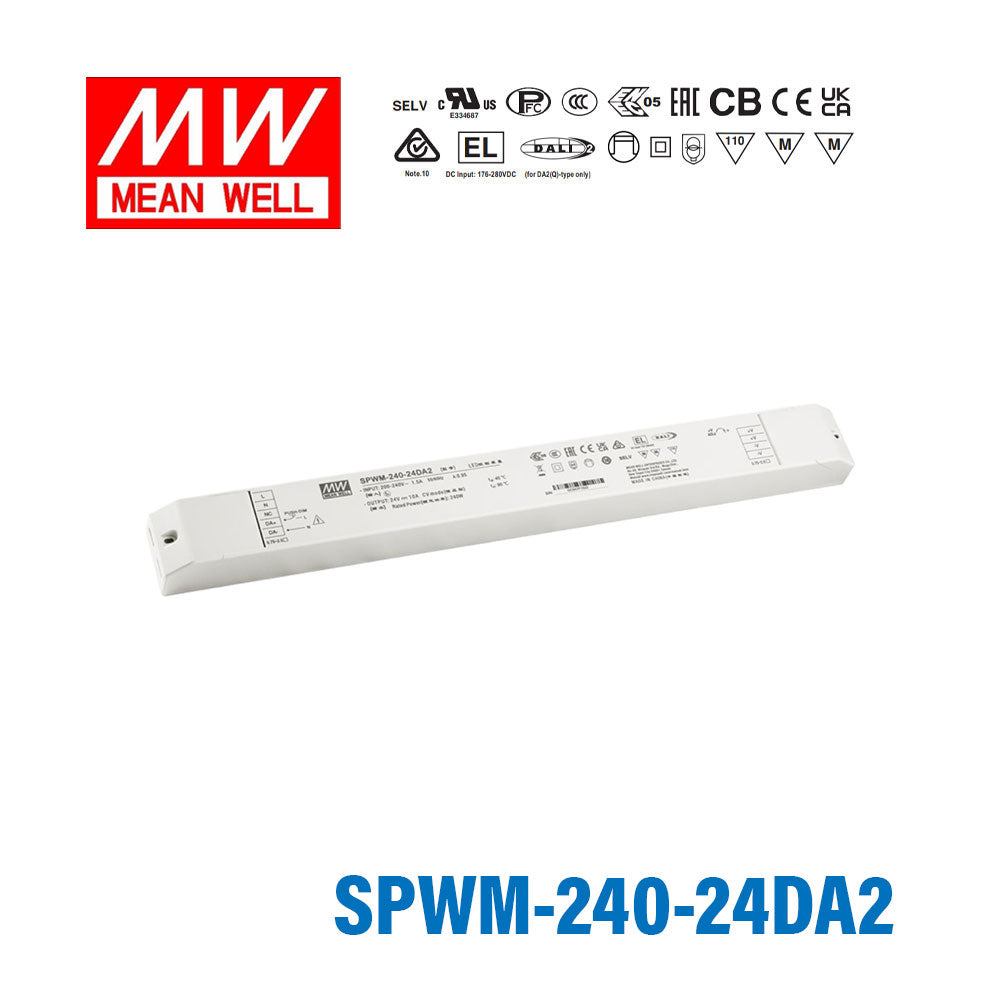

MEAN WELL SPWM-240-24DA2 240W 24V CV LED Driver 10A
Please Login for Pricing
Description
Description
The MEAN WELL SPWM-240DA2 series is a 240W constant voltage PWM LED driver featuringDALI-2 DT6 digital dimming, enabling precise and reliable brightness control in professional lighting systems. In addition to AC input operation, DA2 models support DC input for compatibility with emergency lighting and central battery systems. The driver also supports PUSH dimming from the primary side, allowing simple local control and commissioning. With high efficiency, flicker-free output, and a fanless convection-cooled design, the SPWM-240DA2 series is ideal for commercial, architectural, and building automation lighting projects.
Key Features
Specifications
Specifications
-
BrandMean Well
-
SeriesSPWM Series
-
Power Rating240 Watt
-
Output Voltage24 Volt
-
Rated Current10 Ampere
-
Input Voltage180V~305V
-
Standards MetCB,CE,EAC,RCM,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~90°C
-
Warranty5 Year
-
Length38 cm
-
Width3.8 cm
-
Height2.85 cm
-
Weight0.54 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What type of LED driver is the MEAN WELL SPWM-240-24DA2?
The SPWM-240-24DA2 is a 240W constant voltage PWM LED driver with a 24V output. It is designed for professional lighting systems that need digital dimming control. This model is part of MEAN WELL's SPWM-240DA2 series.
Does the SPWM-240-24DA2 support DALI dimming?
Yes. This model supports DALI-2 DT6 digital dimming, which makes it suitable for lighting projects that require precise brightness control. It also supports PUSH dimming for simple local dimming control.
What output does the SPWM-240-24DA2 provide?
This LED driver provides a 24V constant voltage output and is rated for 10A current. Its total power rating is 240W. These ratings make it suitable for 24V constant voltage lighting applications within that power range.
Can this LED driver be used in emergency lighting or central battery systems?
Yes. In addition to standard AC input operation, the SPWM-240-24DA2 supports DC input. That makes it a practical option for systems that need compatibility with emergency lighting or central battery applications.
What makes the SPWM-240-24DA2 different from a basic non-dimming 24V power supply?
This model is built specifically for LED lighting applications that need dimming control rather than simple fixed-output power only. It adds DALI-2 DT6 and PUSH dimming support, along with flicker-free performance and a fanless design. That makes it better suited to professional dimmable lighting systems than a basic 24V power supply.
What warranty is offered on the SPWM-240-24DA2?
The SPWM-240-24DA2 includes a 5-year warranty. For B2B buyers, that can be useful when evaluating long-term reliability and lifecycle value for commercial lighting projects. It aligns with the professional positioning of this MEAN WELL driver.
Other SPWM-240 Models
5 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| MEAN WELL SPWM-240-48DA2Q 240W 48V CV LED Driver 5A | 240W | 48V | 5A | Indoor | View |
| MEAN WELL SPWM-240-48DA2 240W 48V CV LED Driver 5A | 240W | 48V | 5A | Indoor | View |
| MEAN WELL SPWM-240-48 240W 48V CV LED Driver 5A | 240W | 48V | 5A | Indoor | View |
| MEAN WELL SPWM-240-24DA2Q 240W 24V CV LED Driver 10A | 240W | 24V | 10A | Indoor | View |
| MEAN WELL SPWM-240-24 240W 24V CV LED Driver 10A | 240W | 24V | 10A | Indoor | View |
