Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

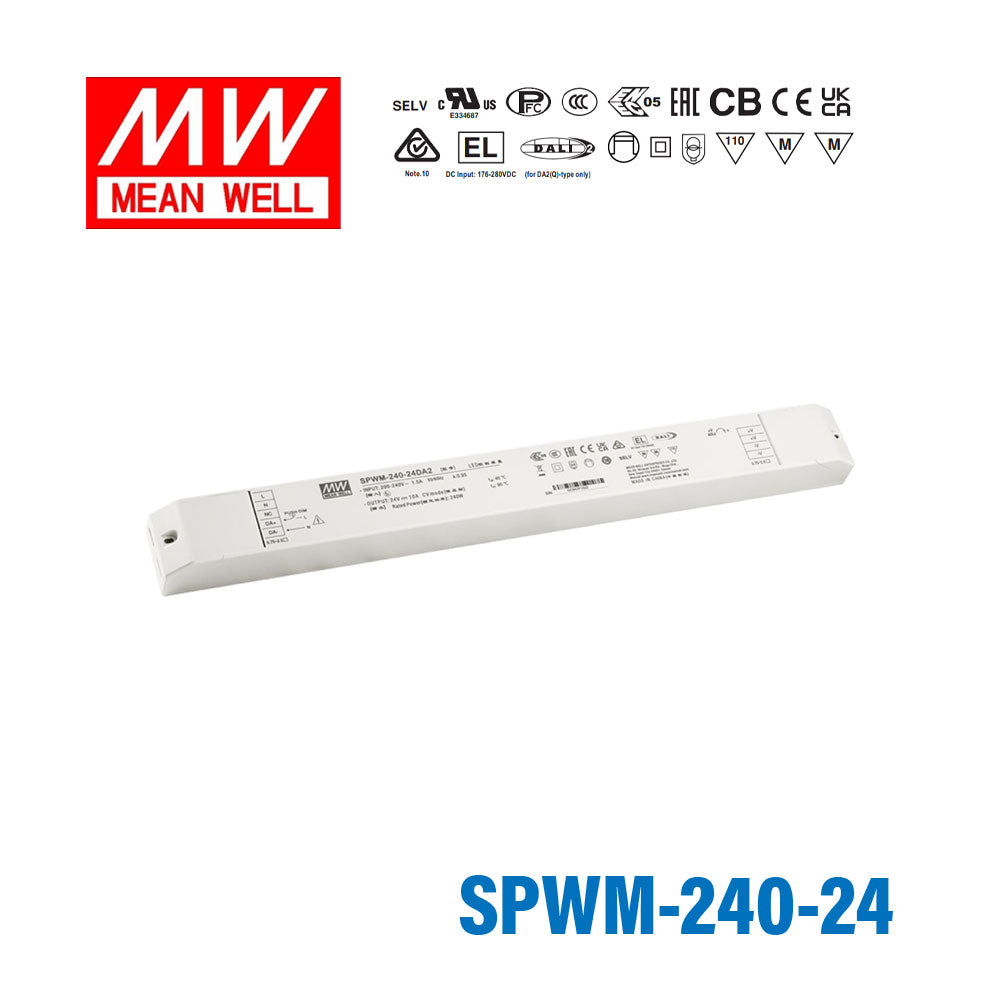

MEAN WELL SPWM-240-24 240W 24V CV LED Driver 10A

3-in-1 dimmablePWM style outputflicker freevoltage adjustable 23-26V

SKU SPWM-240-24

Log in to see price Trade pricing & online ordering for account holders

In stock

Overview

SPWM-240-24 is the 24V output model of this series: typical efficiency 93%.

SPWM-240 series is a 240W AC/DC LED driver featuring the constant voltage mode with PWM style output, which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of LED strips. SPWM-240 operates from 180~305VAC and offers models with different rated voltage ranging include 24V and 48V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -20~+90℃ case temperature under free air convection. SPWM-240 is equipped with various function options, such as dimming methodologies with DALI-2 , so as to provide the optimal design flexibility for LED lighting system.

Features

DALI-2 DT6(Dimming) or DT8 (Tunable white/RGBW) control available
Constant voltage PWM style output with 1 to 4 channels
Standby power consumption <0.5W
Flicker free, complying with CE ErP directive
Plastic housing with class ll and PFC design
Function options: 3 in 1dimming/DALI-2+PUSH Dimming
Minimum dimming level 0.1%(DALI-2)
Cooled by free air convection
5 years warranty

Specifications

SPWM-240-24Specifications from the official datasheet (2025-12-22 edition)

OUTPUT

DC VOLTAGE: 24V
RATED CURRENT(Max.): 10A
RATED POWER(Max.): 240W
VOLTAGE ADJ. RANGE: 23~26V
PWM FREQUENCY (Typ.): 3.2kHz
SETUP, RISE TIME^Note.3: 500ms, 80ms/230VAC
HOLD UP TIME (Typ.): 10ms/230VAC

INPUT

VOLTAGE RANGE^Note.2: 180 ~ 305VAC 255 ~ 410VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.95/230VAC, PF>0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD<10%@load≧50%, 230VAC; @load≧75%/277VAC (Please refer to “TOTAL HARMONIC DISTORTION” section)
EFFICIENCY (Typ.): 93%
AC CURRENT (Typ.): 1.3A / 230VAC 1.1A / 277VAC
INRUSH CURRENT (Typ.): COLD START 60A(twidth=600μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B) / 5 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.25mA / 277VAC
STANDBY POWER CONSUMPTION: standby power consumption<0.5W (Dimming off)

PROTECTION

OVERLOAD: 105~150%, hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT: Blank type: Shut down O/P voltage, re-power on to recover after fault condition is removed DA2/DA2Q type:Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 27 ~ 36V Shut down O/P voltage, re-power on to recover after fault condition is removed
OVER TEMPERATURE: Shut down O/P voltage, re-power on to recover after fault condition is removed

ENVIRONMENT

WORKING TEMP.: Tcase=-20~+90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 5 ~ 100Hz, 2G 12min./1cycle, period for 72min. each along X,Y,Z axes

SAFETY & EMC

SAFETY STANDARDS: ENEC BS EN/EN61347-1, BS EN/EN61347-2-13(EL) appendix J suitable for emergency installations(DC input 176-280VDC), BS EN/EN62384; GB/T19510.1,GB/T19510.213; EAC TP TC 004; Design refer to AS/NZS 61347-1, AS/NZS 61347-2-13
DALI STANDARDS: Comply with IEC62386-101, 102, 207(DT6),209(DT8),DALI Part 251
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.4: Parameter Standard Test Level

Conducted BS EN/EN55015(CISPR15) ,GB/T17743
Radiated BS EN/EN55015(CISPR15) ,GB/T17743
Harmonic Current BS EN/EN61000-3-2, GB 17625.1 Class C @load≥50%
Voltage Flicker BS EN/EN61000-3-3 -----; BS EN/EN61547
EMC IMMUNITY: Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
Radiated BS EN/EN61000-4-3 Level 2
EFT/Burst BS EN/EN61000-4-4 Level 2
Surge BS EN/EN61000-4-5 Level 4, 2KV/Line-Line
Conducted BS EN/EN61000-4-6 Level 2
Magnetic Field BS EN/EN61000-4-8 Level 2
Voltage Dips and Interruptions BS EN/EN61000-4-11:2020 30% dip 10 periods 100% interrruption 0.5 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55015(CISPR15) ,GB/T17743
Radiated	BS EN/EN55015(CISPR15) ,GB/T17743
Harmonic Current	BS EN/EN61000-3-2, GB 17625.1	Class C @load≥50%
Voltage Flicker	BS EN/EN61000-3-3	-----; BS EN/EN61547

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
Radiated	BS EN/EN61000-4-3	Level 2
EFT/Burst	BS EN/EN61000-4-4	Level 2
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Line-Line
Conducted	BS EN/EN61000-4-6	Level 2
Magnetic Field	BS EN/EN61000-4-8	Level 2
Voltage Dips and Interruptions	BS EN/EN61000-4-11:2020	30% dip 10 periods 100% interrruption 0.5 periods

OTHERS

FLICKER^Note.9: PstLM ≤ 1, SVM ≤ 0.4
MTBF: 1801.3K hrs min. Telcordia SR-332 (Bellcore) ; 155.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 380*38*28.5mm (L*W*H)
PACKING: 0.54Kg; 24 pcs/ 13.26 Kg (13.64Kg for DA2 type: ) / 0.61 CUFT

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to "STATIC CHARACTERISTIC" sections for details.
3. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
4. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
5. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
6. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. It is not recommended to connect to capacitive loads
9. Flicker is measured at full load with the light source provided by MEAN WELL.
10. RCM is on a voluntary basis. Non IC classification Independent LED control gear is not suitable for residential installations.
11. Based on IEC 62386-101/102 DALI power on timing and interruption regulations, the set up time needs to test with a DALI controller which can support for DALI power on function, otherwise the set up time will be higher than 0.5 second for DA2 type

Technical drawings

SPWM-240-24 Block Diagram — Block Diagram

SPWM-240-24 DIMMING OPERATION — DIMMING OPERATION

SPWM-240-24 S P W M - 2 4 0 series — S P W M - 2 4 0 series

SPWM-240-24 ◎ Applying additive resistance: 0~100kΩ — ◎ Applying additive resistance: 0~100kΩ

SPWM-240-24 STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

SPWM-240-24 POWER FACTOR (PF) CHARACTERISTIC — POWER FACTOR (PF) CHARACTERISTIC

SPWM-240-24 Mechanical Specification — Mechanical Specification

SPWM-240-24 Terminal Pin No. Assignment (TB1) — Terminal Pin No. Assignment (TB1)

Typical applications

LED strip lighting(CW/WW/Tunable/RGBW)
LED decorative lighting
LED architecture lighting
Household lighting control system
DALI Building automation

Downloads

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

What kind of lighting applications is the MEAN WELL SPWM-240-24 designed for?

The SPWM-240-24 is a 240W constant voltage LED driver built for high-power 24V LED strip lighting applications. It is intended for projects where stable brightness and colour consistency matter, especially in commercial and other B2B lighting environments.

What are the main electrical ratings of the SPWM-240-24?

This model is rated for 24V DC output, 10A rated current, and 240W total power. Those specs make it suitable for larger 24V constant voltage LED loads that need a higher power driver.

What dimming control types does the SPWM-240-24 support?

The SPWM-240-24 supports 0-10V dimming, 10V PWM dimming, and resistance-based dimming control. That gives buyers flexibility when matching the driver to compatible lighting control systems already used on a project.

How is the SPWM-240-24 different from a constant current LED driver?

The SPWM-240-24 is a constant voltage model, so it is intended for 24V constant voltage LED lighting systems rather than constant current LED modules. Buyers choosing between the two should match the driver type to the electrical requirements of the lighting product.

Is the SPWM-240-24 suitable for demanding operating environments?

This model is specified for temperatures from -20°C to 90°C and uses a fanless free-air convection design. That combination can be useful where silent operation and reduced moving-part maintenance are priorities.

What are the efficiency and power quality highlights of the SPWM-240-24?

The SPWM-240-24 operates from a wide 180-305VAC input range and includes active power factor correction. It achieves typical efficiency of 93% and is described as offering flicker-free performance compliant with CE ErP requirements.

What warranty is offered on the MEAN WELL SPWM-240-24?

This model includes a 5-year warranty period. For B2B buyers, that can be an important factor when comparing lifecycle value and support expectations across LED driver options.
