Archilight

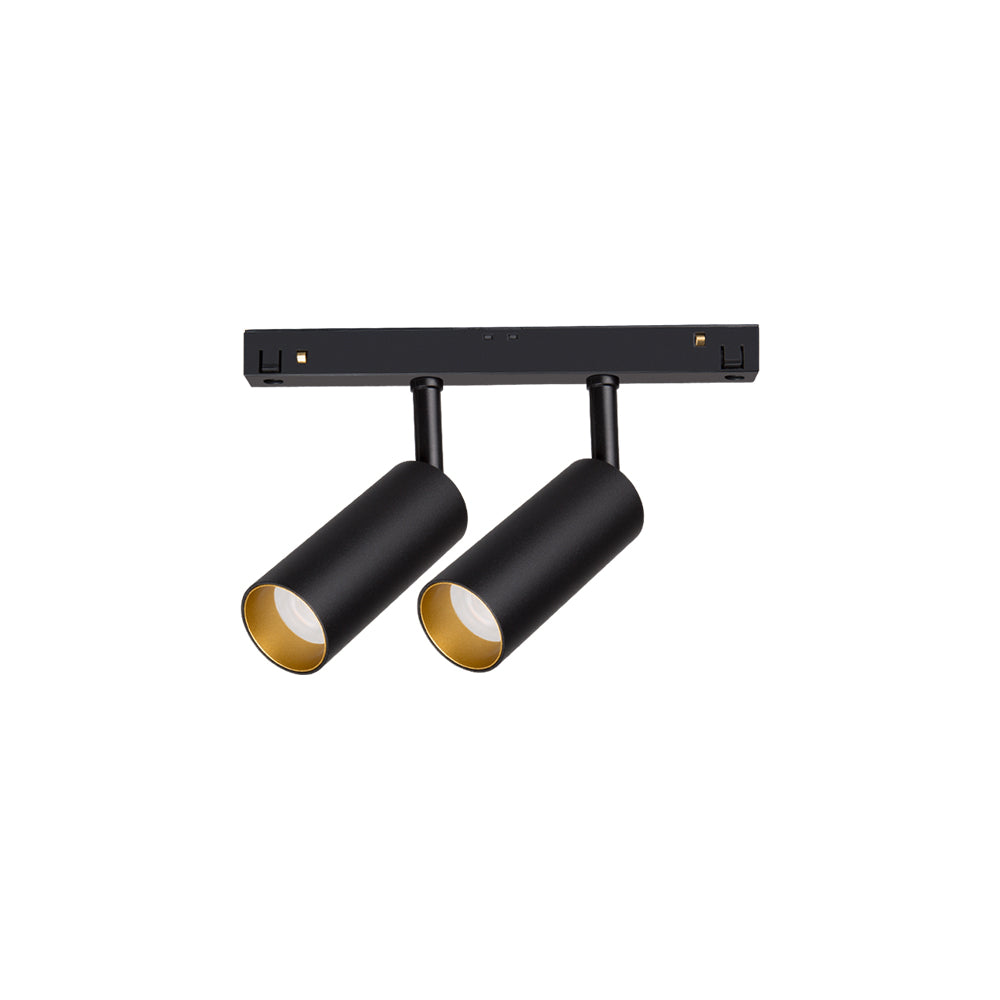

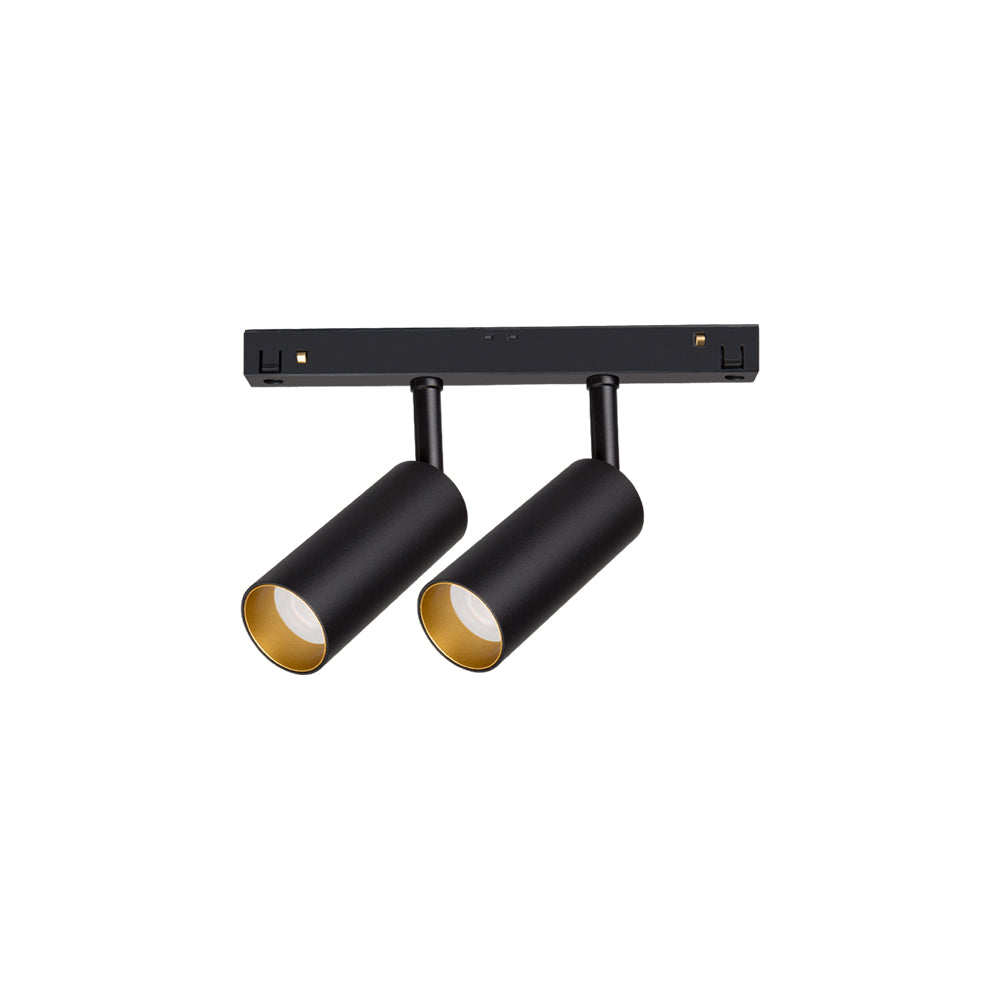

Archilight Dot 35 Twin Black and Gold Tracklight Light 16W

SKU KC-017001A02-23D-2700K-BG
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 9 variants

KC-017001A02-23D-2700K-BG
LED Colour
Beam Angle
9 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Specifications

Archilight Dot 35 Twin Black and Gold Tracklight Light 16WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKUBeam AngleLED Colour
KC-017001A02-23D-2700K-BG23°Warm White 2700K
KC-017001A02-23D-3000K-BG23°Warm White 3000K
KC-017001A02-23D-4000K-BG23°Natural White 4000K
KC-017001A02-36D-2700K-BG36°Warm White 2700K
KC-017001A02-36D-3000K-BG36°Warm White 3000K
KC-017001A02-36D-4000K-BG36°Natural White 4000K
KC-017001A02-60D-2700K-BG60°Warm White 2700K
KC-017001A02-60D-3000K-BG60°Warm White 3000K
KC-017001A02-60D-4000K-BG60°Natural White 4000K

Specifications

Input
48 V
Power rating
2 * 8W
Brightness
456 lm
Efficacy
≥57 lm/W
Colour render index(CRI)
≥90
UGR
<19
IP level
IP20
Temperature range
-25°C~50°C
Dimming control
Bluetooth APP Control (Default) or DALI (Optional)
Tiltable
Adjustable
Mounting
Motion Magnetic Track Series
Driver
48V Driver not Included
Warranty
5 years
Lifetime
50,000hrs
Material
Aluminum

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, Class II, IP20

Technical drawings

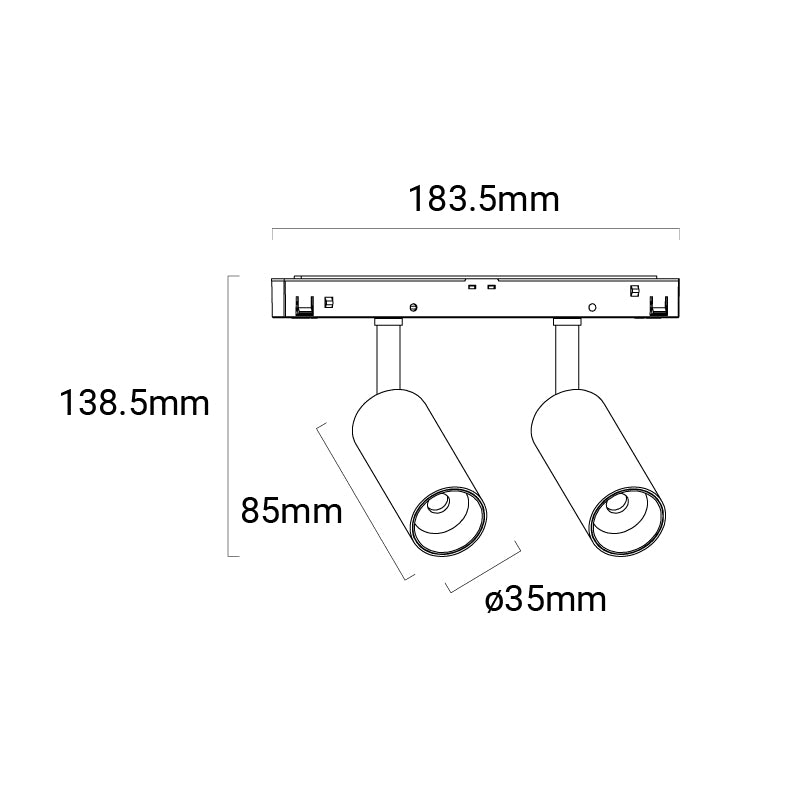

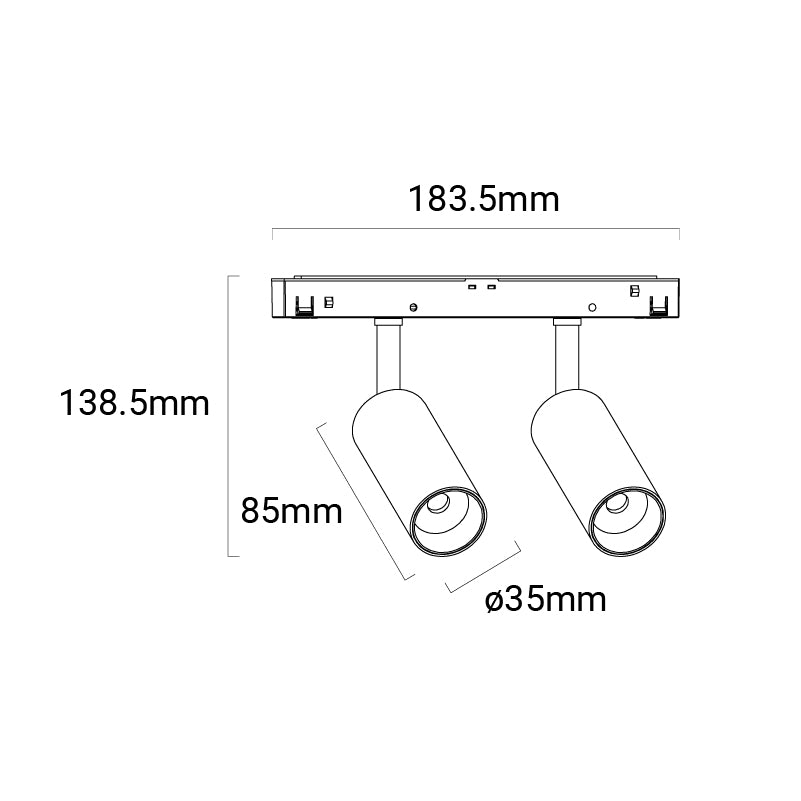

Archilight Dot 35 Twin Black and Gold Tracklight Light 16W Dimensions (mm)
Dimensions (mm)
Archilight Dot 35 Twin Black and Gold Tracklight Light 16W Finish colour
Finish colour

Downloads

FAQ

What is the Archilight Dot 35 Twin Black and Gold Tracklight Light 16W designed for?

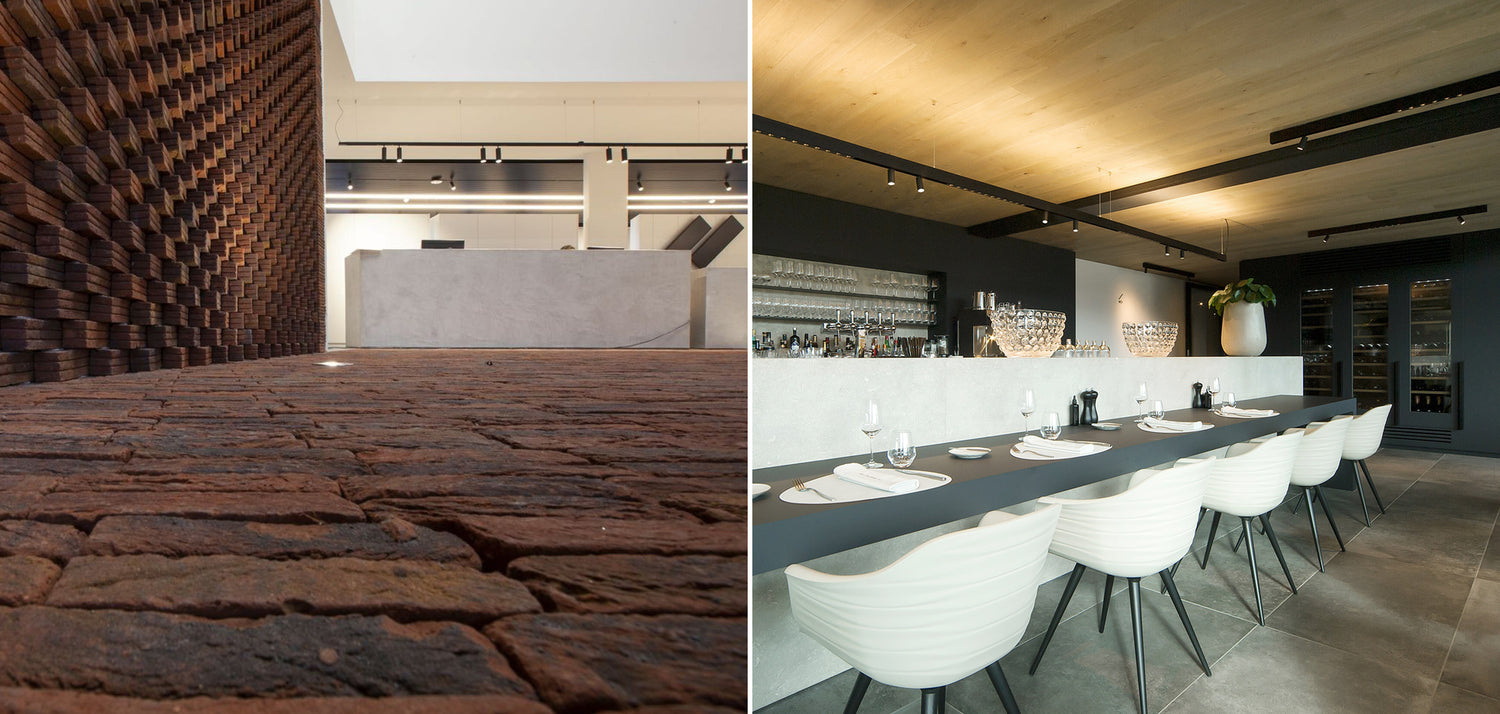

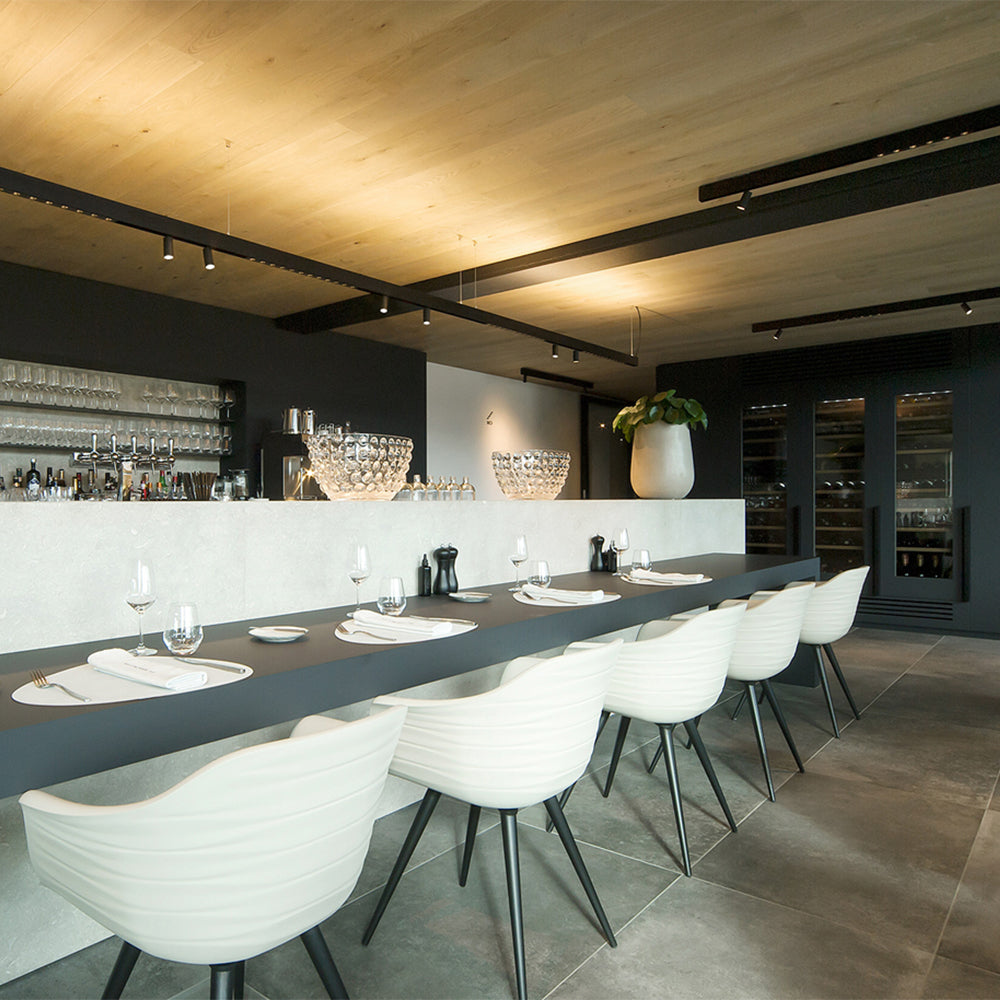

This magnetic track light is suited to residential, hospitality, office, and retail applications. Its twin spotlight format makes it useful where you want directional accent lighting with a decorative black and gold finish. It is part of the Dot series and is intended to pair with Motion series track systems.

What options are available across this parent product family?

This parent family offers multiple colour temperature and beam angle combinations. Available colour temperatures are 2700K, 3000K, 4000K, and 5000K, while beam angles are 23, 36, and 60 degrees. That lets buyers choose between warmer or cooler light output and narrower or wider beam spread.

How bright is this track light and what is its power rating?

Each variant in this family is rated at 16W and delivers 1280 lumens. That gives you a consistent output level across the range, with the main differences being beam angle and colour temperature rather than wattage or brightness.

What light quality can I expect from this product family?

This family uses LED chips with CRI greater than 90, which supports strong colour rendering in commercial and architectural settings. The stated glare rating is UGR below 19, helping it suit spaces where visual comfort matters. These characteristics make it appropriate for display, retail, hospitality, and interior lighting applications.

Is the driver included, and is this product dimmable?

No, the driver is not included with this product family. The listed dimming control is none, so these variants are not specified as dimmable. Buyers should account for that when selecting products for projects requiring separate control gear or dimming functionality.

Is this light compatible with standard track systems?

The product description specifically states that it should be paired with Motion series track. Based on the information provided, compatibility is confirmed for Motion series track rather than for unspecified third-party track systems. It is best treated as part of that magnetic track family.

What are the expected service life and warranty for this product family?

All listed variants in this parent family have a rated lifetime of 50,000 hours. The warranty period is 5 years across the range. This makes the family suitable for projects where long operating life and warranty support are important selection criteria.
