Archilight

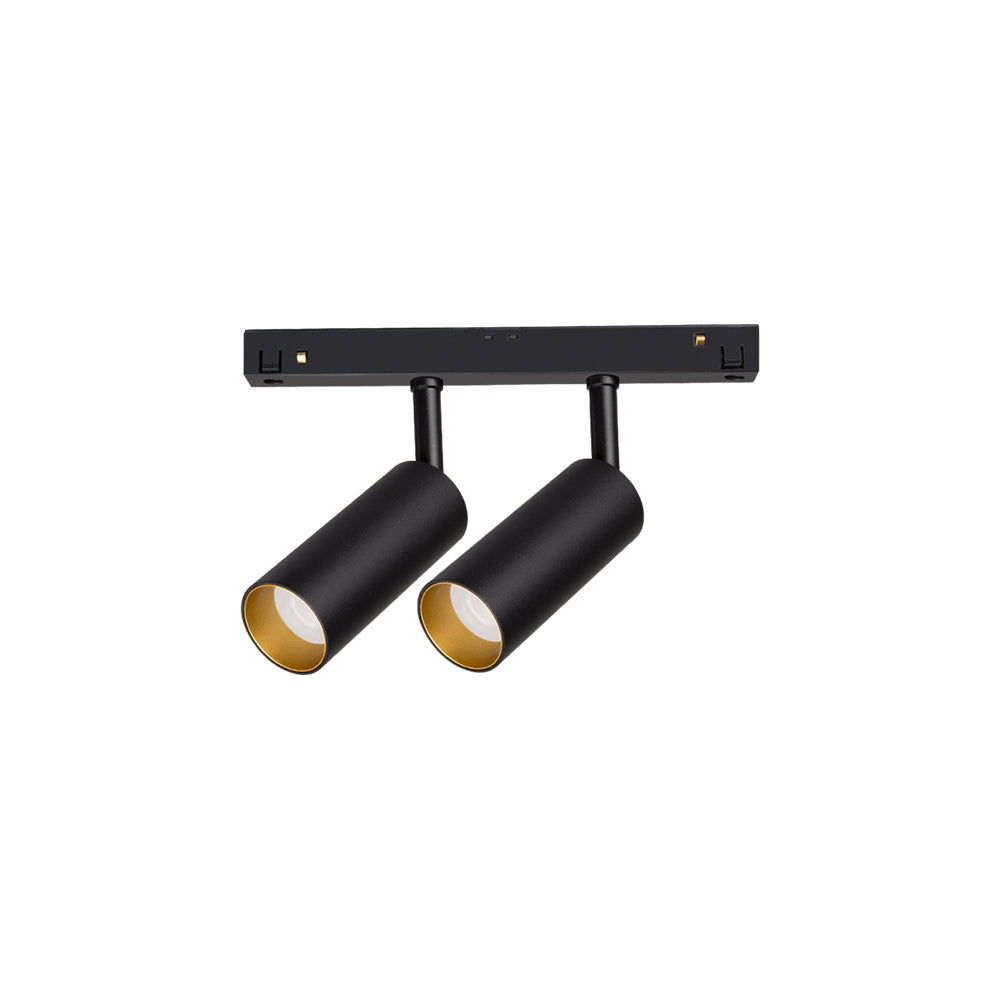

Archilight Dot 35 Twin Black Track Light BLE 16W

SKU KC-017001A02-36D-3000K-B-BLE
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 3 variants

KC-017001A02-36D-3000K-B-BLE
LED Colour
Beam Angle
3 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
In stock
|

Specifications

Archilight Dot 35 Twin Black Track Light BLE 16WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKUBeam AngleLED Colour
KC-017001A02-36D-3000K-B-BLE36°Warm White 3000K
KC-017001A02-36D-4000K-B-BLE36°Natural White 4000K
KC-017001A02-60D-3000K-B-BLE60°Warm White 3000K

Specifications

Input
48 V
Power rating
2 * 8W
Brightness
456 lm
Efficacy
≥57 lm/W
Colour render index(CRI)
≥90
UGR
<19
IP level
IP20
Temperature range
-25°C~50°C
Dimming control
Bluetooth APP Control (Default) or DALI (Optional)
Tiltable
Adjustable
Mounting
Motion Magnetic Track Series
Driver
48V Driver not Included
Warranty
5 years
Lifetime
50,000hrs
Material
Aluminum

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, Class II, IP20

Technical drawings

Archilight Dot 35 Twin Black Track Light BLE 16W Dimensions (mm)
Dimensions (mm)
Archilight Dot 35 Twin Black Track Light BLE 16W Finish colour
Finish colour

Downloads

FAQ

What type of product is the Archilight Dot 35 Twin Black Track Light BLE 16W?

This is a magnetic track light module from the Archilight Dot series. It is a flexible round spotlight designed for interior applications including residential, hospitality, office, and retail spaces.

What track is this light compatible with?

This product is intended to pair with Motion series track systems. It is part of a magnetic track lighting family, so buyers should confirm the selected track system matches the Motion series requirement.

Are there different beam angle options in this product family?

Yes. Based on the variants provided for this parent model, the family includes 36 degree and 60 degree beam angle options. That gives buyers a choice between a tighter or broader light distribution within the same product family.

Does this track light include a driver?

No, the driver is not included with this product family. That is consistent across the parent model and the listed variants.

Is the Archilight Dot 35 Twin Black Track Light dimmable?

Yes, this product family supports optional dimming. The supplied product data identifies it as dimmable optional rather than a non-dimmable fitting.

What are the core performance specs for this product family?

This parent model is rated at 16W and uses a 48V power input. It has CRI 90, a 50,000 hour lifetime, and a 5 year warranty, making it suitable for quality-focused commercial and interior lighting projects.

Is this light designed for low-glare, high-colour-quality applications?

Yes. The product description states the Dot series uses a high-quality LED chip with CRI greater than 90 and a low glare rating of UGR less than 19. That makes it relevant for environments where visual comfort and colour rendering matter.
