Archilight

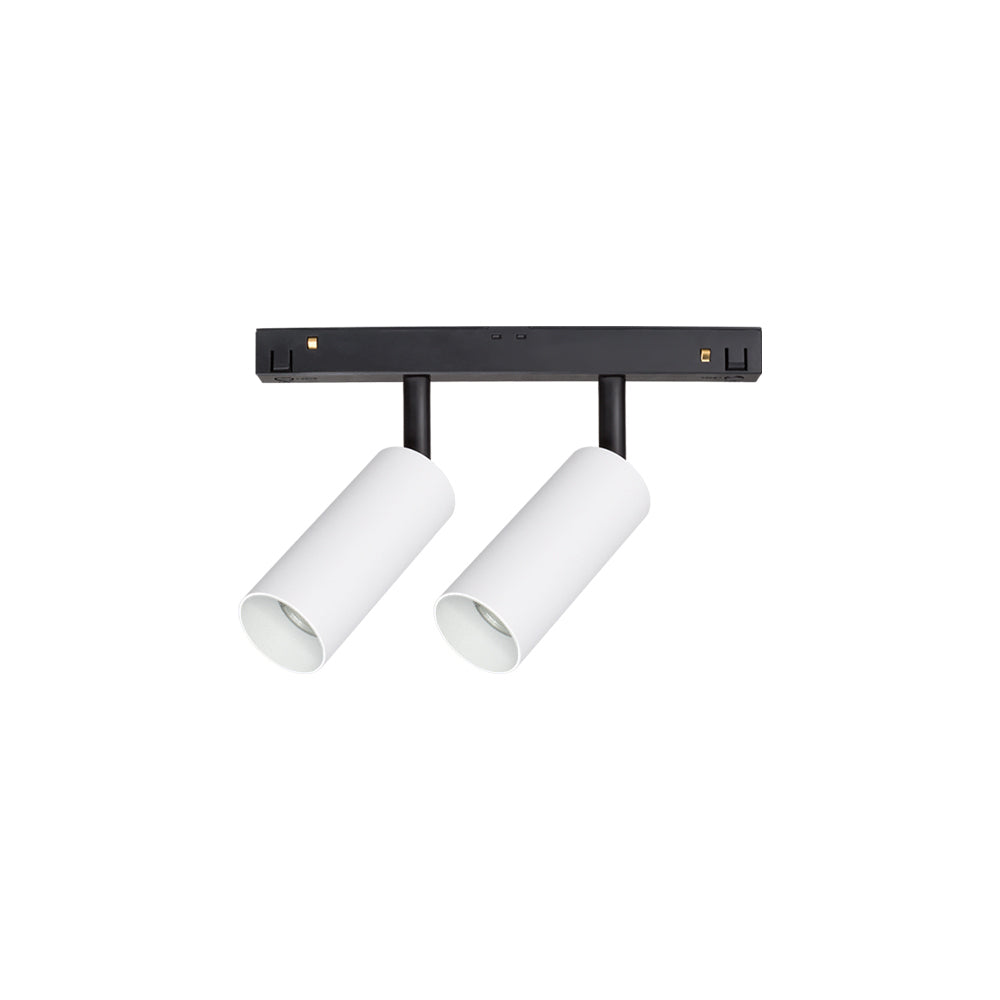

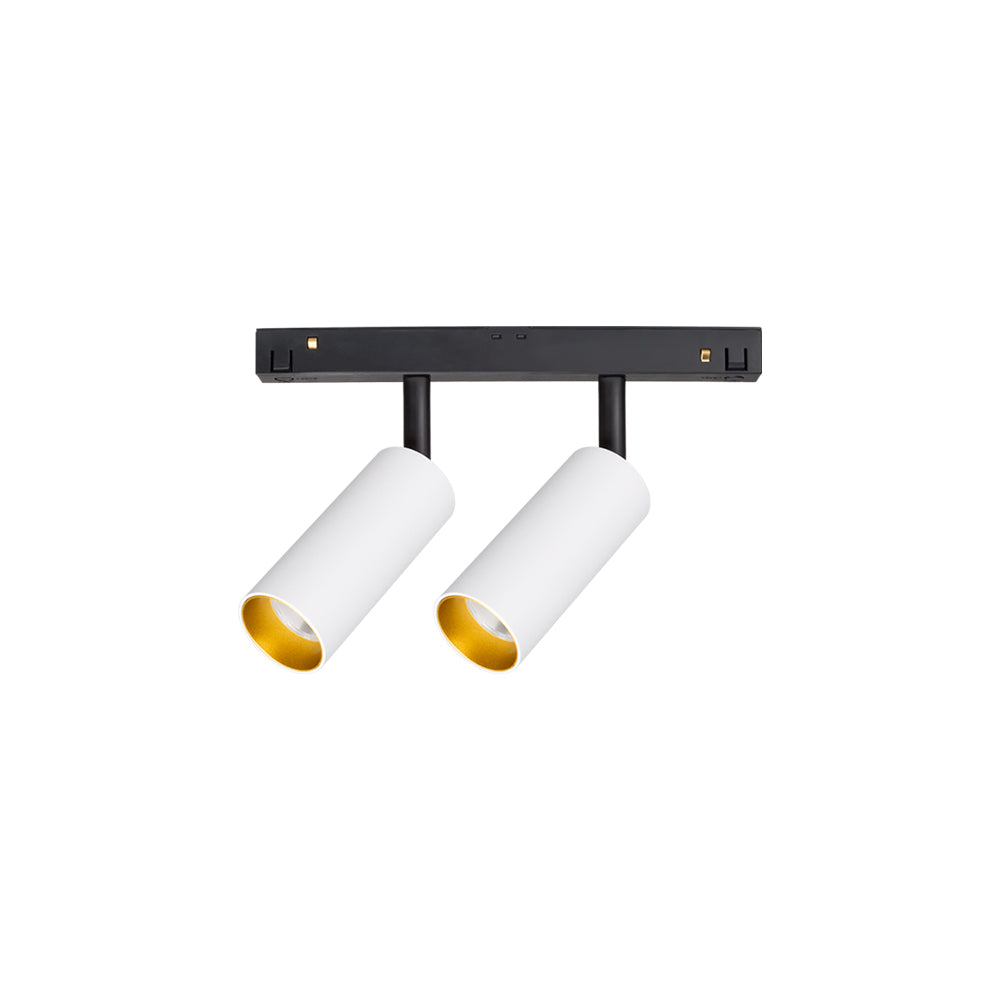

Archilight Dot 35 Twin White Tracklight Light 16W

SKU KC-017001A02-23D-2700K-W
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 9 variants

KC-017001A02-23D-2700K-W
LED Colour
Beam Angle
9 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Specifications

Archilight Dot 35 Twin White Tracklight Light 16WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKUBeam AngleLED Colour
KC-017001A02-23D-2700K-W23°Warm White 2700K
KC-017001A02-23D-3000K-W23°Warm White 3000K
KC-017001A02-23D-4000K-W23°Natural White 4000K
KC-017001A02-36D-2700K-W36°Warm White 2700K
KC-017001A02-36D-3000K-W36°Warm White 3000K
KC-017001A02-36D-4000K-W36°Natural White 4000K
KC-017001A02-60D-2700K-W60°Warm White 2700K
KC-017001A02-60D-3000K-W60°Warm White 3000K
KC-017001A02-60D-4000K-W60°Natural White 4000K

Specifications

Input
48 V
Power rating
2 * 8W
Brightness
456 lm
Efficacy
≥57 lm/W
Colour render index(CRI)
≥90
UGR
<19
IP level
IP20
Temperature range
-25°C~50°C
Dimming control
Bluetooth APP Control (Default) or DALI (Optional)
Tiltable
Adjustable
Mounting
Motion Magnetic Track Series
Driver
48V Driver not Included
Warranty
5 years
Lifetime
50,000hrs
Material
Aluminum

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, Class II, IP20

Technical drawings

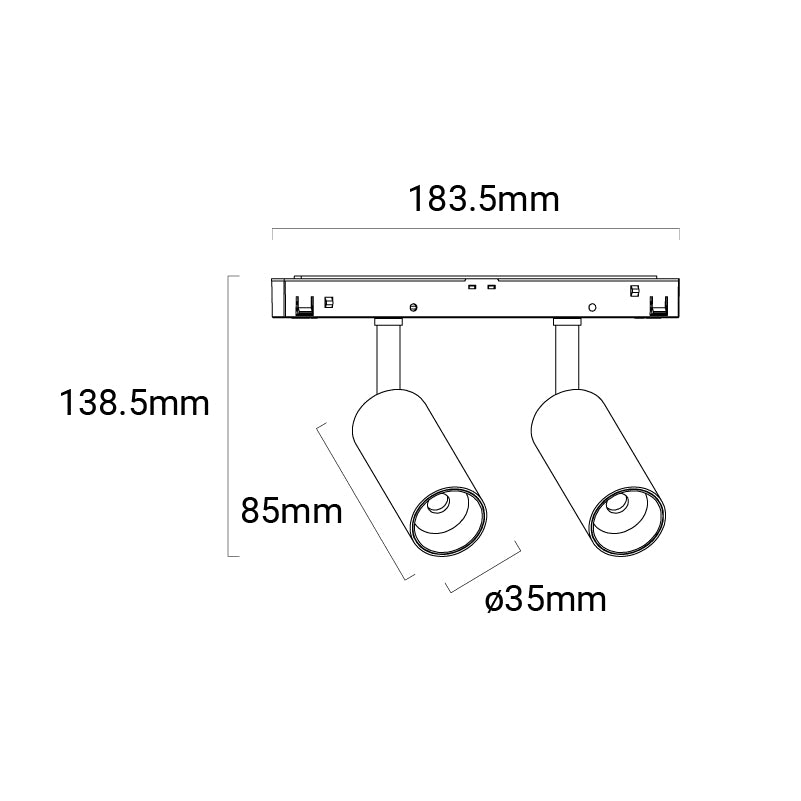

Archilight Dot 35 Twin White Tracklight Light 16W Dimensions (mm)
Dimensions (mm)
Archilight Dot 35 Twin White Tracklight Light 16W Finish colour
Finish colour

Downloads

FAQ

What beam angle options are available for the Archilight Dot 35 Twin White Tracklight Light 16W?

This parent product family is available with 23 degree, 36 degree, and 60 degree beam angles. That gives buyers a choice between narrower, medium, and wider light distribution while staying within the same 16W twin tracklight format.

What colour temperature options are offered across this Dot 35 Twin family?

The family is offered in 2700K, 3000K, 4000K, and 5000K variants. This allows the same fitting to be specified for warmer or cooler lighting schemes depending on the project environment.

Is the Dot 35 Twin White Tracklight suitable for commercial interiors?

Yes. The product description states it can be used in residential, hospitality, office, and retail applications, making it suitable for a wide range of interior commercial projects. Its low glare rating of UGR90 also support use in spaces where visual comfort and colour quality matter.

What are the key performance specifications of this tracklight family?

Each variant in this parent family is rated at 16W and 1280 lumens, with CRI 90, a 50,000-hour lifetime, and a 5-year warranty. The product uses a 48V power input and is supplied without a driver.

Does this tracklight family include dimming or a driver?

No. The parent product data lists dimming control as none and driver as not included across the family. Buyers should account for that when checking compatibility with the wider track system specification.

Which track system is this product designed to pair with?

The product description says this light should be paired with any Motion series track. That makes it part of the Motion track system ecosystem rather than a standalone general-purpose fixture.

What physical size should specifiers expect for this product?

The parent model dimensions are 183.5 mm long, 85 mm wide, and 138.5 mm high, with a weight of 0.5 kg. These figures help when reviewing fixture scale and clearances for commercial or residential interior lighting layouts.
