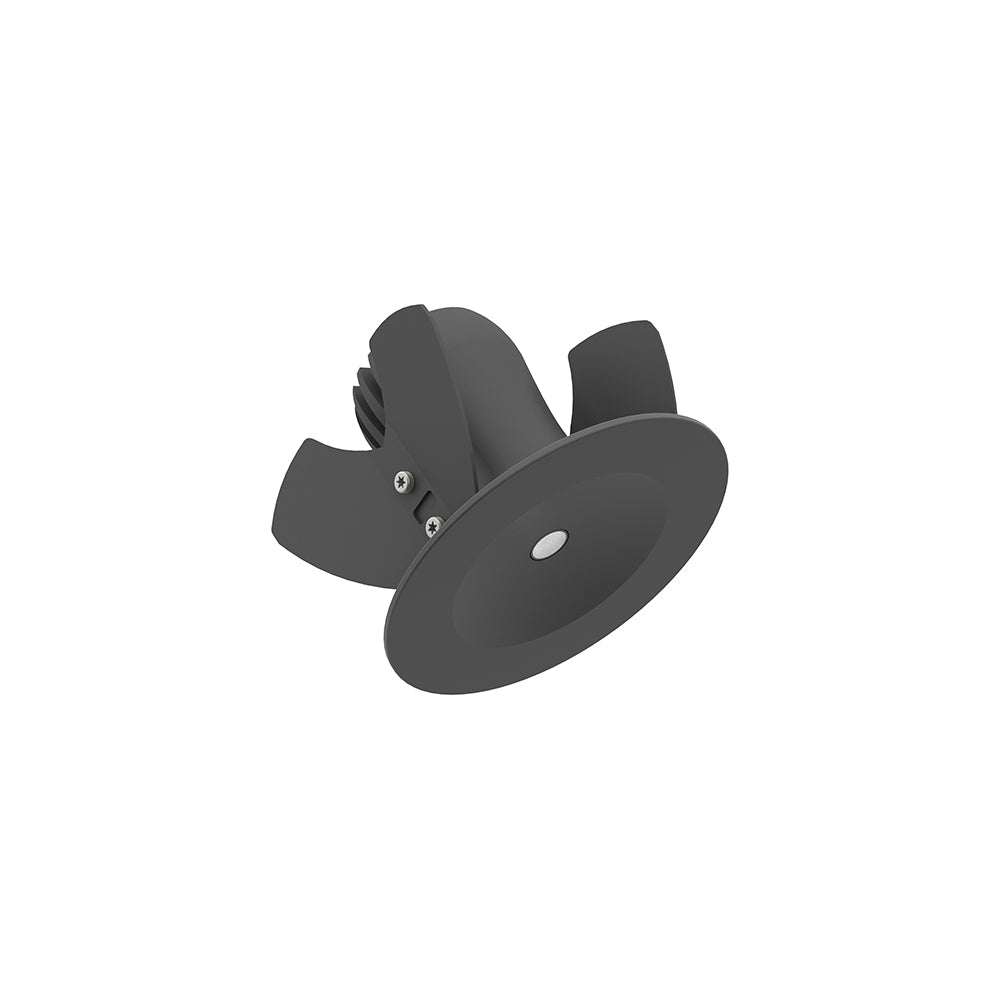

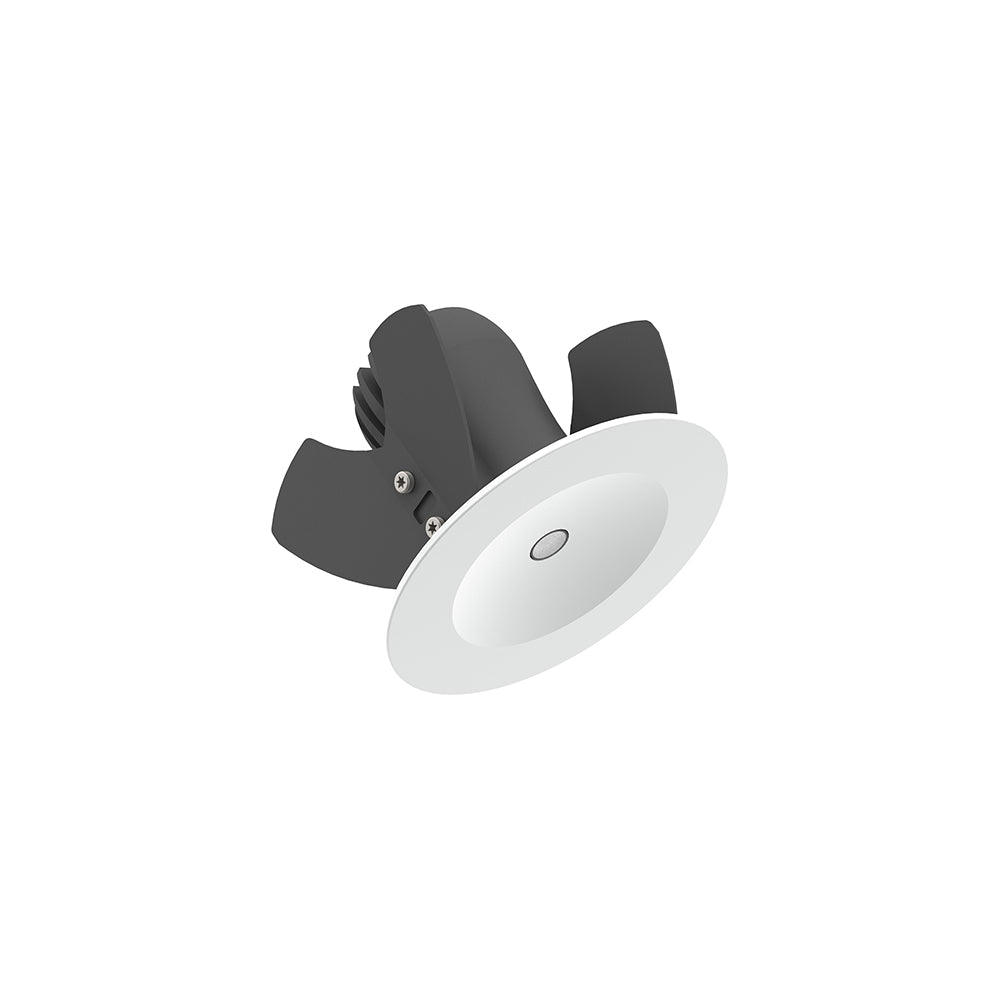

Archilight Pointer 68 Series 8W Mini Downlight

SKU 072803BLLP11

Log in to see price Trade pricing & online ordering for account holders

Configure — 8 variants

072803BLLP11

LED Colour

Finish Colour

Beam Angle

8 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

In stock

Overview

Mini Downlight

Specifications

Archilight Pointer 68 Series 8W Mini DownlightSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	Beam Angle	LED Colour	Brightness	Finish Colour
072803BLLP11	35°	Warm White 3000K	525 lm	Black
072803BLLQ11	35°	Natural White 4000K	550 lm	Black
072803BLLS11	60°	Warm White 3000K	525 lm	Black
072803BLLT11	60°	Natural White 4000K	550 lm	Black
072803MWLP11	35°	Warm White 3000K	525 lm	White
072803MWLQ11	35°	Natural White 4000K	550 lm	White
072803MWLS11	60°	Warm White 3000K	525 lm	White
072803MWLT11	60°	Natural White 4000K	550 lm	White

Specifications

Input: 700mA
Power rating: 8 W
Efficacy: ≥81 lm/W
Colour render index(CRI): ≥82
UGR: <19
IP level: IP20
Temperature range: -20°C~45°C
Dimming control: Dimmable (Dimmer Optional)
Tiltable: Fixed
Mounting: Recessed
Driver: Driver Not Included
Warranty: 7 years
Lifetime: 70,000hrs
Material: Die-Cast Aluminum

Certifications & ratings

Certification marks: CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

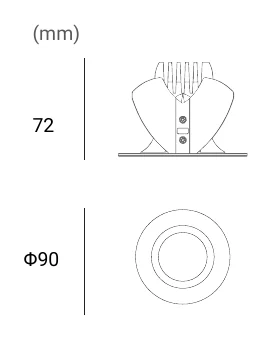

Archilight Pointer 68 Series 8W Mini Downlight Dimensions (mm) — Dimensions (mm)

Downloads

Datasheet1

Archilight Pointer 68 Series 8W Mini Downlight datasheetPOINTER_68.pdf PDF Download

FAQ

What kind of product is the Archilight Pointer 68 Series 8W Mini Downlight?

The Archilight Pointer 68 Series is a compact recessed LED mini downlight for interior applications. It is an 8W fitting designed for projects that need a small-format architectural downlight with a clean built-in look.

What options are available across this Pointer 68 family?

This parent family includes black and white finish options, 3000K and 4000K colour temperatures, and 35° or 60° beam angles. Those are the main differences between variants in the family, while the 8W power rating, CRI 85, 70,000-hour lifetime, and 7-year warranty stay consistent.

How do I choose between the 35° and 60° beam angles?

The 35° versions provide a narrower beam for more focused accent lighting. The 60° versions give a wider spread, which is generally better when broader illumination is needed from the same fitting style.

Is the Archilight Pointer 68 driver included, and is it dimmable?

The driver is not included with this product family. The fitting is optionally dimmable, so dimming depends on using a suitable driver and dimming setup selected for the project.

What cut-out size does this downlight family suit?

The listed variants are specified for a ceiling cut-out range of 68 mm to 75 mm. That makes this family suitable where a compact recessed opening is required across the different finish, beam, and colour temperature options.

Is the Pointer 68 suitable for areas exposed to moisture?

This family is described as IP44 only when installed in a closed ceiling. In that condition, it may be exposed to water splashes on the front side only.

What are the key performance and durability specs for this family?

Across the family, the Pointer 68 is rated at 8W with CRI 85, a 70,000-hour lifetime, and a 7-year warranty. The parent model dimensions are 90 mm by 90 mm with a height of 67 mm, and the listed weight is 0.254 kg.
