Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Archilight

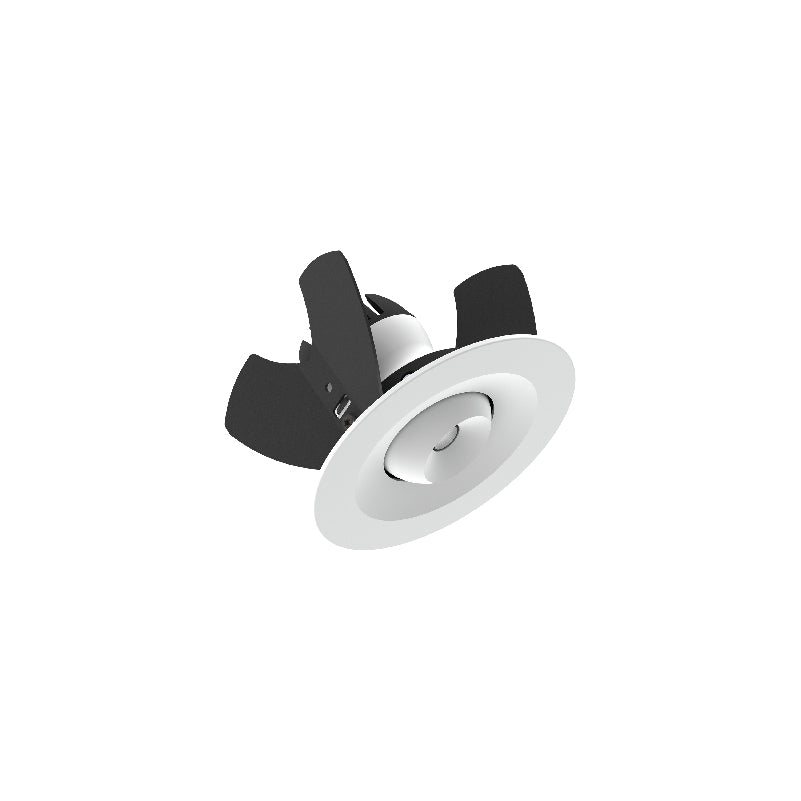

Archilight Pointer68 Flex Series 5.7W Adjustable Downlight

SKU 082703BLLH11
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 8 variants

082703BLLH11
LED Colour
Finish Colour
Beam Angle
8 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
In stock
|

Overview

Adjustable Downlight

Specifications

Archilight Pointer68 Flex Series 5.7W Adjustable DownlightSpecifications from the official datasheetDownload datasheet PDF

Variants

SKUBeam AngleLED ColourBrightnessFinish Colour
082703BLLH1135°Warm White 3000K375 lmBlack
082703BLLJ1135°Natural White 4000K400 lmBlack
082703BLLL1160°Warm White 3000K425 lmBlack
082703BLLM1160°Natural White 4000K450 lmBlack
082703MWLH1135°Warm White 3000K375 lmWhite
082703MWLJ1135°Natural White 4000K400 lmWhite
082703MWLL1160°Warm White 3000K425 lmWhite
082703MWLM1160°Natural White 4000K450 lmWhite

Specifications

Input
500mA
Power rating
5.7 W
Efficacy
≥79 lm/W
Colour render index(CRI)
≥85
UGR
<19
IP level
IP20
Temperature range
-20°C~45°C
Dimming control
Dimmable (Dimmer Optional)
Tiltable
Adjustable
Mounting
Recessed
Driver
Driver Not Included
Warranty
7 years
Lifetime
70,000hrs
Material
Die-Cast Aluminum

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, IC-F

Technical drawings

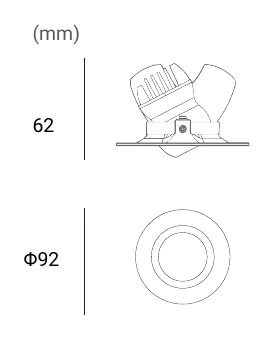

Archilight Pointer68 Flex Series 5.7W Adjustable Downlight Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What type of product is the Archilight Pointer68 Flex Series 5.7W?

The Pointer68 Flex Series is an adjustable recessed LED downlight for interior lighting applications. It is part of the Archilight Pointer range and is designed as a compact, space-efficient fitting. Across the family, every variant uses 5.7W and shares the same core product platform.

What variant options are available in the Pointer68 Flex family?

This parent family is available in black or white finishes, with either 3000K or 4000K colour temperature options. Buyers can also choose between 35 degree and 60 degree beam angles. These are the main differences across the listed child variants.

How does beam angle affect which Pointer68 Flex variant to choose?

The family offers 35 degree and 60 degree beam options, so the choice depends on whether a narrower or wider light distribution is preferred. Within the listed variants, the 35 degree versions deliver 375 to 400 lm, while the 60 degree versions deliver 425 to 450 lm. This makes beam angle one of the key comparison points when selecting a variant.

What cut-out size does the Pointer68 Flex downlight support?

All listed variants in this family support a ceiling cut-out range of 68 to 75 mm. That consistency makes it easier to compare finish, beam angle, and colour temperature without changing the cut-out requirement. This cut-out range is shared across the full family shown here.

Is a driver included with the Archilight Pointer68 Flex Series?

No, the listed Pointer68 Flex variants are specified as driver not included. The family is also described as optionally dimmable, so dimming capability depends on the driver solution used with the fitting. Those two points are consistent across all child variants provided.

What are the key performance specifications shared across the family?

All variants in this family are rated at 5.7W and CRI 85, with a 70,000 hour lifetime and a 7 year warranty. The parent model is also described as having consistent colour performance with MacAdam step 3 SDCM. These shared specifications make the family suitable where long service life and colour consistency are important.
