Archilight

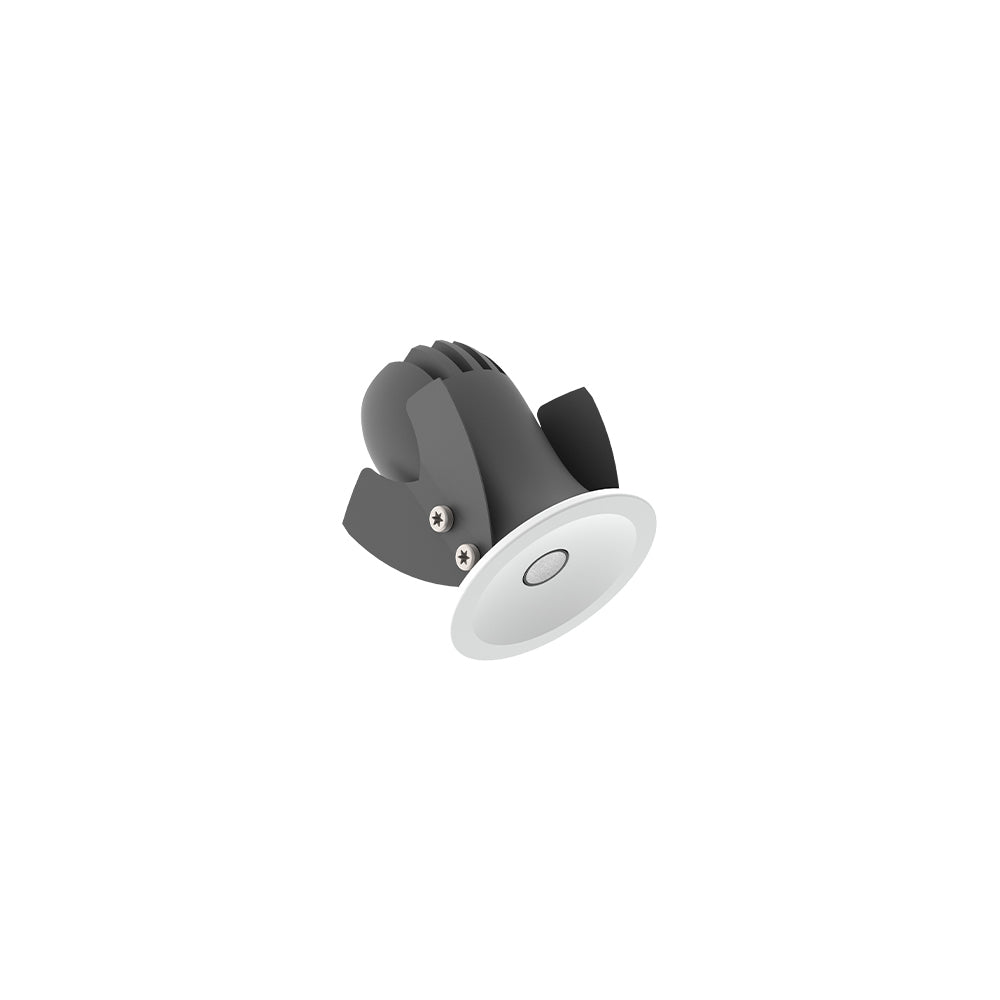

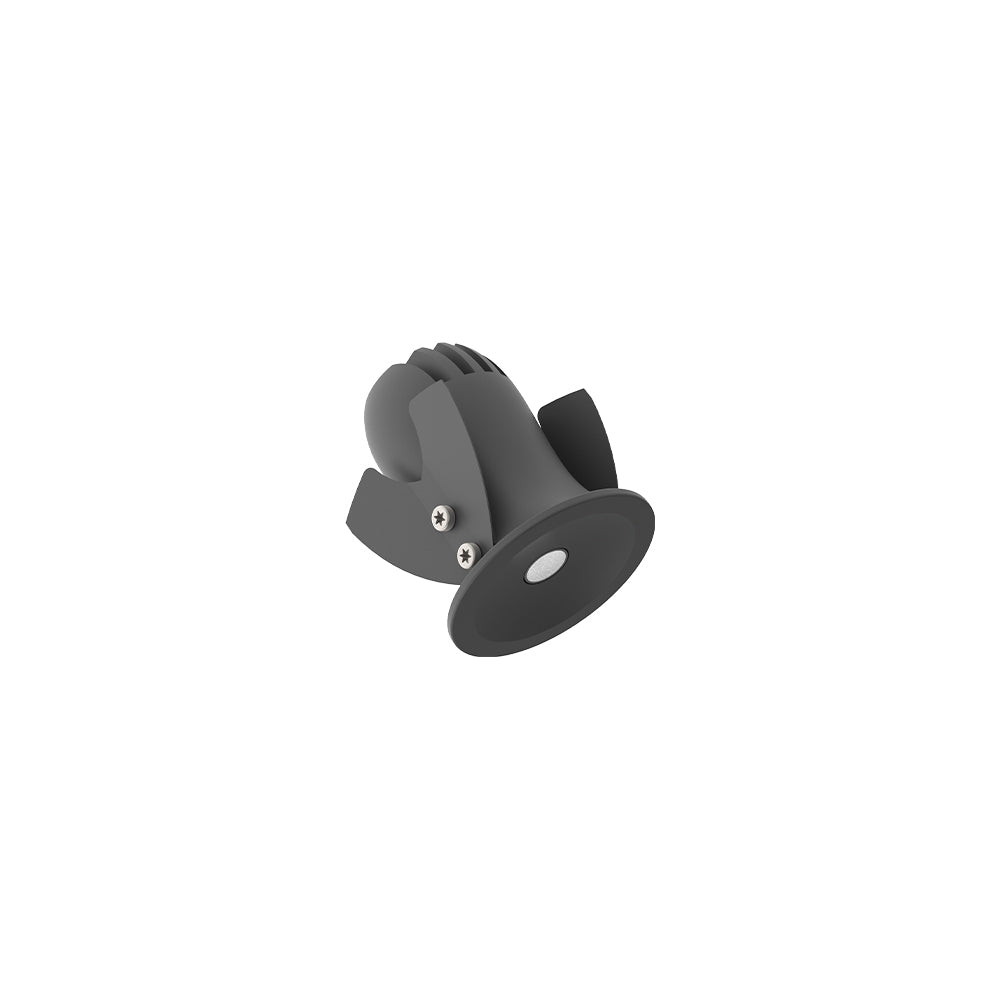

Archilight Pointer40 Series 5.7W Mini Downlight

SKU:
062703BLLH11
LED Colour
Finish Colour
Beam Angle
Please for Pricing
|

Description

At Archilight we research and provide inventive lighting solutions, which offer as much comfort and ease as possible, all without damaging the environment on a day to day basis. After many years of experience in product development our results show in a range of completely self-developed, high-end luminaires.

Backed up by 7 years warranty, Pointer is designed to waste no space and effort, while creating the best lighting experience possible with our proudly Holland made fitting. The colour is truly consistent with MacAdam step 3 SDCM.

IP44 - Only when the product is installed in a closed ceiling it may be exposed to water splashes, and only on its front side.



350lm~453lm

Specifications
  • Brand
    Archilight
  • Series
    Archilight Pointer Series
  • Power Rating
    5.7 Watt
  • Operating Temperature
    -20°C~45°C
  • Warranty
    7 Year

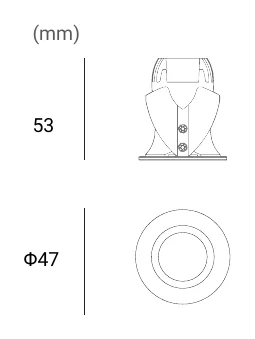

  • Length
    4.7 cm
  • Width
    4.7 cm
  • Height
    5.3 cm
  • Weight
    0.15 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What options are available across the Archilight Pointer40 Series 5.7W Mini Downlight family?

This family is offered in black and white finishes, with 3000K or 4000K colour temperature options. It is also available with either a 35 degree or 60 degree beam angle. Across those variants, light output ranges from 375 lm to 450 lm depending on the exact combination.

Is the Archilight Pointer40 supplied with a driver, and can it be dimmed?

The Pointer40 family is sold without a driver. It is listed as dimmable optional, so dimming depends on the external driver and control setup selected for the project. This makes it better suited to specifications where the driver choice is being matched to the broader lighting scheme.

Where is the Archilight Pointer40 best suited for use?

The Pointer40 is a compact recessed LED downlight designed for interior lighting applications where minimal ceiling space is available. Its small 40 mm cut-out and 47 x 47 mm face make it suitable for discreet architectural and commercial lighting schemes. The family is positioned as a mini downlight for projects that want a clean, low-visual-impact fitting.

Is the Archilight Pointer40 suitable for areas exposed to moisture?

This range is rated IP44 only when installed in a closed ceiling, and only the front side may be exposed to water splashes. That means it is intended for environments where occasional splash resistance is needed on the visible face, rather than full all-around water exposure. Buyers should evaluate the surrounding ceiling condition and exposure level before specifying it.

What are the main performance specifications of the Archilight Pointer40 family?

All variants in this family use 5.7W power, have CRI 85, and are rated for 70,000 hours of lifetime. The product description also states colour consistency at MacAdam step 3 SDCM and a 7-year warranty. Variant light output differs by beam angle and CCT, but the core power, colour rendering, lifetime, and warranty stay consistent across the range.

Other Archilight Pointer Series Models

2 other models
ModelPowerCRIDimmingCut-out
Archilight Pointer68 Flex Series 5.7W Adjustable Downlight 5.7W 85 Optional 68 Millimeter View
Archilight Pointer 68 Series 8W Mini Downlight 8W 85 Optional 68 Millimeter View
View all 3 Archilight Pointer Series models
