Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

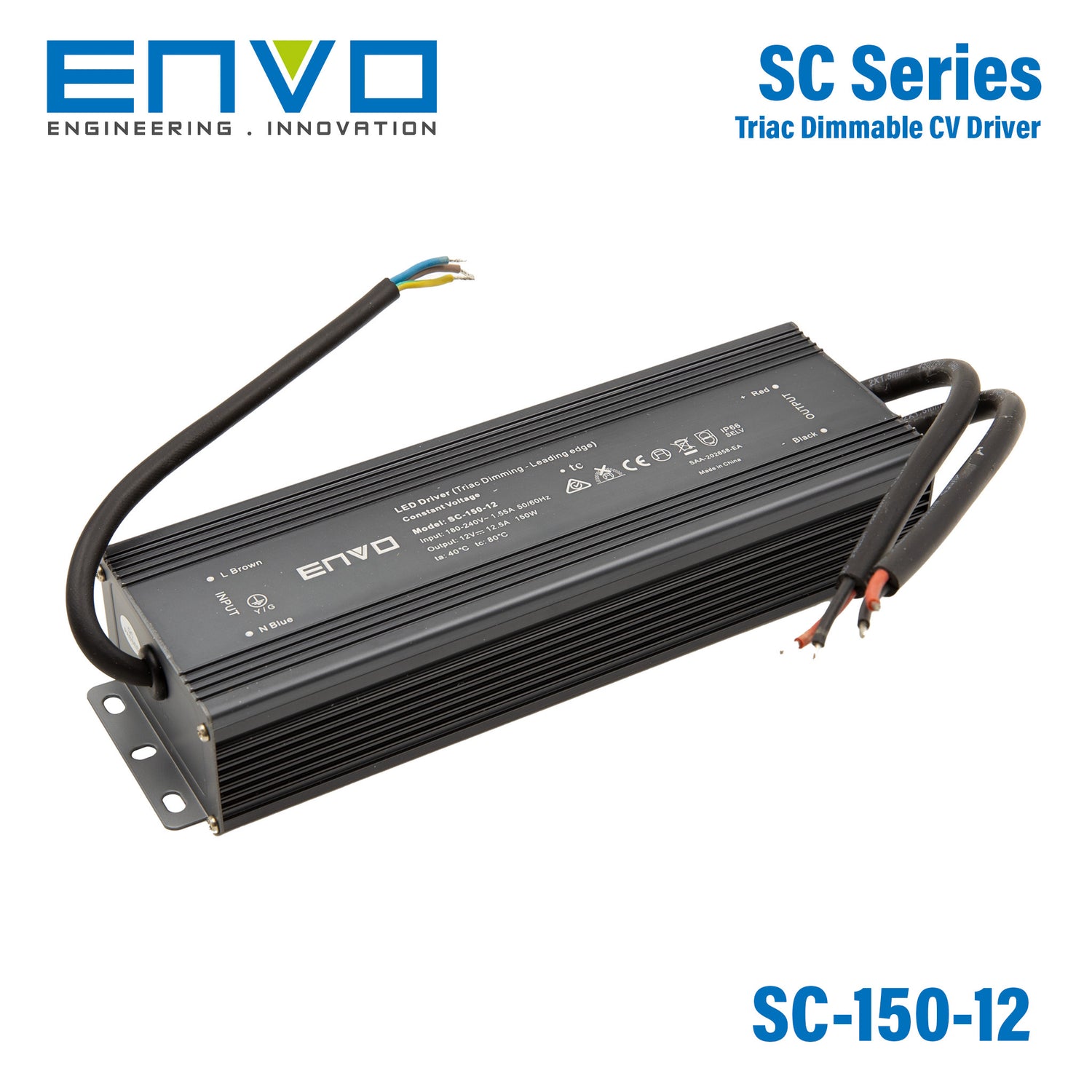

Envo SC-150-12PWM Power Supply 150W 12V - PWM dimmable 12.5A
Log in to see price- Output constant voltage
- Universal AC input:100-265VAC
- Built-in active PFC function
- High efficiency up to 90%
- Protections: Short circuit/Over current/Over loading
- Cooling by free air convection
- IP66 design for indoor or outdoor installation
- Class 1 power unit
- Three in one dimming function(0/1-10Vdc or PWM signal or resistance)
- Dimming range: 0-100%
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- Three years warranty
-
BrandEnvo
-
SeriesSC Envo Series
-
Power Rating150 Watt
-
Output Voltage12 Volt
-
Rated Current12.5 Ampere
-
Input Voltage100V~265V
-
Standards MetCE
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~60°C
-
Warranty3 Year
-
Length25.6 cm
-
Width7 cm
-
Height4.7 cm
-
Weight1.3 kg
::specification::
Frequently Asked Questions
What type of LED power supply is the Envo SC-150-12PWM?
The Envo SC-150-12PWM is a constant voltage LED power supply rated at 12V output. It delivers up to 150W total power with a rated current of 12.5A. This model is designed for applications that need a 12V constant voltage source with PWM dimmable capability.
Is the SC-150-12PWM suitable for outdoor or exposed environments?
This model has an IP66 design, which makes it suitable for indoor or outdoor installation in environments where dust and water resistance matter. It is also rated to operate in ambient temperatures from -40°C to 60°C. That makes it a practical option for demanding commercial and architectural LED lighting conditions.
What dimming methods does the Envo SC-150-12PWM support?
The SC-150-12PWM includes three-in-one dimming support: 0/1-10Vdc, PWM signal, or resistance dimming. Its dimming range is 0-100%, which allows broad light-output control for compatible systems. This flexibility makes it useful in projects where dimming method requirements vary.
What kinds of applications is this 150W 12V model intended for?
According to the product description, the SC-150-12PWM is suitable for LED lighting and moving sign applications. Its 150W capacity and 12V constant voltage output make it relevant for larger low-voltage LED loads than smaller drivers. It is positioned for commercial and professional use cases where dimming and weather resistance are important.
How does the SC-150-12PWM compare with lower-power 12V LED drivers?
The main differentiator is output capacity: this model provides up to 150W at 12V, with a rated current of 12.5A. That makes it better suited to higher-load 12V LED applications than lower-wattage alternatives in the same voltage class. It also combines active PFC, up to 90% efficiency, IP66 protection, and three-in-one dimming in one unit.
What protection and reliability features are included in this power supply?
The SC-150-12PWM includes protection for short circuit, over current, and over loading. It uses free air convection for cooling and is described as compliant with worldwide safety regulations for lighting. The unit is backed by a 3-year warranty.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SC-150 Models
2 other models| Model | Power | Voltage | Current | IP Rating | |
|---|---|---|---|---|---|
| Envo SC-150-24 Power Supply 150W 24V - Triac dimmable 6.25A | 150W | 24V | 6.25A | IP66 | View |
| Envo SC-150-12 Power Supply 150W 12V - Triac dimmable 12.5A | 150W | 12V | 12.5A | IP66 | View |
