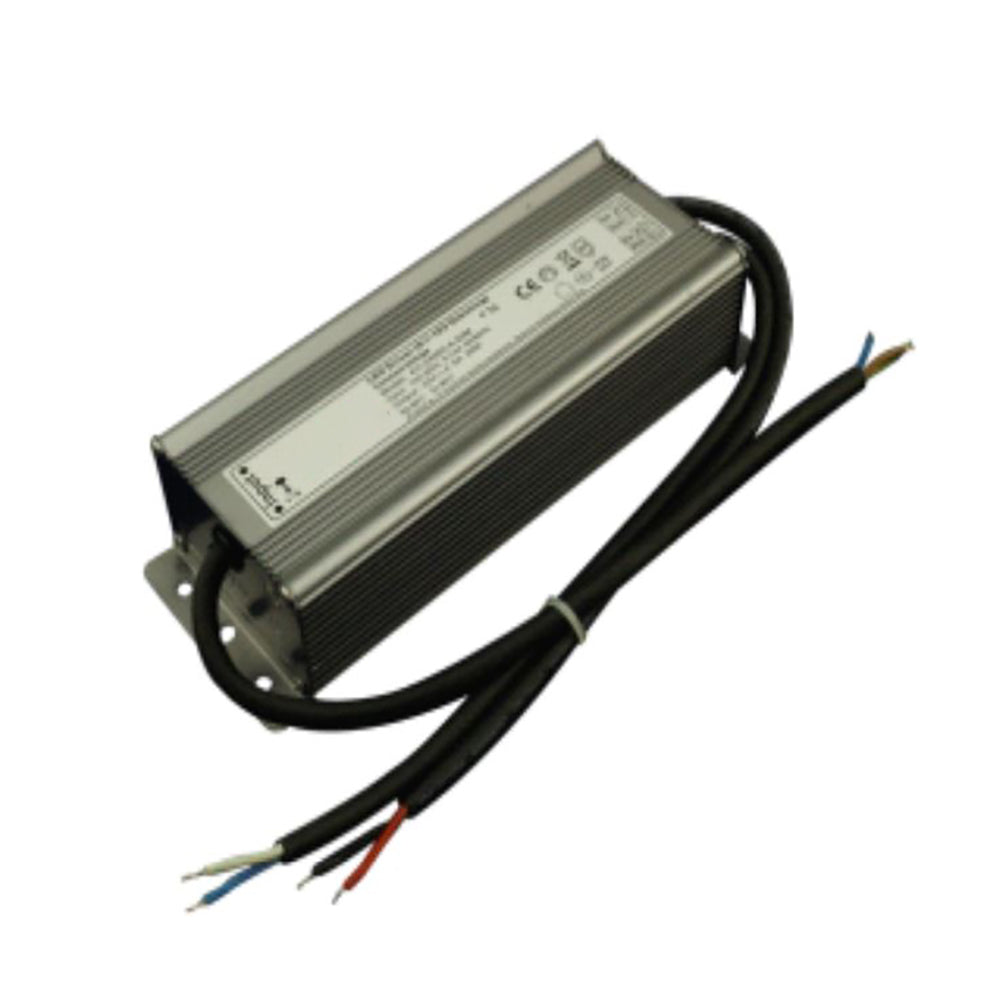

Envo SC-150-24PWM Power Supply 150W 24V - PWM dimmable 6.25A

triac dimmablePWM style output

SKU:

SC-150-24PWM

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Output constant voltage
Universal AC input:100-265VAC
Built-in active PFC function
High efficiency up to 90%
Protections: Short circuit/Over current/Over loading
Cooling by free air convection
IP66 design for indoor or outdoor installation
Class 1 power unit
Three in one dimming function(0/1-10Vdc or PWM signal or resistance)
Dimming range: 0-100%
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
Three years warranty

Frequently Asked Questions

What type of LED power supply is the Envo SC-150-24PWM?

The Envo SC-150-24PWM is a constant voltage LED power supply rated at 24V output. It delivers up to 150W with a rated current of 6.25A, making it suitable for 24V LED lighting applications that need PWM dimming capability.

Is the SC-150-24PWM suitable for outdoor or wet-area use?

This model has an IP66 design, so it is intended for indoor or outdoor installation where strong protection against dust and water is important. That makes it a practical option for demanding lighting environments, provided the overall application is designed appropriately for the site conditions.

What dimming capability does the Envo SC-150-24PWM support?

This power supply is described as PWM dimmable and also supports a three-in-one dimming function using 0/1-10Vdc, PWM signal, or resistance control. Its stated dimming range is 0-100%, which supports applications that need broad light output adjustment.

What kinds of applications is this 24V 150W model designed for?

The SC-150-24PWM is suitable for LED lighting and moving sign applications. Its constant voltage 24V output, dimming support, and IP66 housing make it relevant for commercial projects that need a durable driver for signage or lighting systems.

How efficient is the SC-150-24PWM, and does it include power factor correction?

This model offers high efficiency of up to 90% and includes a built-in active PFC function. Those features can be important for commercial buyers comparing driver performance and power quality across similar 24V constant voltage units.

What protection and operating temperature features does this power supply have?

The Envo SC-150-24PWM includes protection for short circuit, over current, and over loading. Its stated operating temperature range is -40°C to 60°C, which supports use in a wide range of environmental conditions.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Envo SC-150-24 Power Supply 150W 24V - Triac dimmable 6.25A	150W	24V	6.25A	IP66	View
Envo SC-150-12 Power Supply 150W 12V - Triac dimmable 12.5A	150W	12V	12.5A	IP66	View
