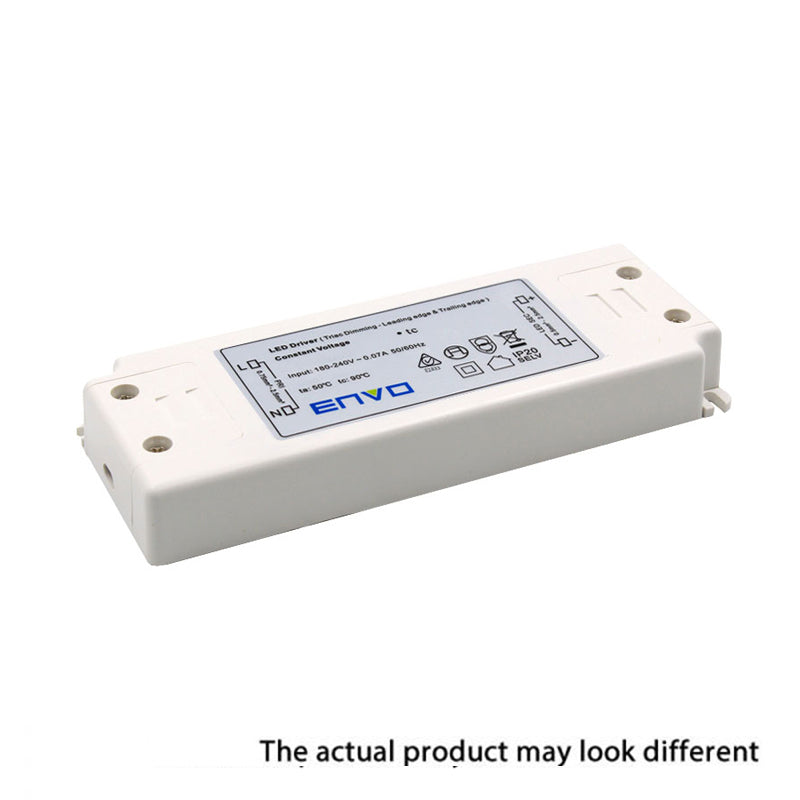

Envo SC-20-12PWM Power Supply 20W 12V - PWM dimmable 1.67A
Log in to see priceOverview
SC-20-12PWM is the 12V output model of this series: rated current 0 - 1.67A, rated power 20W, typical efficiency 80%.
Features
- Output constant voltage
- Universal AC input:100-265VAC
- Built-in active PFC function
- High efficiency up to 83%
- Protections:Short circuit/Over current/Over loading
- Cooling by free air convection
- Fully isolated plastic case with terminals IP20
- Class 2 power unit

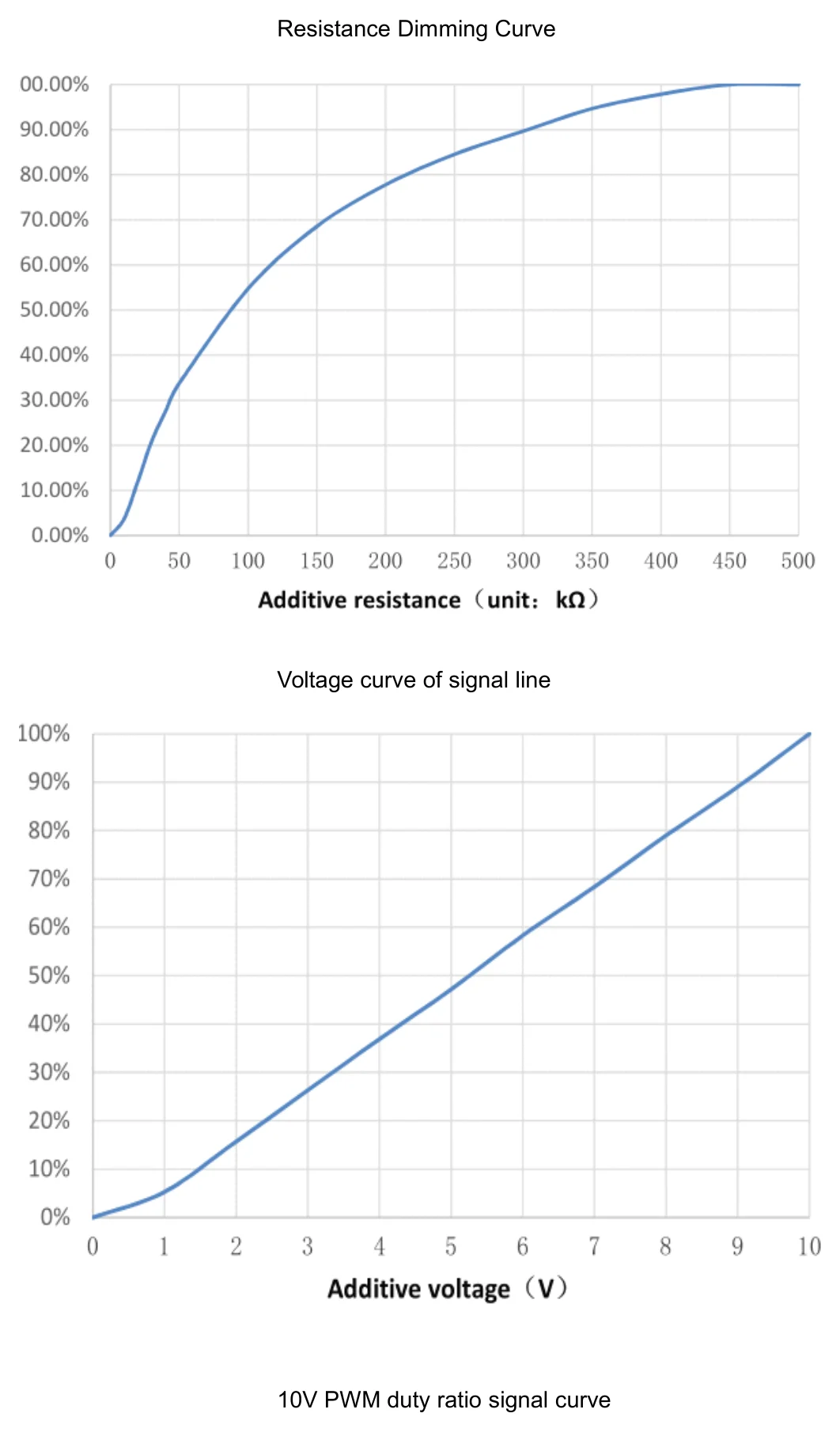

- Three in one dimming function(0/1-10Vdc or PWM signal or resistance)
- Dimming range: 0-100%
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- Three years warranty
Specifications
Output
- DC Voltage
- 12V
- Voltage Tolerance
- ±0.5V
- Rated current
- 0 - 1.67A
- Rated power
- 20W
Input
- Voltage Range
- 100～265VAC
- Frequency Range
- 47～63HZ
- Power Factor
- PF≥0.95/120VAC, PF≥0.95/230VAC, PF≥0.92/265VAC (Full loading)
- Efficiency（Typ.）
- 80%
- AC Current（Max.）
- 0.31A
- Leakage current
- ＜0.5mA
Protection
- Short Circuit
- Hiccup mode, recovers automatically after fault condition is removed
- Over Loading
- ≤120%
- Over Current
- ≤1.2*Iout
Environment
- Working TEMP.
- -40～+60℃
- Working Humidity
- 20～90%RH non-condensing
- Storage TEMP.,Humidity
- -40～+80℃, 10～95%RH
- TEMP.coefficient
- ±0.03%/℃（0～50℃）
- Vibration
- 10～500Hz, 2G, 12min./1 cycle, period for 72min. each along X,Y,Z axes
Safety&EMC
- Safety standards
- EN61347-1, EN61347-2-13
- Withstand voltage
- I/P-O/P:3.75KVAC
- Isolation resistance
- I/P-O/P: 100M Ohms/500VDC/25℃/70%RH
- EMC EMISSION
- Compliance to EN55015, EN61000-3-2 (≥60%load)
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry Level Criteria A
Others
- Net.Weight
- 0.2Kg
- Size
- 140*45*27mm（L*W*H）
- Packing
- 320*280*215mm/50pcs/CTN
Test conditions and notes3
- 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature.
- 2. Tolerance:includes set up tolerance,line regulation and load regulation .
- 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

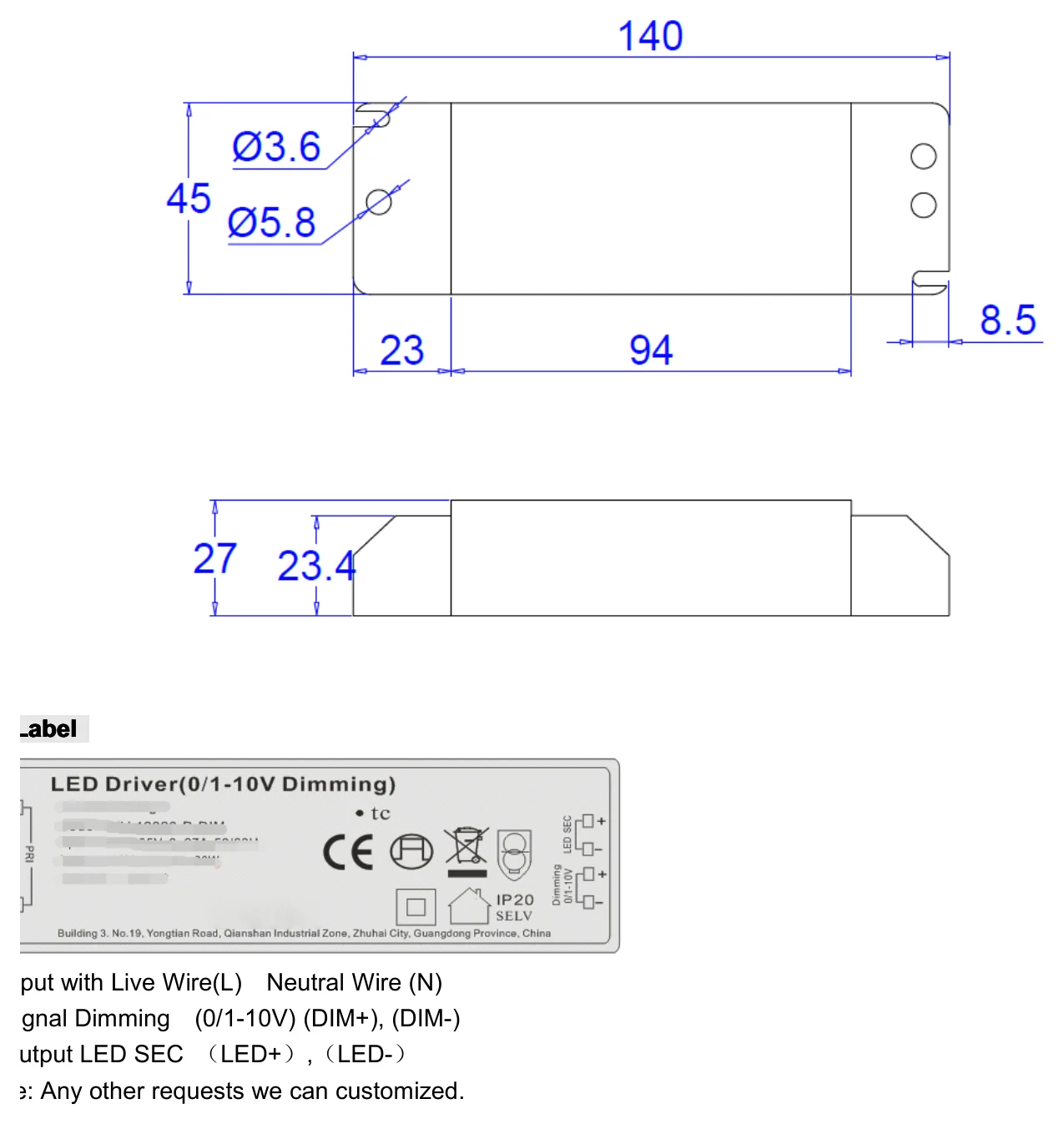

Technical drawings
Downloads
Datasheet1
FAQ
What are the main electrical specs of the Envo SC-20-12PWM?
This model is a constant-voltage LED power supply rated at 20 W output. It provides 12 V output and a rated current of 0 - 1.67 A. It is designed for applications that need PWM-dimmable constant-voltage power.
Is the SC-20-12PWM dimmable?
Yes. This model supports three-in-one dimming: 0/1-10Vdc, PWM signal, or resistance. It is intended for projects where smooth dimming is important for LED lighting loads.
What dimmer types is this power supply compatible with?
This unit supports 0/1-10Vdc, PWM signal, or resistance dimming. It is not compatible with Forward phase, Reverse phase, Triac, or ELV dimmers. Buyers should confirm overall system compatibility with the exact dimming setup being used.
What kinds of applications is the Envo SC-20-12PWM suited for?
This model is suitable for LED lighting and moving sign applications. Its 20 W capacity makes it better suited to lower-power 12 V applications rather than larger lighting runs. It is positioned as a compact option where PWM dimming is required.
Can this power supply be used in damp locations?
No. This unit is rated IP20 and is suitable for indoor use only. It is not described as waterproof or intended for direct exposure to water or damp locations.
What operating temperature range does this model support?
The listed operating temperature range is -40 °C to 60 °C. That gives it a relatively wide environmental range for indoor or protected commercial applications. Buyers should make sure the final installation environment stays within that stated range.
What makes the SC-20-12PWM a good fit compared with a basic non-dimmable power supply?
Its key differentiator is three-in-one dimming support (0/1-10Vdc, PWM, or resistance). The description highlights its suitability for LED lighting and moving signs. For buyers who need dimming performance rather than just basic power conversion, this model is more purpose-built.
What warranty is offered on the Envo SC-20-12PWM?
The product features a three-year warranty. That is useful for commercial buyers who want coverage on LED power components. Warranty terms and claim handling may still depend on the seller or project location.
