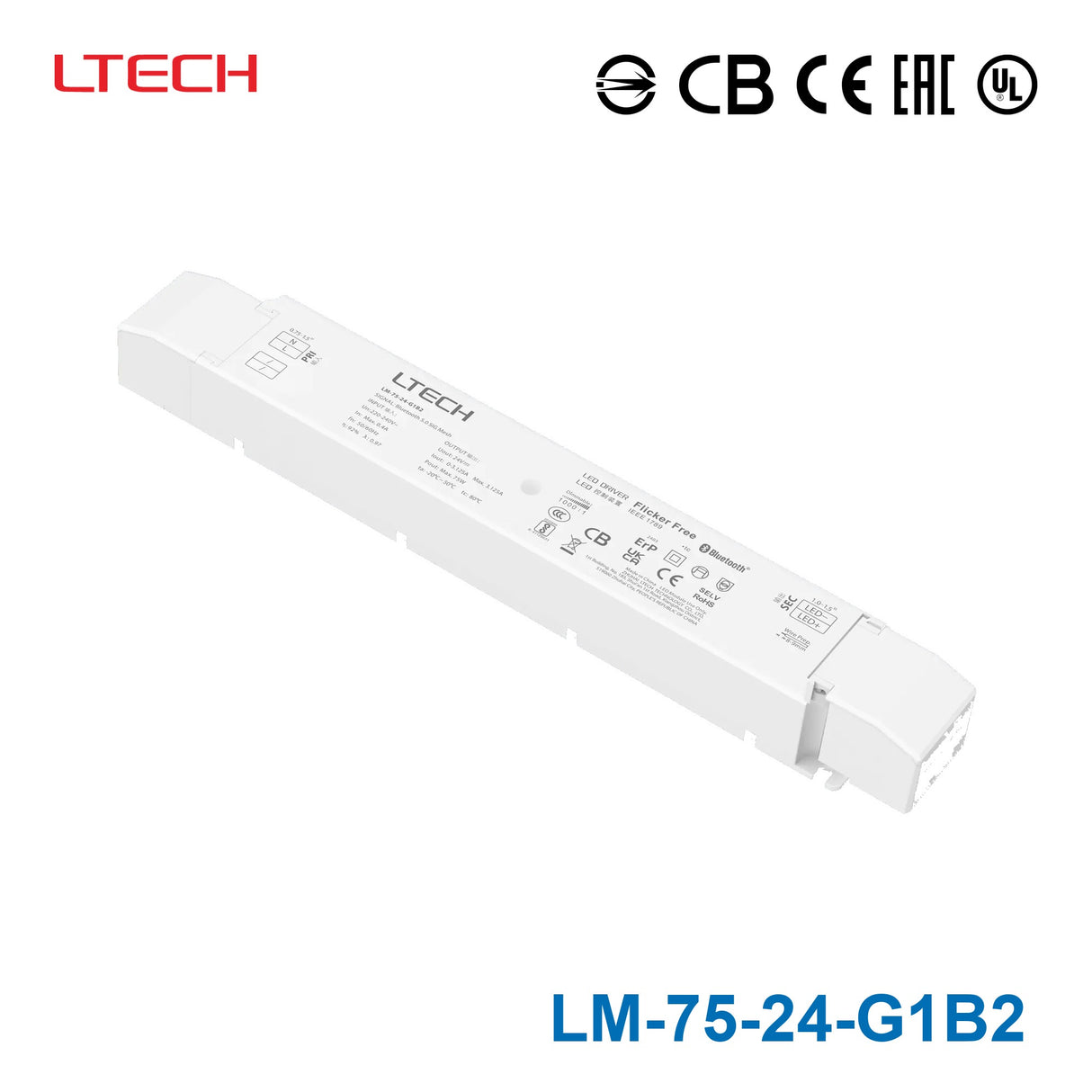

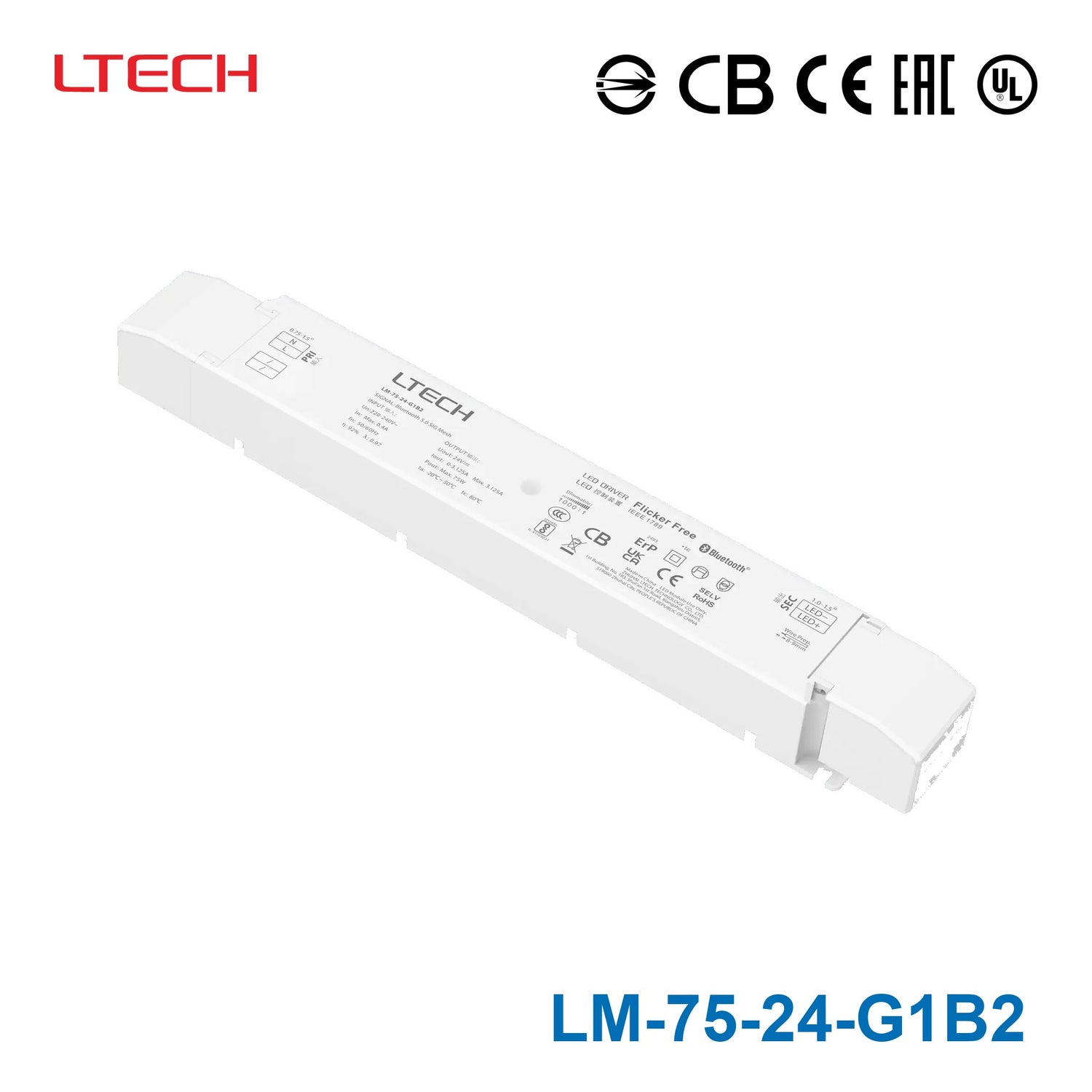

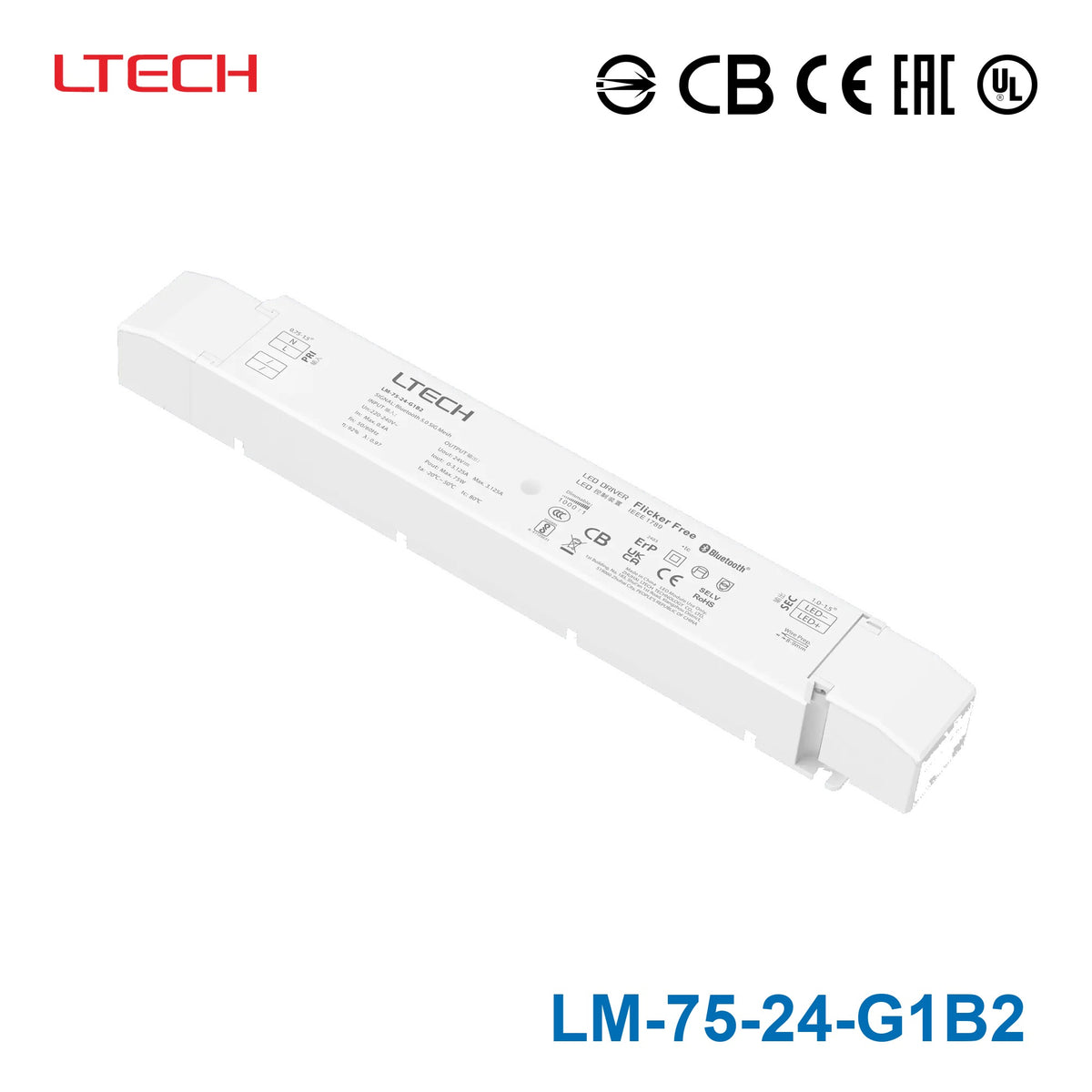

Ltech 75W CV Dimmable Driver LM-75-24-G1B2 Tuya 3.125A
Log in to see priceOverview
LM-75-24-G1B2 is the 24Vdc output model of this series: typical efficiency 92%.
Features
- Adopt SAMSUNG/COVESTRO V0 flame resistant polycarbonate protective housings with small size and light weight.
- Bluetooth Mesh & Tuya application protocol with high networking capability are reliable and stable.
- With soft-on and fade-in dimming function enhancing visual comfort.
- Adjust brightness levels when lights are turned on or go to the brightness level adjusted last time.
- 0-100% flicker-free dimming with high frequency exemption level.
- Dimming from 0~100%, down to 0.1%.
- Innovative thermal management technology protects the power life intelligently.
- Overheat, overvoltage , overload, short circuit protection and automatic recovery.
- Suitable for indoor light applications ofⅠ/Ⅱ/Ⅲ type .
- Up to 50000-hour life time.
- 5 -year warranty (Rubycon capacitor).
Specifications
Technical Specs
- Wireless type
- Tuya Bluetooth Mesh
- Input voltage
- 220-240Vac
- Output voltage
- 24Vdc
- Frequency
- 50/60Hz
- Output voltage range
- 24Vdc ± 0.5Vdc
- Input current
- Max. 0.4A/230Vac
- Output current
- Max. 3.125A
- Power factor
- PF≥0.97/230Vac (Full load)
- Output power
- Max. 75W
- THD
- 230Vac@THD≤14% (Full load)
- Output power range
- 0-75W
- Efficiency (Typ)
- 92%
- Strobe level
- No visible flicker/High frequency exemption level
- Standby power loss
- ＜0.5W
- Dimming range
- 0~100%, down to 0.1%
- Inrush current
- 40A/230Vac (Test twidth=372 us tested under 50%Ipeak)
- Overload power limitation
- ≥102%
- Anti surge
- L-N: 2kV
- Ripple & noise
- ≤300mV
- Leakage current
- Max. 0.5mA
- PWM dimming frequency
- 3600Hz
- Vibration
- 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively
Protection
- Overvoltage protection
- Shut down the output when non-load voltage≥26V, repower on to recover after fault condition is removed.
- Overload protection
- Shut down the output when load current≥102%, and recover automatically
- Overheat protection
- Intelligently adjust or turn off the output current if the PCB temperature≥110°C, and recover automatically
- Short circuit protection
- Enter hiccup mode if short circuit occurs, and recover automatically
Safety & EMC
- Withstand voltage
- I/P-O/P:3750Vac
- Insulation resistance
- I/P-O/P:100MΩ/500VDC/25°C /70%RH
- Safety standards
- IEC/EN61347-1, IEC/EN61347-2-13
- EMC emission
- EN55015, EN61000-3-2 , IEC61000-3-3
- EMC immunity
- EN61000-4-2,3,4,5,6,8,11, EN61547

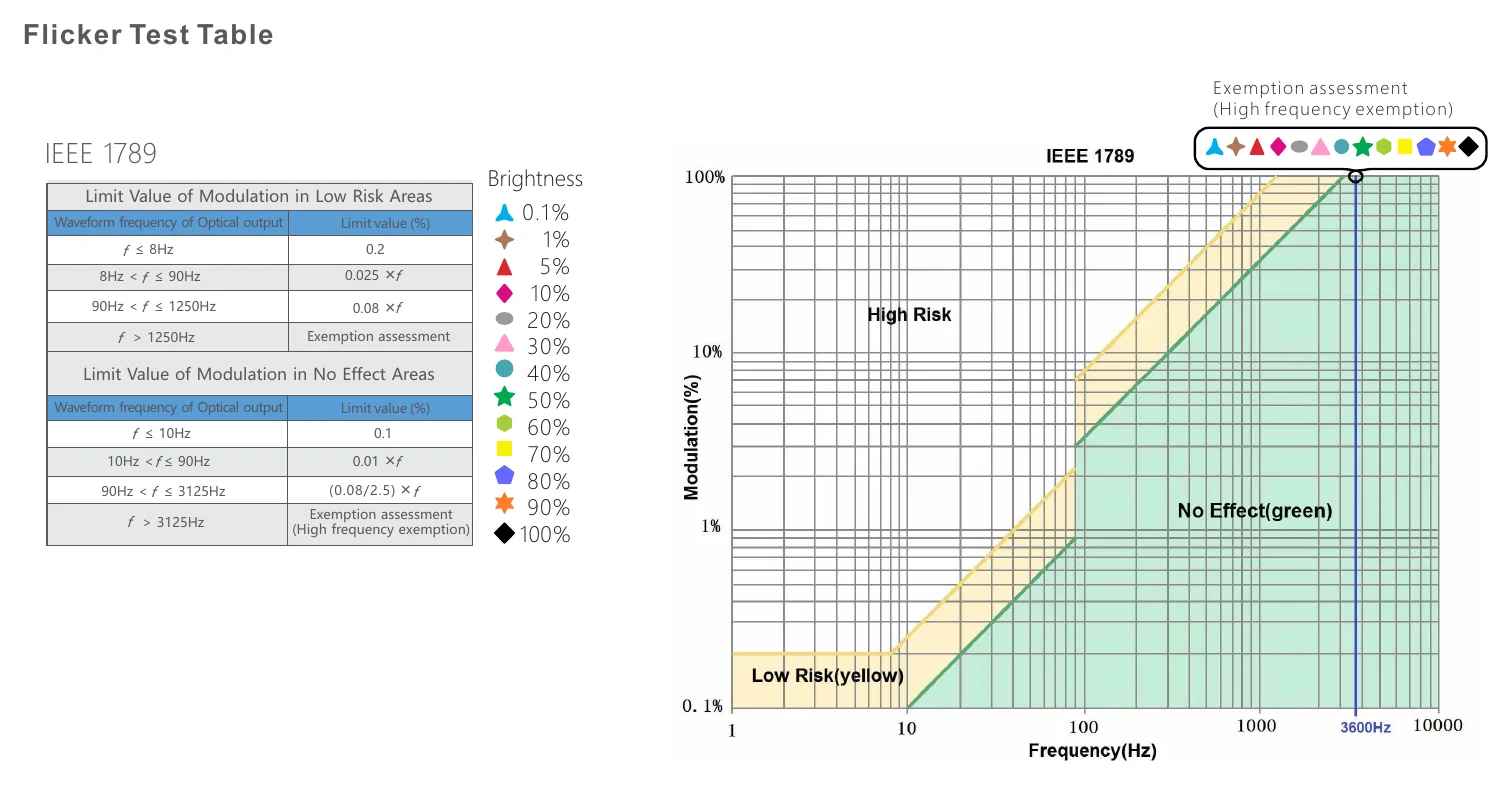

- Strobe test standard
- IEEE 1789
ENVIRONMENT
- Working temperature
- ta: -20 ~ 50°C tc: 80°C
- Working humidity
- 20 ~ 95%RH, non-condensing
- Storage temperature,Humidity
- -40 ~ 80°C, 10~95%RH
- Temperature coefficient
- ±0.03%/°C(0-50°C)
Others

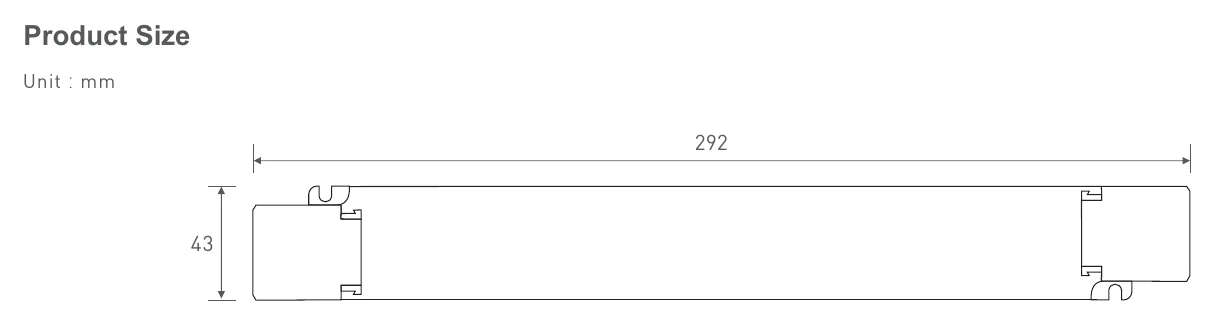

- Dimensions(L×W×H)
- 292×43×30mm
- Package size (L×W×H)
- 296×44×33mm
- Gross weight
- 300g±10g

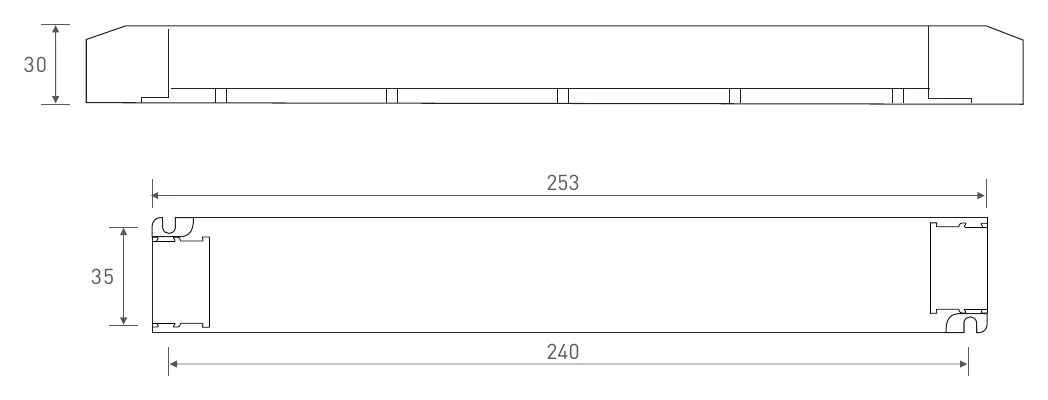

Technical drawings
Downloads
Datasheet1
FAQ
What type of product is the LM-75-24-G1B2?
The LM-75-24-G1B2 is a 75W constant-voltage dimmable LED driver from Ltech. It provides a 24V DC output and supports Tuya Bluetooth Mesh dimming control for compatible lighting systems.
What output does this LED driver provide?
This model delivers 24V DC output with a rated current of 3.125A. Its output power range is up to 75W, making it suitable for 24V constant-voltage LED lighting loads within that rating.
Does the LM-75-24-G1B2 support dimming?
Yes, this driver is a dimmable model with Tuya Bluetooth Mesh control. It supports 0 to 100% dimming and can dim down to 0.1%, which is useful for applications that need very fine low-end light adjustment.
What applications is this 24V driver typically used for?
This model is designed for 24V constant-voltage LED lighting applications where wireless dimming is needed. It is a practical choice for commercial or residential projects using compatible 24V LED strips or fixtures that fit within the 75W capacity.
What input voltage does this driver require?
The LM-75-24-G1B2 is rated for 220-240V AC input. That makes it appropriate for regions and projects using that mains voltage range, rather than lower-voltage AC input environments.
Is this model suitable for demanding environmental conditions?
This model is rated for operation from -20°C to 50°C ambient temperature (with a case temperature limit of 80°C), which supports use across a wide temperature range. Buyers should still confirm that the overall enclosure and system design match the conditions of the final application.
What certifications and warranty does the LM-75-24-G1B2 have?
This model complies with safety standards IEC/EN61347-1 and IEC/EN61347-2-13, and EMC standards including EN55015 and EN61000-3-2. It is designed for professional lighting projects requiring these specific regulatory compliances.
