Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Ltech

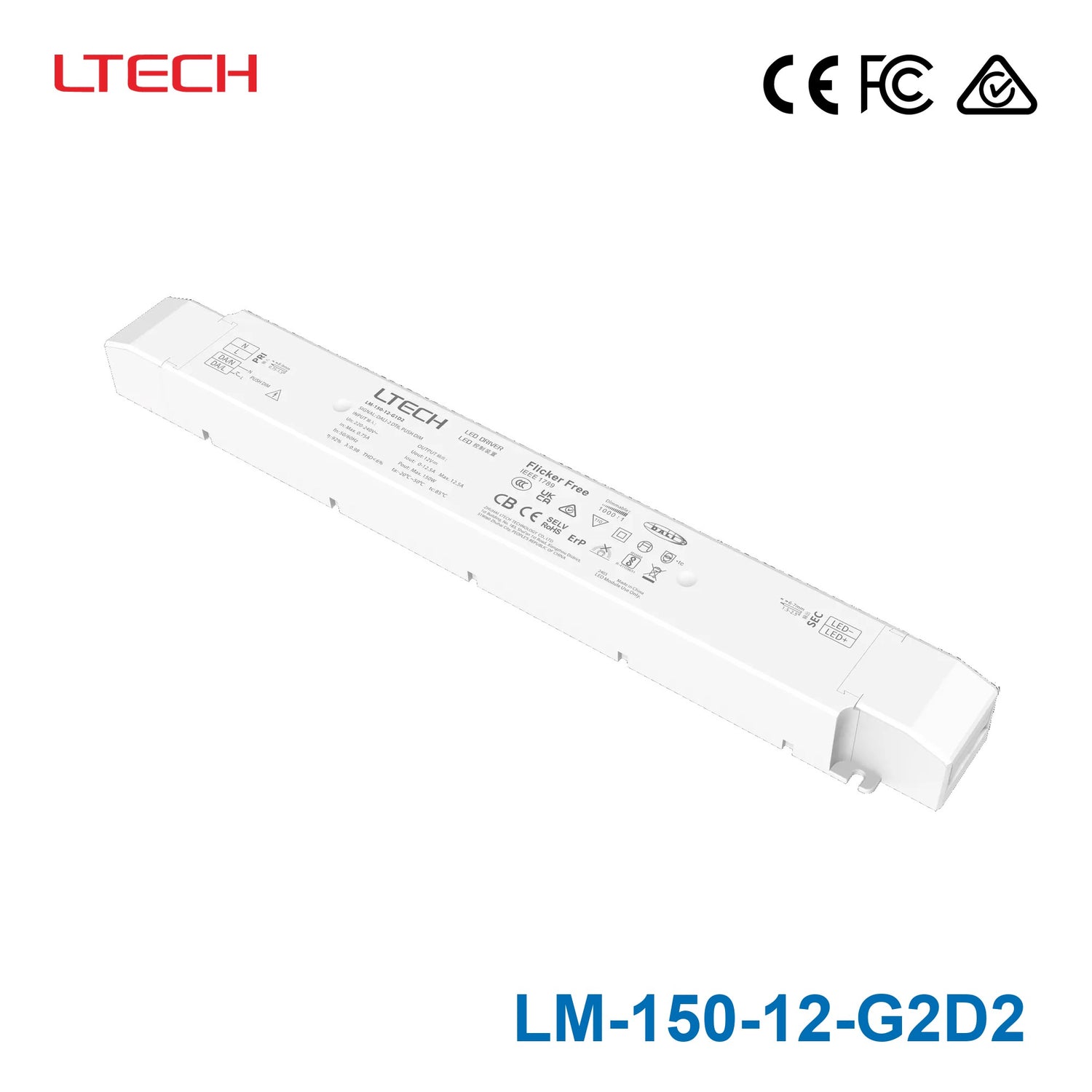

Ltech LM-150-12-G2D2 150W 12VDC DALI2 DT8 LED Driver - Tunable White

SKU:
LM-150-12-G2D2
Please for Pricing
|

Description
Dimming interface: DALI DT8, Push DIM/CCT 2 independently SELV constant voltage output channels. DALI DT8, DIM and color temperature adjusting driver. Constant power design, adjust different color temperature to keep the same brightness. Dimming range from 0-100%, LED start at 0.1% possible. Color temperature adjusting range: 2500-6000K 0~100% flicker-free, High frequency exemption level. High Efficicient driver: efficiency 93%, PF>0.98, THD<6%. In line with the EU energy efficiency ERP directive, standby power consumption < 0.5W Innovative thermal management technology, intelligent power life protection. Over-heat / Over voltage / Over load / Short circuit protection, recover automatically. Fully-protected plastic housing with design of dismountable end cover. Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ 5 years warranty (Rubycon capacitor)

Specifications
  • Brand
    Ltech
  • Series
    Ltech DALI Series
  • Power Rating
    150 Watt
  • Output Voltage
    12 Volt
  • Rated Current
    6 Ampere
  • Input Voltage
    220V~220V
  • Standards Met
    CE,FCC,RCM
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~80°C
  • Warranty
    5 Year
  • Length
    35.2 cm
  • Width
    4.3 cm
  • Height
    3 cm
  • Weight
    0.43 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Ltech LM-150-12-G2D2 designed for?

The LM-150-12-G2D2 is a 150W 12VDC constant voltage LED driver for tunable white lighting applications. It is intended for systems that use DALI DT8 control for dimming and color temperature adjustment.

Does this LED driver support tunable white control?

Yes. This model supports DALI DT8 and is specifically described as a tunable white driver with color temperature adjustment from 2500K to 6000K. It also has 2 independently SELV constant voltage output channels for dimming and CCT adjustment.

What are the key electrical specifications of this model?

This driver is rated at 150W with a 12VDC output and 6A rated current. Ltech lists up to 93% efficiency, power factor greater than 0.98, and THD below 6% for this model.

How smooth is the dimming performance on the LM-150-12-G2D2?

Ltech specifies a 0-100% dimming range, with LED start possible at 0.1%. The product description also states flicker-free color temperature adjustment and notes high frequency exemption level performance.

How does this model maintain brightness when adjusting color temperature?

This driver uses a constant power design, which is intended to keep the same brightness while changing between different color temperatures. That makes it a better fit for tunable white applications where consistent light output matters.

Is the LM-150-12-G2D2 suitable for demanding indoor environments?

It is specified for internal lights application and includes over-heat, over-voltage, over-load, and short-circuit protection with automatic recovery. Ltech also lists an operating temperature range from -40°C to 80°C and a fully protected plastic housing.

What warranty is offered for this LED driver?

This model includes a 5-year warranty. The product description also notes Rubycon capacitors as part of the design.
