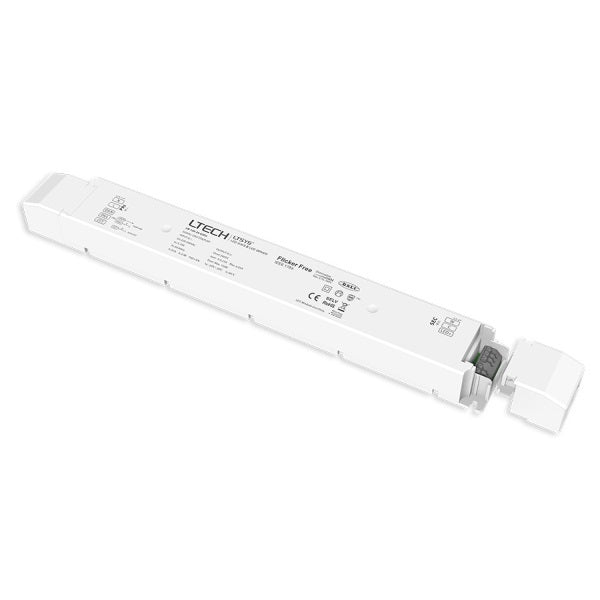

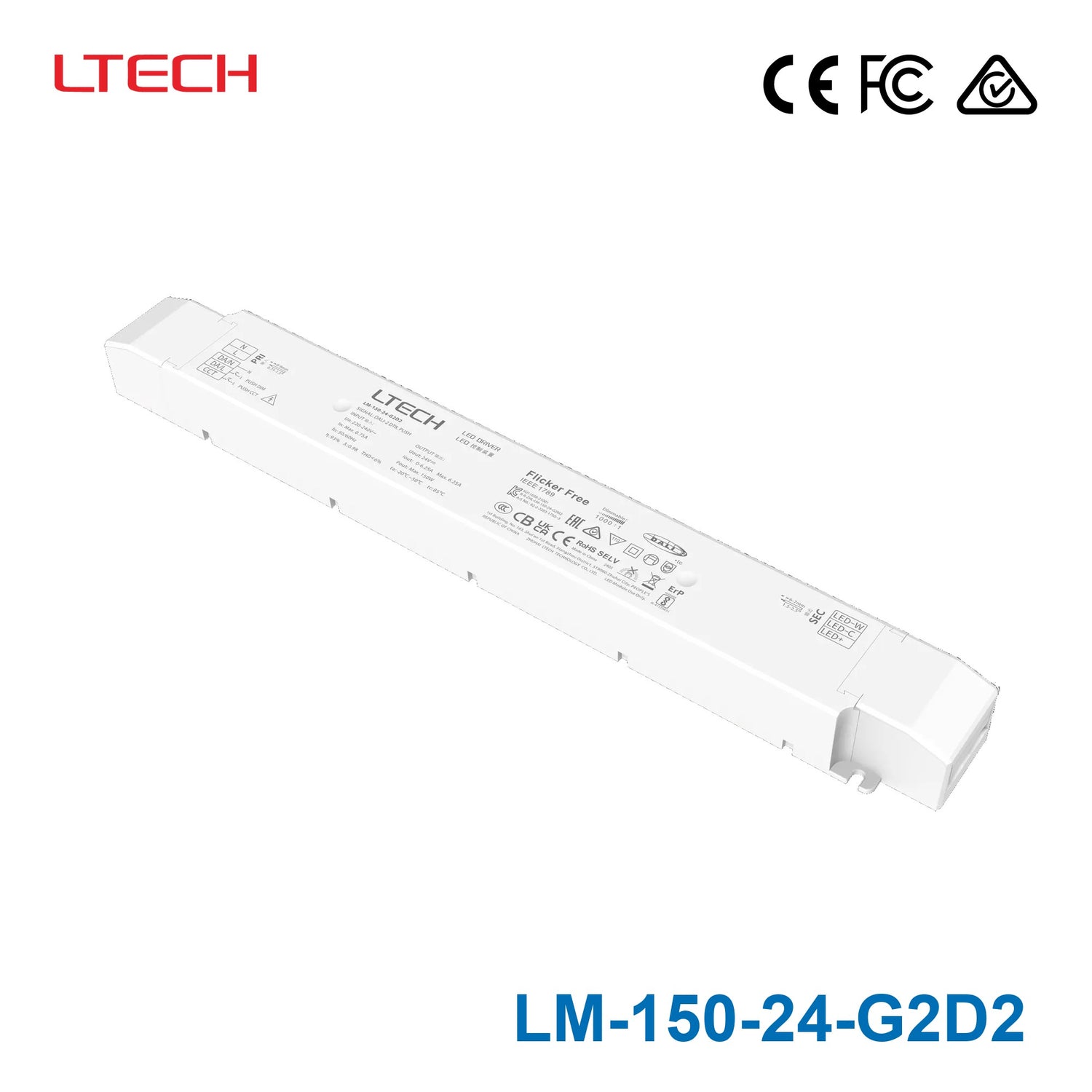

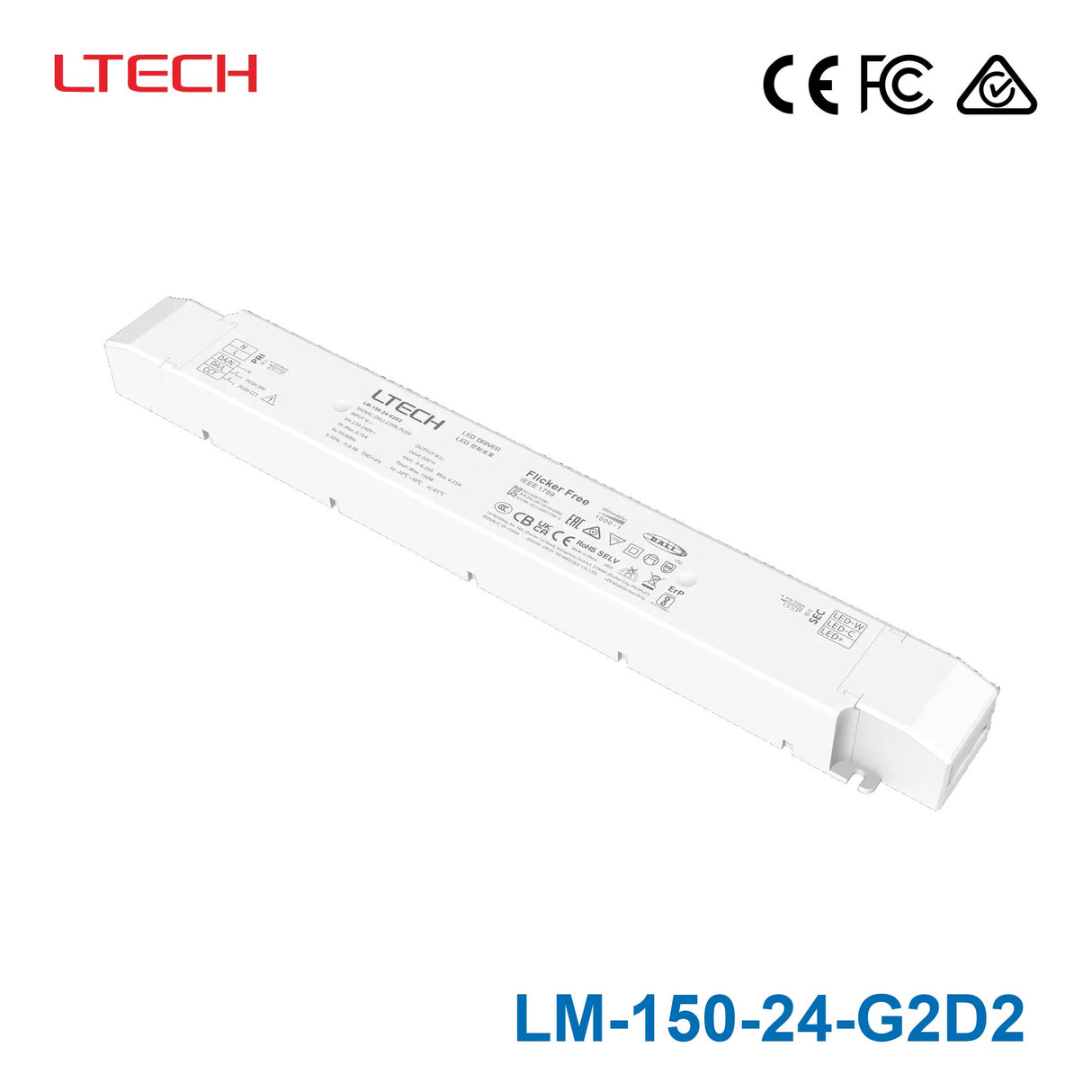

Ltech LM-150-24-G2D2 150W 24VDC DALI2 DT8 LED Driver - Tunable Whit...
Log in to see priceOverview
LM-150-24-G2D2 is the 24Vdc output model of this series: typical efficiency 93%.
Features
- Small size and light weight. The housing is made from V0 flame retardant PC materials that SAMSUNG/COVESTRO uses.

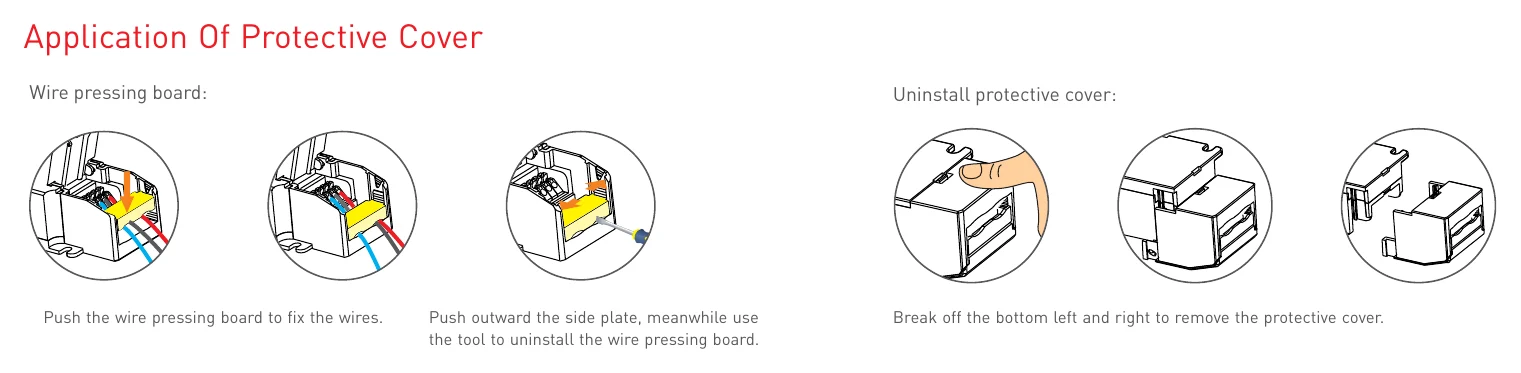

- The clamshell design and screwless type for strain-relief. The design of dismountable end cap allows you to adjust the length of housing depending on your needs.
- 2 independently SELV constant voltage output channels.
- DALI-2 DT6/DT8, DIM and color temperature adjusting driver.

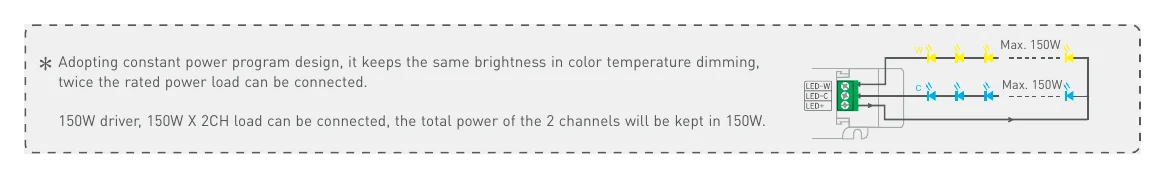

- Constant power design, adjust different color temperature to keep the same brightness.
- Dimming range from 0-100%, LED start at 0.1% possible.
- Color temperature adjusting range: 2700-6500K.
- High Efficicient driver: efficiency 93%, PF>0.98, THD<6%.
- In line with the EU energy efficiency ERP directive, standby power consumption < 0.5W.
- Innovative thermal management technology, intelligent power life protection.
- Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
- Fully-protected plastic housing with design of dismountable end cover.
- Suitable for internal lights application forⅠ/Ⅱ/Ⅲ.
- Up to 50,000-hour life time.
- 5 years warranty (Rubycon capacitor).
Specifications
OUTPUT
- Output Voltage
- 24Vdc
- Output Voltage Range
- 24Vdc ± 0.5Vdc
- Output Current
- Max. 6.25A
- Output Power
- Max. 150W
- Output Power Range
- 0~150W
- Strobe Level
- High frequency exemption level
- Dimming Range
- 0~100%, down to 0.1%
- Overload Power Limitation
- ≥102%
- Ripple
- Switch ripple≤200mV, noise≤500mV
- PWM frequency
- 3600Hz
INPUT
- Dimming Interface
- DALI-2 DT6/DT8
- Input Voltage
- 220-240Vac 200-280Vdc
- Frequency
- 50/60Hz
- Input Current
- ≤0.75A/230Vac
- Power Factor
- PF>0.98/230Vac (at full load)

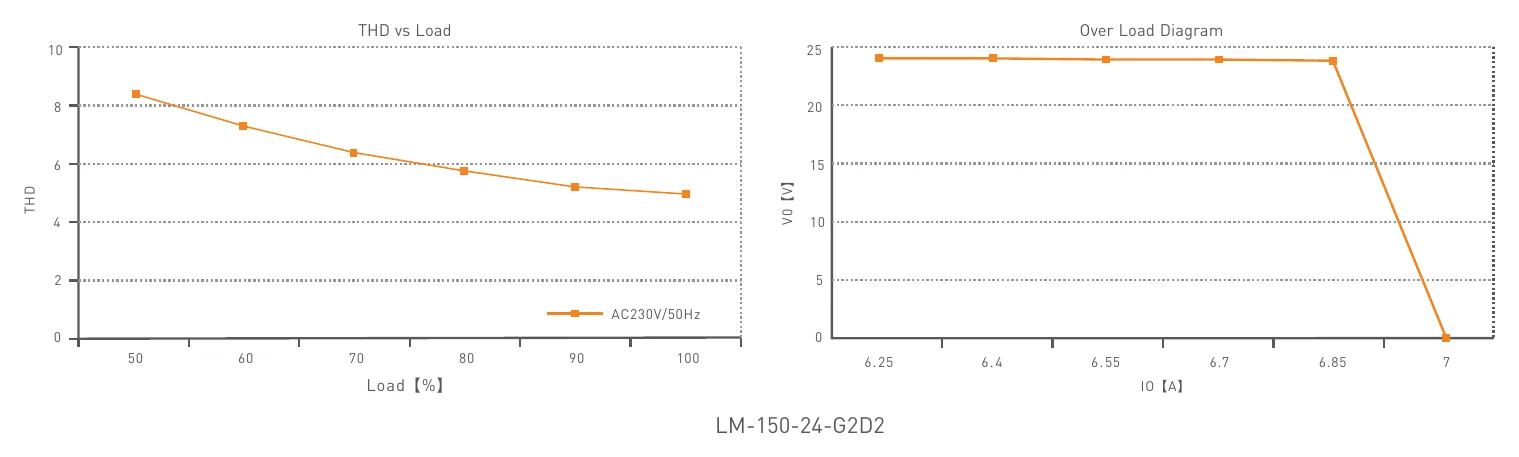

- THD
- THD＜6%@230Vac (at full load)
- Efficiency (typ.)
- 93%
- Standby Power Loss
- 0.5W
- Inrush Current
- Cold start 45A/230Vac
- Anti Surge
- L-N: 2KV
- Leakage Current
- Max. 0.5mA
ENVIRONMENT
- Working Temperature
- ta: -20 ~ 50°C, tc: 85°C
- Working Humidity
- 20 ~ 95%RH, non-condensing
- Storage Temperature,Humidity
- -40 ~ 80°C, 10~95%RH
- Temperature Coefficient
- ±0.03%/°C (0-50°C)
- Vibration
- 10~500Hz, 2G, 12min/cycle, 72 min for X, Y and Z axes respectively
PROTECTION
- Overheat Protection
- Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
- Overload Protection
- Shut down the output when current load≥102%, and recover automatically
- Short Circuit Protection
- Enter hiccup mode if short circuit occurs, and recover automatically
- Overvoltage Protection
- Shut down the output when non-load voltage≥28V, and recover automatically
SAFETY & EMC
- Withstand Voltage
- I/P-O/P: 3750Vac
- Isolation Resistance
- I/P-O/P: 100MΩ/500VDC/25°C/70%RH
- Safety Standards
-
Parameter Standard Test Level CCC China GB19510.1，GB19510.14 TUV Germany EN61347-1，EN61347-2-13，EN62493 CB CB member states IEC61347-1，IEC61347-2-13 CE European Union EN61347-1,EN61347-2-13,EN62384，EN61547 KC Korea KC61347-1，KC61347-2-13 EAC Russia IEC61347-1，IEC61347-2-13 RCM Australia AS 61347-1，AS 61347-2-13 EMEC Europe EN61347-1,EN61347-2-13, EN62384 UKCA Britain BS EN 61347-2-13:2014+A1:2017, BS EN 61347-1:2015+A1:2021 - EMC Emission
-
Parameter Standard Test Level CCC China GB/T17743，GB17625.1 CE European Union EN55015,EN61000-3-2, EN61000-3-3, EN61547 KC Korea KN15, KN61547 EAC Russia IEC62493, IEC61547, EH55015 RCM Australia EN55015, EN61000-3-2, EN61000-3-3, EN61547 UKCA Britain BS EN IEC 55015:2019/A11:2020, BS EN 61547:2009, BS EN IEC 61000-3-2:2019, BS EN 61000-3-3:2013/A1:2019 - EMC Immunity
- EN61000-4-2,3,4,5,6,8,11, EN61547

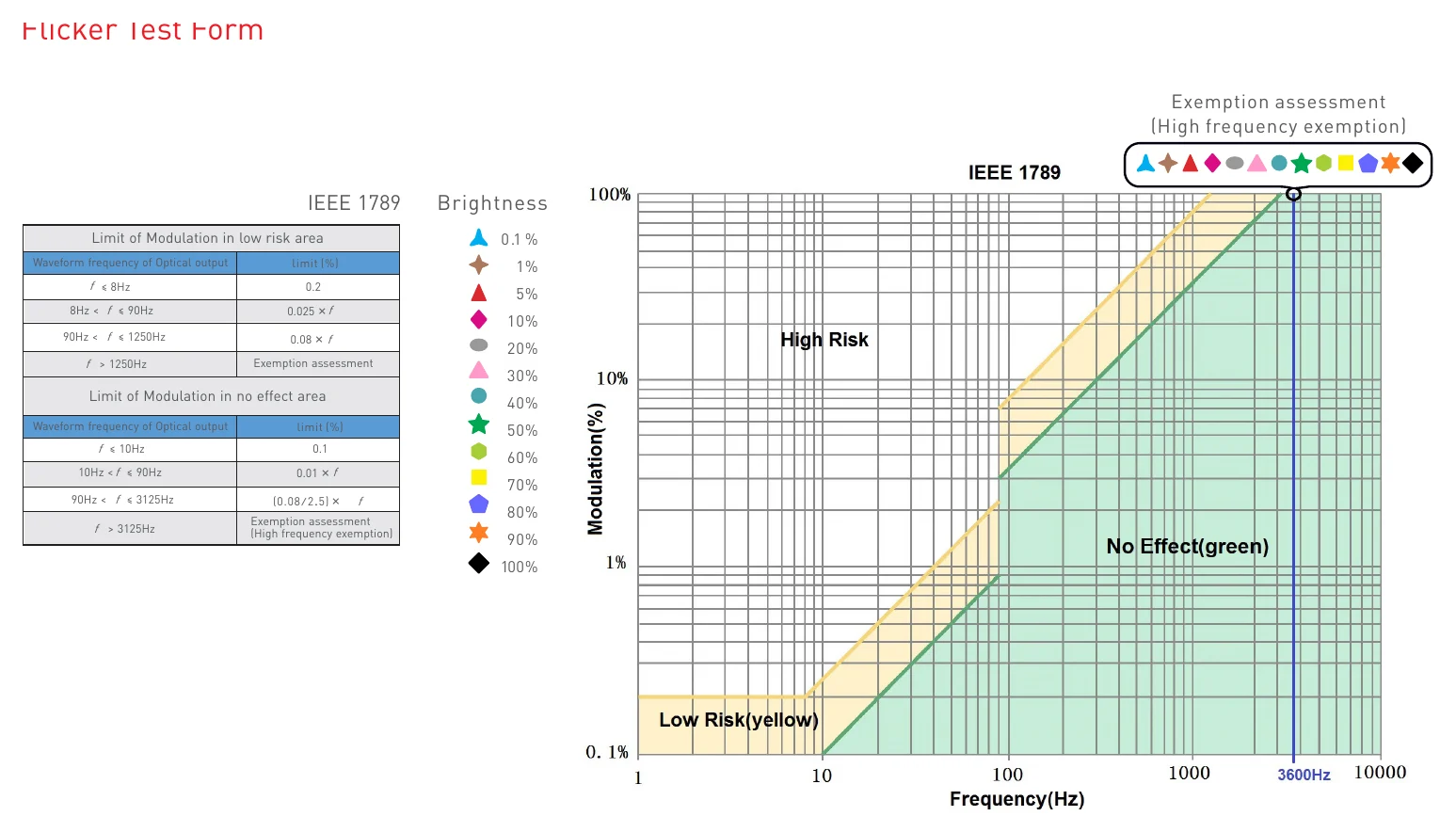

- Strobe Test Standard
- IEEE 1789
OTHERS
- Gross weight(G.W)
- 430g±10g

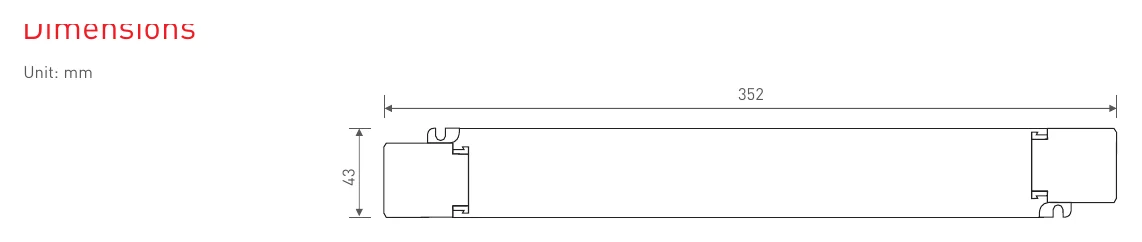

- Dimensions
- 352×43×30mm(L×W×H)
- Package size
- 355×44×33mm(L×W×H)
- Carton Size
- 370×340×93mm (L×W×H), 20pcs/ctn, 9.4kg±5%/ctn

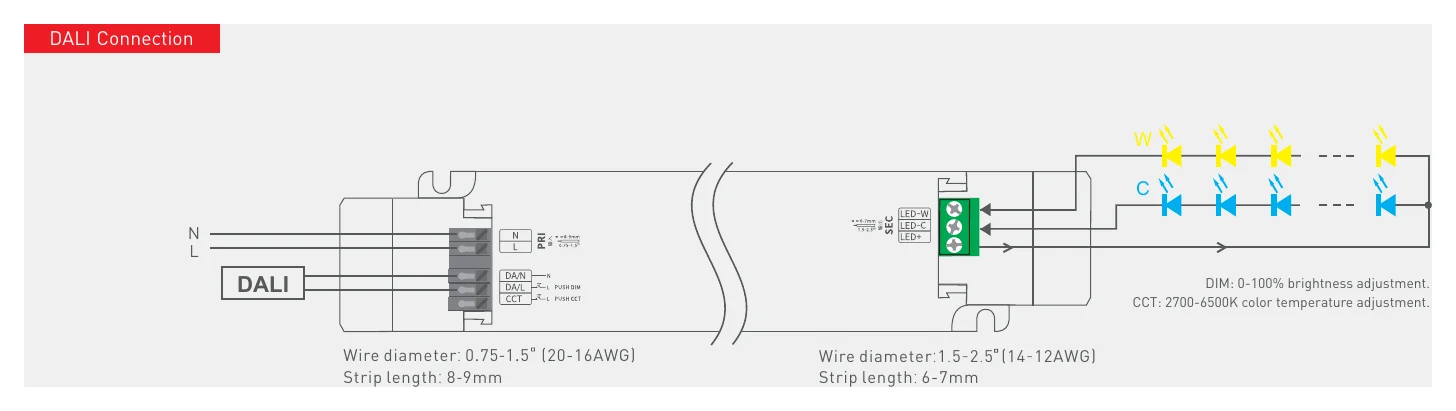

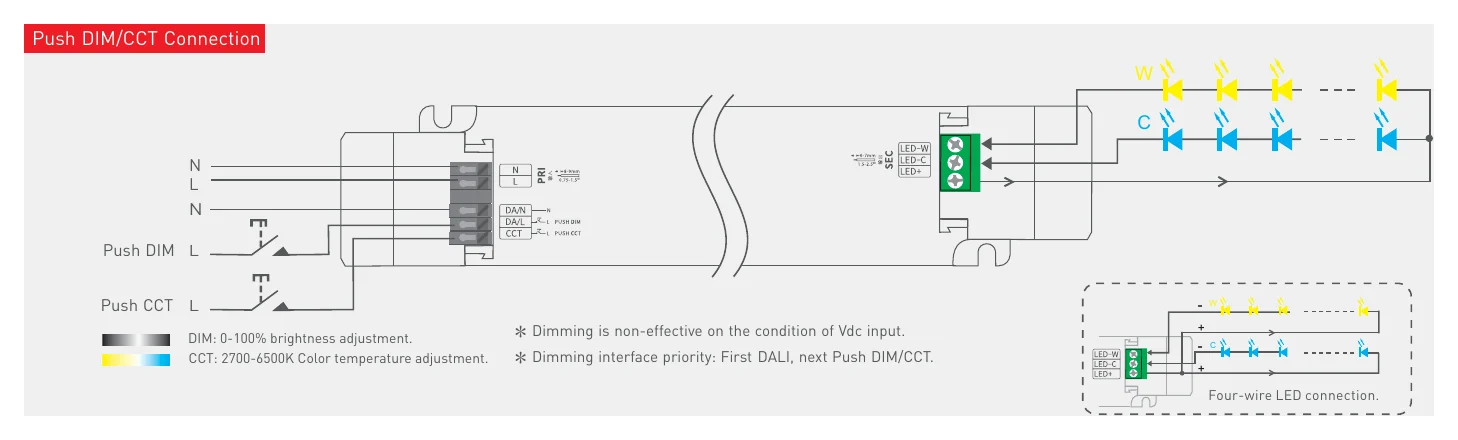

Technical drawings
Downloads
Datasheet1
FAQ
What is the Ltech LM-150-24-G2D2 designed for?
The LM-150-24-G2D2 is a 150W constant voltage LED driver for 24VDC lighting systems that use DALI2 DT8 control. It is intended for tunable white applications where both dimming and color temperature adjustment are needed. This model is suited to internal lighting projects that require stable output and advanced control.
Does this model support tunable white lighting control?
Yes. This driver supports DALI DT8 tunable white control and is described as a DIM and color temperature adjusting driver. It also has 2 independently SELV constant voltage output channels and a color temperature adjustment range of 2500-6000K.
What are the key electrical specifications of the LM-150-24-G2D2?
This model is rated at 150W output power with a 24VDC output and 6.25A rated current. The product description also states up to 93% efficiency, power factor greater than 0.98, and THD below 6%. These specifications make it a strong fit for commercial-grade LED lighting applications that need efficient constant voltage performance.
How low can this LED driver dim?
The stated dimming range is 0-100%, with LED start possible at 0.1%. That makes this model suitable for projects where very low light levels and smooth adjustment are important. The description also specifies flicker-free performance across the color temperature adjustment range.
Is the LM-150-24-G2D2 suitable for demanding environments?
This driver is specified for ambient temperatures from -20°C to 50°C. It also includes intelligent thermal management and automatic recovery protection for over-heat, over-voltage, overload, and short circuit events. Those features make it appropriate for demanding indoor applications where durability and protection matter.
What distinguishes this driver from a standard non-DALI 24V LED driver?
The main difference is its support for DALI2 DT8 tunable white control rather than basic fixed-output power delivery. This model is built for both dimming and color temperature adjustment while maintaining constant power to keep the same brightness as color temperature changes. It also adds high efficiency and very low standby power consumption.
