Ltech

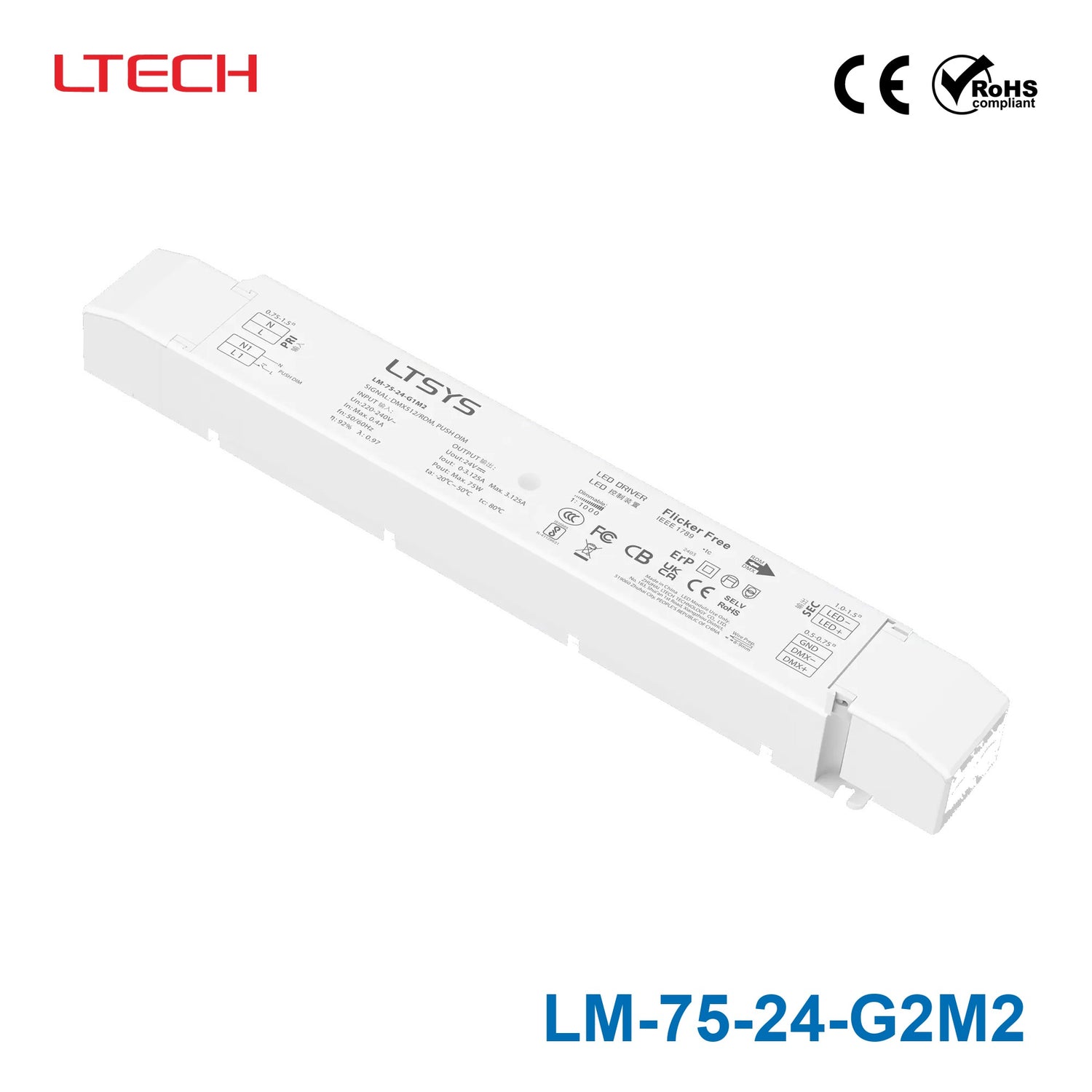

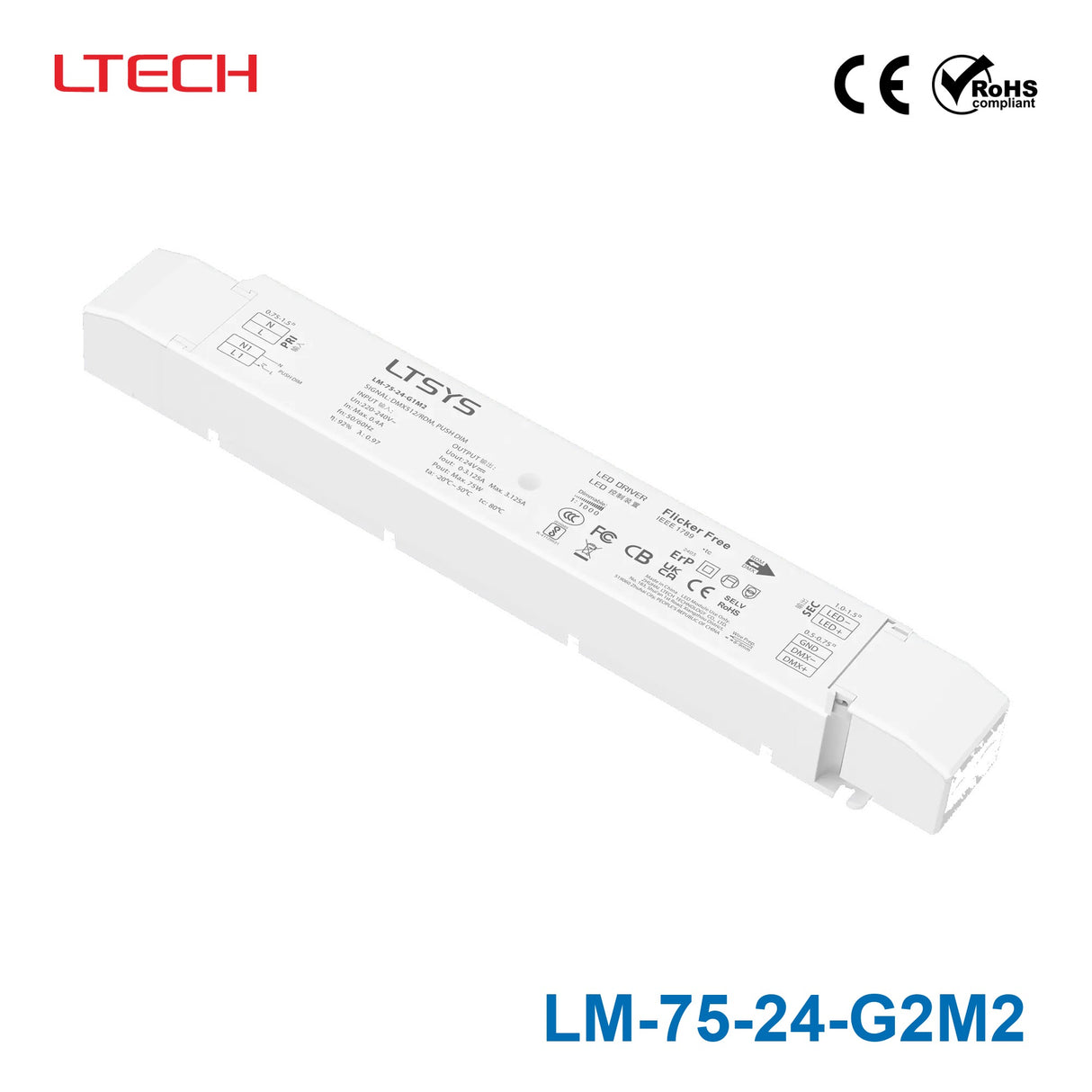

Ltech LM-75-24-G2M2 75W 24VDC CV DMX LED Driver - DMX dimmable 3.12A

SKU LM-75-24-G2M2
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by LM-75-24-G2M2F
In stock
|

Overview

LM-75-24-G2M2 is the 24Vdc output model of this series: typical efficiency 92%.

Features

  • Dimming interface: DMX512/RDM, Push DIM/CCT
  • 2 independently SELV constant voltage output channels.
  • Constant power design, adjust different color temperature to keep the same brightness.
  • DMX/RDM DIM and color temperature adjusting driver.
  • Supports RDM remote device management protocol.
  • Dimming range from 0-100%, LED start at 0.1% possible.
  • Color temperature adjusting range: 2700-6500K
  • 0~100% flicker-free, achieve the level of exemption assessment.
  • Over-heat / Over voltage / Over load / Short circuit protection, recover automatically.
  • Standby Power Loss: <0.5W
  • Full protective plastic housing.
  • Compliant with Safety Extra Low Voltage standard.
  • Suitable for indoor Ⅰ/Ⅱ/Ⅲ type lamps application.

Specifications

LM-75-24-G2M2Specifications from the official datasheetDownload datasheet PDF

OUTPUT

Output Voltage
24Vdc
Output Voltage Range
24Vdc ±0.5Vdc
Output Current
Max. 3.125A
Output Power
Max. 75W
Output Power Range
0~75W
Strobe Level
High frequency exemption level.
Dimming Range
0~100%, dimming depth: Max. 0.1%
Overload Power Limitation
≥102%
Ripple & Noise
≤300mV
PWM Frequency
≤3600Hz

INPUT

Dimming Interface
DMX/RDM, Push DIM/CCT
Input Voltage
220-240Vac
Frequency
50/60Hz
Input Current
Max. 0.4A/230Vac
Power Factor
PF>0.97/230Vac, at full load
THD
≤14% at 230Vac, at full load
Efficiency (typ.)
92%
Standby Power Loss
<0.5W
Inrush Current(typ.)
Cold start 30A at 230Vac (twidth=1000μs measured at 50% Ipeak)
Control surge capability
L-N:2KV
Leakage Current
Max. 0.5mA

ENVIRONMENT

Working Temperature
ta: -20°C ~ 50°C tc: 80°C
Working Humidity
20 ~ 95%RH, non-condensing
Storage Temp., Humidity
-40°C ~ 80°C, 10~95%RH
Temp. Coefficient
±0.03%/°C (0-50°C)
Vibration
10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.

PROTECTION

Over-heat Protection
Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers.
Over Voltage Protection
Shut down the output when non-load voltage≥26V, re-power on to recover after fault condition is removed.
Over Load Protection
Shut down the output when current load≥102%, auto recovers.
Short Circuit Protection
Enter hiccup mode if short circuit occurs, auto recovers.

SAFETY & EMC

Withstand Voltage
I/P-O/P: 3750Vac
Isolation Resistance
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety Standards
IEC/EN61347-1, IEC/EN61347-2-13
EMC Emission
EN55015, EN61000-3-2 Class C, IEC61000-3-3
EMC Immunity
EN61000-4-2,3,4,5,6,8,11 EN61547
Strobe Test Standard
IEEE 1789

OTHERS

Dimension
293×43×30mm(L×W×H)
Packing
296×44×33mm(L×W×H)
Weight(G.W.)
300g±10g

Certifications & ratings

Marked features
DIM & CT adjustment, SELV

Technical drawings

LM-75-24-G2M2 Dimensions
Dimensions
LM-75-24-G2M2 DMX/RDM Connection
DMX/RDM Connection
LM-75-24-G2M2 Push DIM/CCT
Push DIM/CCT
LM-75-24-G2M2 Application of Protective Cover
Application of Protective Cover
LM-75-24-G2M2 Relationship Diagrams
Relationship Diagrams

Downloads

FAQ

What is the Ltech LM-75-24-G2M2 designed for?

The LM-75-24-G2M2 is a 75W constant-voltage 24VDC LED driver for lighting applications that need DMX dimming and tunable white control. It provides two independently SELV constant-voltage output channels and is intended for indoor Class I, II, and III lamp applications.

What dimming control does this LED driver support?

This model supports DMX512/RDM dimming control and also lists Push DIM/CCT capability. It offers dimming from 0-100% and supports very low-end output, with a dimming depth of max. 0.1%.

Is the LM-75-24-G2M2 suitable for tunable white or color temperature adjustment?

Yes. This driver is built for color temperature adjustment from 2700K to 6500K while using a constant power design to help keep brightness consistent during CCT changes. That makes it a fit for tunable white LED lighting applications using two output channels.

What are the main electrical ratings of the LM-75-24-G2M2?

The LM-75-24-G2M2 is rated at 75W output power with a 24VDC output. Its rated current is 3.125A, which aligns with its constant-voltage LED driver design for 24V lighting systems.

Does this model support RDM functionality?

Yes. This driver supports the RDM remote device management protocol in addition to DMX512 control. That can be useful in projects where remote device management is part of the control environment.

Can the LM-75-24-G2M2 be used in demanding indoor environments?

It is specified for indoor applications and has an operating temperature range of -20°C to 50°C. The unit includes protections for short circuit, over-heat, over-load, and over-voltage conditions.

How does this model differ from a standard non-DMX 24V LED driver?

Compared with a basic 24V constant-voltage driver, the LM-75-24-G2M2 adds DMX512/RDM dimming, Push DIM/CCT support, and two independently SELV output channels for tunable white applications. It is positioned for projects that need more advanced lighting control rather than simple fixed-output power.

What warranty is offered for the LM-75-24-G2M2?

This model includes a 5-year warranty. The description also notes Rubycon capacitor use as part of that warranty positioning.
