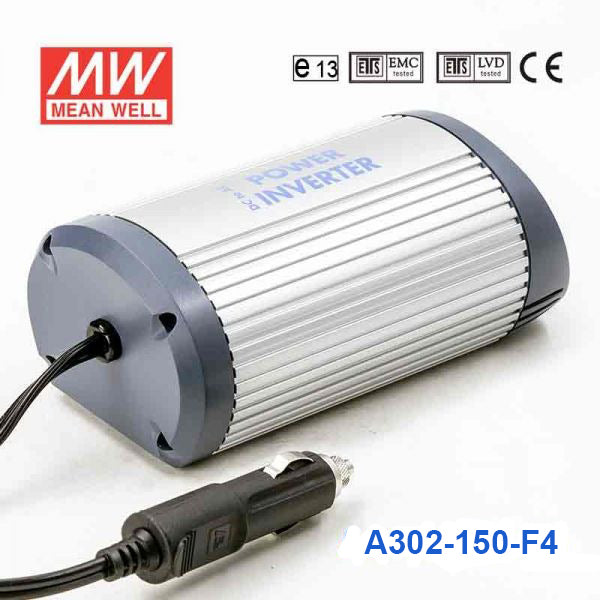

Mean Well A302-150-F4 Modified Sine Wave 150W 230V DC-AC Power Inve...
Please Login for Pricing
Description
Description
The A302-150 is a 150W Mean Well. power converter. and an input range of 10~15VDC.
Key Features
- ✓ Input voltage range: 10~15VDC
- ✓ Protections: Over voltage / Over temperature
- ✓ Safety approvals: ISOLATION RESISTANCE EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesA301/A302 Series
-
Power Rating150 Watt
-
Output Voltage230 Volt
-
Input Voltage21V~30V
-
Operation ModeConstant Voltage
-
Operating Temperature0°C~30°C
-
Warranty1 Year
-
Length12.2 cm
-
Width7.3 cm
-
Height4.5 cm
-
Weight0.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is the Mean Well A302-150-F4 designed for?
The A302-150-F4 is a 150W DC-AC power inverter for applications that need AC power from a DC source. It is intended for light-duty power conversion where a modified sine wave output is acceptable.
Does the A302-150-F4 use a pure sine wave output?
No. This model uses a modified sine wave output, as listed in the product specifications. Buyers should confirm that their equipment is compatible with modified sine wave power before selecting this inverter.
What DC input range does this inverter support?
The product features 12V or 24V DC input options. Its stated input voltage range is -15% to +25%, which provides some tolerance around the nominal DC input.
What protection features are included on the A302-150-F4?
This inverter includes protection for input reverse polarity, battery low shutdown, over voltage, overload, over temperature, and output short conditions. These built-in safeguards help protect the unit during abnormal operating conditions.
What operating environment is specified for this model?
The A302-150-F4 is rated for 0 to +30°C at 100% load, and up to 40°C at 50% load. The overload temperature is specified at 60±5°C, and the unit carries E13, EAC, CE, and UKCA approvals.
What are the physical size and warranty details for the A302-150-F4?
The listed dimensions are 122 x 73 x 45 mm, and the product weight provided is 0.5 kg. This model includes a 1-year warranty.
Other A302-150 Models
3 other models| Model | Power | Voltage | Waveform | Frequency | |
|---|---|---|---|---|---|
| Mean Well A302-150-F5 Modified sine wave 150W 230V - DC-AC Inverter | 150W | 230V | Modifined Sine Wave | 50Hz | View |
| Mean Well A302-150-F3 Modified Sine Wave 150W 230V DC-AC Power Inverter | 150W | 230V | Modifined Sine Wave | 60Hz | View |
| Mean Well A302-150-B2 Modified Sine Wave 150W 110V DC-AC Power Inverter | 150W | 110V | Modifined Sine Wave | 60Hz | View |
