Mean Well

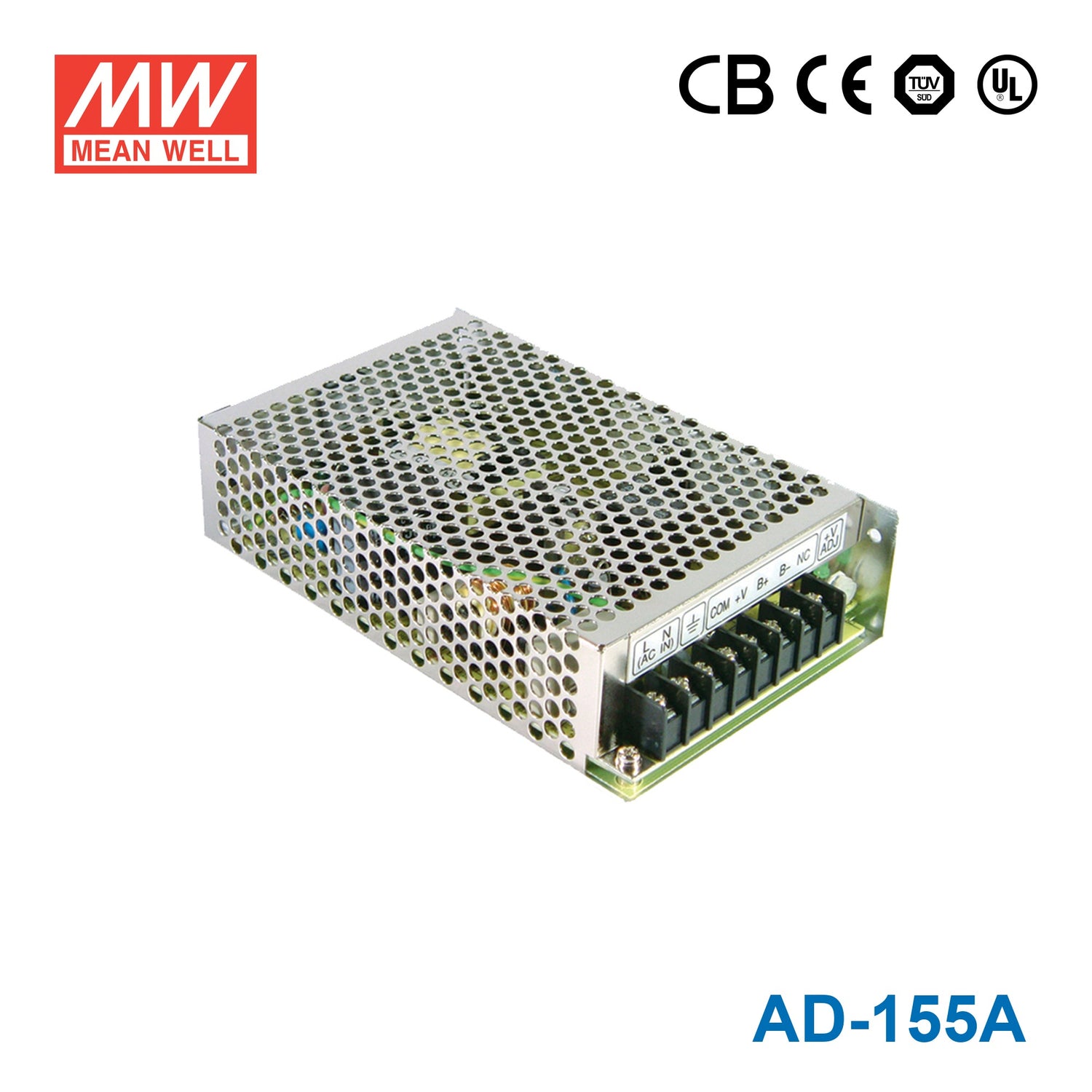

Mean Well AD-155A Security Power Supply 151.55W 13.8V 10.5A - UPS

100% full load burn-in testfixed switching frequency at 45KHzUPS function
SKU AD-155A
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 5 in this family

AD-155A
In stock
|

Overview

AD-155A is the CH1: 13.8V / CH2: 13.3V output model of this series: rated current CH1: 10.5A / CH2: 0.5A, rated power 151.55W, typical efficiency 80%.

Features

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage
  • Battery low and battery polarity protection
  • Cooling by free air convection
  • 100% full load burn-in test
  • Fixed switching frequency at PFC 67KHz, PWM 134KHz
  • 2 years warranty

Specifications

AD-155ASpecifications from the official datasheet (2024-09-30 edition)

OUTPUT

OUTPUT NUMBER
CH1 / CH2
DC VOLTAGE
CH1: 13.8V / CH2: 13.3V
RATED CURRENT
CH1: 10.5A / CH2: 0.5A
CURRENT RANGE
CH1: 0 ~ 11.5A / CH2: 0 ~ 0.5A
RATED POWER
151.55W
RIPPLE & NOISE (max.)Note.2
CH1: 150mVp-p / CH2: --------
VOLTAGE ADJ. RANGE
CH1: 12 ~ 14.5V
VOLTAGE TOLERANCENote.3
CH1: ±2.0% / CH2: --------
LINE REGULATION
CH1: ±0.5% / CH2: --------
LOAD REGULATION
CH1: ±0.5% / CH2: --------
SETUP, RISE TIME
1000ms, 90ms/230VAC 2000ms, 90ms/115VAC at full load
HOLD UP TIME (Typ.)
24ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGE
88 ~ 264VAC 124 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.92 at full load
EFFICIENCY (Typ.)
80%
AC CURRENT (Typ.)
2.5A/115VAC 1.5A/230VAC
INRUSH CURRENT (Typ.)
COLD START 23A/115VAC 45A/230VAC
LEAKAGE CURRENT
<1mA / 240VAC

PROTECTION

OVERLOAD
CH1:105 ~ 135% CH2:0.51 ~ 0.9A rated output power Protection type : AC Charging Mode : Constant current limiting, recovers automatically after fault condition is removed UPS Mode : Protected by internal fuse
OVER VOLTAGE
CH1:15.87 ~ 18.63V Protection type : Shut down o/p voltage, re-power on to recover
BATTERY LOW
10V±0.8V

ENVIRONMENT

WORKING TEMP.
-10 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF
1818.3K hrs min. Telcordia SR-332 (Bellcore) ; 229.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
199*110*50mm (L*W*H)
PACKING
0.88Kg; 16pcs/15Kg/0.95CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  5. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

AD-155A Mechanical Specification
Mechanical Specification
AD-155A Block Diagram
Block Diagram
AD-155A Derating Curve
Derating Curve

Downloads

FAQ

What is the AD-155A typically used for?

The Mean Well AD-155A is commonly used in security and backup-power applications that need a stable 13.8V DC output. With 151.55W of output capacity and 10.5A rated current, it fits alarm panels, access control systems, CCTV support equipment, and other low-voltage devices that need battery-backed UPS-style power support.

Can the AD-155A support security systems with battery backup requirements?

Yes. The AD-155A is positioned as a security power supply with UPS function, which makes it suitable for systems where the DC load needs continued support through a battery-backed architecture. The connected load still needs to remain within the unit's 13.8V, 10.5A, and 151.55W output limits.

Will the AD-155A run on standard 120V and 240V AC mains?

Yes. The specified input range is 88-264VAC, so the AD-155A can operate from common 120V and 240V AC mains supplies within that range. That makes it easier to use across different installation environments without changing the power supply model.

Is the AD-155A suitable for outdoor or exposed installations?

The current product data does not show a waterproof IP rating, so it should be treated as an indoor or enclosure-mounted power supply rather than a directly exposed outdoor unit. Its stated operating range is -10°C to +60°C, with load derating at higher ambient temperatures per the derating curve, and the final installation should still provide appropriate environmental protection.

How does the AD-155A compare with other AD series models?

Within the AD-155 series, the AD-155A provides 151.55W at 13.8V and 10.5A. Related models include the AD-155B at 151.55W and 27.6V/5A, and the AD-155C at 156.5W and 54V/2.7A. The main difference is the output voltage and current capacity for the load you need to support.
