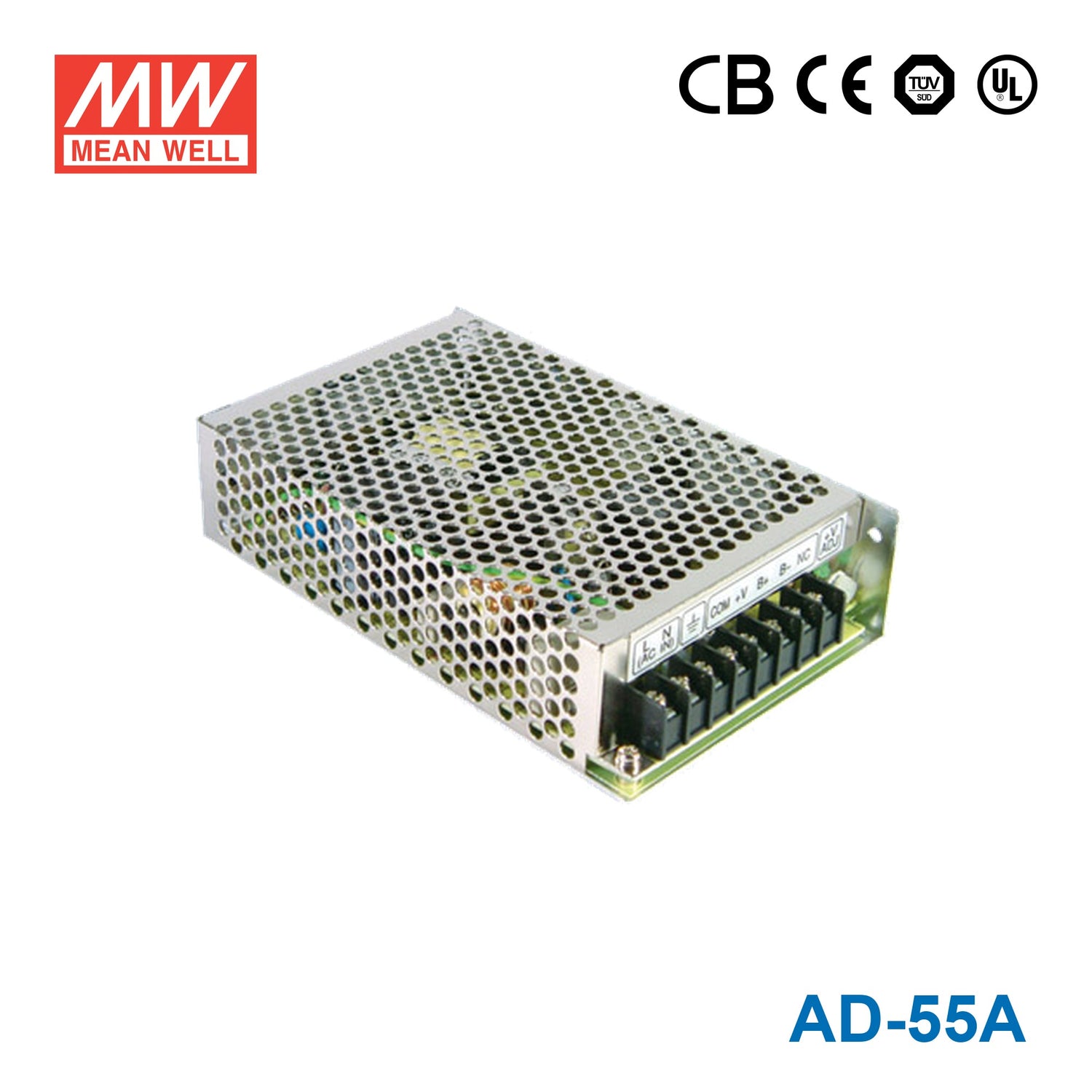

Mean Well AD-55A Security Power Supply 51.38W 13.8V 3.5A - UPS
Please Login for Pricing
Description
Description
The AD is a 155W Mean Well. power converter. and an input range of 88~264VAC.
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -10~+60℃
- ✓ Protections: Overload / Over voltage
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesAD Series
-
Power Rating51.38 Watt
-
Output Voltage13.8 Volt
-
Rated Current3.5 Ampere
-
Input Voltage88V~264V
-
Standards MetCB,CE,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length15.9 cm
-
Width9.7 cm
-
Height3.8 cm
-
Weight0.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What kinds of systems is the AD-55A designed to support?
The Mean Well AD-55A is designed for lower-power security and backup-power applications that need a 13.8V DC output. With 51.38W of rated power and 3.5A output current, it is a practical fit for smaller alarm, access control, and related low-voltage support loads that benefit from UPS-style DC supply behavior.
Can the AD-55A be used in battery-backed security power systems?
Yes. The AD-55A includes UPS-oriented security power supply functionality, so it is suitable for systems where the DC load is part of a battery-backed architecture. The connected equipment still needs to remain within the supply's 13.8V, 3.5A, and 51.38W rating.
Is the AD-55A better for smaller 13.8V loads than the AD-155 series?
Yes, if your load is modest. The AD-55A provides the same 13.8V output class as the AD-155A but at a lower 51.38W and 3.5A level, which can make it a better fit for lighter-duty systems that do not need the higher capacity of the 151.55W AD-155A.
Will the AD-55A run from common AC mains inputs?
Yes. The listed AC input range is 88-264VAC, so the AD-55A can operate from common AC mains environments within that range, including typical 120V and 240V supplies. That helps simplify deployment across multiple sites.
How does the AD-55A compare with other AD series models?
The AD-55A is the lower-power option in this group, providing 51.38W at 13.8V and 3.5A. By comparison, the AD-155A delivers 151.55W at 13.8V and 10.5A, the AD-155B delivers 151.55W at 27.6V and 5A, and the AD-155C delivers 156.5W at 54V and 2.7A. The choice comes down to your required output voltage and total load size.
Other AD Series Models
4 other models| Model | Power | Voltage | Current | Battery Voltage | |
|---|---|---|---|---|---|
| Mean Well AD-155A Security Power Supply 151.55W 13.8V 10.5A - UPS | 151.55W | 13.8V | 10.5A | 13.3V | View |
| Mean Well AD-55B Security Power Supply 53.92W 27.6V 1.8A - UPS | 53.92W | 27.6V | 1.8A | 26.5V | View |
| Mean Well AD-155C Security Power Supply 156.5W 54V 2.7A - UPS | 156.5W | 54V | 2.7A | 53.5V | View |
| Mean Well AD-155B Security Power Supply 151.55W 27.6V 5A - UPS | 151.55W | 27.6V | 5A | 27.1V | View |
