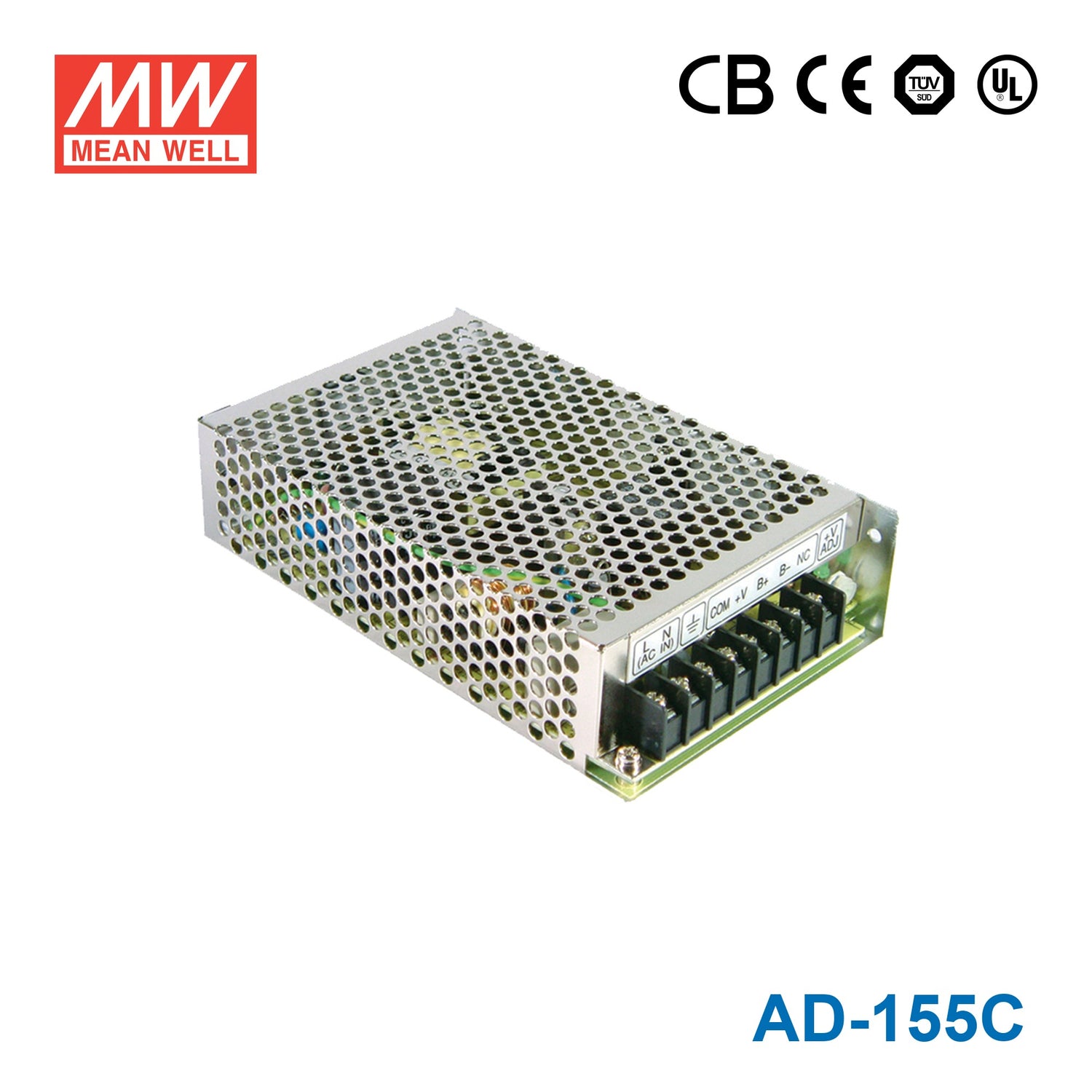

Mean Well AD-155C Security Power Supply 156.5W 54V 2.7A - UPS

100% full load burn-in test, fixed switching frequency at 45KHz, UPS function

|

Description

Features

Universal AC input / Full range
Protections: Short circuit/ Overload/ Over voltage
Battery low and battery polarity protections
Cooling by free air convection
100% full load burn-in test
Fixed switching frequency at 67KHz, PWM 134 KHz
2 years warranty

General Specification

AC input voltage range 88~264VAC; 124~370VDC
AC inrush current COLD START 23A/115VAC; 45A/230VAC
Leakage current

<1mA/240VAC

Overload protection 105%~135% rated output power
Over-voltage protection 115%~135% rated output voltage
Setup, rise, hold up time 1000ms, 90ms, 24ms
Withstand voltage I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC
Working temperature -10~+60°C
Vibration 10~500Hz, 2G 10min./1 cycle, a period of 60min. Each along the X, Y, and Z axes
Safety standards UL62368-1, TUV BS EN/EN62368-1, AS/NZS 62368.1, EAC TP TC 004 approved
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Case No. 906
Dimension (LxWxH) 199*110*50mm
Packing ; 16pcs/15Kg

Specifications

  • Brand
    Mean Well
  • Series
    AD Series
  • Power Rating
    156.5 Watt
  • Output Voltage
    54 Volt
  • Rated Current
    2.7 Ampere
  • Input Voltage
    88V~264V
  • Standards Met
    CB,CE,TUV,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -10°C~60°C
  • Warranty
    2 Year
  • Length
    19.9 cm
  • Width
    11 cm
  • Height
    5 cm
  • Weight
    0.88 kg
