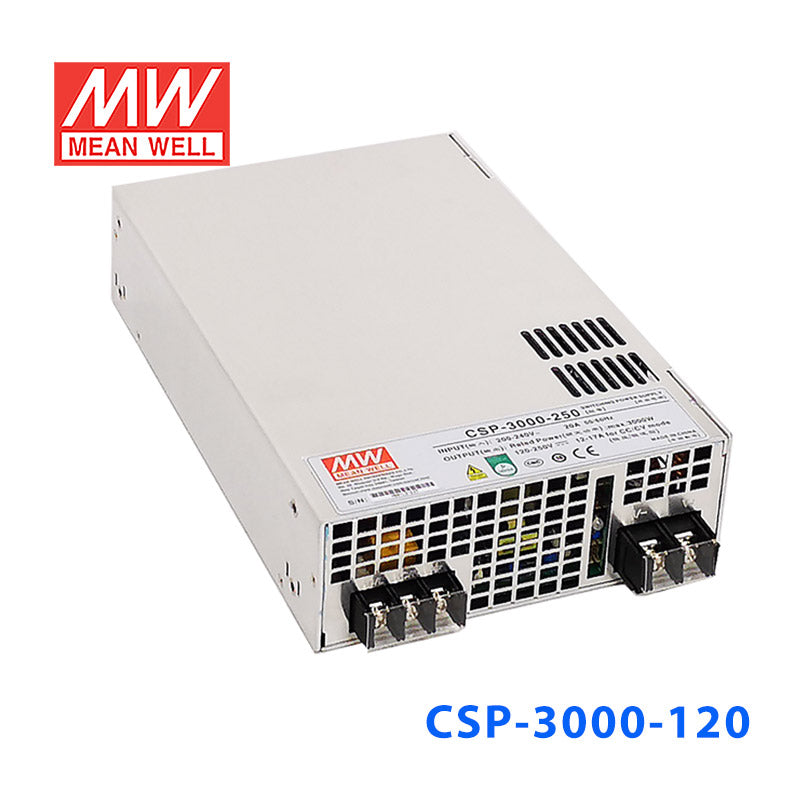

Mean Well CSP-3000-120 Power Supply with Single Output 3000W 120V
Please Login for Pricing
Description
Description
Features
| AC input 180~264VAC |
| Built-in active PFC function |
| High efficiency up to 93% |
| Forced air cooling by built-in DC fans |
| Output voltage/current programmable |
| Active current sharing up to 9000W |
| Built-in remote ON-OFF control/auxiliary power/power OK signal |
| Protections: Short circuit/Overload/Over voltage/Over temperature/Fan failure |
| Conformal coating |
| 5 years warranty |
General Specification
| AC input voltage range | 180~264VAC, 254~370VDC |
| AC inrush current (max.) | 60A at 230VAC |
| Rated Power | 3000W |
| Overload protection | 105%~120% |
| Over voltage protection | 106%~126% rated output voltage, shut down and repower |
| Withstand voltage | I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC |
| Working temperature | -25~+65°C |
| Vibration | 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes |
| Safety standards | UL62368-1, TUV EN62368-1 approved |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | Terminal block for input and output |
| Dimension (LxWxH) | 278x 177.8x 63.5 |
| Case No. | 902A |
| Packing | 4pcs /16kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesCSP Series
-
Power Rating3000 Watt
-
Output Voltage120 Volt
-
Rated Current25 Ampere
-
Input Voltage180V~264V
-
Standards MetCB,CE,DEKRA,EAC,ENEC,FCC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~60°C
-
Warranty5 Year
-
Length27.8 cm
-
Width17.78 cm
-
Height6.35 cm
-
Weight4 kg
