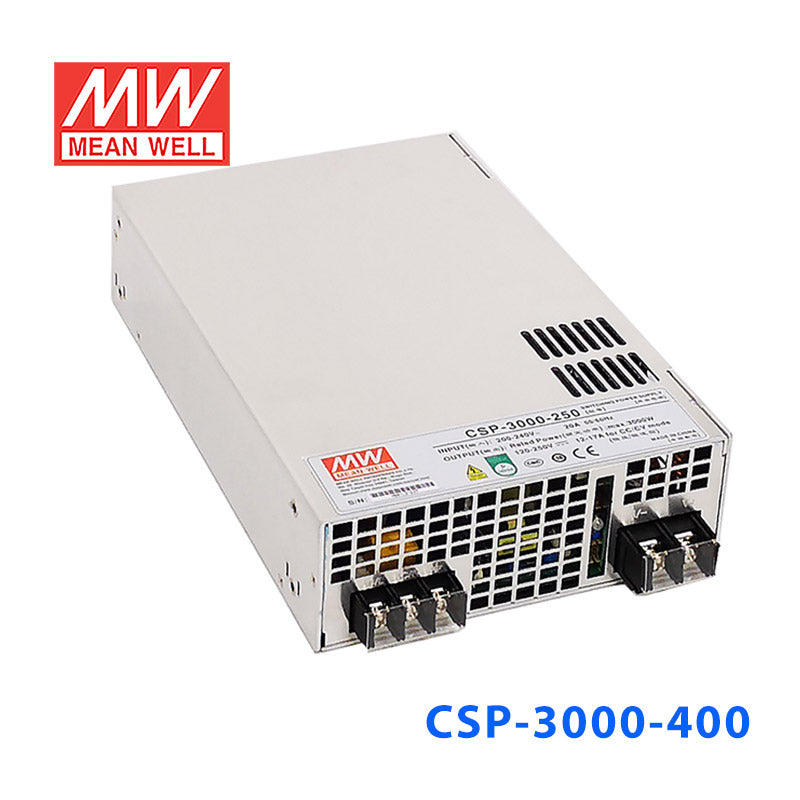

Mean Well CSP-3000-400 power supply 3000W 400V 7.5A

high efficiency up to 93%, active current sharing up to 9000W(2+1)

|

Description

Features

AC input 180~264VAC
Built-in active PFC function
High efficiency up to 93%
Forced air cooling by built-in DC fans
Output voltage/current programmable
Active current sharing up to 9000W
Built-in remote ON-OFF control/auxiliary power/power OK signal
Protections: Short circuit/Overload/Over voltage/Over temperature/Fan failure
Conformal coating
5 years warranty


General Specification

AC input voltage range 180~264VAC, 254~370VDC
AC inrush current (max.) 60A at 230VAC
Rated Power 3000W
Overload protection 105%~120%
Over voltage protection 106%~126% rated output voltage, shut down and repower
Withstand voltage I/P - O/P: 3KVAC, I/P - FG: 2KVAC, O/P - FG: 0.5KVAC
Working temperature -25~+65°C
Vibration 10~500Hz, 5G 10min. /1 cycle, period for 60 min. each along X, Y, Z axes
Safety standards UL62368-1, TUV EN62368-1 approved
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Connection Terminal block for input and output
Dimension (LxWxH) 278x 177.8x 63.5
Case No. 902A
Packing 4pcs /16kg

Specifications

  • Brand
    Mean Well
  • Series
    CSP Series
  • Power Rating
    3000 Watt
  • Output Voltage
    400 Volt
  • Rated Current
    7.5 Ampere
  • Input Voltage
    180V~264V
  • Standards Met
    CB,CE,DEKRA,EAC,ENEC,FCC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -20°C~60°C
  • Warranty
    5 Year
  • Length
    27.8 cm
  • Width
    17.78 cm
  • Height
    6.35 cm
  • Weight
    4 kg
