Mean Well

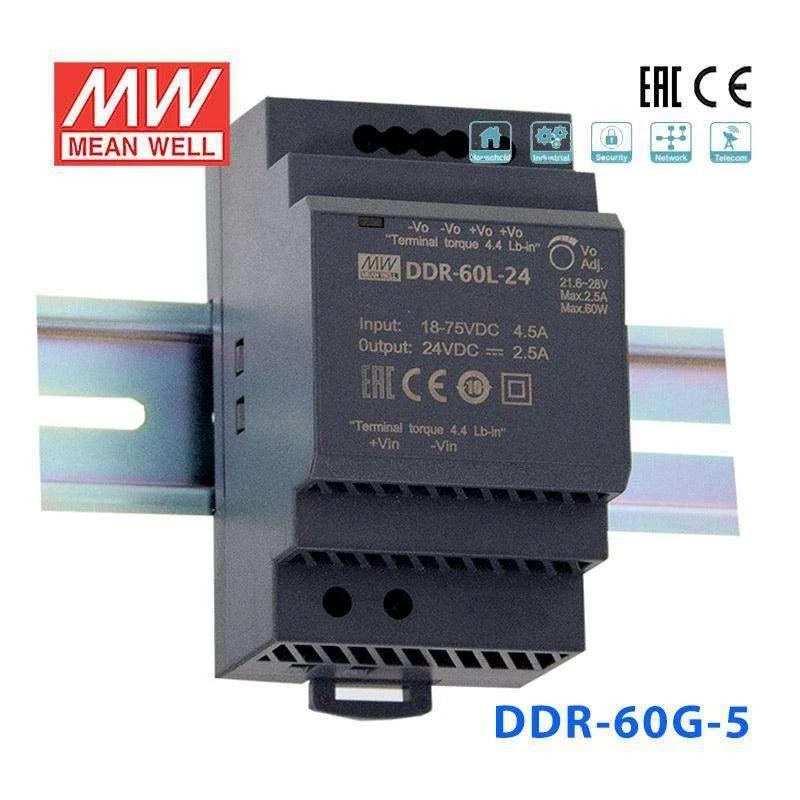

Mean Well DDR-60G-5 DC-DC Converter - 60W - 9~36V in 5V out

2:1 or 4:1 wide input range, fanless design, 4KVdc I/O isolation, ultra slim dimensions
SKU:
DDR-60G-5
Model
Please for Pricing
|

Description

The DDR-60G is a 60W DIN Rail type DC-DC converter with a 52.5mm (3SU) profile, built for demanding industrial power distribution applications. A 4:1 wide input voltage range of 9~36Vdc suits a wide range of DC supply sources, while reinforced 4KVdc I/O isolation ensures clean output. With free air convection cooling, no minimum load requirement, and a broad -40~+85°C operating range, it delivers reliable performance in harsh environments.

Key Features

  • ✓ Compact 52.5mm (3SU) width — DIN rail TS-35/7.5 or 15 compatible
  • ✓ 4:1 wide input voltage range: 9~36Vdc
  • ✓ DC output voltage adjustable ±10%
  • ✓ 4KVdc reinforced I/O isolation
  • ✓ Cooling by free air convection — no minimum load required
  • ✓ Wide operating temperature: -40°C ~ +85°C
  • ✓ Protections: Short circuit / Overload / Over voltage / Reverse polarity / Under voltage lockout
  • ✓ Safety approvals: UL 62368-1, IEC 62368-1, AS/NZS 62368.1, EAC TP TC 004
  • ✓ 3 years warranty

Specifications
  • Brand
    Mean Well
  • Series
    DDR Series
  • Power Rating
    54 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    10.8 Ampere
  • Input Voltage
    9V~36V
  • Standards Met
    CE,EAC,EMC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -40°C~85°C
  • Warranty
    2 Year
  • Length
    9 cm
  • Width
    5.45 cm
  • Height
    5.25 cm
  • Weight
    0.22 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

Can I use the DDR-60G-5 to convert a 12V or 24V battery bank to 5V for embedded controllers in a DIN rail panel?

Yes. The DDR-60G-5 accepts 9-36V DC input, covering both 12V and 24V nominal battery systems. It outputs 5V at up to 10.8A (54W), which is sufficient for most embedded single-board computers, PLCs with 5V logic, or clusters of microcontroller boards mounted in a DIN rail enclosure.

Is the DDR-60G-5 suitable for powering USB charging hubs in industrial kiosks or HMI stations?

Yes. At 5V and 10.8A the DDR-60G-5 can supply up to 54W, enough to charge multiple USB devices simultaneously through a hub. Its DIN rail form factor and 4KVdc I/O isolation make it a good fit inside equipment cabinets where the source is a 12V or 24V DC bus.

Can the DDR-60G-5 power 5V LED indicator panels or small display modules in automation systems?

Yes. Many industrial LED indicator strips and small TFT displays run on 5V. The DDR-60G-5 provides 10.8A of current, so it can drive several indicator panels or HMI displays from a 9-36V DC bus without needing a separate AC-DC stage.

Will the DDR-60G-5 work in an unheated outdoor telecom cabinet during winter?

Yes. It is rated for an operating temperature range of -40°C to +85°C, so it will start and run reliably in extreme cold or hot environments. Its fanless design also means there are no moving parts that could fail in dusty or harsh conditions.

Can I mount the DDR-60G-5 inside a sealed control enclosure without forced-air cooling?

Yes. The DDR-60G-5 uses a fanless convection-cooled design, so it does not require ventilation fans. At 90.0 x 54.5 x 52.5 mm it is ultra-slim, which helps with heat dissipation in tight DIN rail enclosures. Ensure the enclosure ambient stays within the -40°C to +85°C operating range.

What other output voltages and wattages are available in the DDR-60G series?

The DDR-60G series includes four models: the DDR-60G-5 (54W, 5V, 10.8A), DDR-60G-12 (60W, 12V, 5A), DDR-60G-15 (60W, 15V, 4A), and DDR-60G-24 (60W, 24V, 2.5A). All share the same 9-36V input range, 90.0 x 54.5 x 52.5 mm DIN rail form factor, and fanless design with 4KVdc isolation.
