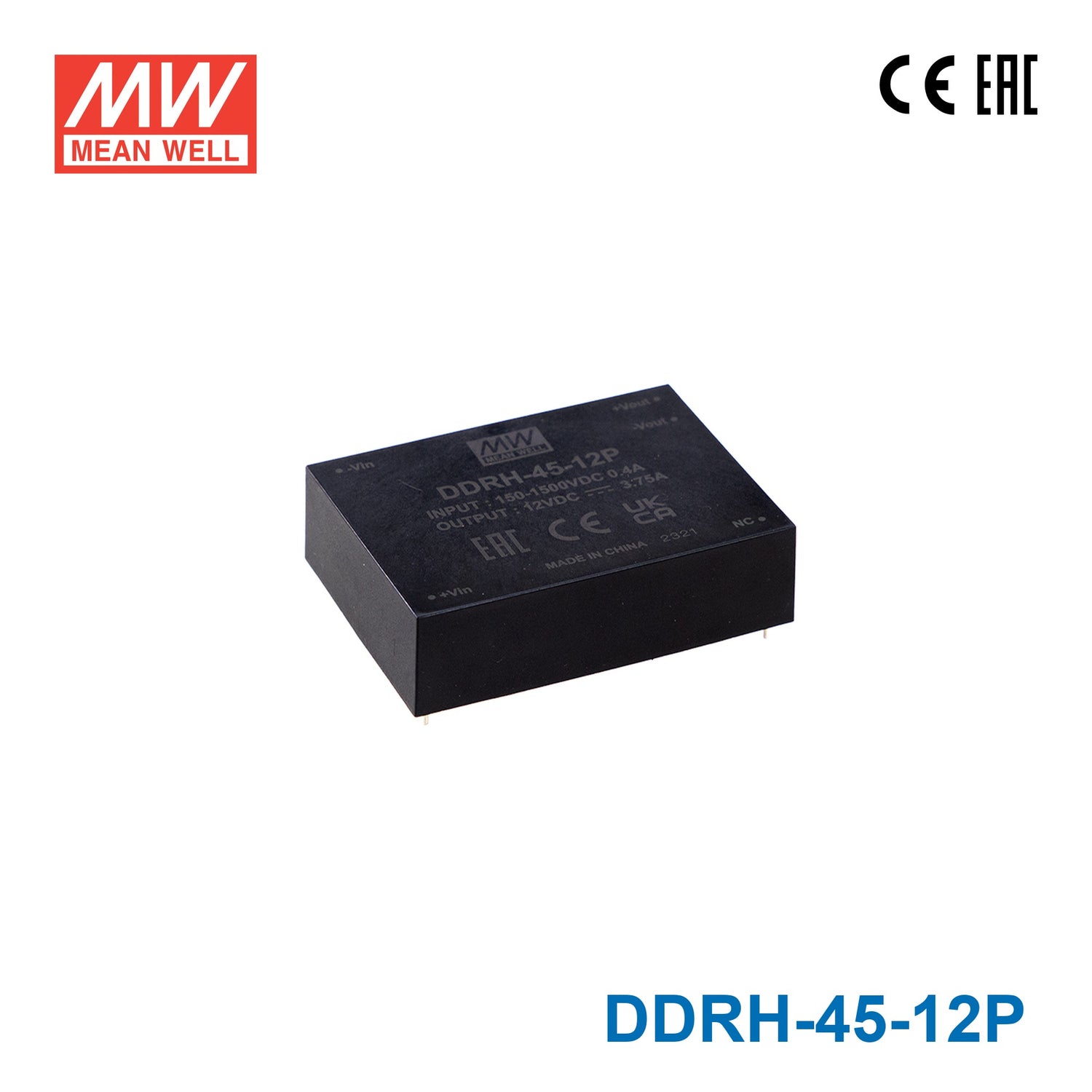

Mean Well DDRH-45-12P Ultra Wide Input DC-DC Converter, 45W 12V, PCB Type 3.75A

150~1500VDC 10:1 ultra-wide input rangefanless design-40~80°C ultra-wide operating temperature

SKU DDRH-45-12P

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

DDRH-45-12P is the 12V output model of this series: rated power 45W, typical efficiency 85%.

DDRH-45 series is a 150 ~ 1500Vdc high reliable ultra-high input DC-DC converter which can supply stable working voltage for the load. Main features are as following: compact size, -40~+80℃ wide range operating temperature, 4KVac high isolation voltage, operation at 5000m altitude, low ripple & noise, complete protections and so on. Futhermore, this series also has DIN Rail type, it is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. DDRH-45 is designed to meet UL1741and IEC62109-1 standard. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting , DC bus centralized application , ESS, charging pile, railway and so forth.

Features

150~1500Vdc 10:1 ultra-wide input range
4KVac I/O high isolation(Reinforced isolation)
Protections: Short circuit / Overload / Over voltage / DC input under voltage / DC input reverse Polarity
Fanless design, fully encapsulated, cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15 (DR-Type)
-40~+80℃ ultra-wide operating temperature (＞+50℃ derating)
Operating altitude up to 5000 meters
3 years warranty

Specifications

DDRH-45-12PSpecifications from the official datasheet (2024-10-18 edition)

INPUT

INPUT VOLTAGE (RANGE): Nominal 800Vdc (150~1500Vdc)
INPUT CURRENT NO LOAD: 0.2mA
INPUT CURRENT FULL LOAD: 75mA
VOLTAGE RANGE: 150 ~ 1500Vdc
FILTER: Internal capacitor
EXTERNAL INPUT FUSE: 4A/1500Vdc, required (Please refer to page 6 for more details)
INRUSH CURRENT (Typ.): Cold start 150A max. @ Vin=800Vdc

OUTPUT

OUTPUT VOLTAGE: 12V
OUTPUT CURRENT: 3.75A
EFFICIENCY (Typ.): 85%
CAPACITOR LOAD (MAX.): 3750μF
VOLTAGE ACCURACY: ±2.0%
RATED POWER: 45W
RIPPLE & NOISE^Note.2: 12 ~ 24Vo: 100mVp-p 48Vo: 150mVp-p
LINE REGULATION: ±1%
LOAD REGULATION: ±1% (10% Load to Full Load)
SWITCHING FREQUENCY (Typ.): 28 ~ 75.6KHz
HOLD UP TIME: 20ms min. @Vin=800Vdc
SETUP TIME: 2s max. @150~1500Vdc

PROTECTION

SHORT CIRCUIT: Protection type : Hiccup mode, continuous, automatic recovery
OVERLOAD: 110 ~ 300% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: Hiccup mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY: By internal Bridge Diode, no damage, recovers automatically after fault condition removed
DC INPUT UNDER VOLTAGE LOCKOUT Start-up voltage: 132Vdc
DC INPUT UNDER VOLTAGE LOCKOUT Shutdown voltage: 121Vdc

ENVIRONMENT

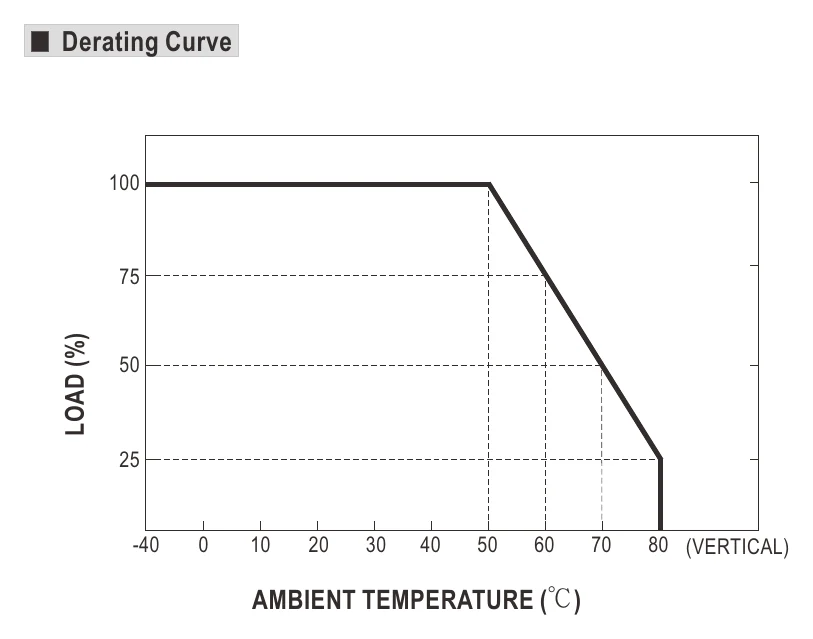

WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.02% / ℃ (-40℃ ~ 50℃) Typ.
VIBRATION: Meets: MIL.STD-810F Table 514.5C-VⅢ, 15-2000Hz, X,Y,Z axis, 1hr (each axis), total 3hrs
OPERATING ALTITUDE^Note.3: 5000 meters
OVER VOLTAGE CATEGORY: Ⅱ; According to EN62109-1; altitude up to 5000 meters

SAFETY & EMC (Note.4)

SAFETY STANDARDS: UL1741 , CSA C22.2 No.107.1-16 , IEC62109-1 (LVD), EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVac
ISOLATION RESISTANCE: I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class A (with external components)
Radiated BS EN/EN55032 Class A (with external components)
EMC IMMUNITY: BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V, criteria A
EFT/Bursts BS EN/EN61000-4-4 Level 2, 0.5KV, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V, criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class A (with external components)
Radiated	BS EN/EN55032	Class A (with external components)

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10V, criteria A
EFT/Bursts	BS EN/EN61000-4-4	Level 2, 0.5KV, criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V, criteria A

OTHERS

MTBF: 316Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): P Type: 89*63.5*25mm, ST Type: 135*70*32mm, DR Type: 135*70*43.5mm
CASE MATERIAL: Non-conductive black plastic (UL 94V-0 rated)
POTTING MATERIAL: UL 94V-0
PIN MATERIAL: Base: copper, Plating: Matte Tin

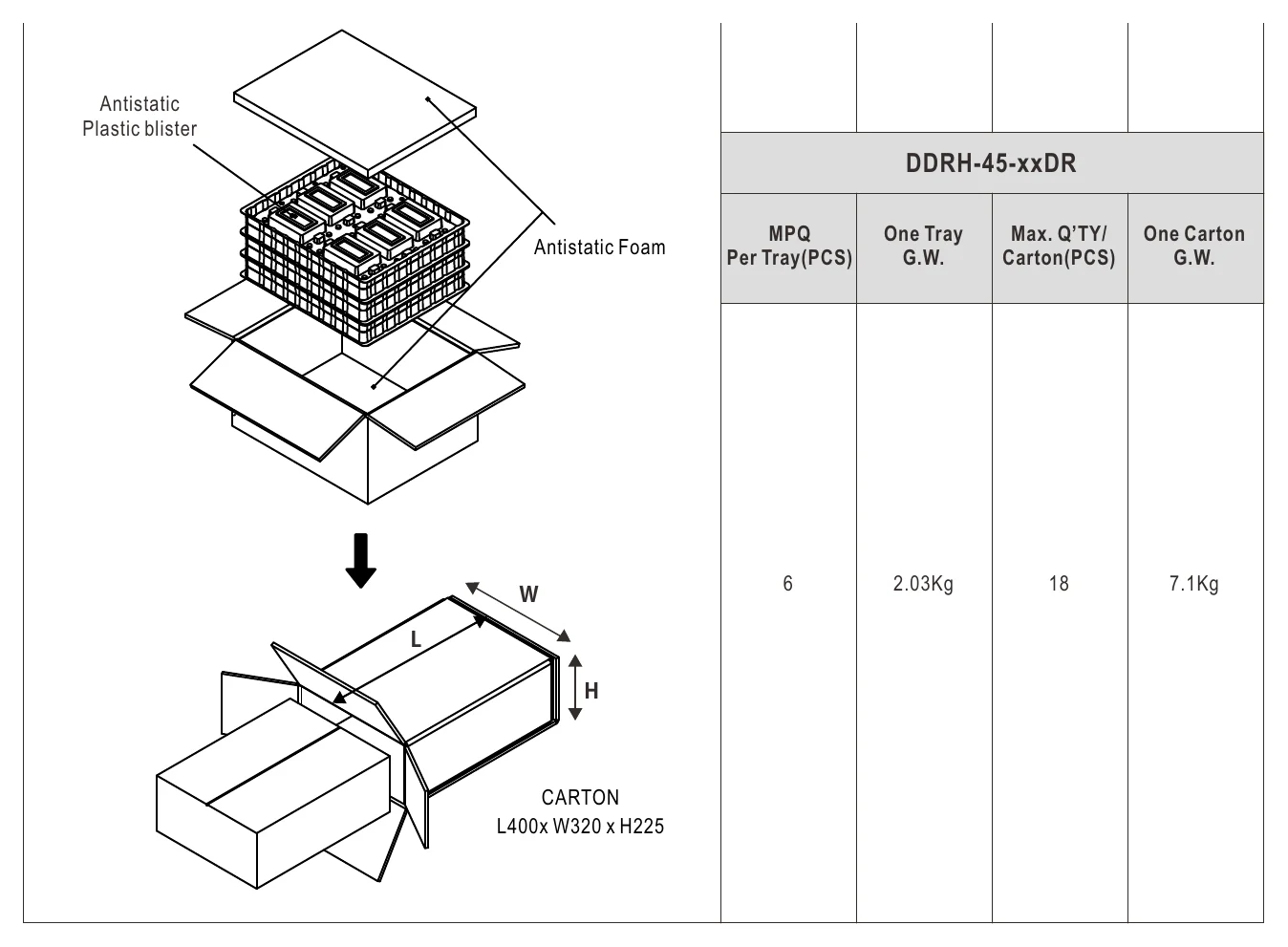

PACKING: P Type : 240g ; 6pcs/Tray, 18pcs/per carton ST Type : 305g ; 6pcs/Tray, 18pcs/per carton DR Type : 310g ; 6pcs/Tray, 18pcs/per carton

Test conditions and notes4

1. All parameters NOT specially mentioned are measured at 800Vdc input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

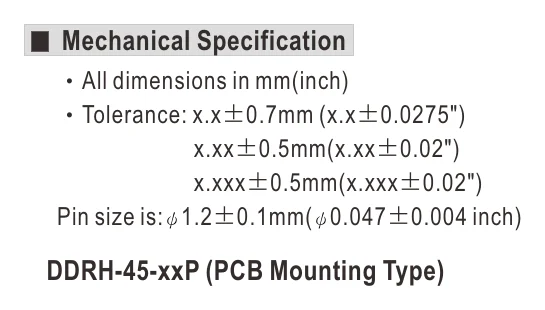

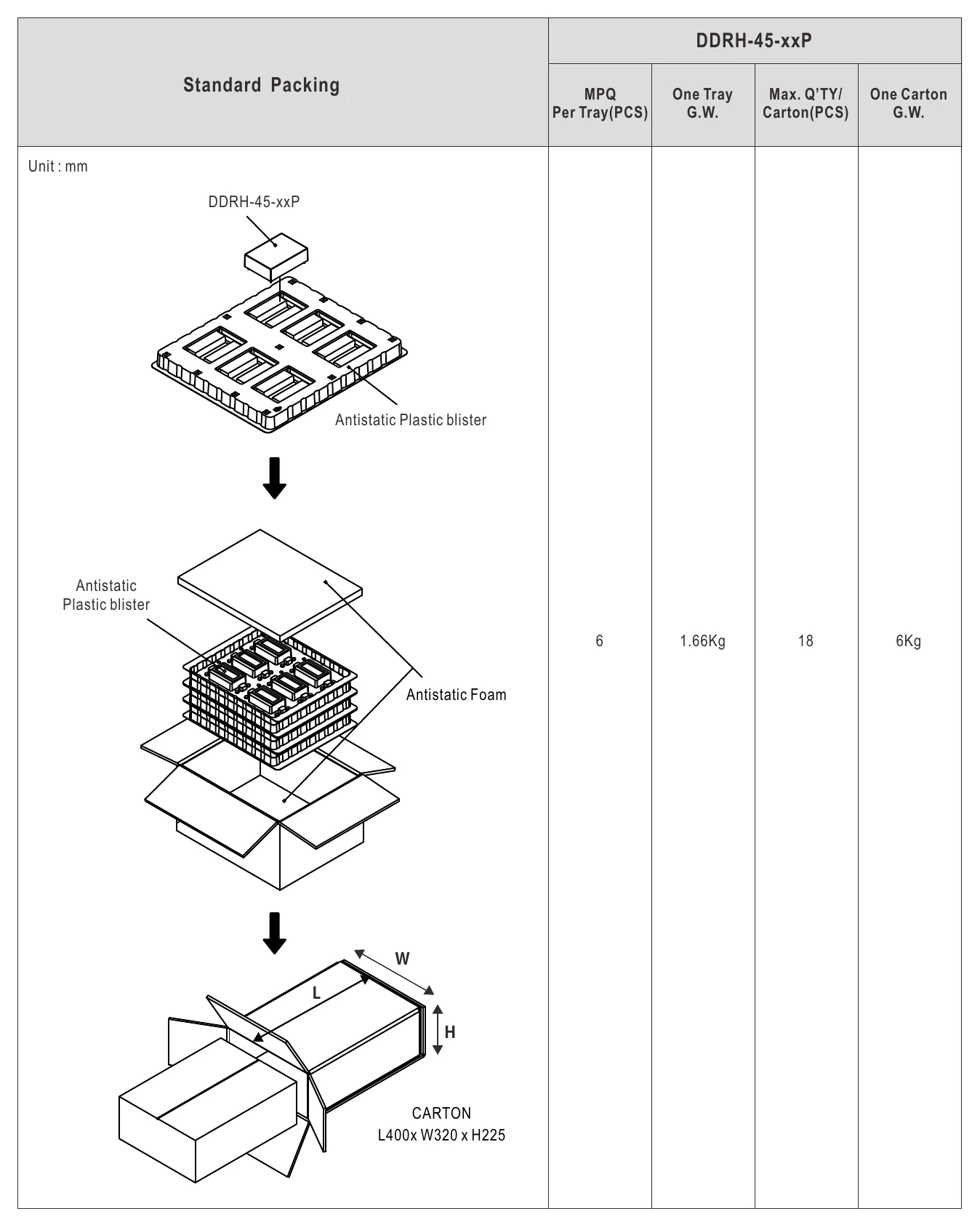

DDRH-45-12P ‧Tolerance: x.x±0.7mm (x.x±0.0275") — ‧Tolerance: x.x±0.7mm (x.x±0.0275")

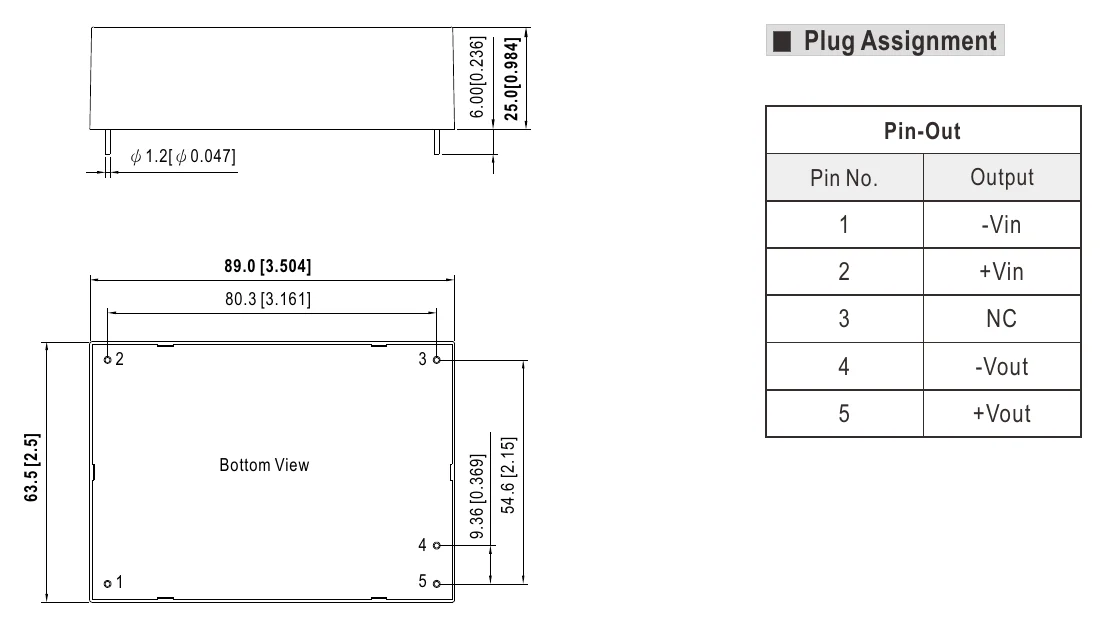

DDRH-45-12P ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2) — ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2)

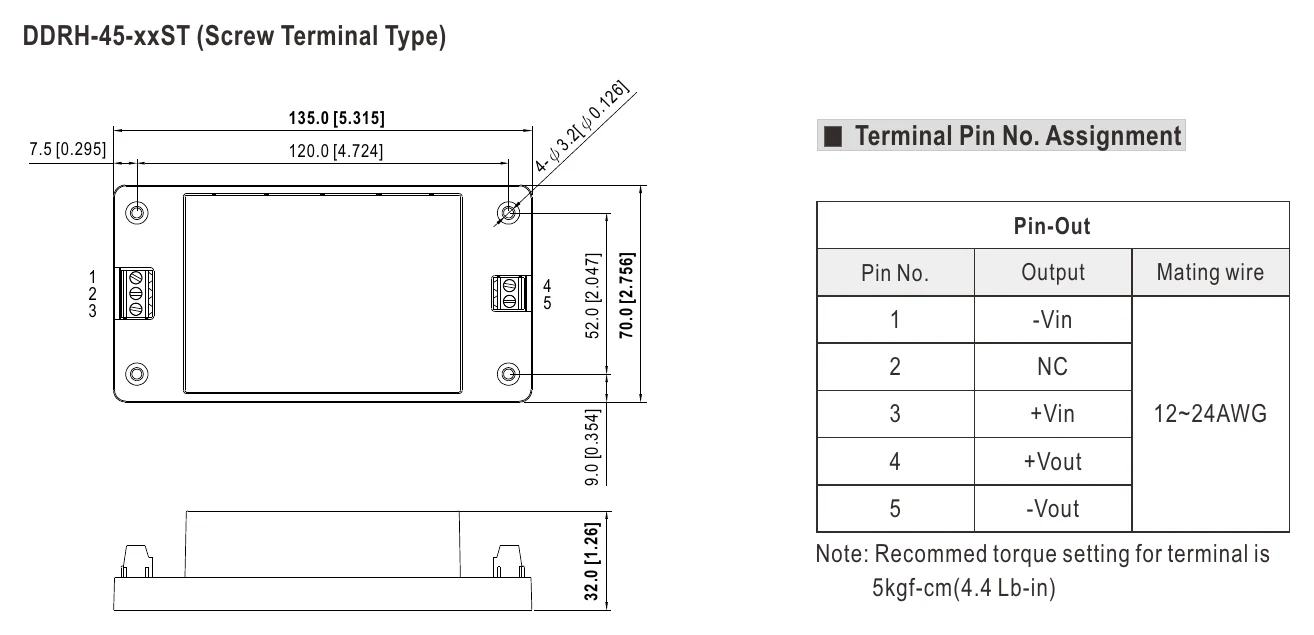

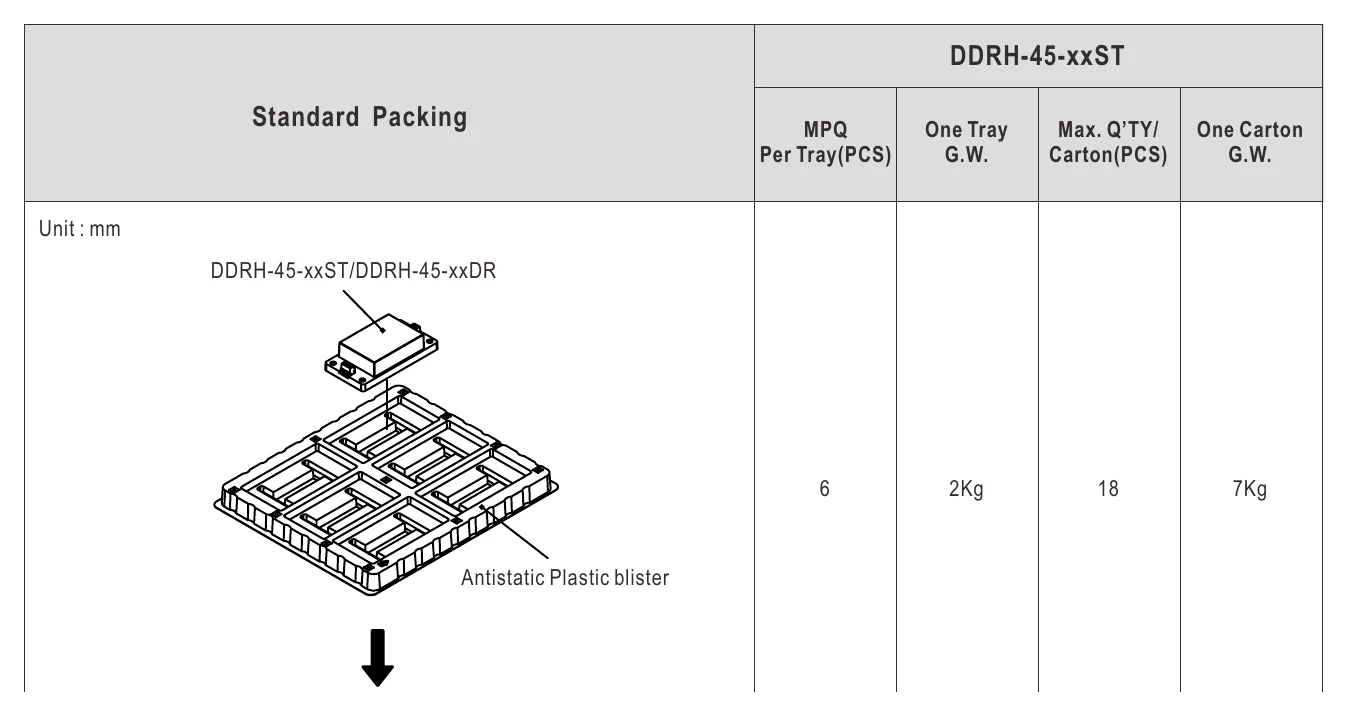

DDRH-45-12P DDRH-45-xxST (Screw Terminal Type) — DDRH-45-xxST (Screw Terminal Type)

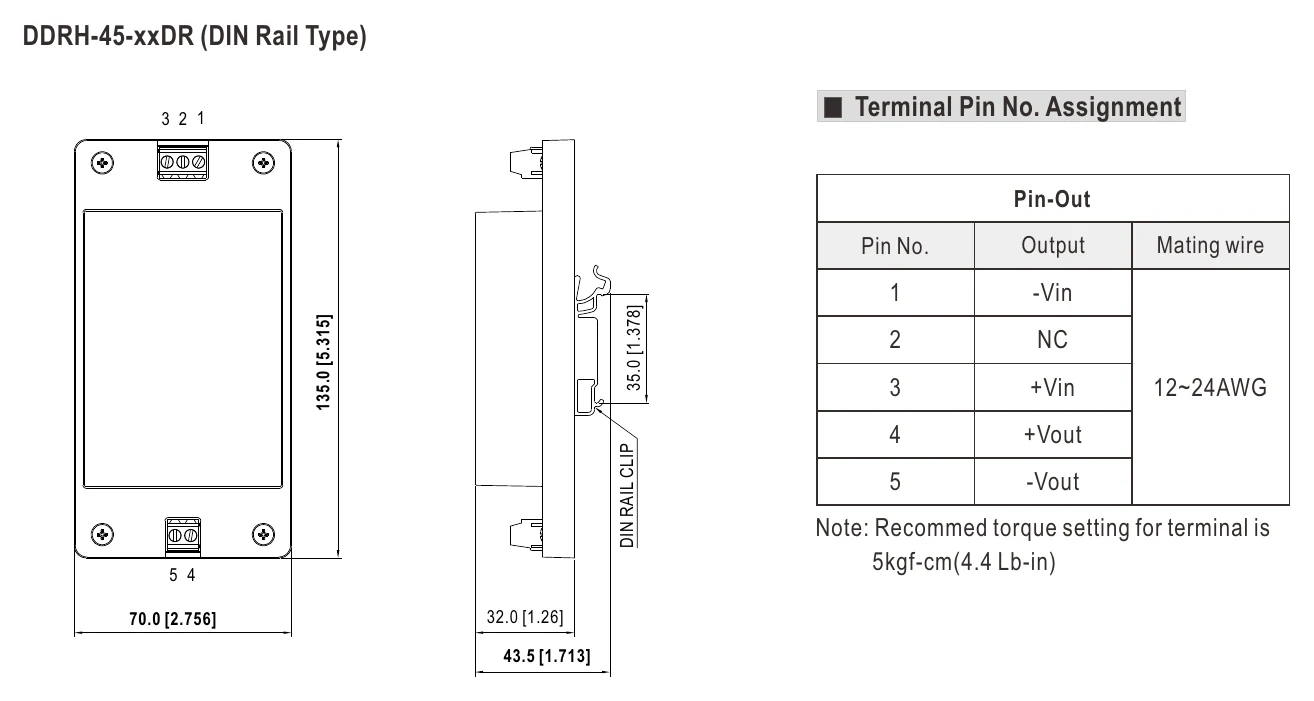

DDRH-45-12P DDRH-45-xxDR (DIN Rail Type) — DDRH-45-xxDR (DIN Rail Type)

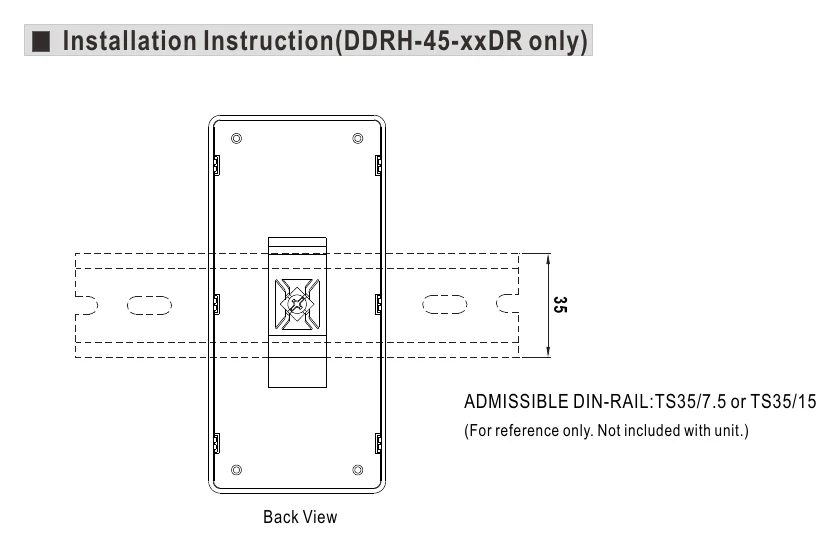

DDRH-45-12P Installation Instruction(DDRH-45-xxDR only) — Installation Instruction(DDRH-45-xxDR only)

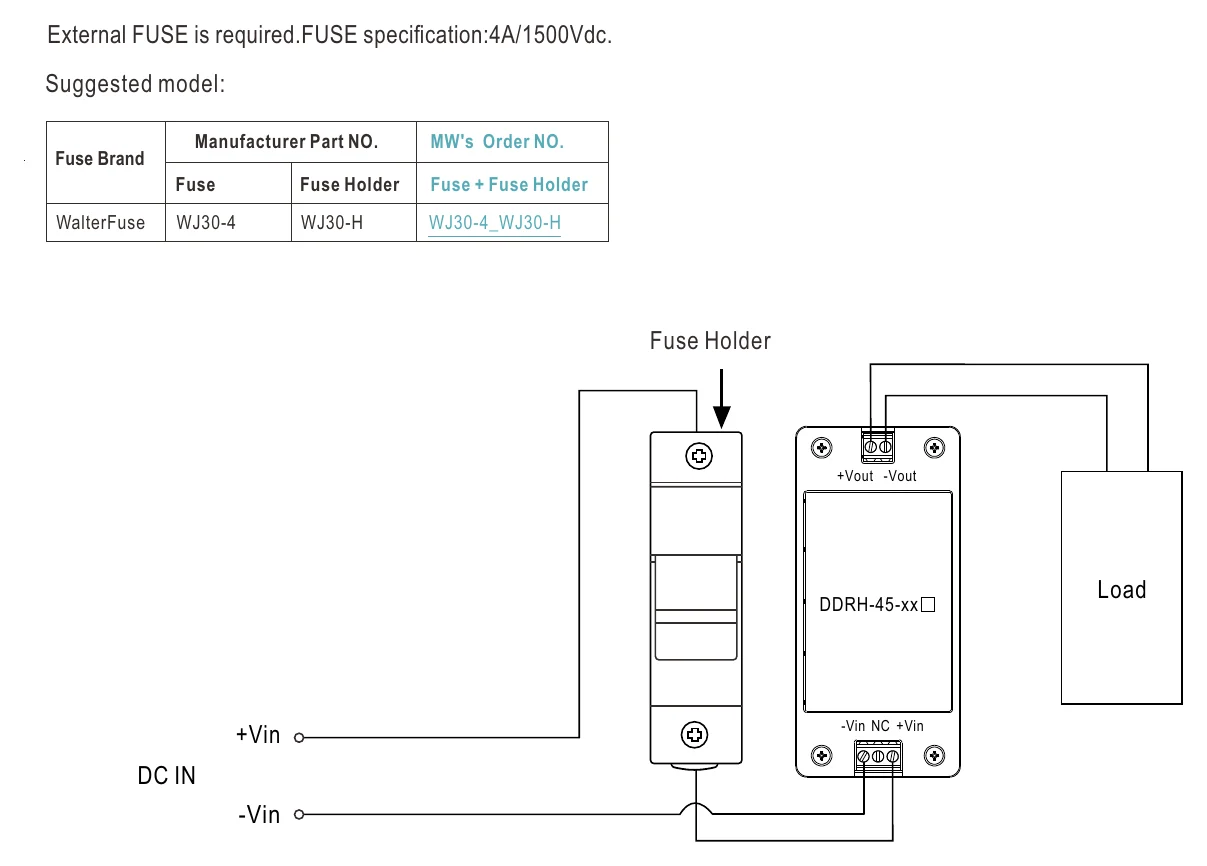

DDRH-45-12P External Fuse Wiring Instruction — External Fuse Wiring Instruction

Typical applications

Downloads

Datasheet1

DDRH-45-12P datasheetDDRH_45_spec_sheet.pdf · 2024-10-18 edition PDF Download

FAQ

Can I use the DDRH-45-12P to power embedded computing modules from a high-voltage DC bus?

Yes. The PCB-mount format and 150–1500VDC ultra-wide input allow the DDRH-45-12P to be integrated directly onto a custom board or inside enclosures fed from a high-voltage bus. It supplies 12V at 3.75A (45W) for embedded processors, SBCs, and similar loads.

Is the DDRH-45-12P appropriate for use in down-hole instrumentation or remote telecom equipment?

Only where the ambient stays within its rating. The –40°C to +80°C operating range (with derating per the derating curve) and MIL-STD-810F vibration rating suit harsh remote installations where maintenance access is limited; it is not rated above +80°C. The 12V, 45W output can power modems, data loggers, and sensor electronics.

Can this PCB-type converter be used in a regenerative drive cabinet where bus voltage spikes above 1000VDC?

The DDRH-45-12P is rated up to 1500VDC input, which covers transient bus voltages in many regenerative drive and motor braking applications. Verify that peak transients stay within the 1500VDC maximum to ensure reliable operation.

What mounting and integration options does the DDRH-45-12P offer compared to other DDRH-45-12 variants?

The DDRH-45-12P is a PCB-type module measuring 89×63.5×25 mm and weighing 0.24 kg—the most compact option in the trio. The DDRH-45-12DR (135×70×43.5 mm) snaps onto a DIN rail, and the DDRH-45-12ST (135×70×32 mm) uses screw terminals. All three deliver 45W at 12V, 3.75A.

Does the DDRH-45-12P require any special thermal management in a sealed enclosure?

The sheet does not specify a cooling method, but output must be derated at higher ambient temperatures per the derating curve. In a sealed enclosure, ensure the enclosure's thermal design keeps the ambient air around the converter within the –40°C to +80°C operating range.

Can the DDRH-45-12P operate in arctic or high-altitude environments?

The –40°C low-temperature rating makes the DDRH-45-12P suitable for arctic-condition deployments. Because no IP rating is specified, the unit must be housed in an appropriately rated enclosure when deployed outdoors or in high-humidity environments.
