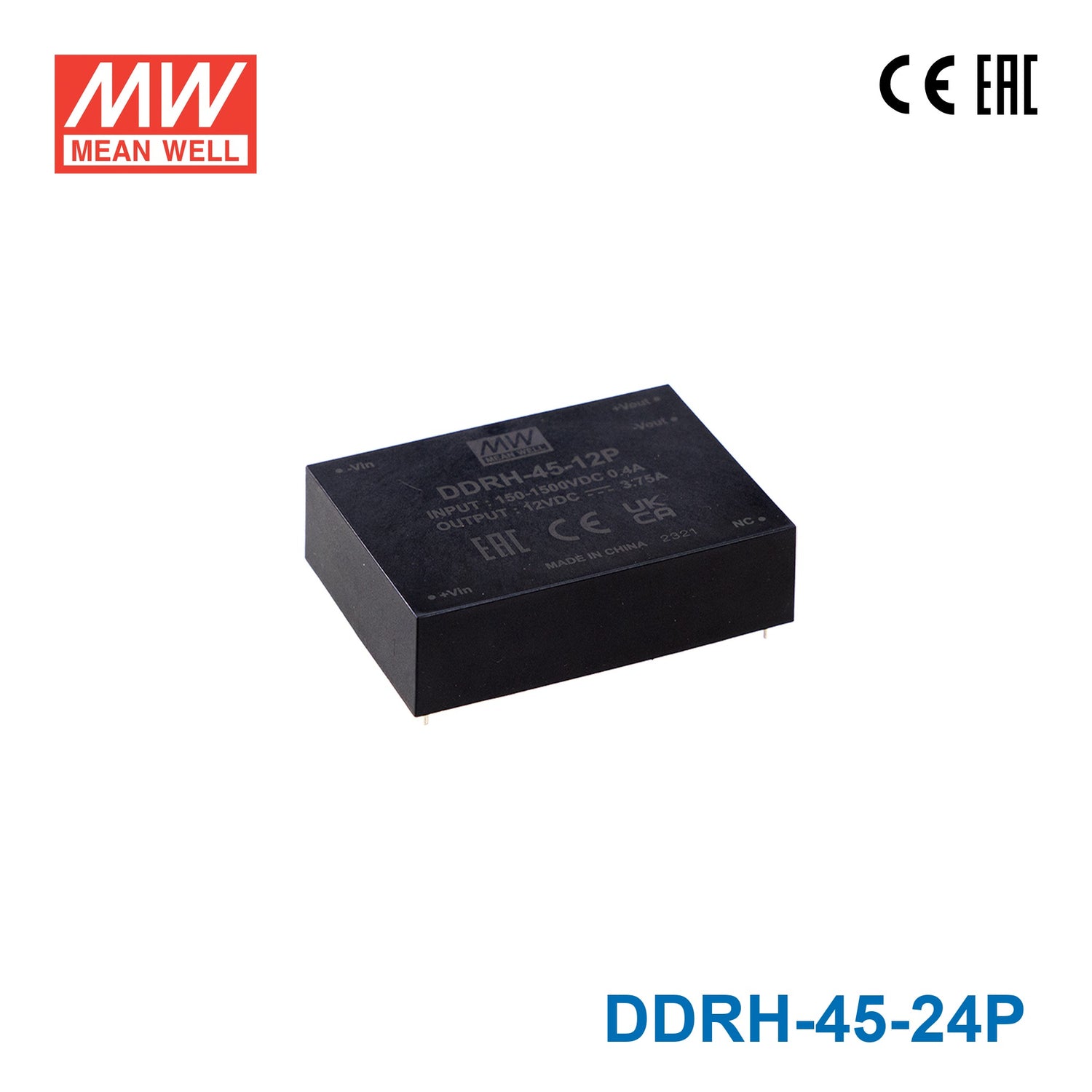

Mean Well DDRH-45-24P Ultra Wide Input DC-DC Converter, 45W 24V, PC...
Please Login for Pricing
Description
Description
The DDRH-45 is a 45W high-reliability ultra-wide input DC-DC converter designed for photovoltaic, renewable energy storage, and demanding high-voltage industrial systems. Supporting a 150~1500Vdc input range, it adapts to solar, battery string, and DC bus supply sources. With 4KVac reinforced I/O isolation, fanless free air convection cooling, and no minimum load requirement, the DDRH-45 offers reliable power conversion across a -40~+80°C operating range.
Key Features
- ✓ Ultra-wide 150~1500Vdc input range — covers solar, ESS, and DC bus sources
- ✓ DC output voltage adjustable ±10%
- ✓ 4KVac reinforced I/O isolation
- ✓ Cooling by free air convection — fanless design, no minimum load required
- ✓ Wide operating temperature: -40°C ~ +80°C
- ✓ Protections: Short circuit / Overload / Over voltage / Reverse polarity / Under voltage lockout
- ✓ DIN rail TS-35/7.5 or 15 compatible (DR type)
- ✓ Safety approvals: IEC62109-1 (LVD), EAC TP TC 004
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesDDRH Series
-
Power Rating45 Watt
-
Output Voltage24 Volt
-
Rated Current1.87 Ampere
-
Input Voltage150V~1500V
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty3 Year
-
Length8.9 cm
-
Width6.35 cm
-
Height2.5 cm
-
Weight0.24 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Can the DDRH-45-24P power a 24V embedded controller inside a motor drive assembly?
Yes. The PCB-mount format makes the DDRH-45-24P easy to integrate directly into a drive assembly or custom controller board. It supplies 24V at 1.87A (45W) from a 150–1500VDC input, covering the high bus voltages typical of variable-frequency drives.
Is the DDRH-45-24P suitable for supplying 24V to an industrial wireless gateway in a smart factory application?
Yes. Industrial wireless gateways and IIoT edge devices commonly run on 24VDC and draw well under 45W. The PCB-mount module can be integrated into a custom gateway board or mounted inside an enclosure fed from any bus voltage in the 150–1500VDC range.
Can this module be used in a mining or heavy-industry application with high DC bus voltages above 800VDC?
The DDRH-45-24P accepts up to 1500VDC, making it compatible with the elevated bus voltages found in mining conveyor drives, longwall equipment, and heavy-industry automation. At 45W it serves auxiliary control and instrumentation loads.
How does the DDRH-45-24P PCB module compare to the other 45W 24V variants in the DDRH series?
All three 45W 24V models output 24V at 1.87A with a 150–1500VDC input. The DDRH-45-24P is the smallest at 89×63.5×25 mm (0.24 kg) and mounts on a PCB. The DDRH-45-24DR (135×70×43.5 mm, 0.31 kg) clips to a DIN rail. The DDRH-45-24ST (135×70×32 mm, 0.305 kg) uses screw terminals.
Does the DDRH-45-24P need any thermal management when embedded in a sealed device?
The fanless design has no moving parts, but heat must still be dissipated through convection or conduction. In a sealed housing, ensure the enclosure provides sufficient thermal mass or surface area to keep the converter within its –40°C to +80°C range.
Can the DDRH-45-24P handle the cold temperatures experienced in arctic or high-altitude outdoor equipment?
The –40°C lower temperature limit covers arctic and high-altitude cold-start conditions. Because the unit has no IP rating, it must be housed in an appropriately sealed enclosure to protect against condensation and precipitation in outdoor installations.
