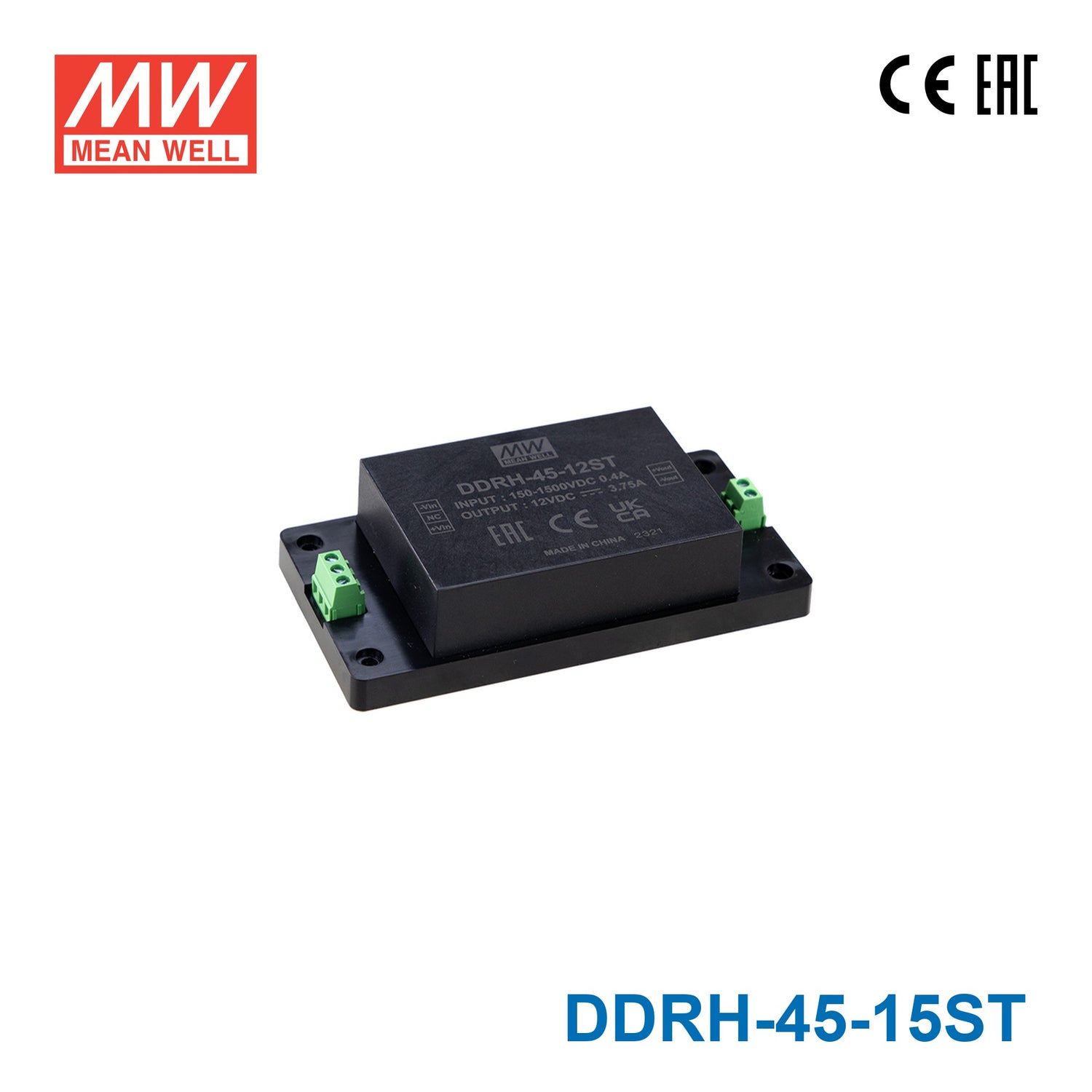

Mean Well DDRH-45-15ST Ultra Wide Input DC-DC Converter, 45W 15V, Screw Terminal Type 3A

150~1500VDC 10:1 ultra-wide input rangefanless design-40~80°C ultra-wide operating temperature

SKU DDRH-45-15ST

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

DDRH-45-15ST is the 15V output model of this series: rated power 45W, typical efficiency 85%.

DDRH-45 series is a 150 ~ 1500Vdc high reliable ultra-high input DC-DC converter which can supply stable working voltage for the load. Main features are as following: compact size, -40~+80℃ wide range operating temperature, 4KVac high isolation voltage, operation at 5000m altitude, low ripple & noise, complete protections and so on. Futhermore, this series also has DIN Rail type, it is suitable to be mounted on TS-35/7.5 or TS-35/15 rails. DDRH-45 is designed to meet UL1741and IEC62109-1 standard. It is suitable for industrial automation, surveillance, telecommunication and can be widely deployed in the applications of new energy generation such as solar power, and windmill power generation, for instances, photovoltaic power systems, high voltage inverting , DC bus centralized application , ESS, charging pile, railway and so forth.

Features

150~1500Vdc 10:1 ultra-wide input range
4KVac I/O high isolation(Reinforced isolation)
Protections: Short circuit / Overload / Over voltage / DC input under voltage / DC input reverse Polarity
Fanless design, fully encapsulated, cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15 (DR-Type)
-40~+80℃ ultra-wide operating temperature (＞+50℃ derating)
Operating altitude up to 5000 meters
3 years warranty

Specifications

DDRH-45-15STSpecifications from the official datasheet (2024-10-18 edition)

INPUT

INPUT VOLTAGE (RANGE): Nominal 800Vdc (150~1500Vdc)
INPUT CURRENT NO LOAD: 0.2mA
INPUT CURRENT FULL LOAD: 75mA
VOLTAGE RANGE: 150 ~ 1500Vdc
FILTER: Internal capacitor
EXTERNAL INPUT FUSE: 4A/1500Vdc, required (Please refer to page 6 for more details)
INRUSH CURRENT (Typ.): Cold start 150A max. @ Vin=800Vdc

OUTPUT

OUTPUT VOLTAGE: 15V
OUTPUT CURRENT: 3A
EFFICIENCY (Typ.): 85%
CAPACITOR LOAD (MAX.): 3000μF
VOLTAGE ACCURACY: ±2.0%
RATED POWER: 45W
RIPPLE & NOISE^Note.2: 12 ~ 24Vo: 100mVp-p 48Vo: 150mVp-p
LINE REGULATION: ±1%
LOAD REGULATION: ±1% (10% Load to Full Load)
SWITCHING FREQUENCY (Typ.): 28 ~ 75.6KHz
HOLD UP TIME: 20ms min. @Vin=800Vdc
SETUP TIME: 2s max. @150~1500Vdc

PROTECTION

SHORT CIRCUIT: Protection type : Hiccup mode, continuous, automatic recovery
OVERLOAD: 110 ~ 300% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: Hiccup mode, recovers automatically after fault condition is removed
DC INPUT REVERSE POLARITY: By internal Bridge Diode, no damage, recovers automatically after fault condition removed
DC INPUT UNDER VOLTAGE LOCKOUT Start-up voltage: 132Vdc
DC INPUT UNDER VOLTAGE LOCKOUT Shutdown voltage: 121Vdc

ENVIRONMENT

WORKING TEMP.: -40 ~ +80℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.02% / ℃ (-40℃ ~ 50℃) Typ.
VIBRATION: Meets: MIL.STD-810F Table 514.5C-VⅢ, 15-2000Hz, X,Y,Z axis, 1hr (each axis), total 3hrs
OPERATING ALTITUDE^Note.3: 5000 meters
OVER VOLTAGE CATEGORY: Ⅱ; According to EN62109-1; altitude up to 5000 meters

SAFETY & EMC (Note.4)

SAFETY STANDARDS: UL1741 , CSA C22.2 No.107.1-16 , IEC62109-1 (LVD), EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4KVac
ISOLATION RESISTANCE: I/P-O/P, 100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032 Class A (with external components)
Radiated BS EN/EN55032 Class A (with external components)
EMC IMMUNITY: BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, 10V, criteria A
EFT/Bursts BS EN/EN61000-4-4 Level 2, 0.5KV, criteria A
Surge BS EN/EN61000-4-5 Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted BS EN/EN61000-4-6 Level 3, 10V, criteria A

Parameter	Standard	Test Level
Conducted	BS EN/EN55032	Class A (with external components)
Radiated	BS EN/EN55032	Class A (with external components)

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, 10V, criteria A
EFT/Bursts	BS EN/EN61000-4-4	Level 2, 0.5KV, criteria A
Surge	BS EN/EN61000-4-5	Level 4, 2KV/Vin+ ~ Vin-, criteria A
Conducted	BS EN/EN61000-4-6	Level 3, 10V, criteria A

OTHERS

MTBF: 316Khrs MIL-HDBK-217F(25℃)
DIMENSION (L*W*H): P Type: 89*63.5*25mm, ST Type: 135*70*32mm, DR Type: 135*70*43.5mm
CASE MATERIAL: Non-conductive black plastic (UL 94V-0 rated)
POTTING MATERIAL: UL 94V-0
PIN MATERIAL: Base: copper, Plating: Matte Tin
PACKING: P Type : 240g ; 6pcs/Tray, 18pcs/per carton ST Type : 305g ; 6pcs/Tray, 18pcs/per carton DR Type : 310g ; 6pcs/Tray, 18pcs/per carton

Test conditions and notes4

1. All parameters NOT specially mentioned are measured at 800Vdc input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

DDRH-45-15ST ‧Tolerance: x.x±0.7mm (x.x±0.0275") — ‧Tolerance: x.x±0.7mm (x.x±0.0275")

DDRH-45-15ST ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2) — ‧Tolerance: x.x±0.7mm (x.x±0.0275") (2)

DDRH-45-15ST DDRH-45-xxST (Screw Terminal Type) — DDRH-45-xxST (Screw Terminal Type)

DDRH-45-15ST DDRH-45-xxDR (DIN Rail Type) — DDRH-45-xxDR (DIN Rail Type)

DDRH-45-15ST Installation Instruction(DDRH-45-xxDR only) — Installation Instruction(DDRH-45-xxDR only)

DDRH-45-15ST External Fuse Wiring Instruction — External Fuse Wiring Instruction

DDRH-45-15ST DDRH-45-xxST — DDRH-45-xxST

DDRH-45-15ST DDRH-45-xxDR — DDRH-45-xxDR

Typical applications

Downloads

Datasheet1

DDRH-45-15ST datasheetDDRH_45_spec_sheet.pdf · 2024-10-18 edition PDF Download

FAQ

Can the DDRH-45-15ST provide the 15V power needed for industrial ultrasonic sensors and proximity switches?

Yes. Many industrial ultrasonic and inductive proximity sensors operate at 15V, and the DDRH-45-15ST delivers 15V at up to 3A (45W). The screw-terminal connections suit direct field-wiring in panel-builder installations.

Is the DDRH-45-15ST suitable for powering HMI touch panels that require a 15V DC supply?

At 45W and 3A on a 15V rail, the converter can supply compact HMI touch panels and operator interface terminals. The ultra-wide 150–1500VDC input allows it to accept power from a variety of DC bus configurations in the same control panel.

Can this converter supply 15V to a distributed fieldbus repeater in a PROFIBUS or DeviceNet segment?

Fieldbus repeaters and power conditioners typically draw well under 45W, making the DDRH-45-15ST a suitable supply. Its –40°C to +80°C operating range (with derating per the derating curve) covers the temperature swings of enclosed switchgear.

What is the thermal operating range and enclosure requirement for the DDRH-45-15ST?

The unit is rated –40°C to +80°C with output derating at higher temperatures. It carries no IP ingress-protection rating, so it must be installed inside a suitably sealed enclosure when used in wet, dusty, or outdoor environments.

How does the DDRH-45-15ST's screw terminal design compare to the other DDRH-45-15 models?

The DDRH-45-15ST (135×70×32 mm, 0.305 kg) uses screw terminals for easy field wiring. The DDRH-45-15DR (135×70×43.5 mm, 0.31 kg) has the same footprint but adds a DIN rail clip, making it slightly deeper. The DDRH-45-15P (89×63.5×25 mm, 0.24 kg) is a PCB-mount module. All three are rated 45W, 15V, 3A.

Can the DDRH-45-15ST be used in high-ambient-temperature enclosures?

The converter is rated for –40°C to +80°C ambient, with output derating at higher temperatures per the derating curve. Operation above +80°C is outside the rating, so enclosures must keep the local ambient at or below that limit.
