Mean Well

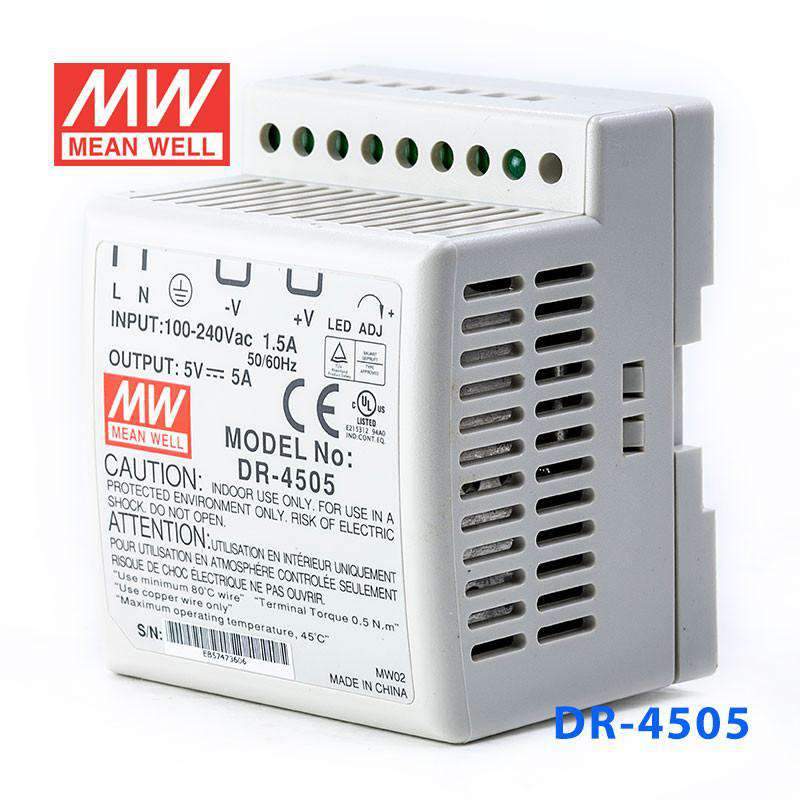

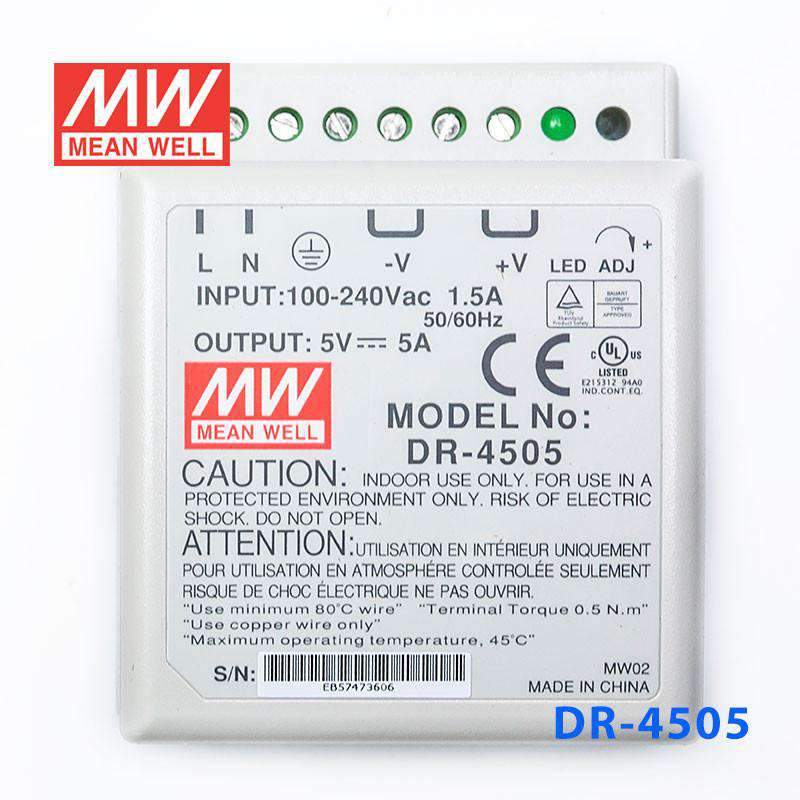

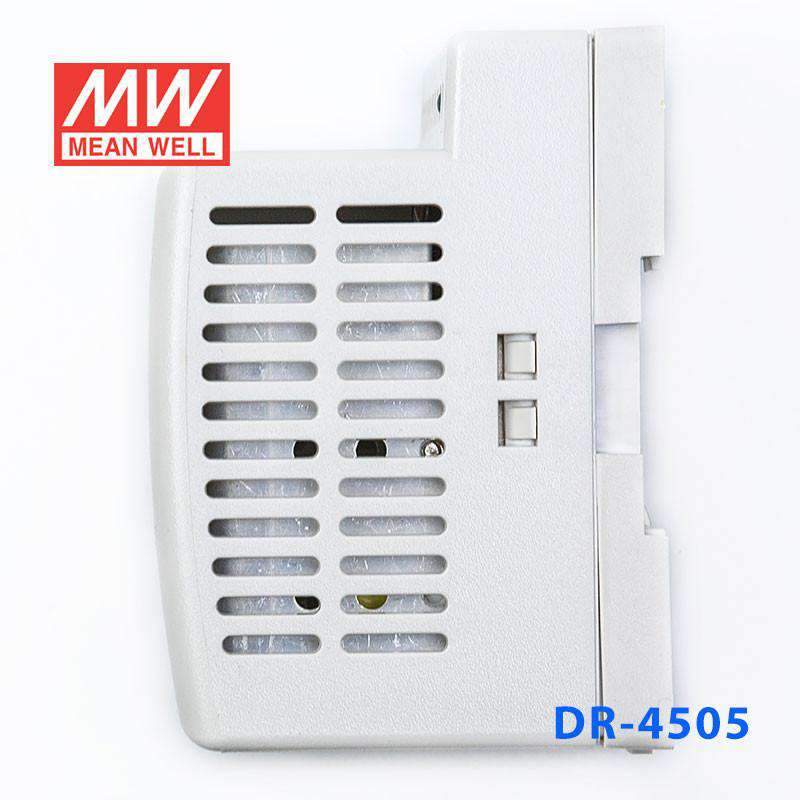

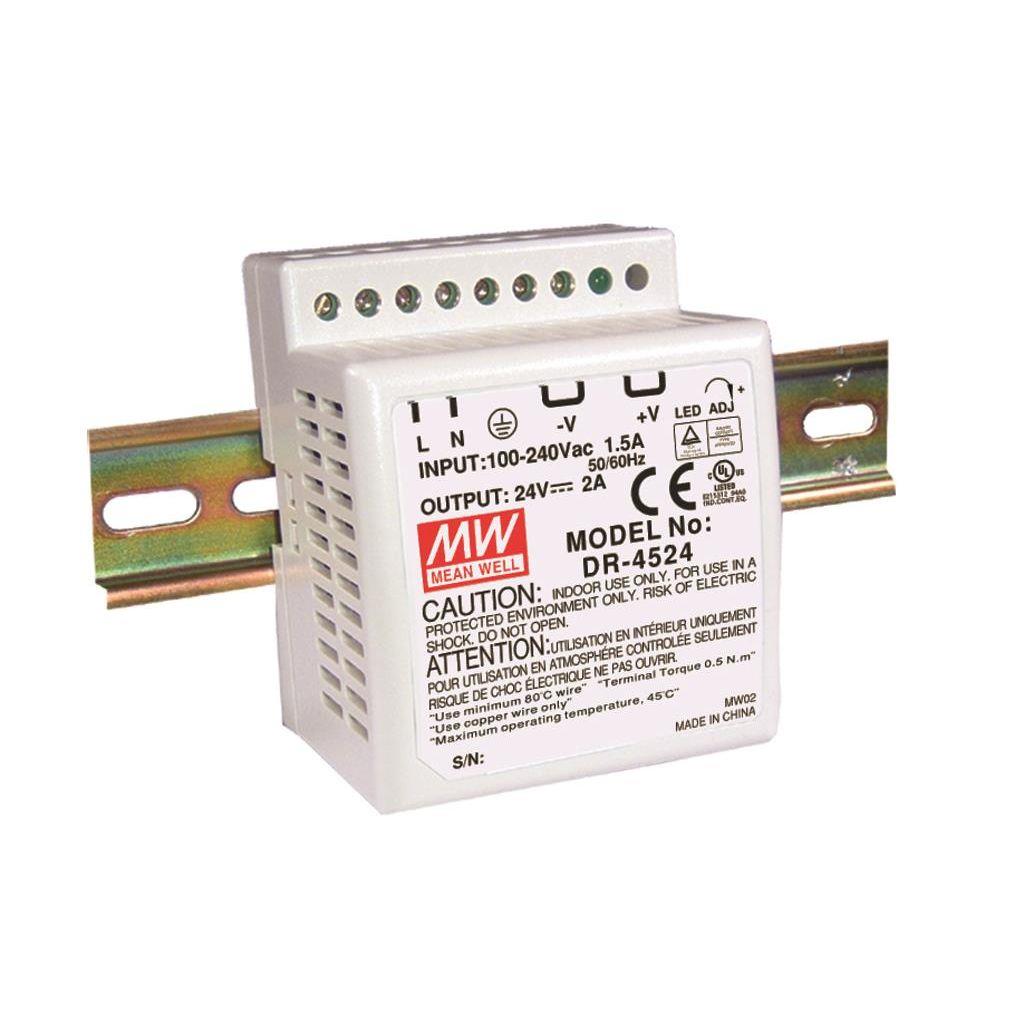

Mean Well DR-4505 AC-DC Industrial DIN rail power supply 45W 5A

45W5V No DIM
SKU DR-4505
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →
End of Life, Succeeded by HDR-60-05
Available to order
|

Overview

DR-4505 is the 5V output model of this series: rated current 5A, rated power 25W, typical efficiency 72%.

Features

  • Universal AC input/Full range
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection

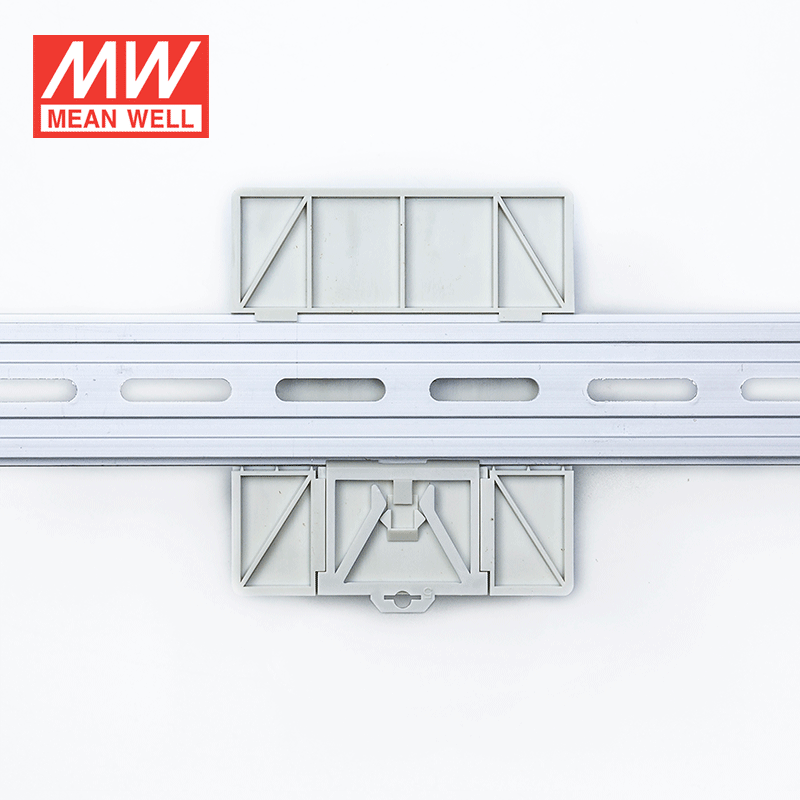

  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508(industrial control equipment)approved
  • LED indicator for power on
  • 100% full load burn-in test
  • Fix switching frequency at 100KHz
  • 3 years warranty

Specifications

DR-4505Specifications from the official datasheet (2021-09-15 edition)

OUTPUT

DC VOLTAGE
5V
RATED CURRENT
5A
CURRENT RANGE
0 ~ 5A
RATED POWER
25W
RIPPLE & NOISE (max.)Note.2
100mVp-p
VOLTAGE ADJ. RANGE
4.75 ~ 5.5V
VOLTAGE TOLERANCENote.3
±2.0%
LINE REGULATION
±1.0%
LOAD REGULATION
±1.0%
SETUP, RISE TIME
800ms, 60ms/230VAC at full load
HOLD UP TIME (Typ.)
60ms/230VAC at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
72%
AC CURRENT (Typ.)
1.5A/115VAC 0.75A/230VAC
INRUSH CURRENT (Typ.)
COLD START 28A/115VAC 56A/230VAC
LEAKAGE CURRENT
<1mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 150% rated output power Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE
5.75 ~ 6.75V Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURE
Tj 135℃ typically (U1) detect on heat sink of power transistor Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-10 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY & EMC (Note 4)

SAFETY STANDARDS
UL508, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
EMC EMISSION
Compliance to EN55032 (CISPR32), EN61000-3-2,-3, EAC TP TC 020
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020

OTHERS

MTBF
364.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
93*78*67mm (L*W*H)
PACKING
0.31Kg; 48pcs/17.5Kg/1.41CUFT
Test conditions and notes5
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
  2. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  3. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
  4. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
  5. 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

Technical drawings

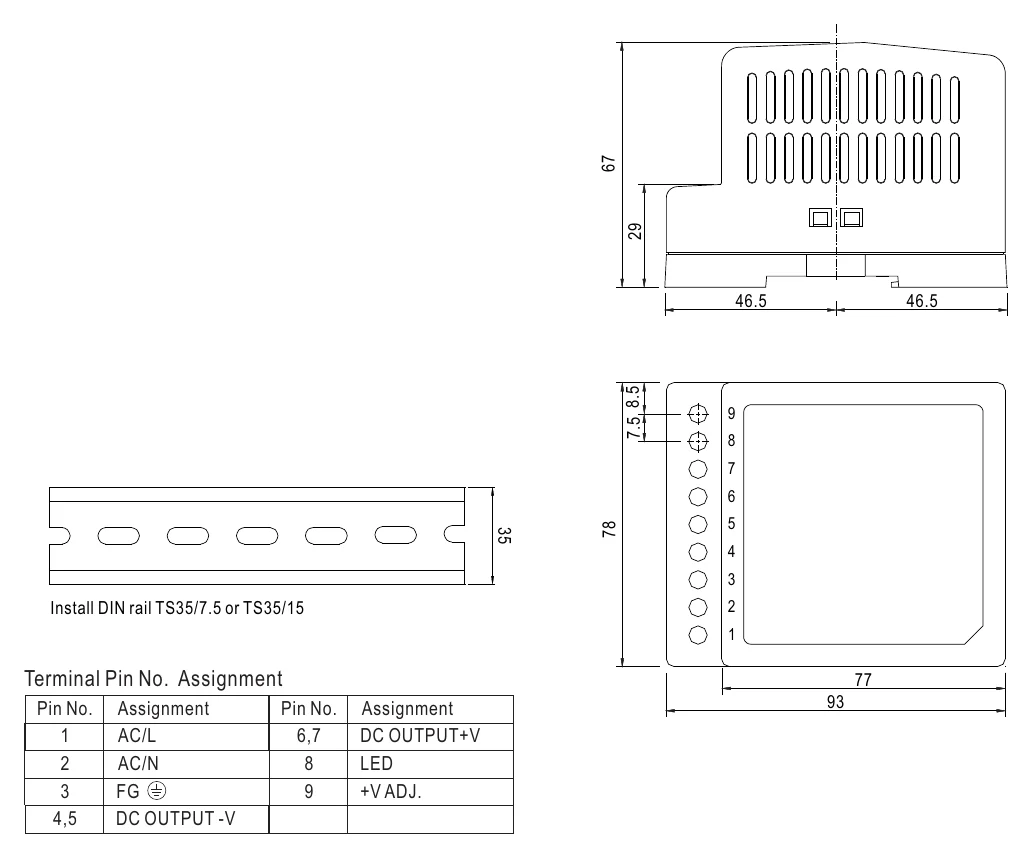

DR-4505 Mechanical Specification
Mechanical Specification

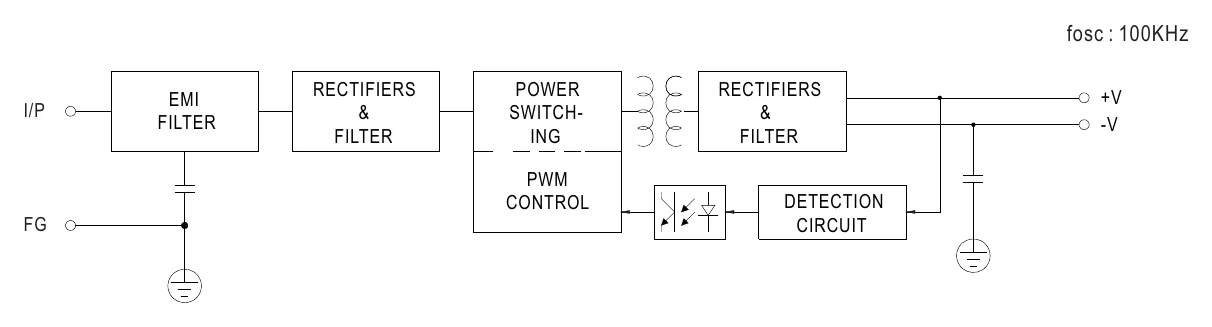

DR-4505 Block Diagram
Block Diagram

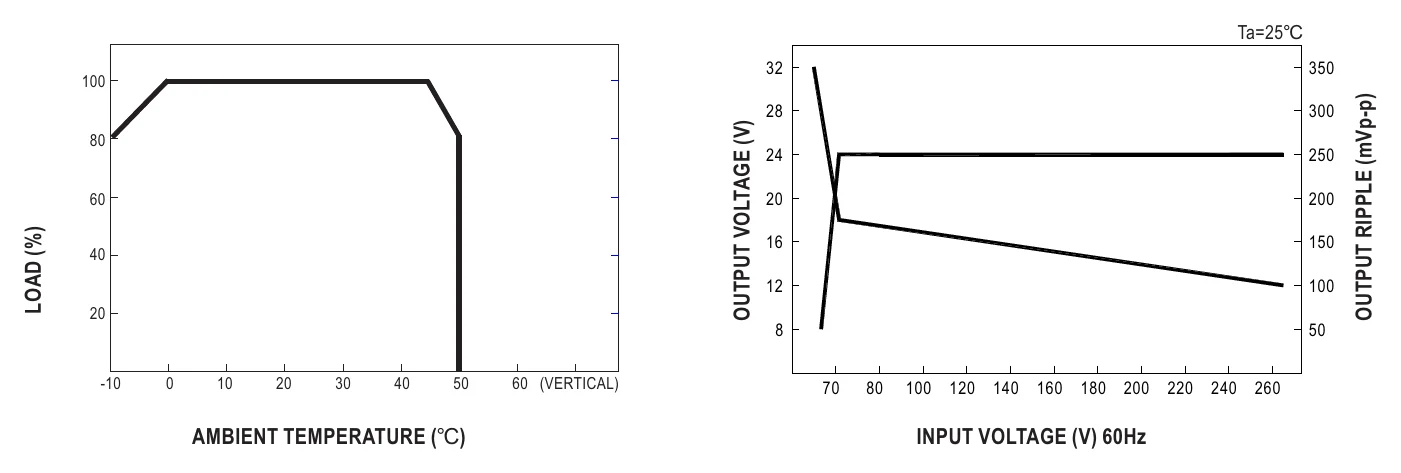

DR-4505 Derating Curve
Derating Curve

Downloads

FAQ

Can I use the DR-4505 in a PLC or industrial automation control panel that needs 5V DC?

Yes. The DR-4505 provides 5V DC at up to 5A with 25W rated output, which fits 5V loads inside industrial automation or PLC control panels when the total load stays within those ratings. Its DIN rail form factor and 93 × 78 × 67 mm size also suit cabinet-based installations.

Is the DR-4505 suitable for 5V devices inside a building management control cabinet?

It can be used where the control cabinet requires a 5V DC supply up to 5A. The 25W rating makes it appropriate for low-voltage building management electronics that are specified for 5V operation. Buyers should match the cabinet load to the unit's 5V, 5A, and 25W limits.

Can this 5V DIN rail power supply be used for compact control enclosures with limited space?

Yes. The DR-4505 is a DIN rail power supply with a relatively compact body at 93 × 78 × 67 mm and a weight of 0.31 kg. That makes it practical for compact control enclosures where a DIN rail-mounted supply is preferred over a larger chassis-style unit.

Is the DR-4505 intended for use inside an enclosure or control cabinet?

Yes, that is the typical fit for this type of DIN rail power supply. The provided specs show a DIN rail format and an operating temperature range of -10°C to +50°C, which aligns with indoor control cabinet or enclosure use. The listed data does not indicate an outdoor or washdown-rated housing.

How does the DR-4505 compare with the other 45W DR series models?

Within the DR-45 series, DR-4505 is rated 25W at 5V and 5A, DR-4512 is 42W at 12V and 3.5A, DR-4515 is 42W at 15V and 2.8A, and DR-4524 is 48W at 24V and 2A. The main difference is the output voltage and corresponding output current and power. Buyers usually choose among them based on the DC bus voltage their equipment requires.
